How Many Volts Should a 100 Watt Solar Panel Produce?
How Many Volts Should a 100 Watt Solar Panel Produce?
A 100 watt solar panel should typically produce around 18–22 volts during normal operation, while its open circuit voltage is usually around 21–24 volts. The exact voltage depends on the solar cell design, temperature, sunlight intensity, and electrical load connected to the panel.
Many customers asking how many volts should a 100 watt solar panel produce expect one fixed number, but solar panels do not operate at a single voltage all day.
At Bright Solar, we test flexible solar panels under different outdoor conditions before shipment. During these tests, we often see voltage changes within minutes when clouds move across the sky or when the panel temperature rises. This is normal photovoltaic behavior, not a product problem.
Understanding voltage is important because a 100W panel is not defined only by wattage. The relationship between voltage and current determines how much usable energy the panel can actually deliver.
How Does A 100 Watt Solar Panel Produce Voltage?
Understanding Voltage Output From A 100W Solar Panel
A solar panel produces voltage through photovoltaic cells connected together inside the module.
A typical 100 watt solar panel contains multiple silicon solar cells arranged in series. Each individual silicon cell generates approximately 0.5–0.6 volts under normal sunlight conditions.
By connecting cells together, manufacturers increase the total panel voltage.
The basic electrical relationship is:
Power (Watts) = Voltage (Volts) × Current (Amps)
For example:
A 100W solar panel may operate around:
| Parameter | Typical Value |
|---|---|
| Rated Power | 100 Watts |
| Operating Voltage (Vmp) | 18–20 Volts |
| Open Circuit Voltage (Voc) | 21–24 Volts |
| Operating Current (Imp) | 5–6 Amps |
This means a panel producing approximately 18 volts and 5.5 amps can generate:
18V × 5.5A ≈ 100W
The voltage is not randomly selected. It is designed to match common solar controllers, batteries, and electrical systems.
What Voltage Should A 100 Watt Solar Panel Read?
Normal Voltage Ranges Under Different Conditions
When measuring a 100W solar panel with a multimeter, the reading depends on whether the panel is connected to a load.
There are two important measurements:
1. Open Circuit Voltage (Voc)
Open circuit voltage is the maximum voltage a solar panel can produce when nothing is connected.
For many 100W 12V-class solar panels:
Voc: approximately 21–24 volts
This does not mean the panel is producing maximum power. It only shows the highest voltage potential.
2. Operating Voltage (Vmp)
Operating voltage is measured when the panel is connected and producing usable electricity.
Typical range:
Vmp: approximately 17–20 volts
This is the voltage point where the panel reaches its maximum power output.
At Bright Solar production facilities, voltage testing is performed under controlled conditions before products leave the factory. We measure parameters including:
- Open circuit voltage
- Maximum power voltage
- Short circuit current
- Maximum power current
These values help confirm that each solar module performs according to its specifications.
The National Renewable Energy Laboratory (NREL) Photovoltaic Performance Research explains that photovoltaic module output changes depending on irradiance, temperature, and operating conditions.
What A 100W Flexible Panel Actually Reads: Bench Data
Most guides answer this question with a range copied from a glass panel datasheet. A flexible 100W module is built differently: fewer, larger half-cut cells in series, a maximum-power point at 20 V instead of 18 V, and a lower current to match. That changes what your meter will show.
Here is the datasheet for the module we build, the BS100-FT-M(E): 100 W, Vmp 20.0 V, Imp 5.00 A, Voc 25.0 V, Isc 5.32 A, 1072 × 532 × 3.1 mm, 1.8 kg. Those are flash-test values at 25 °C and 1,000 W/m². On a roof they move — and the direction they move in surprises people.
| Condition | What the meter shows | Why |
|---|---|---|
| Open circuit, clear noon, 25 °C | 24.0–25.0 V | The flash-test Voc |
| Open circuit, cold morning, 0–5 °C | 26–27 V | Voc rises roughly 0.3% per °C as cells cool |
| Open circuit, heavy overcast | 19–22 V | Cloud cuts current, not voltage |
| Under load at the MPPT | 19–20 V | Vmp at real irradiance |
| Behind a PWM controller | 13.5–14.4 V | The controller pins the panel to battery voltage |
| After sunset | 0 V | No irradiance, no voltage |
The pattern to remember: voltage is roughly constant, current follows the light. A 100 W panel under cloud still reads 21 V — but at 1 A instead of 5 A. That is 21 W, not 100 W. “My panel shows 21 V but charges nothing” is therefore not a fault; it is a cloudy day.
Two readings do mean something is broken: 0 V in full sun (open connector, blown blocking diode, or a fractured busbar), and a reading that collapses the moment you connect a load (a cracked cell string). The full multimeter procedure is in how to test solar panel output.
Our Own 100W Panel: Published Specs vs Bench Numbers
The rule: there is no single ‘100W voltage’ — read the datasheet of the panel in your hand. Our BS100-FT-M(E) 100W flexible panel publishes Voc 25.0 V, Vmp 20.0 V, Imp 5.00 A and Isc 5.32 A. That is above the 21-22 V Voc of a typical glass 100W panel because we run 22.5 percent cells at a higher working voltage to cut cable loss. On our bench, a cool morning reads close to the published Voc and a hot noon reads 17-18 V under load, which matches the reasoning in the sections above. If your panel’s datasheet differs, trust your datasheet first and this article’s method second.
Why A 100 Watt Solar Panel Does Not Always Output The Same Voltage
Factors That Change Solar Panel Voltage Output
A common mistake is assuming that a 100W solar panel will always produce exactly 18V or 20V.
In real installations, voltage changes continuously.
The main factors include:
Sunlight Intensity
Strong direct sunlight allows solar cells to generate higher electrical output.
Morning and evening sunlight usually produce lower output compared with midday conditions.
Temperature
Solar panels actually produce lower voltage when the panel temperature increases.
For example, a panel installed on a hot RV roof in summer may show lower voltage compared with the same panel tested in cooler weather.
This is why professional solar manufacturers test products using standard conditions rather than relying only on laboratory numbers.
Electrical Load
The connected equipment also affects operating voltage.
A panel measured without a load may show higher voltage, while a connected battery or controller changes the operating point.

How Voltage Affects Choosing A Solar Controller For A 100W Panel
Matching Panel Voltage With Battery Systems
A 100W solar panel is often used with 12V battery systems, but the actual panel voltage is higher than the battery voltage.
For example:
A typical setup:
100W Solar Panel → Solar Charge Controller → 12V Battery → Electrical Devices
The charge controller regulates the higher panel voltage and safely charges the battery.
Using the wrong controller can reduce energy efficiency or create compatibility issues.

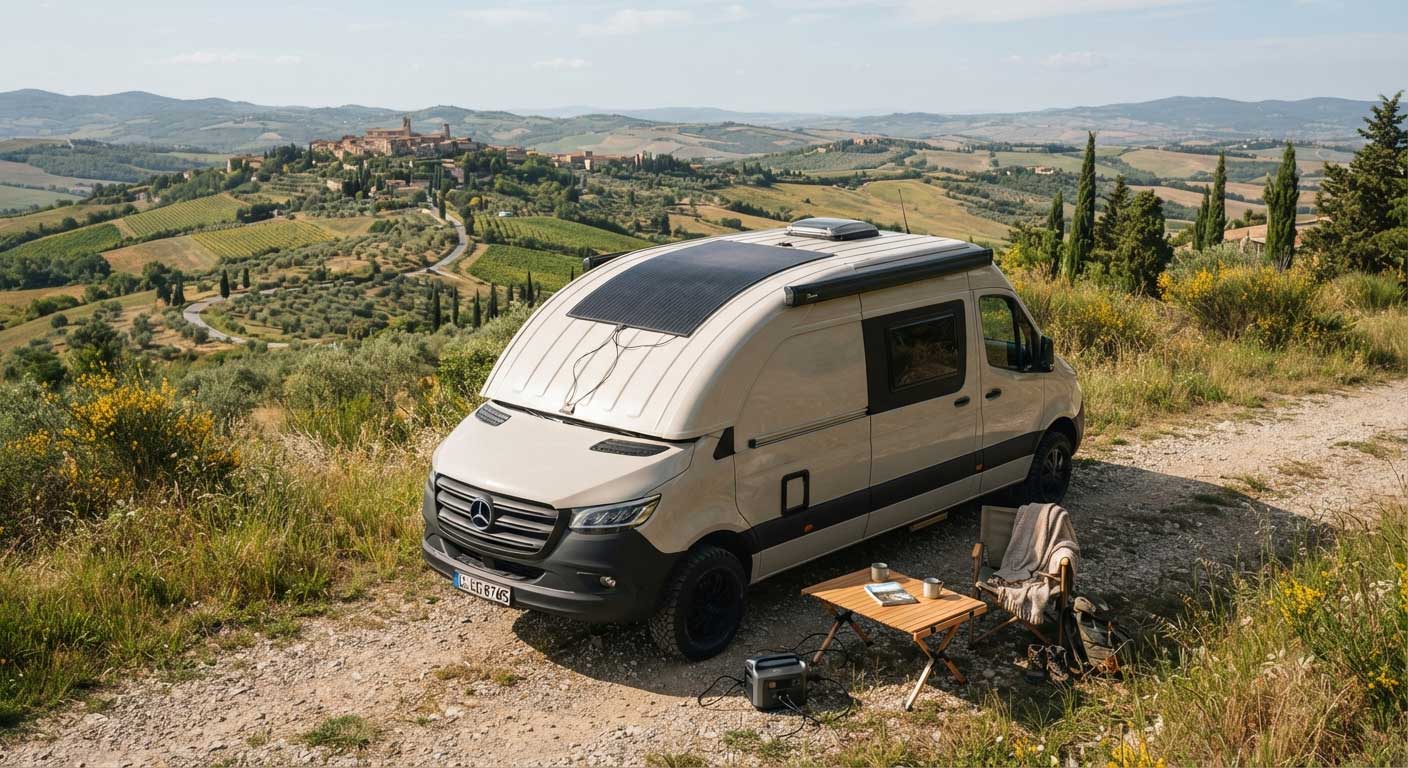

For Bright Solar flexible solar panels used in RV and portable applications, selecting the correct charge controller is especially important because users often install systems themselves.
A properly matched system ensures that the panel’s available voltage is converted efficiently into stored energy.
MPPT Or PWM For A 100W Panel: The Arithmetic
The controller choice changes the answer to “how many volts” more than the panel does. A PWM controller clamps the array to battery voltage, and every volt the panel could have delivered above that is dissipated as heat instead of stored as charge.
Take a 20 V / 5 A module feeding a battery sitting at 13.5 V:
PWM: 5.0 A × 13.5 V = 67.5 W — a third of the nameplate gone.
MPPT: 100 W × 0.96 = 96 W at the battery.
That gap is 28 W, or about 0.15 kWh a day in summer, or 55 kWh a year from one 100 W panel. An MPPT controller costs $15–30 more than a PWM unit of the same rating and pays for itself inside the first season.
| Controller | What it does to a 20 V / 5 A panel | Power at the battery | Typical price | Choose it when |
|---|---|---|---|---|
| PWM 10 A | Pins the panel to 13.5–14.4 V | 67 W | $8–15 | Vmp is 18 V and budget is the only variable |
| MPPT 10 A | Buck-converts 20 V down and adds current | 95–96 W | $25–45 | Default for any flexible 20 V panel |
| MPPT 20 A | Same conversion, more headroom | 95–96 W | $45–75 | You plan to add a second panel |
Size the controller on Isc, not Imp: 5.32 A × 1.25 = 6.7 A, so a 10 A unit has margin. Two panels in parallel double the current to 10.6 A and push you to a 15–20 A controller; wired in series the voltage doubles to 50 V and you have to check the controller’s maximum PV input. The trade-off is set out in series vs parallel wiring.
If you are still deciding between 100 W and 200 W, the current side of that comparison is in how many amps a 100 watt solar panel produces, and the price side in what solar panels cost per watt.
How Many Volts Should a 100 Watt Solar Panel Produce in Real Applications?
100W Solar Panel Voltage and Current Calculation Examples
Understanding how many volts should a 100 watt solar panel produce becomes easier when looking at real electrical calculations.
A solar panel’s wattage is the result of voltage multiplied by current. The panel does not “push out” 100 watts independently. The final power output depends on both electrical values working together.
For example, a typical 100W solar panel may have these specifications:
| Specification | BS100-FT-M(E) datasheet |
|---|---|
| Maximum Power (Pmax) | 100W |
| Maximum Power Voltage (Vmp) | 20.0V |
| Maximum Power Current (Imp) | 5.00A |
| Open Circuit Voltage (Voc) | 25.0V |
| Short Circuit Current (Isc) | 5.32A |
Calculation:
18.5V × 5.4A = 99.9W
This is why a panel operating at 18.5 volts can still produce approximately 100 watts.
In actual outdoor conditions, the output may be lower because solar panels rarely operate under perfect laboratory conditions.
The U.S. Department of Energy Solar Photovoltaic System Basics explains that photovoltaic system performance depends on solar radiation, temperature, module characteristics, and installation conditions.
12V vs 24V Systems: What Voltage Does a 100W Solar Panel Need?
Choosing The Correct Solar System Voltage
A common question from customers is whether a 100W solar panel is a “12V panel” or a “24V panel.”
The answer is more complicated.
A typical “12V solar panel” does not actually produce 12 volts. It usually produces around 18–20 volts because the additional voltage is needed to charge a 12V battery.
For comparison:
| Solar System Type | Typical Panel Operating Voltage |
|---|---|
| 12V battery system | Around 18–20V panel output |
| 24V battery system | Usually requires higher voltage panels or series connection |
| Grid-connected systems | Often use higher voltage module strings |
For small applications such as RVs, boats, and portable power stations, 100W panels are commonly paired with 12V battery systems.
For larger installations, multiple panels are often connected in series to increase system voltage and reduce transmission losses.
At Bright Solar, we see this difference frequently in custom projects. A panel designed for a camper roof may prioritize lightweight installation and compatibility with portable controllers, while a commercial solar array focuses more on voltage optimization and system efficiency.

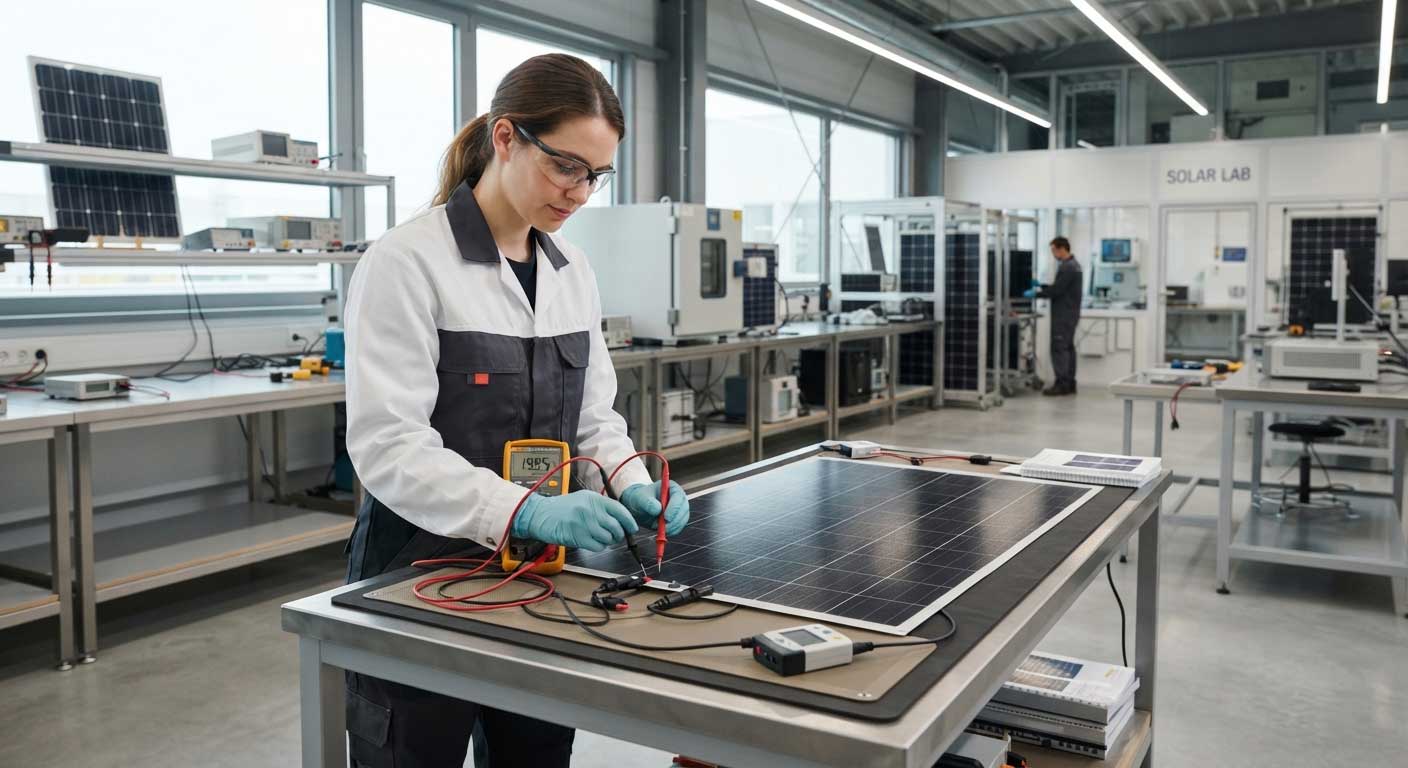

How To Test The Voltage Of A 100 Watt Solar Panel
Measuring Solar Panel Voltage Correctly
A digital multimeter can measure solar panel voltage, but the testing method affects the result.
Follow these steps:
Step 1: Place The Panel Under Direct Sunlight
The panel should face sunlight without shadows covering the cells.
Partial shading can create inaccurate readings.
Step 2: Set The Multimeter To DC Voltage
Solar panels produce direct current (DC), so the meter should be set to the correct DC voltage range.
Step 3: Measure The Open Circuit Voltage
Connect the positive and negative leads directly to the solar panel terminals.
A healthy 100W panel may show:
Approximately 21–24V Voc
Step 4: Test Under Load Conditions
To measure actual working voltage, connect the panel to a charge controller or suitable load.
The reading should normally move closer to:
Approximately 18–20V Vmp
A difference between Voc and Vmp is normal.
Many first-time solar users become concerned when they see a 22V reading from a “12V solar panel.” This is actually expected behavior because the panel must produce enough voltage above the battery level for charging.
Why Your 100W Panel Reads Low: Five Checks In Order
Almost every “low voltage” complaint ends at one of these five checks. Work down the list; each one takes a minute and needs nothing but a multimeter.
- Measure at the panel, not at the controller. A 5 A feed through 10 m of 1.5 mm² cable loses about 0.6 V; through 2.5 mm², about 0.35 V. If the panel end reads 20 V and the controller end reads 19.4 V, the panel is fine and the cable is the story.
- Disconnect the controller and re-read. A PWM controller holds the terminals at battery voltage, so you measure 13.8 V and conclude the panel is dead. Open circuit is the only honest reading.
- Look for shade on a single cell. Bypass diodes isolate a substring, not one cell. A leaf across a corner can cost 30% of the day’s output while the voltage barely moves.
- Check temperature. A panel bonded to a dark roof at 65 °C loses 8–12% of Vmp against the 25 °C figure. Normal, not a fault.
- Feel the connectors under load. A warm MC4 is resistance; a hot one is a fire risk. Replace the pair — do not re-crimp.
| Symptom | Most likely cause | First check |
|---|---|---|
| 0 V in full sun | Open connector or blown bypass diode | Continuity across the MC4 pair |
| 13.5 V with the controller connected | PWM clamping | Disconnect and re-read Voc |
| Voltage collapses under load | Cracked cell string | Compare Voc against Vmp |
| 21 V but no charging current | Shade or a failed bypass diode | Shade-map the panel at noon |
If all five checks pass and the panel still underperforms, the limit is the array rather than the module: a 100 W panel on a 12 V system is a maintenance charger, not a power source. What it realistically runs is covered in the 12 volt solar panel guide.
Real Bright Solar Experience: Why Voltage Testing Matters
Factory Testing Beyond The Wattage Label
At Bright Solar, voltage testing is part of the quality control process before flexible solar panels are shipped.
A wattage label alone cannot show the complete performance of a solar module.
During production inspection, engineers typically verify:
- Voltage output
- Current performance
- Cell consistency
- Surface protection
- Electrical connections
- Environmental durability
This is especially important for flexible solar panels because they are often installed in challenging environments.
Examples include:
- Curved RV roofs
- Marine decks
- Outdoor equipment
- Remote power systems
A panel may have the correct watt rating, but poor installation, overheating, or incorrect system matching can reduce real-world performance.
The best solar solution is not simply the panel with the highest watt number. It is the panel that matches the application.

FAQ About How Many Volts Should a 100 Watt Solar Panel Produce?
How many volts should a 100 watt solar panel produce?
A 100 watt solar panel usually produces around 18–22 volts during normal operation. Its open circuit voltage is commonly around 21–24 volts, depending on the solar cell design, temperature, and sunlight conditions.
Why does my 100W solar panel show more than 12 volts?
A 12V solar panel does not output exactly 12 volts. It normally produces around 18–20 volts because the extra voltage allows a solar charge controller to charge a 12V battery.
Can a 100 watt solar panel charge a 12V battery?
Yes. A 100W solar panel is commonly used with 12V battery systems when connected through a suitable solar charge controller.
What is the open circuit voltage of a 100 watt solar panel?
Most 100W solar panels have an open circuit voltage between 21V and 24V. This is the voltage measured when the panel is not connected to a load.
Why is my solar panel voltage lower than expected?
Low voltage can happen because of weak sunlight, shading, high panel temperature, dirty surfaces, poor connections, or incorrect measurement methods.
Does higher voltage mean a solar panel produces more power?
Not necessarily. Power depends on both voltage and current. A panel with higher voltage but lower current may produce the same wattage as another panel with lower voltage and higher current.
Conclusion: How Many Volts Should a 100 Watt Solar Panel Produce?
How many volts should a 100 watt solar panel produce? A typical 100W solar panel should produce approximately 18–22 volts during normal operation and around 21–24 volts when measured as open circuit voltage.
However, voltage alone does not determine solar performance. The relationship between voltage, current, sunlight conditions, temperature, and system design determines the actual energy output.
From Bright Solar’s testing and application experience, the most reliable solar systems come from understanding the complete electrical picture rather than focusing only on the wattage number printed on the panel.
Whether the panel is installed on an RV, boat, portable power system, or small off-grid project, correct voltage matching ensures better efficiency and longer service life.
