How many amps 200 watt solar panel?
How many amps 200 watt solar panel?
A 200 watt solar panel produces 10 amps at its operating voltage of 20V (200W / 20V). Measured against a 12V battery’s nominal voltage instead, the same 200W works out to 16.7 amps (200W / 12V) — the number most conversion charts quote. In real-world charging, expect 12-14A into a 12V battery through an MPPT controller in full sun, and 7-9A through PWM. Cloud cover, high panel temperature and cable losses each shave 10-30% off those numbers, which is why two panels of the same wattage rarely show the same amps on a meter.
At Bright Solar, I have measured and reviewed different 200W solar modules for RV, marine, and off-grid applications. One common mistake I see is customers looking only at wattage and ignoring amperage. Understanding current output is essential when selecting charge controllers, batteries, and cable sizes.
A 200W panel may look simple on paper, but the real-world current flowing through the system determines charging speed and component compatibility.
For readers searching 200 watt solar panel how many amps, the key is to calculate current using the panel’s operating voltage rather than relying on its rated wattage alone. This helps determine whether the panel is suitable for a particular battery and charging system.
How to calculate amps from a 200 watt solar panel?
The relationship between power, voltage, and current is:
Watts = Volts × Amps
To calculate current:
Amps = Watts ÷ Volts
For a 200W solar panel:
At 18V operating voltage:
200W ÷ 18V = 11.1 amps
At 20V operating voltage:
200W ÷ 20V = 10 amps
Understanding the 200 watt solar panel amp output is important when comparing different module specifications. A panel operating at a lower voltage generally produces more current than a panel delivering the same wattage at a higher voltage.
Typical output:
| Solar Panel Voltage | Approximate Current |
|---|---|
| 18V | 11.1A |
| 20V | 10A |
| 24V | 8.3A |
| 36V | 5.5A |
Most 12V solar panels are designed with a working voltage around 18–20V because they need enough voltage to charge a 12V battery through a charge controller.
According to National Renewable Energy Laboratory (NREL) Solar Research, photovoltaic module electrical output changes with operating conditions, including temperature, irradiance, and system design.
200 Watts to Amps at 12V, 24V and 48V (Conversion Chart)
The conversion is always watts divided by volts — what changes is which voltage you divide by:
| System | Formula | Theoretical max | Realistic charging current |
|---|---|---|---|
| 12V battery | 200 ÷ 12 | 16.7A | 10-13A with MPPT, 8-11A with PWM |
| 24V battery | 200 ÷ 24 | 8.3A | 6-7A with MPPT |
| 48V bank | 200 ÷ 48 | 4.2A | 3-4A with MPPT |
Two 200W panels wired in series on a 24V battery bank still produce 8.3A of panel current, but at double the voltage — which halves cable loss and lets you use thinner wire. That is one reason 24V is the better architecture for 400W and larger arrays. On the 12V row, notice the PWM column sits 30-40% below the MPPT column: a PWM controller simply clamps the panel to battery voltage and throws the difference away, while an MPPT controller converts the surplus voltage into extra charging current.
How Many Volts Does a 200 Watt Solar Panel Produce?
A 200W panel configured for 12V charging has an operating voltage (Vmp) of about 20V and an open-circuit voltage (Voc) of about 25V. Wired for a 24V system — two such panels in series — those figures double to roughly 40V Vmp and 50V Voc. The table below uses the nameplate values of the 200W flexible module in our H Series (BS200-FS-M(E)) as the reference:
| Parameter | 12V configuration | 24V configuration (2 in series) |
|---|---|---|
| Voc (open circuit) | 25.0V | 50.0V |
| Vmp (operating voltage) | 20.0V | 40.0V |
| Imp (current at Vmp) | 10.0A | 10.0A |
| Isc (short circuit) | 12.5A | 12.5A |
Voc is the number that decides charge controller sizing. On a cold morning, Voc rises roughly 10% above the label value, so a single 200W panel can momentarily output 27-28V and a series pair close to 55V — the controller’s maximum PV input voltage must exceed the coldest-case Voc, not the label voltage. This is the most common way a nominally compatible controller gets over-volted in winter.
The 10% cold-morning rise is a property of the cells rather than of the wattage, so it applies one size down as well: a 100W panel that reads 18-22V under load sits at 21-24V open-circuit on the same morning, and new owners routinely read that gap as a fault. The bench readings, the MPPT-versus-PWM arithmetic and the five checks worth running before you blame the panel are in 《How Many Volts Should a 100 Watt Solar Panel Produce?》.

What is the normal amp output of a 200W solar panel?
When evaluating 200 watt solar panel voltage output, compare both Vmp and Voc on the manufacturer’s datasheet. Vmp indicates the voltage at maximum power, while Voc represents the voltage when the panel is not connected to a load.
A typical 200W monocrystalline solar panel produces:
- Maximum current (Imp): approximately 10–11A
- Open circuit voltage (Voc): around 22–24V
- Maximum power voltage (Vmp): around 18–20V

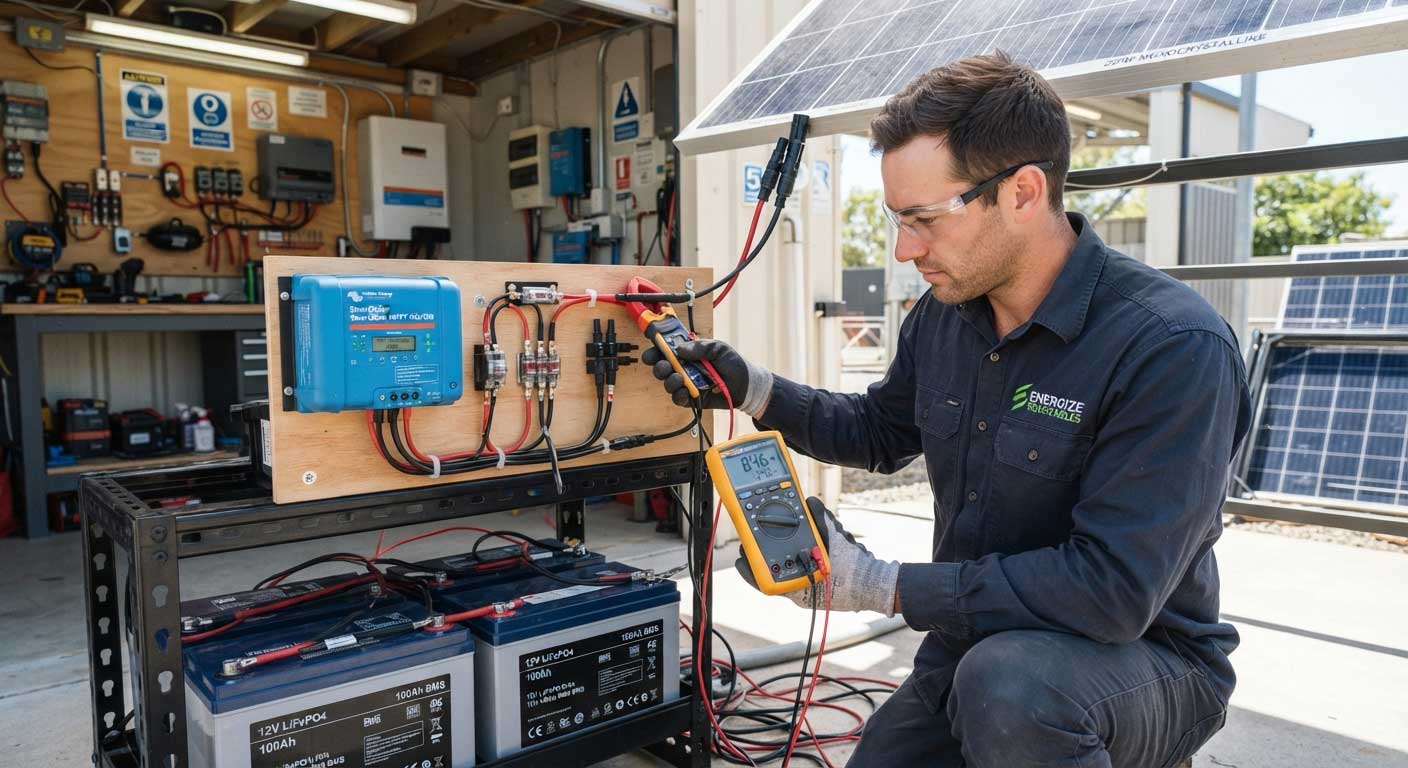

How to Test Your Panel’s Actual Amp Output With a Multimeter
- Set the meter to 10A DC, move the red probe to the 10A jack.
- Connect the meter in series between the panel’s positive lead and the controller’s PV+ input — never across the terminals (that shorts the panel).
- Point the panel at the sun at solar noon; read the amps.
- Compare with the nameplate Imp. Within 85-95% is healthy; below 70% in full sun usually means shading, soiling or a degraded cell string.
- To measure charging current into the battery instead, clamp a DC ammeter around the positive battery lead.

Example specification:
| Parameter | Typical Value |
|---|---|
| Rated Power | 200W |
| Operating Voltage | 18–20V |
| Operating Current | 10–11A |
| Open Circuit Voltage | 22–24V |
The exact values depend on the solar cell technology and manufacturer design.
For example, a high-efficiency monocrystalline panel may maintain better current output under weak sunlight compared with older technologies.
At Bright Solar, when evaluating panels for customers, I usually check the full electrical specification sheet instead of estimating only from wattage. Two 200W panels can have different current ratings depending on their cell arrangement and voltage design.
When checking 200w solar panel amp output, pay particular attention to the maximum power current (Imp) rather than the short-circuit current (Isc). Imp represents the current generated when the panel operates at its maximum power point, making it more useful for estimating normal operating performance.
Two Real 200W Modules: Same 10 A, Two Different Builds
The rule: read the label’s Isc, not the sticker wattage — fuse and cable sizing follow short-circuit current, and on a 200W panel that is 10.60 A, not the 12.5 A that belongs to a 300W module.
| Model | Type | Vmp | Ipm | Voc | Isc | Size | Weight |
|---|---|---|---|---|---|---|---|
| BS200-SR-M(E) | Semi-rigid flexible | 20.0 V | 10.00 A | 25.0 V | 10.60 A | 1134 x 1072 x 5 mm | 4.30 kg |
| BS200-FR-M(E) | Framed flexible | 20 V | 10 A | 25 V | 10.6 A | 1062 x 1040 x 35 mm | 6.5 kg |
Both builds land on 10.00 A at 20.0 V Vmp, which is the honest answer to how many amps a 200W solar panel produces on its own leads. The framed version weighs 2.2 kg more and stands 30 mm taller for the same current, so the semi-rigid sheet wins on van roofs where every millimetre of stack height matters. Compare that with a 300W flexible module — 11.60 A at 28.00 V — and you can see why wattage alone never tells you the amps: the 300W panel carries only 1.6 A more on the leads because its voltage is 8 V higher.
Full electrical and mechanical datasheet for the semi-rigid column above: 《BS200-SR-M(E) 200W Flexible Solar Panel》 – 20.0 V Vmp, 10.00 A Imp, 25.0 V Voc, 10.60 A Isc, 1,134 x 1,072 x 5 mm at 4.30 kg.
How many amps does a 200 watt solar panel produce charging a battery?
The charging current depends on the battery voltage and charge controller type.
For a 12V battery system:
A 200W solar panel:
200W ÷ 12V = approximately 16.6 amps
However, solar charging does not work at exactly battery voltage because the charge controller regulates the output.
With an MPPT controller:
- Input: 18–40V from solar panel
- Output: approximately 14V charging voltage
- Current: up to 13–15A depending on losses
If you are wondering how many amps will a 200 watt solar panel produce, remember that the charging current can differ from the panel’s operating current. An MPPT controller converts excess panel voltage into additional current to match the battery’s charging voltage, subject to conversion losses and available sunlight.our MPPT and inverter line-up
Example:
200W panel efficiency after system losses:
200W × 85% = 170W usable power
170W ÷ 13.5V charging voltage
≈ 12.5A charging current
This is why a 15A–20A MPPT controller is commonly recommended for a single 200W solar panel.
Does a 200W solar panel produce more amps with an MPPT controller?
Yes. An MPPT controller can usually increase charging efficiency compared with a traditional PWM controller.
A PWM controller reduces the panel voltage to battery voltage, which may waste available solar energy.
An MPPT controller:
- Converts excess voltage into additional charging current
- Improves performance during changing sunlight
- Works better with higher-voltage panels
The U.S. Department of Energy Solar Photovoltaic Basics explains that photovoltaic system performance depends on proper system design, including electrical components and operating conditions.
For a 200W solar panel setup:
| Controller Type | Typical Charging Current |
|---|---|
| PWM Controller | 8–12A |
| MPPT Controller | 12–15A+ |
For RVs, boats, and off-grid systems, MPPT controllers are generally the better choice.
The answer to how many amps does a 200w solar panel produce depends partly on the controller’s conversion efficiency and the battery’s charging voltage. Therefore, the same 200W module may deliver different charging currents in different system configurations.
What size charge controller does a 200W solar panel need?
A 200W solar panel usually requires a:
- 15A MPPT controller (minimum)
- 20A MPPT controller (recommended)
Calculation:
Maximum current:
200W ÷ 12V = 16.6A
Adding a safety margin:
16.6A × 1.25 = 20.75A
A 20A–25A controller provides better reliability.
Recommended system:
| Component | Specification |
|---|---|
| Solar Panel | 200W |
| Charge Controller | 20A MPPT |
| Battery | 100Ah lithium battery |
| Cable | Sized according to distance |
Choosing the correct controller prevents overheating and improves long-term system stability.
How many amps does a 200W solar panel produce in real conditions?
Laboratory ratings represent ideal conditions. Outdoor current is usually lower.
Factors affecting amperage:
- Morning and evening sunlight
- Cloud cover
- Panel temperature
- Dust accumulation
- Installation angle
- Shading
For anyone asking how many amps should a 200w solar panel produce, the expected reading should be compared with the panel’s rated Imp and current environmental conditions. A lower reading does not automatically indicate a defective panel, especially during cloudy weather or partial shading.
Typical real-world output:
| Condition | Current Output |
|---|---|
| Strong midday sun | 10–12A |
| Normal sunny day | 7–10A |
| Cloudy conditions | 2–6A |
| Early morning/evening | Below 3A |
Take the same 10.0 A label and put it on a van roof in August. A cell at 65 degrees C loses about 14 percent of its current against the 25 degrees C rating, using the 0.35 to 0.45 percent per degree most mono datasheets publish: 10.0 A becomes roughly 8.6 A at solar noon, and 7.9 A if a vent hatch shades one column. That is not a fault — it is the difference between a datasheet and a roof, and it is why the fuse and cable numbers above are calculated on Isc while the charging estimate uses the derated current.

How many amps does a 200 watt solar panel produce on a 12V system?
A 200W solar panel is commonly used with 12V battery systems in RVs, boats, and small off-grid installations. The charging current depends on the battery voltage after conversion.
The basic calculation:
Current (A) = Power (W) ÷ Voltage (V)
For a 12V system:
200W ÷ 12V = 16.6A
However, this is a theoretical value. The actual charging current is usually lower because of:
- Charge controller conversion losses
- Battery charging stage
- Cable resistance
- Solar intensity changes
A practical example:
A 200W solar panel produces 180W after system losses.
180W ÷ 14V charging voltage = approximately 12.8A
When comparing battery configurations, how many amps is a 200 watt solar panel is not a fixed value. The current changes according to the voltage at which the panel or charge controller delivers power.
Typical charging performance:
| System Condition | Approximate Current |
|---|---|
| Peak sunlight | 12–15A |
| Normal sunny day | 8–12A |
| Partial shade | 3–7A |
| Cloudy weather | 1–5A |
This is why system designers usually size components based on realistic output rather than the maximum label rating.If you came here for the physical size and weight of a 200W panel, we break that down separately.
How many amps does a 200 watt solar panel produce on a 24V system?
A 24V solar system operates at lower current because the same power is delivered at a higher voltage.
The 200 watt solar panel voltage output is an important factor in determining current. A module designed for a higher operating voltage will generally deliver fewer amps at the same power rating, although the overall power remains dependent on actual operating conditions.
Calculation:
200W ÷ 24V = 8.3A
Typical values:
| Battery System | Approximate Current |
|---|---|
| 12V system | 12–16A |
| 24V system | 6–10A |
| 48V system | 4–5A |
Higher voltage systems have an advantage because they reduce current flow, which can help lower cable losses over longer distances.
For larger off-grid systems, many installers prefer 24V or 48V configurations because they are more efficient for higher power requirements.
If you want to know how many volts does a 200 watt solar panel produce, check its Vmp and Voc specifications. A typical 12V nominal module may have a Vmp around 18–20V and an open-circuit voltage around 22–24V, although exact values vary by manufacturer.
Can a 200 watt solar panel charge a 100Ah battery?
Yes, a 200W solar panel is a good match for many 100Ah battery systems.
Example:
A 12V 100Ah lithium battery:
12V × 100Ah = 1200Wh storage capacity
A 200W solar panel producing approximately 800–1000Wh per day can recharge a partially discharged battery within one or two sunny days.
Recommended setup:
| Component | Recommended Size |
|---|---|
| Solar Panel | 200W |
| Battery | 100Ah lithium |
| Controller | 20A MPPT |
| Inverter | 500W pure sine wave |
This combination is commonly used for:
- RV solar systems
- Marine applications
- Camping power
- Emergency backup
- Remote monitoring equipment
At Bright Solar, I often recommend lithium batteries for compact solar systems because their usable capacity and charging efficiency make better use of the energy generated by a 200W panel.
Those 800-1,000 Wh are what the panel actually deposits in the battery, and they are the number worth planning around: 0.8-1.0 kWh a day is roughly 300 kWh a year, before the winter months cut it by half. If the question behind the battery sizing is really how much energy a panel of a given size delivers over a day, a month or a year, that calculation is set out in How Many kWh Does a Solar Panel Produce?
What size cable is needed for a 200 watt solar panel?
Cable size depends on:
- Current
- Cable length
- System voltage
- Acceptable voltage drop
For a typical 200W, 12V solar system:
| Cable Distance | Recommended Cable Size |
|---|---|
| Short distance (under 10 ft) | 10 AWG |
| Medium distance (10–30 ft) | 8 AWG |
| Longer distance | Larger cable may be required |
The numbers below are calculated from the panel’s own 10.00 A working current, not from a rule of thumb. Voltage drop is measured on the round trip (two conductors):
| One-way run | Cable | Loop resistance | Drop at 10.0 A | % of 20 V Vmp |
|---|---|---|---|---|
| 3 m | 12 AWG | 31 mOhm | 0.31 V | 1.6 percent |
| 5 m | 12 AWG | 52 mOhm | 0.52 V | 2.6 percent |
| 5 m | 10 AWG | 33 mOhm | 0.33 V | 1.7 percent |
| 10 m | 10 AWG | 66 mOhm | 0.66 V | 3.3 percent |
| 10 m | 8 AWG | 41 mOhm | 0.41 V | 2.1 percent |
Two component choices follow the same label. The fuse goes on the panel’s positive lead and is rated above Isc times 1.25: 10.60 A x 1.25 = 13.25 A, so a 15 A fuse. The controller is sized on output current, not input: 200 W divided by a 13.5 V charging voltage is about 14.8 A, which is why a 20 A MPPT is the smallest sensible choice for a 200W array and a 30 A unit leaves room for a second panel.
Using cables that are too thin can cause:
- Voltage drop
- Heat buildup
- Reduced charging efficiency
During real installations, cable selection is often overlooked. A high-quality solar panel can lose performance if the wiring between the panel, controller, and battery is undersized.
Can a 200 watt flexible solar panel produce the same amps?
Yes, a flexible 200W solar panel can produce similar current to a rigid 200W solar panel if the electrical specifications are the same.
The question of how many amps does a solar panel produce applies to both rigid and flexible modules. Their current output is primarily determined by rated power, operating voltage, cell characteristics, and actual sunlight conditions rather than whether the panel is flexible or rigid.
Flexible solar panels are often selected for:
- RV curved roofs
- Boats
- Camper vans
- Portable solar systems
- Lightweight installations
The main difference is not the current output but the construction method.
A flexible 200W solar panel may provide:
- Lower installation weight
- Easier mounting
- Better surface adaptability
However, proper ventilation and installation methods are important because excessive heat can reduce solar efficiency.our H Series walkable flexible panels

100W or 200W: Which Panel Size Do You Need?
The amp maths scales linearly, so the choice comes down to daily energy rather than current. At the same 20V operating voltage, a 200W panel delivers 10A where a 100W panel delivers 5A. A 200W panel yields roughly 800-1,000Wh on a good day; a 100W panel about half that — enough for LED lights, phones, a laptop and a small 12V fridge, but not for a running inverter or an all-day compressor fridge. If you are sizing the smaller module, the full worked example — nameplate amps, PWM versus MPPT, cable and fuse sizing — is in how many amps a 100 watt solar panel produces.
Once you move past 200W, the same maths scales differently: a 300W flexible solar panel runs at 11.6 A and 33 V, which changes both the controller rating and the cable size you need.
That 11.6 A holds on the panel’s own leads, but what reaches the battery depends on which bank you wire it to: the same 300W module asks for roughly 25 A at 12V, 12.5 A at 24V and 6.2 A at 48V before controller losses, and on a cold morning the series voltage can climb past a nominally compatible controller’s ceiling. We ran the module through all three system voltages, plus the winter derating and the controller sizing that follows from it, in 《How Many Amps Does a 300W Solar Panel Produce? (12/24/48V)》.
The same three wattages have now been measured back to back on one production line. The physical numbers – footprint, weight, watts per kilogram and working voltage – are laid out in our 100W vs 200W vs 300W flexible panel comparison.
FAQ About how many amps 200 watt solar panel?
How many amps does a 200 watt solar panel produce?
About 10 amps at its operating voltage of 20V (200W / 20V) — the nameplate Imp of a typical 200W flexible module. Measured against a 12V battery’s nominal voltage, 200W equals 16.7 amps, though a real system delivers roughly 12-14A of charging current through MPPT in good sun because of losses in irradiance, temperature and wiring.
How many amps does a 200W solar panel produce at 12 volts?
Divide watts by volts: 200 / 12 = 16.7 amps. That is the theoretical maximum into a 12V nominal load. Through a PWM controller expect 7-9A of charging current; through an MPPT controller 12-14A in peak sun.
How many volts does a 200 watt solar panel produce?
A 200W panel wired for 12V charging has a Vmp around 20V and an open-circuit voltage (Voc) around 25V. Panels wired in series for 24V systems run about 40V Vmp / 50V Voc — and on a cold morning a series pair can momentarily reach 55V.
Can a 200 watt solar panel charge a 100Ah battery?
Yes. At a realistic 12-14A charging current, a 200W panel recharges a 50% discharged 100Ah 12V battery in roughly 4-5 hours of good sun, and can refill it fully on most sunny days.
Does a 200W solar panel always produce 16 amps?
No. 16.7A is the arithmetic result of 200W / 12V. Actual current follows available sunlight: expect 12-14A at solar noon in clear weather through MPPT, 5-8A in morning or overcast conditions, and near zero outside daylight hours.
What size charge controller does a 200W panel need?
A 20A MPPT controller covers a 200W panel on a 12V system (14-15A peak charging current plus headroom). On a 24V system, a 10A MPPT is sufficient. PWM controllers clamp the panel to battery voltage and waste 25-30% of the wattage.
how to connect solar panels to a charge controller?
Connect the battery to the charge controller first, then connect the solar panels to the PV terminals, then connect your loads, and power on — that is the complete order. Memorize this sequence:
- Battery to controller (BATT terminals) — the controller wakes up and reads the system voltage.
- Loads to controller (LOAD terminals), if your model has them.
- Solar panels to controller (PV terminals), tightening the MC4 connectors last.
- Power on and configure the battery type and charging parameters.
- Measure the charging current and confirm the reading.
Why battery first: the controller uses battery voltage as its operating reference. Without it, panel voltage can appear on an unregulated output stage — some PWM controllers are damaged by a panel-first connection. MPPT models tolerate the wrong order better, but the correct order costs nothing and protects every controller type.Learn more about “how to connect solar panels to a charge controller“.
Final Thoughts: How many amps 200 watt solar panel produces
The answer to how many amps 200 watt solar panel depends on voltage, environmental conditions, and system design. A typical 200W solar panel produces around 10–12 amps during normal operation, while an MPPT controller can optimize charging performance.

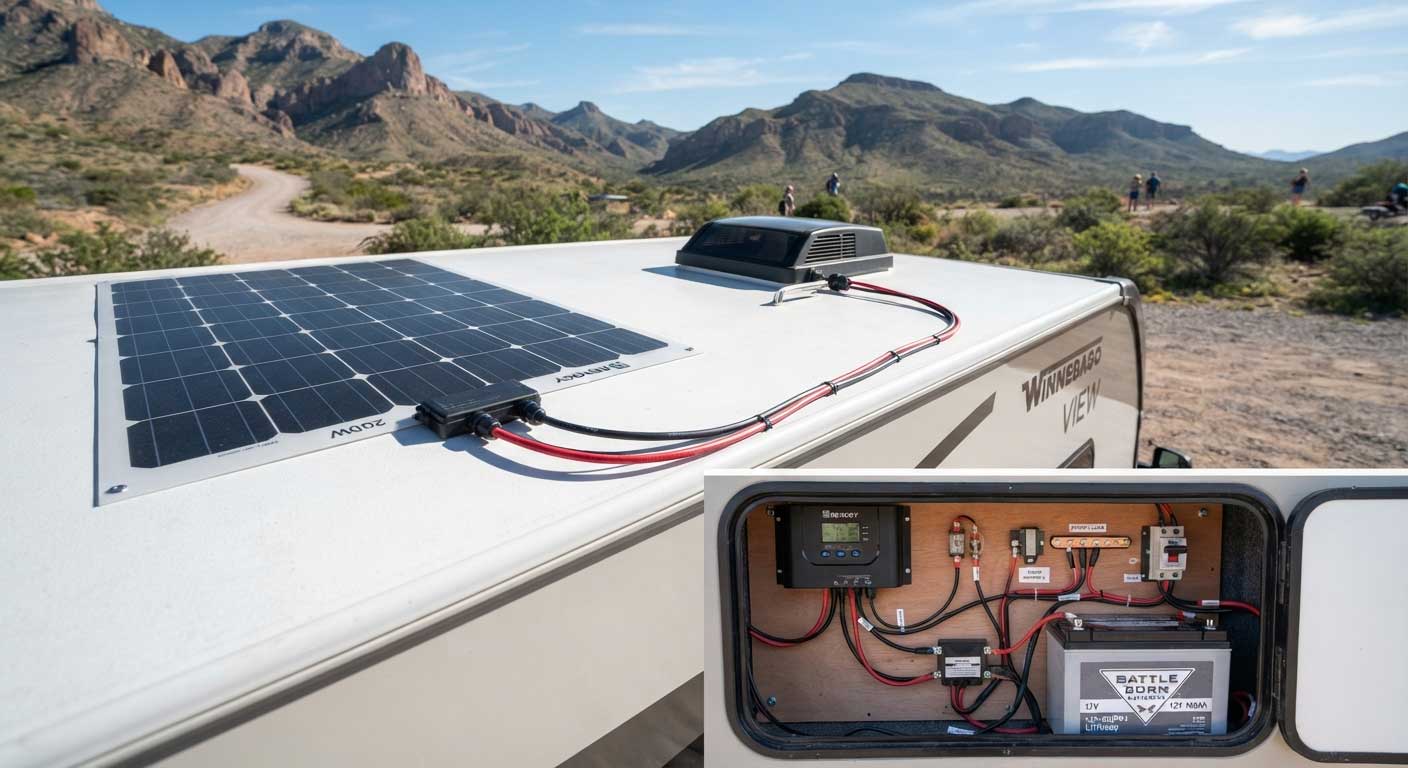

For RVs, marine systems, and small off-grid projects, a 200W solar panel paired with the correct battery, controller, and wiring can provide reliable renewable energy.
At Bright Solar, we believe solar performance is not only about panel wattage. Accurate current calculations help create safer, more efficient, and longer-lasting solar systems.
Related recommendations
-
Is my house good for solar panels?
96Most homes can use solar panels if they have sufficient sunlight, suitable installation space, a structurally sound roof, and compatible electricity needs. R...
View details -
What Direction Should Solar Panels Face?
332Discover what direction should solar panels face for maximum energy output. Learn the best orientation, optimal angle, and installation tips from Bright Solar.
View details -
What can i run on a 100 watt solar panel?
410What can i run on a 100 watt solar panel? Explore real power examples, device compatibility, energy calculations, and practical off-grid uses with Bright Solar.
View details -
How do solar panels work simple explanation?
192Solar panels use photovoltaic cells to convert sunlight into DC electricity, which can be used directly, converted to AC, or stored in batteries.
View details
