Bright solar
NB Series-Advanced Lamination Technology
Sealed Waterproof for Outdoor, ETFE Surface,UV Resistant
Advantage Points

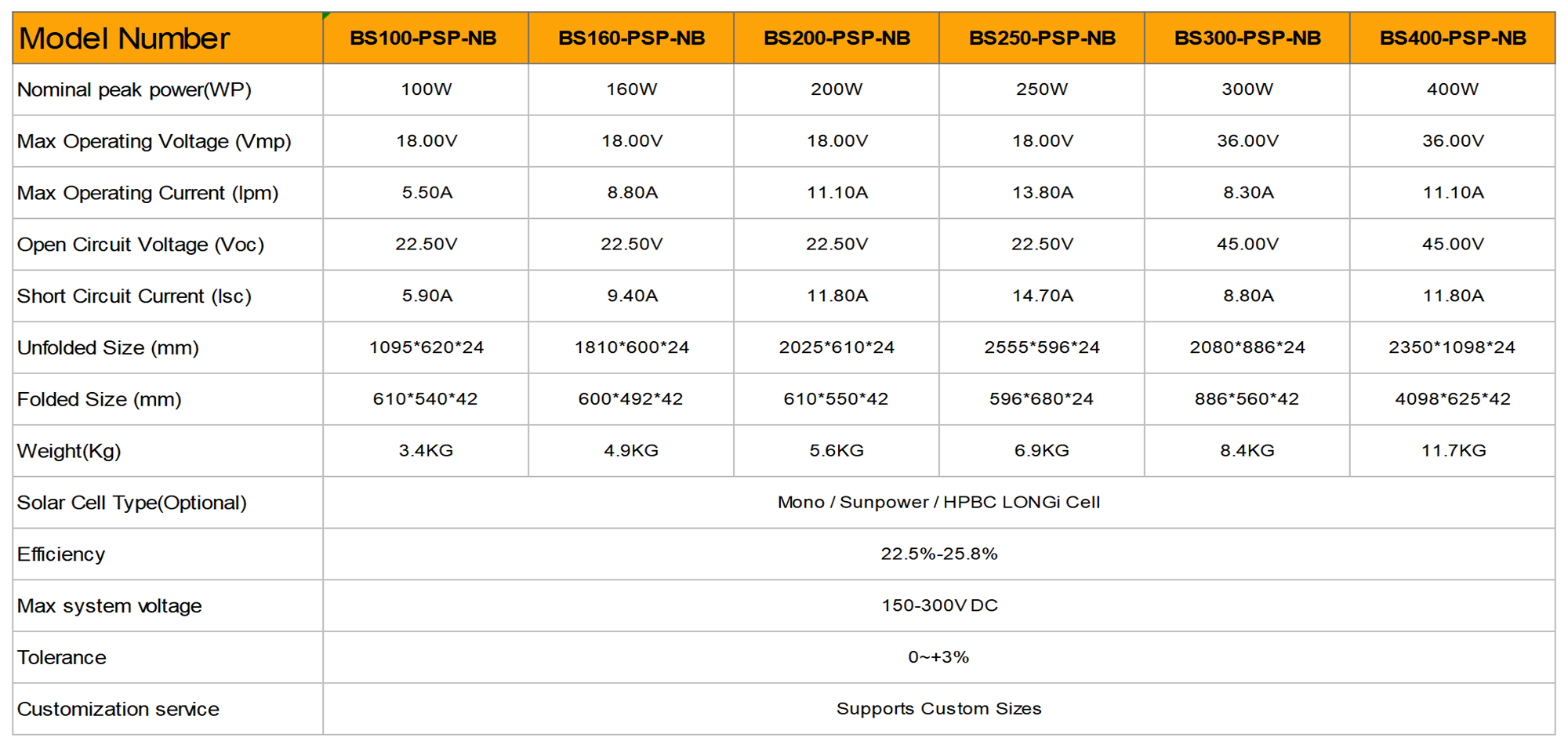

Product Specifications
| Model Number | BS100-PSP-NB | BS160-PSP-NB | BS200-PSP-NB | BS250-PSP-NB | BS300-PSP-NB | BS400-PSP-NB | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal peak power(WP) | 100W | 160W | 200W | 250W | 300W | 400W | ||||
| Max Operating Voltage (Vmp) | 18.00V | 18.00V | 18.00V | 18.00V | 36.00V | 36.00V | ||||
| Max Operating Current (lpm) | 5.55A | 8.80A | 11.10A | 13.80A | 8.30A | 11.10A | ||||
| Open Circuit Voltage (Voc) | 22.50V | 22.50V | 22.50V | 22.50V | 45.00V | 45.00V | ||||
| Short Circuit Current (Isc) | 5.91A | 9.40A | 11.80A | 14.70A | 8.80A | 11.80A | ||||
| Unfolded Size(mm) | 1095*620*24 | 1810*600*24 | 2025*610*24 | 2555*596*24 | 2080*886*24 | 2350*1098*24 | ||||
| Folded Size(mm) | 610*540*42 | 600*492*42 | 610*550*42 | 596*680*24 | 886*560*42 | 1098*625*42 | ||||
| Weight(Kg) | 3.4KG | 4.9KG | 5.6KG | 6.9KG | 8.4KG | 11.7KG | ||||
| Solar Cell Type | Mono / Sunpower / HPBC LONGI Cell | |||||||||
| Efficiency | 22.5%-25.8% | |||||||||
| Max system voltage | 150-300VDC | |||||||||
| Tolerance | 0~+3% | |||||||||
| Accessories(Optional) | 2M Cable+Adapters(XT60 to Anderson, Anderson to XT60, XT60 to MC4, XT60 to GX16,etc.） | |||||||||
| Customization service | Supports Custom Sizes | |||||||||

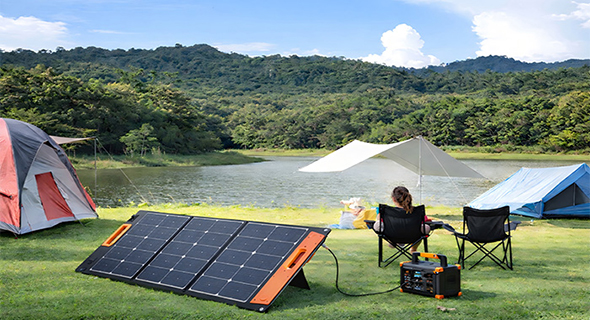

Notebook Solar Panel, Your Best Outdoor Energy

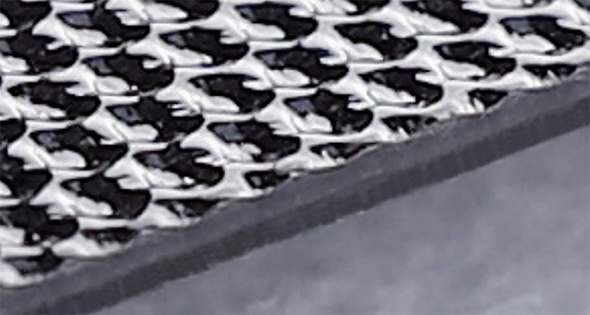

Advanced Lamination Technology

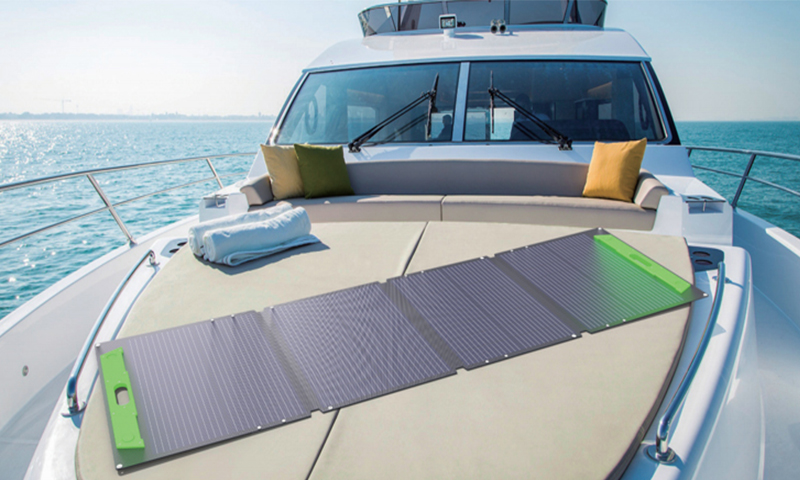

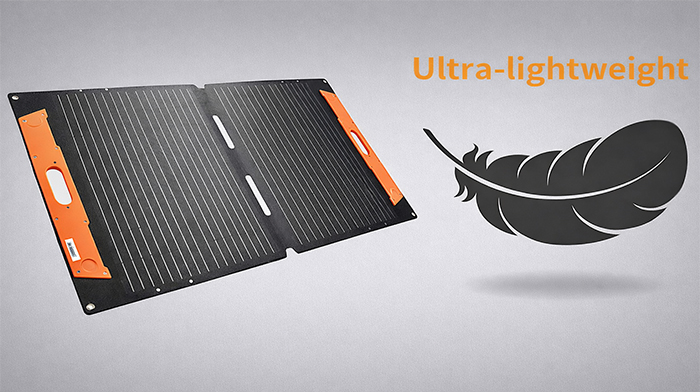

By adopting advanced integrated lamination technology, the panel material and structure are laminated to improve the durability of the panel and the stability of the system. Improved resistance to complex environments and effectively prevented delamination caused by long-term exposure and use. While enhancing the overall mechanical strength of the panel, it maintains a lightweight and portable appearance, making it very suitable for camping, RV, off-grid power stations, and outdoor travel needs.

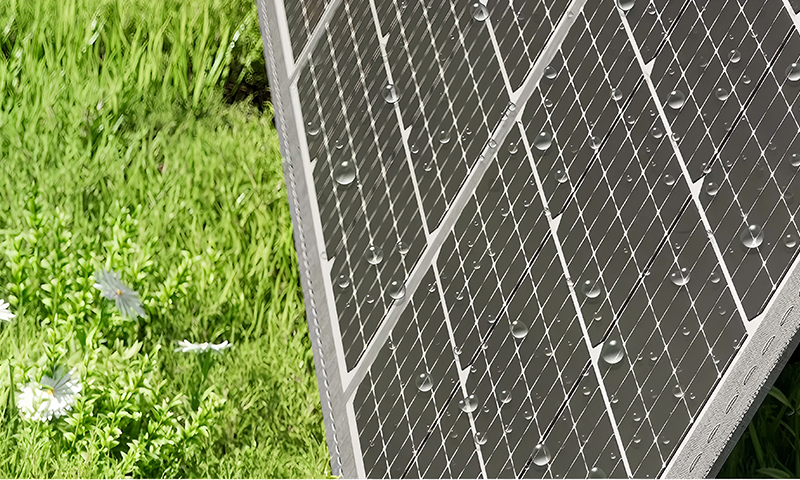

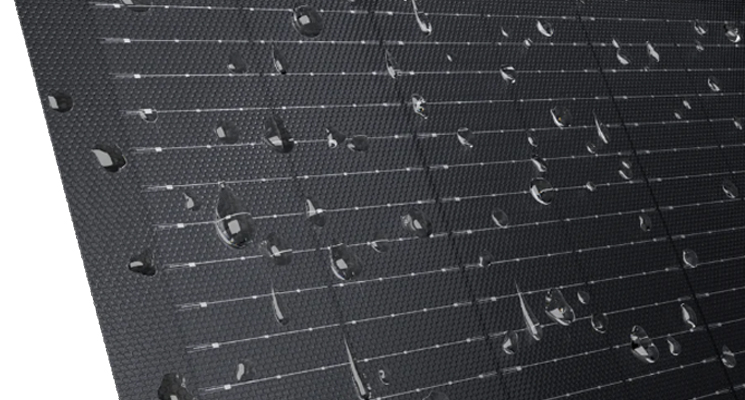

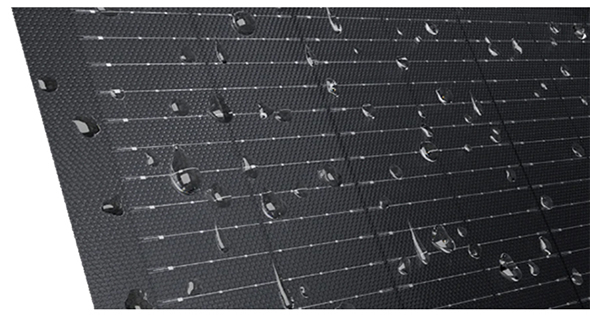

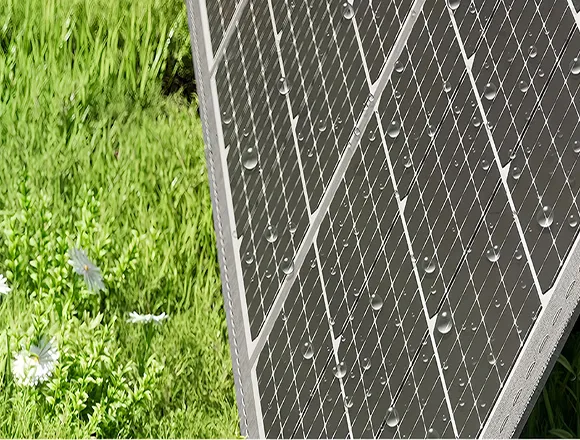

Sealed Waterproof for Outdoor
Specially designed for off-grid application scenarios, the fully sealed waterproof design can achieve a protection level of IP67. Even in rainy, splashing, and humid environments, the panel maintains stable and reliable performance, ensuring efficient output. The internal and external structural sealing design protects the internal components from dust and corrosion, ensuring the stability of the internal system and providing continuous and safe power generation for your camping and outdoor.

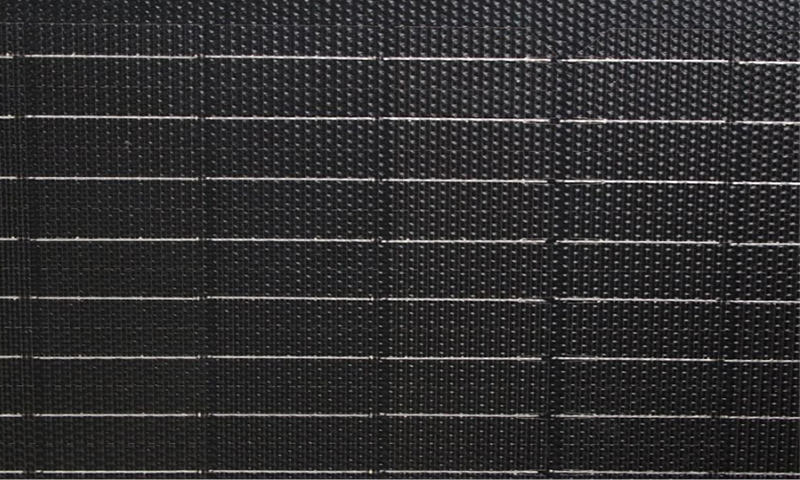

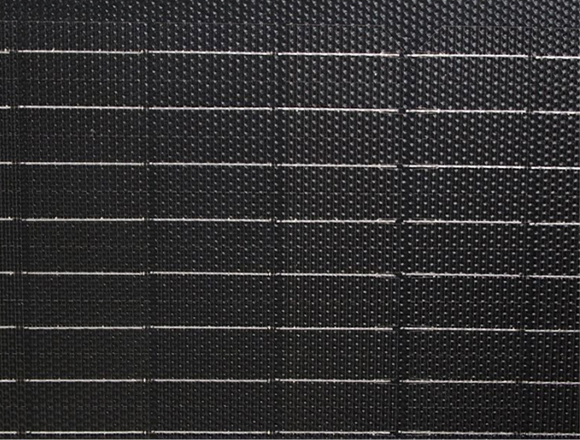

ETFE Surface,UV Resistant
The ETFE surface has excellent UV resistance and transparency, allowing the panel to maintain optimal performance under direct sunlight. ETFE material effectively resists scratches and prevents users from causing scratches due to improper use. Compared to traditional materials, ETFE materials have high durability, effectively preventing corrosion and suppressing panel aging. The simultaneous cleaning feature helps reduce dirt accumulation, minimize shadow coverage, and ensure optimal efficiency conversion.
A+Grade Cell, High Efficiency
Adopting A+grade SunPower/Mono/HBPC battery cells, it has high conversion efficiency, usually between 23.5% -25.8%, allowing the panel to achieve maximum power conversion in limited space. Adopting advanced battery cell layout design technology, optimizing conversion efficiency, and shortening the charging time of batteries and equipment. Whether it's a motor home, camping, backyard home, or other off-grid applications, excellent battery performance ensures you receive continuous and reliable power during use.
What Can Notebook Solar Panels Bring To Your Project ?

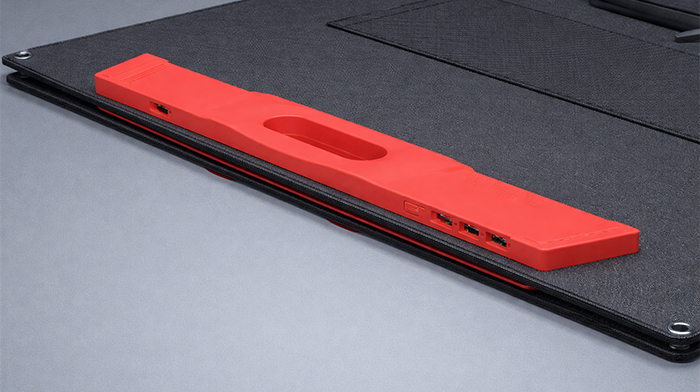

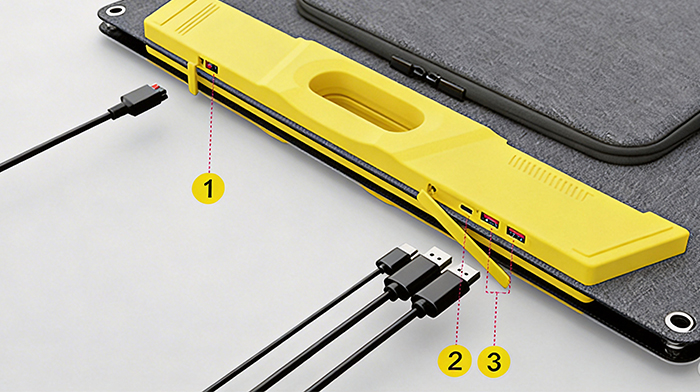

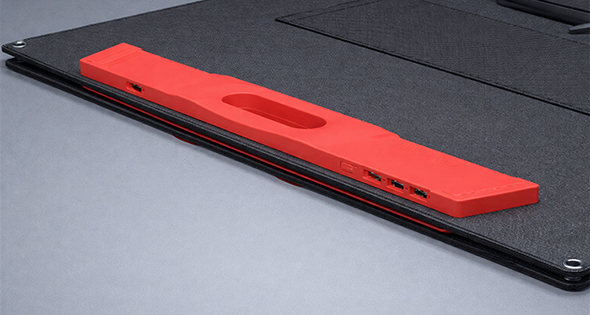

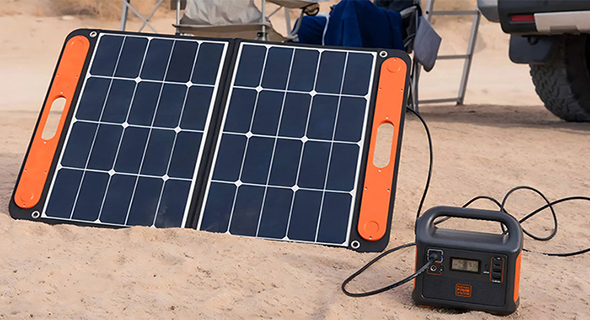

Convenient Storage: Magnetic handle design, easy to carry and move, simple storage and transportation; Plug And Play: Supports multiple port outputs, with Anderson, Type-C+USB output interfaces, providing power support at any time; Device Compatibility: Provides power for users' electronic devices, suitable for off-grid devices such as computers, mobile phones, power banks, RVs, camping equipment, and small household appliances.

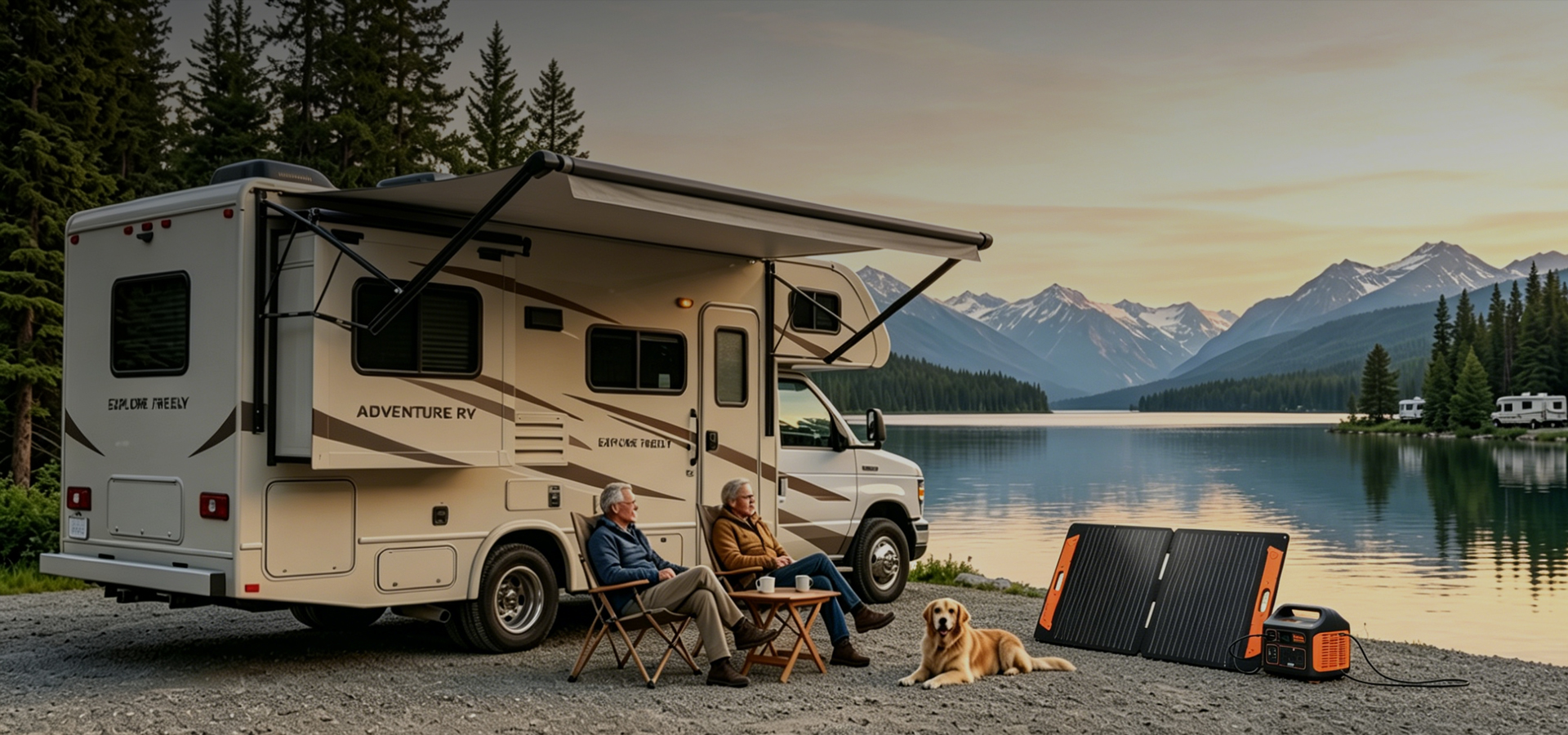

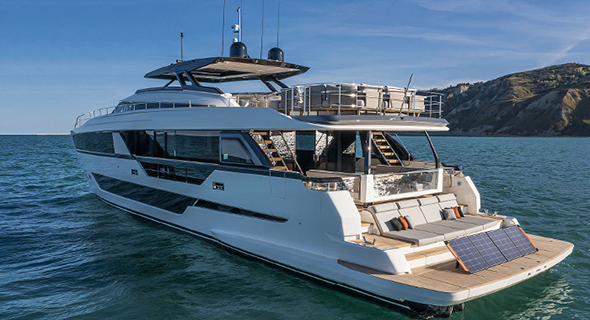

Real-World Applications
