12 Volt Solar Panel: How to Choose the Right System for Reliable Off-Grid Power

A 12 volt solar panel is the most practical solution for charging 12V batteries used in RVs, boats, mobile homes, trailers, and off-grid systems. For most users, matching panel wattage to battery capacity and daily energy consumption matters far more than simply buying the highest-wattage panel available.

I have spent more than a decade working with flexible and lightweight solar modules for recreational vehicles, marine applications, and mobile power systems. During site visits, one pattern repeats itself: system failures rarely come from poor solar panels. They usually come from poor sizing.

A customer buys a 100Ah battery, installs a small 20W panel, and expects refrigerator-level performance. Physics disagrees.

This guide explains what actually works.

Author Experience

Written by Bright Solar Technical Team

Experience includes:

• Flexible solar panel manufacturing
• RV solar integration projects
• Marine solar installations
• Mobile home solar retrofits
• Off-grid battery charging systems

The observations throughout this article come from real customer projects across North America, Australia, and Europe, where 12V battery systems remain the dominant choice for mobile power.

What Is a 12 Volt Solar Panel?

Despite the name, a 12 volt solar panel does not actually produce 12 volts.

Most panels marketed as 12V panels operate at:

Specification	Typical Value
Open Circuit Voltage (Voc)	21V–24V
Maximum Power Voltage (Vmp)	17V–19V
System Voltage	12V Battery
Charge Controller Required	Yes

The higher operating voltage allows current to flow into a charging battery.

Without this voltage difference, charging would stop.

This often surprises first-time buyers.

Why 12V Systems Continue to Dominate

According to the U.S. Energy Information Administration (EIA), solar deployment continues growing across residential and distributed generation sectors.

Source:

https://www.eia.gov/energyexplained/solar

Yet when we step away from rooftop residential installations and enter the world of:

• RVs
• Camper vans
• Boats
• Fishing vessels
• Mobile homes
• Utility trailers
• Remote monitoring equipment

12V remains the industry standard.

The reason is simple.

Most supporting equipment is designed around 12V:

• Lighting
• Water pumps
• Ventilation systems
• Portable refrigerators
• Communication equipment
• Security devices

Replacing everything with higher-voltage alternatives rarely makes economic sense.

How Much Power Can a 12 Volt Solar Panel Produce?

This depends on panel wattage.

Daily Energy Production Estimates

Assuming 5 peak sun hours per day:

Panel Size	Daily Output
50W	250Wh
100W	500Wh
200W	1,000Wh
300W	1,500Wh
400W	2,000Wh

Real-world production varies.

Cloud cover, temperature, shading, dust accumulation, cable losses, and controller efficiency all influence final output.

In field installations, we generally see:

• 75%–90% of theoretical output
• Lower production in winter
• Higher production in desert climates

Choosing the Correct Panel Size

One of the biggest mistakes is selecting panel size based solely on battery capacity.

Instead, start with daily energy consumption.

Example 1: Weekend Camper

Equipment:

• LED lights: 30Wh
• Phone charging: 20Wh
• Roof fan: 80Wh

Daily demand:

130Wh

Recommended solar panel:

50W–100W

Example 2: RV Traveler

Equipment:

• Refrigerator
• Lighting
• Water pump
• Laptop charging
• Internet router

Daily demand:

700–1,200Wh

Recommended solar:

200W–400W

Example 3: Mobile Home Backup

Equipment:

• Lights
• Ventilation
• Electronics
• Battery reserve

Daily demand:

1,500–2,500Wh

Recommended solar:

400W–800W

Flexible vs Rigid 12 Volt Solar Panels

This discussion comes up almost every week.

Traditional Rigid Panels

Advantages:

• Lower cost per watt
• Excellent ventilation
• Long service life

Disadvantages:

• Heavier
• Require mounting brackets
• Wind resistance concerns

Flexible Solar Panels

Advantages:

• Lightweight
• Low-profile installation
• Better aesthetics
• Easier transportation

Disadvantages:

• Surface preparation becomes critical
• Heat management requires attention

For mobile applications, flexible designs have become increasingly popular.

Especially on:

• Mobile homes
• Camper vans
• Boats
• Curved roofs

The weight difference alone often changes the installation approach completely.

A conventional 200W rigid setup may exceed 30 lbs (13.6 kg) once mounting hardware is included.

Equivalent flexible systems can weigh significantly less.

Battery Matching Guide

Recommended Solar Panel Sizes

Battery Capacity	Recommended Solar
35Ah	30W–50W
50Ah	50W–100W
100Ah	100W–200W
200Ah	200W–400W
300Ah	300W–600W

A useful design principle:

Solar charging current should generally equal approximately 10–20% of battery capacity.

For example:

100Ah battery

Ideal charging range:

10A–20A

At charging voltage around 14V:

140W–280W solar capacity

This is why many RV owners settle on 200W panels for a single 100Ah battery bank.

What We Learned from a Mobile Home Installation

Last year, a customer in Arizona contacted our engineering team.

The mobile home already had:

• 2 × 100Ah batteries
• LED lighting
• Roof vent
• Internet equipment

Initial system:

• 100W solar panel

Problem:

Battery state of charge consistently dropped below 60%.

After energy monitoring, we discovered actual consumption averaged 850Wh daily.

The original panel produced roughly:

100W × 5 hours = 500Wh/day

Energy deficit:

Approximately 350Wh daily.

The solution was not replacing batteries.

It was increasing generation.

After upgrading to:

• 300W flexible solar array
• MPPT charge controller

Battery recovery improved dramatically and generator runtime dropped substantially.

This type of mismatch appears far more frequently than defective equipment.

Solar Performance Facts Most Buyers Ignore

According to the U.S. Department of Energy:

Solar panel output decreases as temperature rises.

Source:

https://www.energy.gov/eere/solar

Many people assume hotter weather equals higher solar production.

The opposite is often true.

During summer testing:

• Ambient temperature: 38°C
• Panel surface temperature: above 70°C

Output losses became measurable despite excellent sunlight conditions.

This is one reason professional system sizing includes performance margins.

Long-Tail Keyword Section – Best 12 Volt Solar Panel for RV

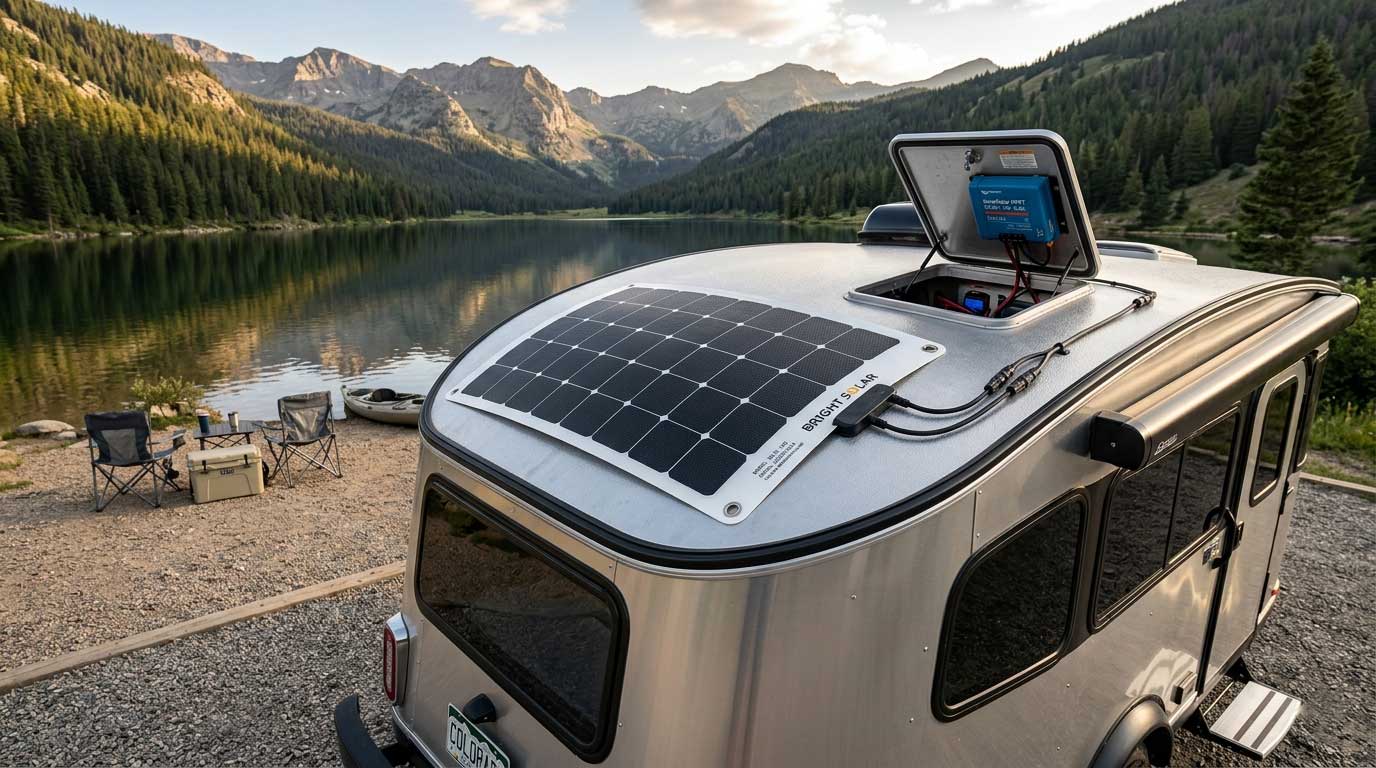

What RV Owners Actually Need

After hundreds of customer consultations, three priorities appear repeatedly:

1. Lightweight construction
2. Reliable battery charging
3. Minimal roof penetration

This explains growing demand for:

• flexible 12 volt solar panel systems
• RV 12 volt solar panel kits
• lightweight ETFE solar modules

Many RV owners care more about roof weight than maximum efficiency.

Especially when dealing with aging roofs or limited mounting space.

Long-Tail Keyword Section – Flexible 12 Volt Solar Panel for Mobile Homes

Mobile homes create unique challenges.

Unlike permanent residential rooftops, structural load capacity may vary considerably.

In many retrofit projects, reducing roof weight becomes a design objective.

This is where flexible solar technology often provides advantages over conventional framed panels.

How to Install a 12 Volt Solar Panel Correctly

After visiting RV parks, marinas, and mobile home communities across different climates, I have noticed something interesting.

Most solar systems that underperform are not suffering from bad solar panels.

They suffer from installation shortcuts.

Loose MC4 connectors. Undersized cables. Poor roof preparation. Incorrect controller settings.

The solar panel gets blamed for mistakes made somewhere else.

A proper installation follows a predictable sequence.

Step 1 – Determine Daily Power Consumption

Before selecting a panel, list every electrical load.

Example:

Device	Watts	Daily Hours	Daily Energy
LED Lights	15W	4	60Wh
Roof Vent Fan	30W	6	180Wh
Laptop	60W	3	180Wh
Refrigerator	50W Avg	10	500Wh
Phone Charging	15W	2	30Wh

Total:

950Wh/day

This number matters more than battery size.

Many buyers start with the battery.

Professionals start with the load.

Step 2 – Size the Solar Array

Assume:

950Wh daily consumption

Average peak sun hours:

5 hours

Required solar production:

950 ÷ 5 = 190W

Add 20-30% system losses.

Final recommendation:

250W–300W solar capacity.

This small calculation prevents years of frustration.

Step 3 – Select the Correct Charge Controller

The U.S. Department of Energy explains that system design and component matching significantly influence solar performance.

Reference:

https://www.energy.gov/eere/solar

For small systems:

• PWM controllers remain economical.

For larger systems:

• MPPT controllers typically harvest more energy.

Field measurements often show MPPT controllers delivering 15-30% more usable energy under varying weather conditions.

Particularly during:

• cold mornings
• partial cloud cover
• winter seasons

Step 4 – Use Correct Cable Sizes

Voltage drop is frequently ignored.

Yet it quietly steals power every day.

Example:

100W solar panel

Charging current:

Approximately 5.5A

Cable run:

8 meters

Undersized wire can easily waste several percent of production.

Professional installations generally target:

• Less than 3% voltage drop

Not because regulations demand it.

Because energy is difficult to generate and easy to waste.

Wiring Configurations for a 12 Volt Solar Panel System

Single Panel Setup

Typical configuration:

Solar Panel → Charge Controller → Battery → DC Loads

This remains the most common arrangement for:

• RVs
• Fishing boats
• Remote cameras
• Small cabins

Simple systems often prove the most reliable.

Multiple Panel Expansion

As power demand grows, users typically choose:

Parallel Wiring

Benefits:

• Voltage remains constant
• Better shade tolerance
• Easier battery charging

Applications:

• RV roofs
• Mobile homes
• Marine systems

Series Wiring

Benefits:

• Higher voltage
• Reduced cable losses
• Improved MPPT performance

Applications:

• Larger arrays
• Long cable runs

Neither configuration is universally better.

The correct answer depends on:

• controller specifications
• wire length
• shading conditions
• battery voltage

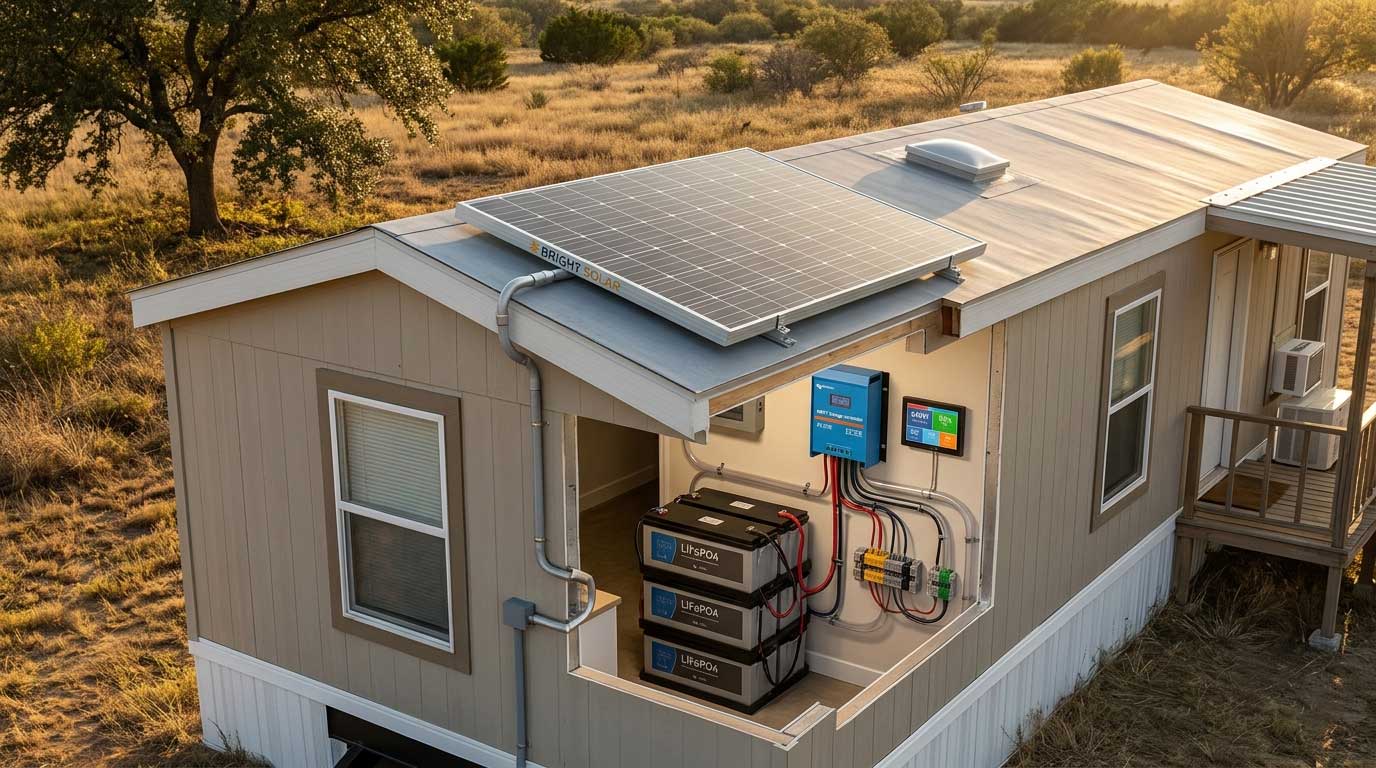

Real Customer Project – Mobile Home Battery Charging Upgrade

A Bright Solar customer in Texas owned a mobile home located on leased rural land.

Grid power was available but unreliable.

Summer thunderstorms regularly caused outages.

The homeowner originally installed:

• One 100W panel
• One 100Ah AGM battery

Expected runtime:

Several days

Actual runtime:

Less than one day.

After monitoring consumption, we identified loads that had been overlooked:

• Internet equipment
• Security cameras
• Small freezer
• Ventilation fan

Combined demand exceeded 1,100Wh daily.

The upgraded design included:

• 400W flexible solar array
• MPPT controller
• 200Ah lithium battery

Three months later the customer reported:

• Zero generator usage
• Stable battery charging
• Reduced energy anxiety

The lesson wasn’t technical.

It was psychological.

People consistently underestimate consumption and overestimate solar production.

How Long Does a 12 Volt Solar Panel Last?

According to the U.S. National Renewable Energy Laboratory (NREL), modern photovoltaic modules commonly retain useful production for decades.

Reference:

https://www.nrel.gov

Typical expectations:

Component	Expected Life
Solar Panel	25-30+ Years
MPPT Controller	10-15 Years
Lithium Battery	10-15 Years
Wiring	20+ Years
Connectors	10-20 Years

The panel is usually the last component to fail.

Controllers and batteries generally require replacement first.

Common Mistakes That Reduce Charging Performance

After reviewing hundreds of support cases, the same issues appear repeatedly.

Installing Panels in Partial Shade

A small shadow can have surprisingly large consequences.

Sources include:

• Air conditioners
• Satellite antennas
• Roof vents
• Tree branches

Solar modules dislike shade.

Even premium modules obey physics.

Ignoring Roof Temperature

During Arizona summer inspections, panel surface temperatures above 70°C (158°F) are not unusual.

Hotter panels generate less power.

Many buyers focus on sunlight.

Few consider heat.

Using Cheap Connectors

Failed connectors often create:

• Power loss
• Heat buildup
• Corrosion issues

The cheapest component in the system frequently causes the most expensive troubleshooting session.

Cost Analysis of a Typical 12 Volt Solar Panel System

Example system:

Component	Cost Range
200W Solar Panels	$180-$450
MPPT Controller	$80-$250
Lithium Battery	$300-$900
Wiring & Hardware	$50-$200
Installation	Variable

Total investment:

Approximately $600-$1,800 depending on battery selection and installation method.

For users replacing generator runtime, fuel savings often become noticeable within the first few years.

FAQ About 12 Volt Solar Panel

Can a 12 volt solar panel charge a 12V battery directly?

Technically possible under certain conditions, but not recommended. A charge controller protects the battery and improves charging efficiency.

What size 12 volt solar panel do I need for a 100Ah battery?

Most applications benefit from 100W-200W of solar capacity. Daily energy consumption should determine final sizing.

Is MPPT worth the extra cost?

For systems above 100W, MPPT controllers often recover enough additional energy to justify the investment.

Can flexible solar panels last as long as rigid panels?

High-quality ETFE flexible modules installed correctly can provide many years of reliable service. Installation quality often matters more than panel type.

Do 12 volt solar panels work in winter?

Yes. Production decreases because of reduced sunlight hours, but cold temperatures can actually improve photovoltaic efficiency.

Why More Mobile Applications Are Switching to Lightweight Solar

One trend has become obvious over the last five years.

Customers increasingly prioritize:

• Lower roof weight
• Easier installation
• Improved appearance
• Reduced wind resistance

This explains why flexible solar technology continues gaining market share in:

• RVs
• Camper vans
• Boats
• Mobile homes
• Utility trailers

For many users, reducing structural stress matters as much as maximizing efficiency.

Conclusion

A 12 volt solar panel remains one of the most versatile energy solutions available for RVs, boats, mobile homes, trailers, and off-grid battery charging. The most successful systems are not necessarily the largest—they are the best matched to actual energy consumption, battery capacity, and installation conditions. When properly designed, a 12 volt solar panel system can deliver reliable power for decades while reducing dependence on generators, fuel costs, and unstable grid connections.
