How do solar panels work simple explanation?

How do solar panels work simple explanation? Solar panels convert sunlight into electricity using photovoltaic (PV) cells. When sunlight reaches these cells, it creates an electrical response that produces direct current (DC). An inverter can then convert that electricity into alternating current (AC) for household appliances, while a battery can store energy for later use.

In simple terms, solar panels capture energy from sunlight and turn it into usable electrical power. The process happens silently, without burning fuel or using moving parts inside the photovoltaic cells.

How Do Solar Panels Work in Simple Terms?

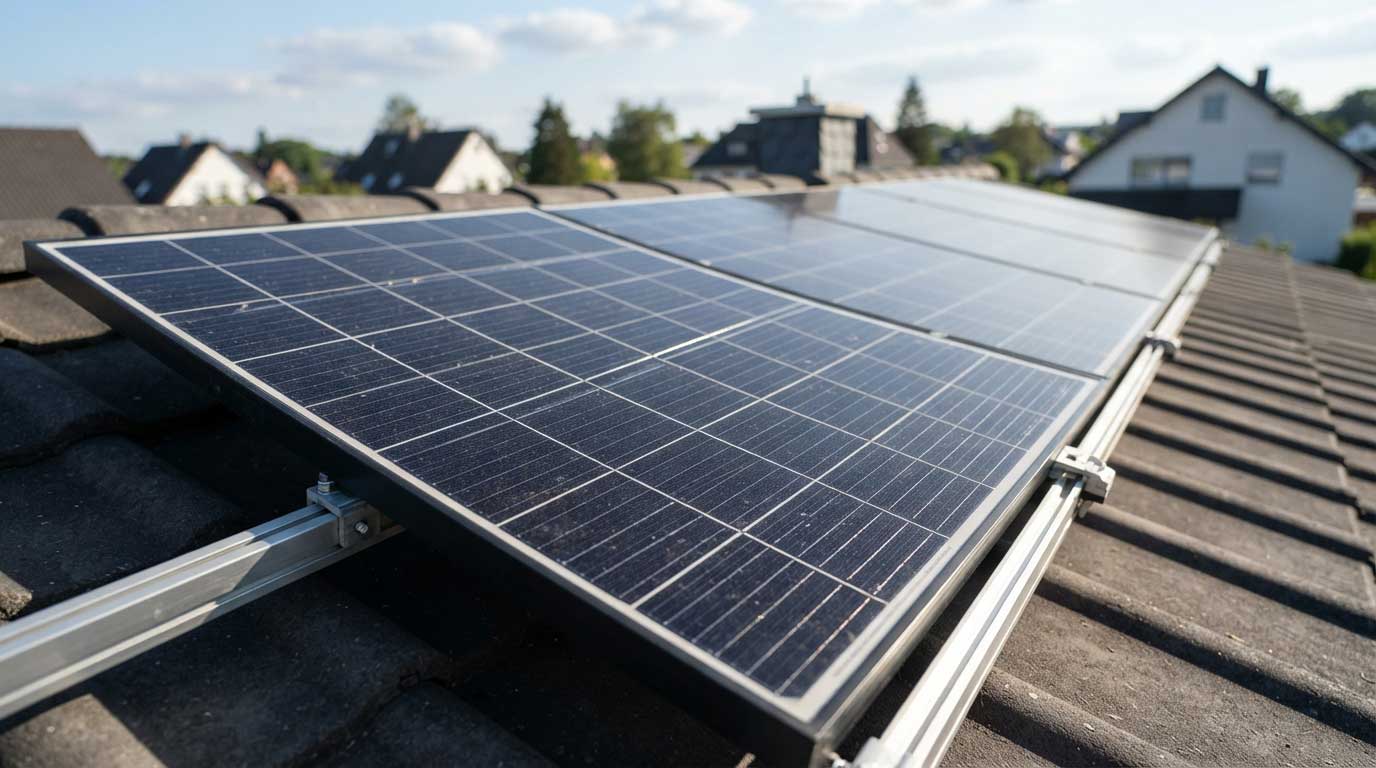

Imagine sunlight landing on the roof of a house. A solar panel absorbs some of that light, and the photovoltaic cells inside respond by generating electricity.

Here is the basic process:

1. Sunlight reaches the panel. Photons in sunlight transfer energy to the photovoltaic cells.
2. The cells generate electrical energy. The interaction between light and the semiconductor material helps release and move electrons, producing an electric current.
3. The panel supplies DC electricity. The current flows through the system’s wiring.
4. An inverter converts the electricity. For typical household appliances, an inverter changes DC into AC electricity.
5. The electricity is used or stored. Power can supply compatible loads, and a battery system can store energy for use when solar production is insufficient.

The U.S. Department of Energy explains that photovoltaic cells convert sunlight directly into electricity. This is different from solar thermal technology, which uses sunlight primarily to produce heat.

What Is the Photovoltaic Effect?

The photovoltaic effect is the process that allows certain materials to generate electrical voltage when exposed to light.

Most conventional solar cells use semiconductor materials, commonly silicon. A cell is designed so that light-generated electrical charges can be separated and collected, allowing current to flow through an external circuit.

You do not need to see anything moving for this to happen. The panel has no engine and does not need to rotate toward the sun unless it is installed as part of a tracking system. In a typical fixed rooftop installation, the cells generate electricity while the panel remains stationary.

What Happens Inside a Solar Panel?

A solar panel contains multiple photovoltaic cells connected together. Each cell contributes to the module’s electrical output.

In a common silicon solar cell, the semiconductor structure creates an electric field. When light is absorbed, it can generate electron-hole pairs. The cell’s internal structure helps separate these charges, and contacts collect them to produce usable current.

The panel’s output depends on the sunlight reaching the cells and their operating conditions. Shade, dirt, temperature, orientation, and electrical configuration can all influence the amount of electricity generated.

DC and AC Electricity Explained

Solar panels normally produce direct current (DC). Most standard household circuits and appliances use alternating current (AC), so a grid-connected solar system typically includes an inverter.

Component	Main function
Solar panel	Converts sunlight into DC electricity.
Inverter	Converts DC electricity into AC when required by the system.
Charge controller	Regulates charging in many battery-based solar systems.
Battery	Stores electrical energy for later use.
Wiring and protection devices	Carry electricity and help protect the system when correctly selected and installed.

Not every solar installation contains all these components. A grid-connected system may not include a battery, while a standalone off-grid system usually needs a way to manage energy storage or match generation to demand.

How Much Electricity Can Solar Panels Produce?

Solar panel output is measured in watts (W), while kilowatt-hours (kWh) measure the energy produced or consumed over time.

A panel rated at 100 W does not produce 100 W continuously throughout the day. Its rated power is measured under specified test conditions. Actual output changes with sunlight intensity, panel temperature, orientation, shading, and other factors.

The U.S. Department of Energy notes that an individual photovoltaic cell typically produces about 1 or 2 watts. Cells are connected into modules to provide greater power, and modules can be connected into arrays to meet different energy requirements.

A Simple Solar Energy Example

Suppose a 100 W panel produces an average of 60 W for five hours. Its energy production over that period would be:

60 W × 5 hours = 300 Wh, or 0.3 kWh.

This is an illustrative calculation, not a prediction for a particular Bright Solar product or installation. Real output must be estimated using the panel’s specifications and the site’s sunlight conditions.

For planning purposes, distinguish between the panel’s rated capacity and the energy your appliances need. A phone charger, refrigerator, lighting system, and air conditioner all have different power and energy demands.

What Affects How Well Solar Panels Work?

Several conditions influence how much electricity a panel produces:

• Sunlight intensity: Stronger sunlight generally provides more energy for conversion.
• Panel temperature: High cell temperatures can reduce the voltage and power of many silicon panels.
• Shading: Trees, buildings, roof vents, and other obstructions can reduce output.
• Panel angle and direction: These affect how much sunlight reaches the module throughout the day.
• Dirt and debris: Dust, leaves, and other deposits can block light.
• System components: Inverters, charge controllers, wiring, and battery arrangements affect how generated electricity is converted, managed, or stored.

A useful site assessment looks beyond a single sunny moment. For an RV, for example, the roof air conditioner may cast a moving shadow across the panels. For a house, a tree that barely shades the roof today may become a more significant obstruction as it grows.

How Do Solar Panels Work in Different Solar Systems?

The photovoltaic process is the same whether panels are installed on a house, RV, boat, or off-grid structure. What changes is how the electricity is used.

Solar system type	How the electricity is used
Grid-connected home	An inverter converts the panel’s DC output into AC electricity for compatible household use and grid interaction.
Off-grid system	Electricity can supply loads directly through suitable equipment or charge batteries for later use.

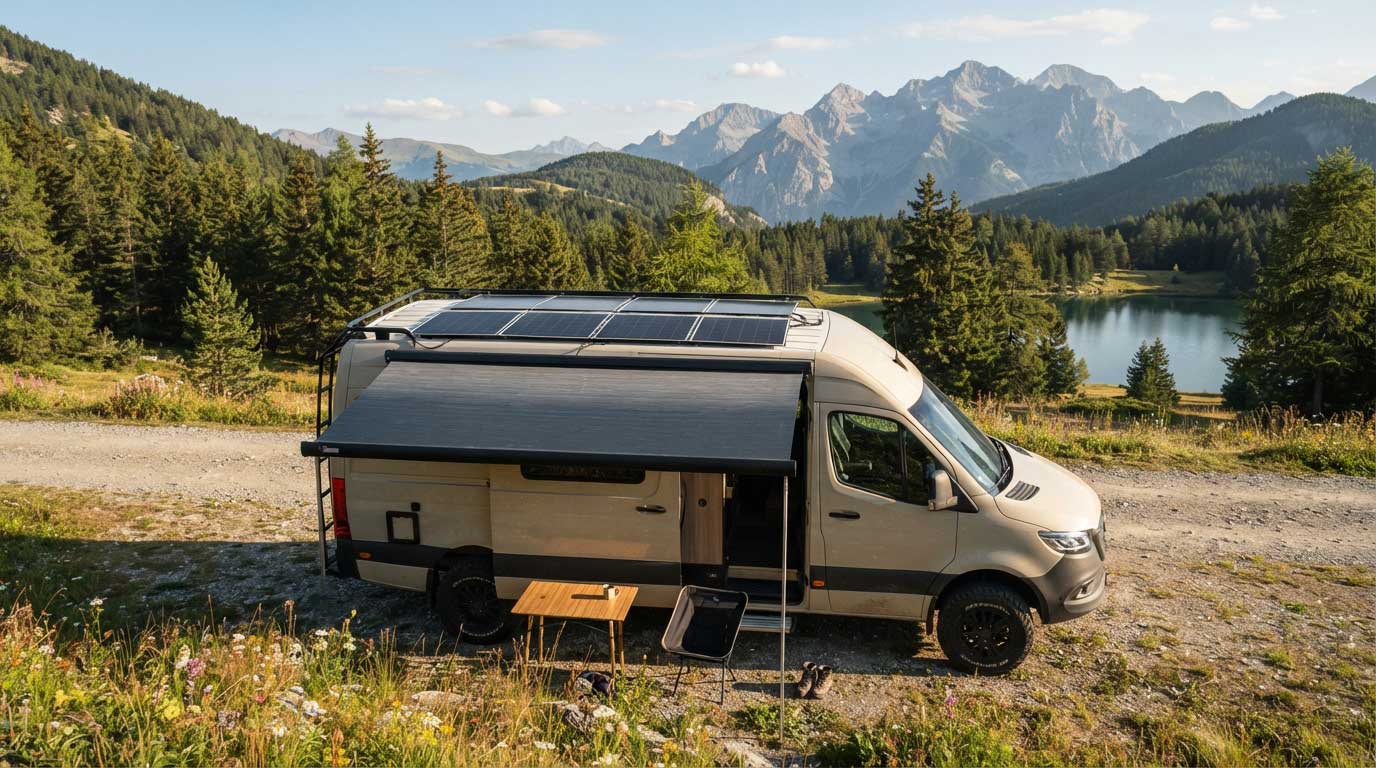

RV solar system	Panels can supply a compatible battery-charging system to support selected onboard electrical loads.
Marine solar system	Panels can contribute power to a properly designed onboard electrical system, subject to marine installation requirements.
Portable solar setup	A portable panel can connect to compatible power equipment, such as a solar generator or charge controller.

Bright Solar manufactures flexible and semi-flexible solar panel options for B2B applications, including RVs, campers, certain marine uses, and off-grid projects. Panel choice should account for the installation surface, required power, electrical compatibility, and environmental conditions. A flexible panel’s shape can make it suitable for particular mounting situations, but it does not change the basic photovoltaic process.

FAQ About How do solar panels work simple explanation?

How do solar panels work in simple words?

Solar panels absorb sunlight with photovoltaic cells. The cells convert light energy into DC electricity, which can then be used by compatible equipment or converted into AC electricity by an inverter.

Do solar panels need direct sunlight to work?

No. Panels can generate electricity from diffuse sunlight on cloudy days. However, direct sunlight generally supports higher production, and heavy shade can significantly reduce output.

Do solar panels work at night?

No. Ordinary photovoltaic panels require light to generate electricity, so they do not produce meaningful solar power at night. A battery can provide stored energy after sunset.

What is the difference between a solar cell and a solar panel?

A solar cell is the individual photovoltaic device that converts sunlight into electricity. A solar panel, also called a module, contains multiple interconnected cells packaged together for practical use.

Do solar panels produce AC or DC electricity?

Solar panels produce DC electricity. An inverter converts DC into AC when required by household appliances or the electrical grid.

Can solar panels work on cloudy days?

Yes. Panels can convert diffuse sunlight into electricity, although output is usually lower than under clear, direct sunlight. The actual production depends on cloud thickness, daylight, and system conditions.

How long do solar panels last?

Lifespan varies by product, construction, environment, and maintenance. The U.S. Department of Energy states that silicon modules are expected to last 25 years or more, while still producing more than 80% of their original power after that time. This is general guidance, not a guarantee for every module.

Conclusion

How do solar panels work simple explanation? They capture sunlight and convert it into DC electricity through photovoltaic cells. An inverter can convert that electricity into AC power, while batteries can store energy for later use.

Understanding the process helps you evaluate solar panels for residential, RV, marine, and off-grid applications. Bright Solar offers flexible solar panels solutions for different B2B installation requirements, with product selection based on the project’s electrical specifications and mounting conditions.
