How big is a 200 watt solar panel?

A 200 watt solar panel is typically about 58–65 inches long and 26–35 inches wide, with a thickness of 1–2 inches. The exact size depends on the solar cell type, frame design, and manufacturer specifications.

At Bright Solar, I have worked with different 200W solar modules for RVs, marine projects, and off-grid applications. One detail I often check during system planning is available installation space. Many customers focus on wattage first but later discover that roof area, mounting position, and panel weight directly affect installation decisions.

A 200W panel is considered a compact solar solution, offering a balance between energy production and physical size.

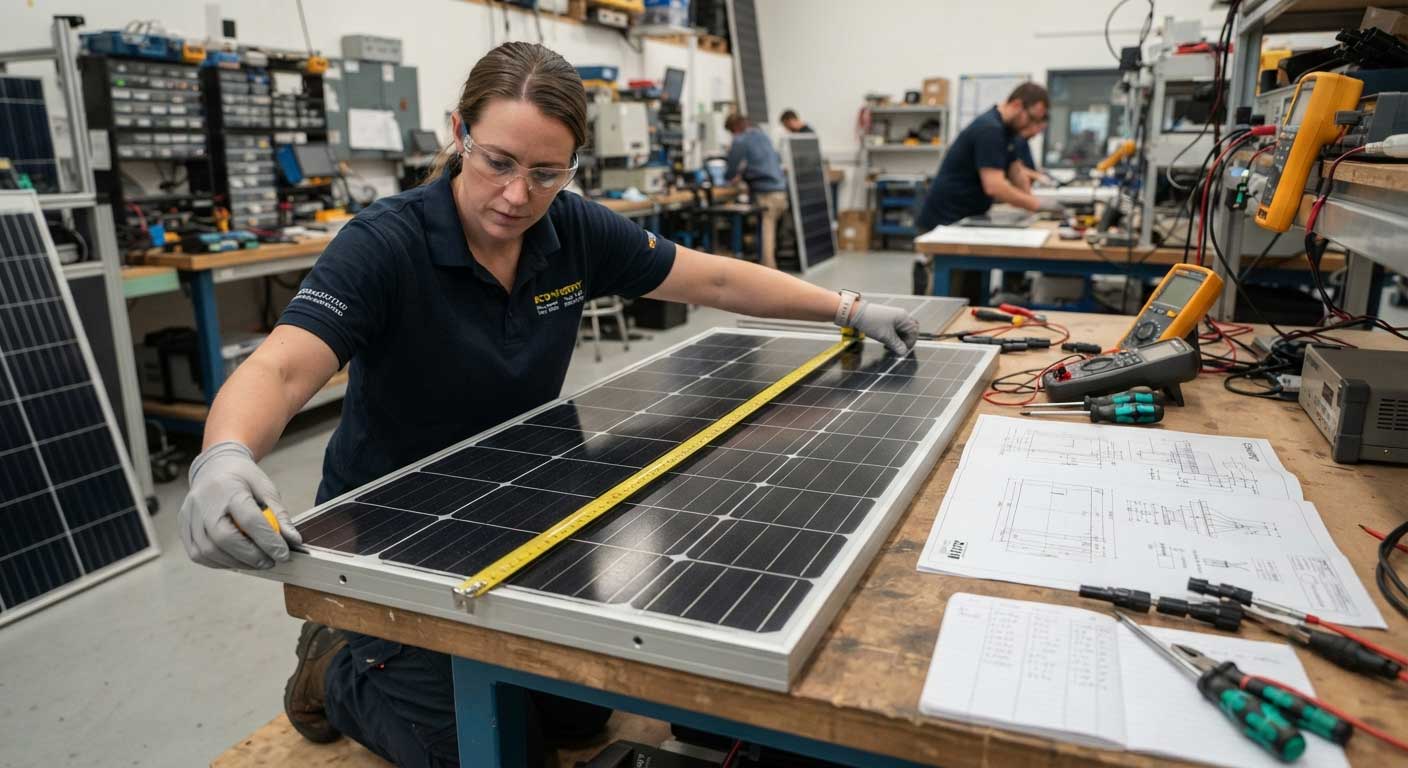

What are the standard dimensions of a 200 watt solar panel?

The physical size of a 200W solar panel varies between manufacturers, but most traditional rigid panels fall within a similar range.

Typical dimensions:

Panel Type	Length	Width	Thickness
Rigid 200W solar panel	58–65 inches	26–35 inches	1–2 inches
Flexible 200W solar panel	55–65 inches	25–32 inches	Less than 0.2 inches
Portable 200W folding panel	25–30 inches folded	20–30 inches folded	1–3 inches

A common 200W monocrystalline solar panel size is approximately:

59 inches × 26 inches × 1.4 inches

or:

1500mm × 670mm × 35mm

The final dimensions depend on:

• Solar cell efficiency
• Number of cells
• Frame material
• Junction box placement
• Mounting structure

According to National Renewable Energy Laboratory (NREL) Photovoltaic Research Program, solar module design varies depending on cell technology and application requirements.

How much space does a 200 watt solar panel need?

A 200W solar panel usually requires around 10–15 square feet of installation area.

Example calculation:

A panel measuring:

60 inches × 30 inches

Converted:

5 feet × 2.5 feet

Installation area:

5 × 2.5 = 12.5 square feet

However, the actual required space may be larger because installers need additional room for:

• Mounting brackets
• Cable routing
• Ventilation
• Maintenance access

For RV installations, I usually recommend measuring the usable roof area first. Roof vents, air conditioners, antennas, and skylights often create more limitations than the solar panel itself.

How heavy is a 200 watt solar panel?

The weight of a 200W solar panel depends on whether it is rigid, flexible, or portable.

Typical weights:

200W Solar Panel Type	Average Weight
Rigid aluminum frame panel	25–35 lbs
Lightweight rigid panel	18–25 lbs
Flexible solar panel	8–15 lbs
Folding portable panel	15–25 lbs

Traditional glass solar panels are heavier because they use:

• Tempered glass protection
• Aluminum frames
• Rigid mounting structures

Flexible solar panels reduce weight by replacing glass with lightweight materials.

For mobile applications such as RVs and boats, weight becomes an important factor. A flexible 200W solar panel can reduce roof load while still providing useful energy production.

Is a 200 watt solar panel too big for an RV?

No, a 200W solar panel is one of the most common sizes for RV solar systems.

It provides a good balance between:

• Available roof space
• Power generation
• Installation weight
• Battery charging capability

Typical RV applications:

RV Equipment	Daily Energy Use
LED lighting	50–100Wh
Phone charging	20–50Wh
WiFi router	100–150Wh
Small fan	100–200Wh
TV	200–400Wh

A 200W solar panel producing 800–1000Wh per day can support many basic RV electrical needs.

In my experience designing compact solar systems, a 200W panel is often the point where users move from “basic charging” into practical off-grid living. It provides enough energy for daily electronics without requiring a large rooftop installation.

What affects the size of a 200 watt solar panel?

Two panels with the same wattage may have different physical dimensions because manufacturers use different technologies.

Important factors include:

Solar Cell Efficiency

Higher-efficiency cells can generate more power in less space.

For example:

• Lower efficiency panel → larger surface area
• Higher efficiency panel → smaller surface area

Cell Configuration

A 200W panel may use:

• 36 solar cells
• 48 solar cells
• Advanced half-cut cell designs

Different layouts affect the final dimensions.

Panel Application

A home solar panel prioritizes durability and output.

A portable or RV solar panel prioritizes:

• Lower weight
• Flexibility
• Compact installation

How big is a flexible 200 watt solar panel?

Flexible 200W solar panels are usually similar in length and width to rigid panels but much thinner and lighter.

Typical flexible 200W panel size:

• Length: 55–65 inches
• Width: 25–32 inches
• Thickness: less than 0.2 inches
• Weight: approximately 8–15 lbs

Flexible panels are designed for surfaces where rigid panels are difficult to install.

Common applications:

• RV curved roofs
• Boats
• Camper vans
• Tiny homes
• Portable solar systems

Bright Solar flexible solar panels are designed for lightweight solar applications where installation space and mobility are important.Visit the product page:Flexible Solar Panels

How much roof space is needed for two 200 watt solar panels?

If you install two 200W solar panels, the total power capacity becomes 400W, but the required installation area also doubles.

Typical space requirement:

Number of Panels	Total Power	Approximate Area Needed
1 × 200W panel	200W	10–15 sq ft
2 × 200W panels	400W	20–30 sq ft
3 × 200W panels	600W	30–45 sq ft

For RV roofs, two 200W panels can usually fit on larger motorhomes, trailers, and camper vans. However, the available roof layout is often affected by:

• Roof vents
• Air conditioning units
• Satellite antennas
• Storage racks

Before installation, I recommend creating a simple roof map. In real projects, a few inches of unused space can determine whether a system fits comfortably or requires a different panel design.

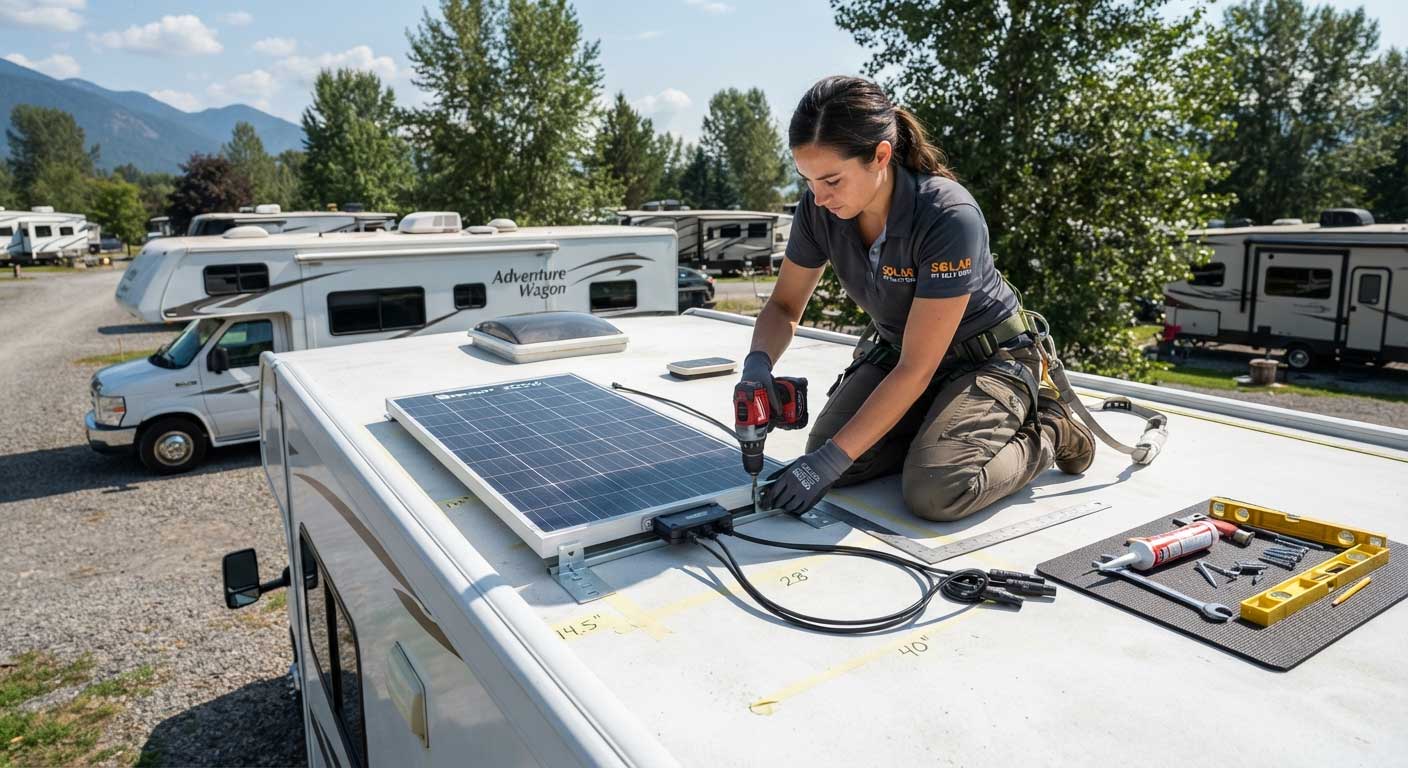

Can a 200 watt solar panel fit on a small RV roof?

Yes, many small RVs can accommodate a 200W solar panel, especially when using lightweight or flexible designs.

Typical small RV roof requirements:

• Available flat area: around 12 square feet or more
• Roof load capacity: suitable for panel weight
• Clear sunlight exposure: minimal shading

Flexible 200W solar panels are especially useful because they:

• Follow curved roof surfaces
• Reduce roof weight
• Require fewer mounting modifications

For compact campers and vans, the physical size of the panel is sometimes more important than the wattage rating. A slightly smaller high-efficiency panel may perform better than a larger panel installed in a shaded area.

What is the difference between rigid and flexible 200 watt solar panel sizes?

Although both panels produce the same rated power, their construction and installation requirements are different.

Feature	Rigid 200W Panel	Flexible 200W Panel
Thickness	1–2 inches	Less than 0.2 inches
Weight	25–35 lbs	8–15 lbs
Installation	Brackets required	Adhesive or lightweight mounting
Best Use	Homes, cabins	RVs, boats, mobile systems
Durability Focus	Glass protection	Lightweight mobility

Rigid panels generally provide stronger mechanical protection, while flexible panels are designed for applications where weight and installation convenience matter.

At Bright Solar, I often see customers choose flexible panels not because they produce more electricity, but because they solve installation problems that traditional panels cannot.

How does a 200 watt solar panel compare with larger solar panels?

A 200W solar panel is considered a medium-sized module for portable and small off-grid systems.

Comparison:

Panel Size	Typical Application
100W	Small electronics, basic charging
200W	RVs, boats, camping, small cabins
400W	Residential backup, larger RV systems
500W+	Home and commercial installations

A 200W panel is easier to install than larger modules because:

• It requires less roof space
• It is easier to transport
• It creates fewer structural challenges

For users who need more power, multiple 200W panels can be connected together instead of installing one very large module.

How do I measure space before installing a 200W solar panel?

Before purchasing a 200W solar panel, measure the installation area carefully.

Follow these steps:

1. Measure available length and width
2. Check for obstacles and shading
3. Confirm mounting space
4. Consider cable routing distance
5. Leave maintenance clearance

A practical example:

Available RV roof:

• Length: 65 inches
• Width: 30 inches

Panel requirement:

• Length: 60 inches
• Width: 26 inches

Result:

The panel fits with enough space for installation.

However, if the roof has vents or curved surfaces, a flexible panel may provide a better solution.

FAQ About how big is a 200 watt solar panel?

What are the dimensions of a 200 watt solar panel?

A typical 200W solar panel is around 58–65 inches long and 26–35 inches wide. Dimensions vary by manufacturer and solar cell design.

How much space does a 200W solar panel need?

Most 200W solar panels require approximately 10–15 square feet of installation area.

How heavy is a 200 watt solar panel?

Rigid 200W panels usually weigh 25–35 pounds, while flexible versions can weigh around 8–15 pounds.

Can a 200W solar panel fit on an RV?

Yes. A 200W solar panel is a popular choice for RVs because it balances power output and installation size.

Is a flexible 200W solar panel smaller than a rigid panel?

The length and width may be similar, but flexible panels are much thinner and lighter.

How many 200W solar panels do I need for 400 watts?

You need two 200W solar panels to create a 400W solar system.

Are all 200W solar panels the same size?

No. Different manufacturers use different cell technologies and designs, resulting in different dimensions.

Final Thoughts: How big is a 200 watt solar panel?

The answer to how big is a 200 watt solar panel depends on the panel design, technology, and application. Most 200W solar panels are approximately 58–65 inches long and 26–35 inches wide, while flexible versions provide similar power in a thinner and lighter format.

For RVs, boats, and off-grid systems, choosing the right physical size is just as important as selecting the correct wattage. A properly sized panel improves installation efficiency and long-term solar performance.

At Bright Solar, we focus on matching solar panel design with real installation conditions. Whether the project requires a rigid module or a lightweight flexible panel, understanding dimensions helps create a more reliable solar solution.
