How Do You Connect Solar Panels?

How do you connect solar panels? Solar panels are connected in series, parallel, or a series-parallel combination, depending on the required voltage and current. Series wiring adds panel voltage while keeping current approximately the same; parallel wiring keeps voltage similar while adding current. The final array must match the inverter, charge controller, wiring, and protection ratings.

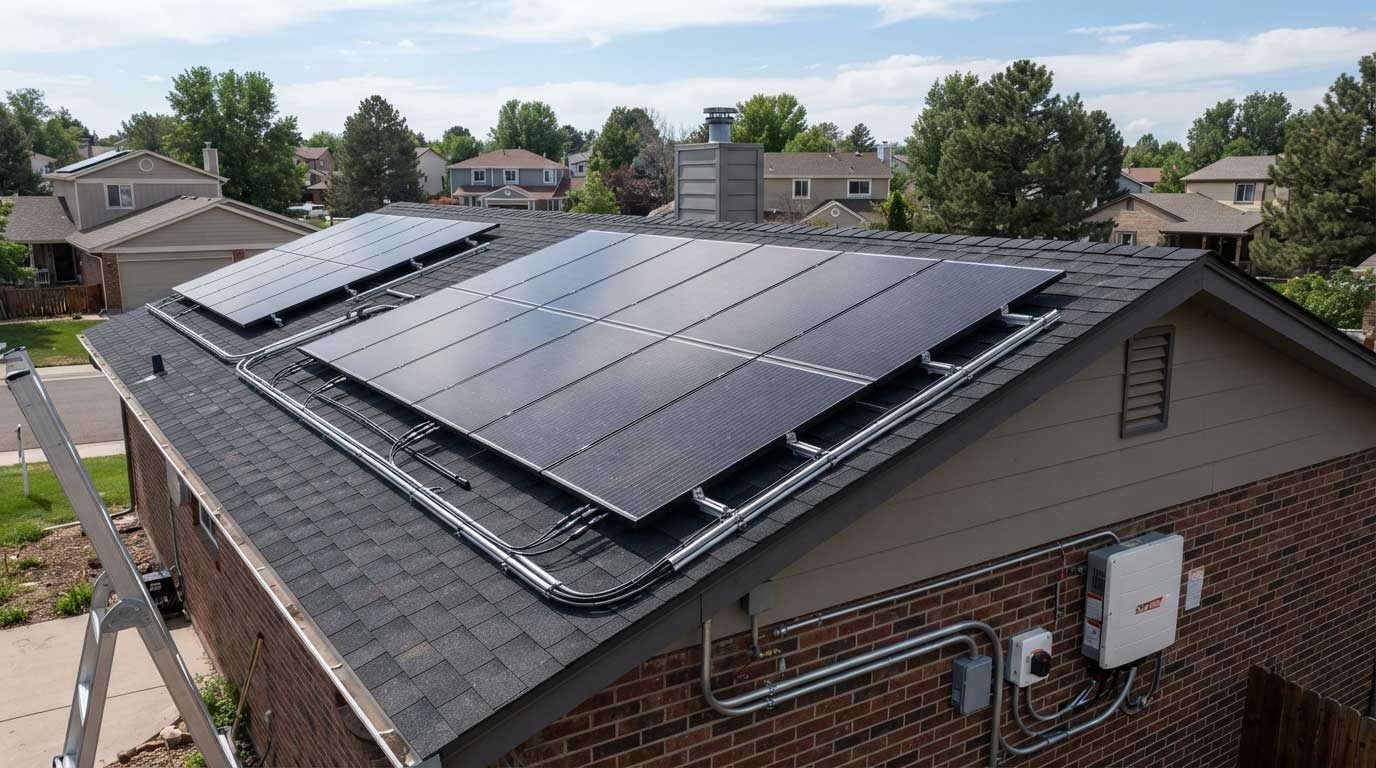

How Do You Connect Solar Panels in Series?

In a series connection, the positive terminal of one panel connects to the negative terminal of the next panel. The remaining positive and negative terminals become the array output.

The basic electrical effect is straightforward:

• Voltage adds
• Current remains approximately the same
• The total voltage increases with each panel added
• The array must stay within the equipment’s maximum input-voltage limit

The U.S. Department of Energy gives a simple example: two 12 V, 3 A modules connected in series produce approximately 24 V at 3 A.

For example, if three identical panels each have a nominal operating voltage of 20 V and current of 5 A, a simplified series calculation would be:

20 V + 20 V + 20 V = 60 V

The current remains approximately 5 A.

This arrangement is often useful when a system needs a higher PV voltage. But the number of panels cannot be chosen from the nominal voltage alone. Voc and temperature coefficient matter.

Victron Energy specifically warns that when determining how many modules can be connected in series, designers should account for the module’s open-circuit voltage and temperature coefficient. Cold temperatures can increase PV voltage.

Series Connection Example

Configuration	Approx. voltage*	Approx. current*
1 × 20 V, 5 A panel	20 V	5 A
2 in series	40 V	5 A
3 in series	60 V	5 A
4 in series	80 V	5 A

*Illustrative values only. Actual design calculations should use the panel’s Vmp, Voc, Imp, Isc, temperature coefficient, and the equipment manufacturer’s limits.

How Do You Connect Solar Panels in Parallel?

Parallel wiring works differently. The positive terminals are connected together, and the negative terminals are connected together.

The result:

• Voltage remains approximately the same
• Current adds
• More current is available from the array
• Cable and protection requirements can become more significant as array current increases

Using the same 20 V, 5 A example, two identical panels in parallel would provide approximately 20 V at 10 A under the simplified calculation.

The U.S. Department of Energy describes the same principle: series connections increase voltage, while parallel connections increase current.

This distinction is easy to remember when standing beside an actual array. Series is about building voltage. Parallel is about building current.

How Do You Connect Multiple Solar Panels Safely?

Connecting panels is not simply a matter of joining every positive connector to every negative connector. The complete PV array has to be electrically compatible with the equipment receiving its output.

Before making the connections, check:

1. Panel Voc and Vmp
2. Panel Isc and Imp
3. Inverter or charge controller maximum PV voltage
4. Maximum PV input current
5. Temperature coefficient of Voc
6. Cable ampacity and connector ratings
7. Overcurrent protection requirements
8. Grounding and disconnect requirements
9. Battery voltage, when a charge controller is used

The Department of Energy notes that PV modules are commonly wired in series and parallel to form arrays and that overcurrent protection is part of PV system design.

There is also a practical issue that gets missed in simple wiring diagrams: connectors are not automatically interchangeable just because they physically fit. Use compatible, approved components and follow the manufacturer’s installation instructions.

For charge-controller systems, the controller’s PV input limits are particularly important. For example, Victron’s documentation specifies both maximum PV voltage and current limits and instructs installers to confirm PV polarity before connecting the array.

Series vs Parallel Solar Panels: Which Connection Should You Use?

There is no universal configuration that fits every solar installation.

Factor	Series	Parallel
Voltage	Increases	Remains approximately similar
Current	Remains approximately similar	Increases
Higher PV voltage	Useful	Not the primary benefit
Higher array current	Not the primary benefit	Useful
Wiring consideration	Maximum voltage	Cable/current capacity
Cold-weather voltage check	Especially important	Still relevant
Typical design purpose	Meet PV voltage requirements	Meet current requirements

For a larger array, designers may use series-parallel wiring. Several modules are connected in series to form strings, and those strings are then connected in parallel.

The DOE describes this type of array architecture, where series-connected modules form strings and multiple strings can be combined.

The exact arrangement should come from the equipment specifications rather than a generic “best wiring” formula.

What About Shading When Connecting Solar Panels?

Shading deserves attention before the cables are installed.

If several modules share a series string, the electrical behavior of that string can be affected when one module is shaded. The U.S. Department of Energy has documented how alternative module-level power electronics can allow modules to operate more independently, illustrating why system architecture matters when shading is present.

Look at the site itself:

• A chimney may shade one row every afternoon.
• An RV air conditioner can create a moving shadow across roof-mounted panels.
• Tree branches can create irregular partial shading.
• A boat mast or rigging can shade panels as the sun moves.

The panel connection should reflect those real conditions rather than an idealized roof diagram.

How Bright Solar Approaches Solar Panel Connections

For Bright Solar B2B projects, panel connection should begin with the electrical requirements of the complete system. Flexible and semi-Flexible Solar Panels may be used on RVs, campers, certain marine applications, outdoor power systems, and off-grid installations, but the physical flexibility of a module does not determine whether it should be wired in series or parallel.

For OEM, ODM, or bulk projects, confirm the actual module specifications before designing the array. The relevant figures include Vmp, Imp, Voc, Isc, module efficiency, connector type, and operating temperature range.

A useful engineering habit is to calculate the array twice: once for normal operating voltage and again for the highest expected open-circuit voltage under cold conditions. That second check can prevent an otherwise avoidable mismatch between the panel string and the controller or inverter.

FAQ About How Do You Connect Solar Panels?

How do you connect solar panels in series?

Connect the positive terminal of one panel to the negative terminal of the next. The remaining positive and negative terminals become the string output. Voltage adds while current remains approximately the same.

How do you connect solar panels in parallel?

Connect positive terminals together and negative terminals together using compatible connectors and wiring. The voltage remains approximately the same while current increases.

Is it better to connect solar panels in series or parallel?

Neither is universally better. The appropriate configuration depends on the required PV voltage, current, inverter or charge-controller limits, cable design, shading conditions, and the panel specifications.

Can I connect different solar panels together?

It may be technically possible, but mixing panels with substantially different electrical characteristics can complicate array performance and design. For a new installation, using compatible modules with known specifications is generally simpler and easier to verify.

How many solar panels can I connect in series?

The number depends on the module’s Voc, temperature coefficient, minimum and maximum temperatures, and the receiving equipment’s maximum PV voltage. Never determine the series count from the panel’s nominal voltage alone.

Can I connect solar panels directly to a battery?

A typical photovoltaic panel should not simply be connected directly to a battery as a general-purpose charging method. A suitable charge controller is normally used to regulate the charging process and match the PV array to the battery system.

Do solar panels need to be connected to an inverter?

Not always. Grid-connected systems commonly use an inverter because household and grid electricity is AC. Some off-grid or portable systems use a charge controller and battery system, while other applications may use DC loads directly.

Conclusion

How do you connect solar panels? Connect them in series when the system needs higher PV voltage, in parallel when it needs higher current, or use a series-parallel arrangement for larger arrays. The final configuration must stay within the electrical limits of the panels, inverter, charge controller, wiring, connectors, and protection equipment.

For Bright Solar projects, the correct connection starts with the actual module datasheet and the intended application—not with a generic wiring diagram.
