How to Connect Solar Panels in Parallel?

How to connect solar panels in parallel? Connect all positive terminals together and all negative terminals together to keep the voltage unchanged while increasing the total current output. This method is commonly used in RV, marine, and off-grid solar systems when higher amperage is needed without increasing system voltage.

Connecting solar panels in parallel is one of the most practical wiring methods for low-voltage solar applications. At Bright Solar, our engineering team has worked with flexible solar panel systems for RVs, boats, trailers, and remote power applications where correct wiring directly affects charging stability and system safety.

According to the U.S. Department of Energy (DOE), photovoltaic modules can be combined into arrays using different wiring configurations to achieve required electrical outputs. In a parallel connection, the voltage remains at the level of one panel while the current from each panel is added together.

For example, if three 12V solar panels each produce 5A, connecting them in parallel creates a 12V solar array with approximately 15A output. The voltage does not become 36V because parallel wiring combines current rather than voltage.

What Happens When Solar Panels Are Connected in Parallel?

A parallel solar panel connection creates a shared electrical pathway:

• Positive (+) terminals connect together
• Negative (-) terminals connect together
• Voltage stays the same as one panel
• Current increases by adding each panel’s output

The basic formula is:

Total Current = Panel 1 Current + Panel 2 Current + Panel 3 Current + …

Total Voltage = Voltage of one solar panel

For instance:

Solar Panel Setup	Voltage	Current	Total Output
1 × 100W panel	20V	5A	100W
2 × 100W panels parallel	20V	10A	200W
3 × 100W panels parallel	20V	15A	300W

This difference is important when designing battery-based systems. A 12V battery bank usually benefits from maintaining a suitable charging voltage while increasing available current.

The USDA Solar PV technical guidance also confirms that when photovoltaic panels are connected in parallel, output voltage remains equal to the individual panel voltage while currents are added together.

How to Wire Solar Panels in Parallel Step by Step

1. Check Solar Panel Compatibility First

Before connecting panels, verify:

• Same rated voltage
• Similar current rating
• Compatible connector type
• Charge controller maximum input current

Using mismatched panels may reduce system performance. In practical installations, Bright Solar engineers recommend matching flexible solar panels with similar electrical characteristics because different voltage ratings can cause uneven current sharing.

For example:

• Good combination:
  • 100W 12V panel + 100W 12V panel
• Less ideal combination:
  • 100W 12V panel + 200W 24V panel

The second setup may not deliver expected output because the operating points are different.

2. Connect Positive Terminals Together

Connect the positive cable from each solar panel into a common positive connection point.

Typical connection methods include:

• MC4 Y branch connectors
• Solar combiner boxes
• Positive bus bars

Example:

Panel A (+)
→
Panel B (+)
→
Charge Controller (+)

All positive wires meet at the same electrical node.

3. Connect Negative Terminals Together

Repeat the same process with the negative terminals.

Example:

Panel A (-)
→
Panel B (-)
→
Charge Controller (-)

After completing both connections, every panel operates at the same voltage level while contributing additional current.

Why Choose Parallel Solar Panel Wiring?

Parallel wiring is especially useful for applications where maintaining system voltage is important.

Common applications include:

RV Solar Systems

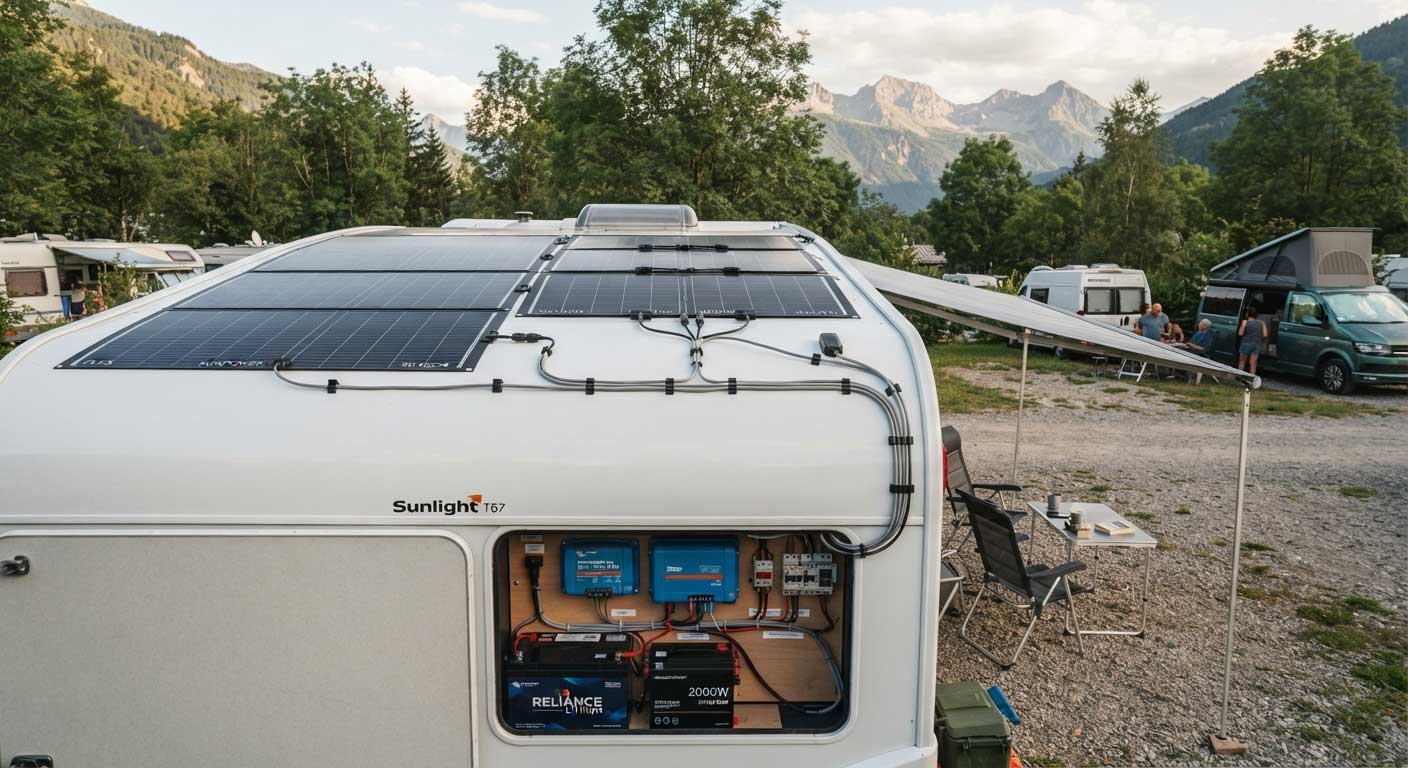

Many RV owners use parallel solar panel connections because they often operate 12V battery systems. Adding more panels increases charging current without requiring a higher-voltage battery system.

Marine Solar Panels

Boats and yachts often have limited roof or deck space. Parallel flexible solar panels allow additional charging capacity while keeping voltage compatible with marine electrical systems.

Off-Grid Solar Systems

Remote cabins, trailers, and portable solar setups frequently use parallel connections because batteries, charge controllers, and appliances are commonly designed around 12V or 24V systems.

The DOE explains that solar PV systems combine multiple modules into arrays, allowing designers to configure systems according to specific electrical requirements.

Parallel Solar Panels vs Series Solar Panels

The choice between parallel and series depends on the required system voltage and current.

Connection Type	Voltage	Current	Best Application
Parallel	Same	Increased	RV, boats, 12V battery systems
Series	Increased	Same	Higher voltage systems
Series-Parallel	Increased	Increased	Large solar arrays

EnergySage notes that series wiring increases voltage by adding panel voltages, while parallel wiring increases current by adding panel amperage.

In field installations, Bright Solar technicians often select parallel wiring for flexible solar panels installed on curved surfaces because many mobile systems prioritize battery compatibility and reliable charging rather than maximum voltage output.

Practical Tips Before Connecting Solar Panels in Parallel

A few installation details make a significant difference:

• Use solar-rated cables designed for outdoor exposure
• Confirm charge controller current capacity
• Install proper fusing for multiple parallel strings
• Check polarity before connecting
• Avoid mixing panels with very different specifications

A common mistake is focusing only on wattage while ignoring current limits. A larger parallel array can exceed the input rating of a charge controller even when the panel voltage appears correct.

FAQ About How to Connect Solar Panels in Parallel

What happens when you connect solar panels in parallel?

When solar panels are connected in parallel, the system voltage stays the same while the total current increases. For example, two 100W 12V solar panels producing 5A each will create a 12V system capable of approximately 10A output.

Parallel wiring is useful when the battery bank and charge controller require a specific voltage but additional charging power is needed.

Can I connect different solar panels in parallel?

Yes, but it is not always recommended. Solar panels with different voltage ratings, current ratings, or electrical characteristics may not operate efficiently together.

For best performance, Bright Solar recommends connecting panels with:

• The same rated voltage
• Similar maximum power current (Imp)
• Similar open-circuit voltage (Voc)
• Matching solar cell technology

In real installations, combining different flexible solar panels can create uneven current distribution, reducing the expected output of the complete solar array.

Do solar panels in parallel need a combiner box?

A combiner box is not always required for small solar systems, but it becomes important when multiple parallel strings are installed.

A combiner box can provide:

• Individual string protection
• Easier maintenance
• Overcurrent protection
• Cleaner cable management

For RV solar panel installations with two or three panels, MC4 Y connectors are commonly used. Larger off-grid systems usually require more professional protection equipment.

Is series or parallel better for solar panels?

Neither connection method is universally better. The correct choice depends on the solar system design.

Parallel connection advantages:

• Keeps system voltage lower
• Increases charging current
• Works well with 12V battery systems
• Provides better performance when one panel receives partial shade

Series connection advantages:

• Increases voltage
• Reduces current loss over long cable distances
• Can improve efficiency in higher-voltage systems

For mobile applications such as RVs, camper trailers, and marine solar systems, parallel wiring is often selected because compatibility with existing battery systems is a priority.

How many solar panels can be connected in parallel?

The number of solar panels that can be connected in parallel depends on the charge controller’s maximum input current and the solar cable capacity.

For example:

Solar Panels	Panel Current	Total Current
2 × 100W panels	5A each	10A
4 × 100W panels	5A each	20A
6 × 100W panels	5A each	30A

Before adding more panels, check:

• Charge controller rated current
• Cable size
• Fuse requirements
• Battery charging limits

The National Renewable Energy Laboratory (NREL) highlights that proper photovoltaic system design must consider electrical characteristics, operating conditions, and system components rather than only panel wattage.
Source: https://www.nrel.gov/solar/

Can flexible solar panels be connected in parallel?

Yes. Flexible solar panels can be connected in parallel in the same way as rigid modules.

This configuration is commonly used for:

• RV flexible solar panels
• Boat solar systems
• Van life power systems
• Portable off-grid applications

Flexible panels are often selected where installation space is limited because their lightweight design allows mounting on curved surfaces. However, installers should still verify electrical specifications before combining multiple panels.Learn more about the Flexible Solar Panel Installation Guide

Conclusion: How to Connect Solar Panels in Parallel Correctly

Understanding how to connect solar panels in parallel helps create a safer and more reliable solar power system. The process is straightforward: connect all positive terminals together, connect all negative terminals together, and ensure the combined current remains within the limits of the charge controller and wiring system.

For RVs, boats, and off-grid applications, parallel wiring remains one of the most practical solutions because it increases charging capacity while maintaining the required battery voltage.

At Bright Solar, our experience designing flexible and semi-flexible solar panels shows that successful installations depend on more than adding panel wattage. Correct voltage matching, current calculation, cable selection, and real installation conditions determine long-term system performance.
