12 V Solar Panel: Complete Guide for RV, Marine & Off-Grid Systems

12 V Solar Panel: The Short Answer

A 12 v solar panel is designed for solar systems built around nominal 12V batteries and loads, commonly used in RVs, boats, campers, cabins, and small off-grid systems. The panel itself typically operates above 12V while charging.

That last point causes a lot of confusion.

A panel described as a 12V solar panel does not normally produce exactly 12.0V.

A typical “12V nominal” module may have a working voltage around the high teens and an open-circuit voltage above 20V, depending on the module design.

Why?

Because a 12V lead-acid or lithium battery does not remain at exactly 12V during charging. The solar module needs sufficient voltage above the battery’s instantaneous voltage so that a charge controller can regulate energy into the battery.

This is why the panel label and the battery label should not be treated as identical electrical specifications.

At Bright Solar, I look at the complete electrical path rather than the “12V” label alone:

Solar panel → charge controller → battery → DC loads/inverter

That simple diagram prevents many of the sizing mistakes I see in small solar projects.

For site-specific PV production, the U.S. National Renewable Energy Laboratory‘s PVWatts model uses location, system capacity, orientation and weather information rather than assuming a fixed daily output. NREL also notes that actual production can differ from modeled estimates because of weather and system conditions.

What Is a 12V Solar Panel?

A 12V solar panel is generally a nominal-voltage PV module intended for use with 12V battery systems.

The word “nominal” matters.

It is a system classification, not a promise that the module’s operating voltage is exactly 12V.

A traditional 12V-nominal module may have specifications resembling:

Specification	Typical Example*
Rated power	100W
Vmp	18–19V
Voc	21–23V
Imp	5–6A
Isc	5–6A
Battery system	12V nominal

*Values vary by product and cell technology. Always use the manufacturer’s actual datasheet.

The higher panel voltage gives the charging system useful voltage headroom.

That distinction becomes even more important when the battery is nearly full.

A solar charge controller does not simply “pass 12V through.” It regulates the PV input and battery charging process according to its own design.

12V Solar Panel Voltage Explained

Here is a practical example.

Imagine a 100W module with:

Vmp = 18.5V

Imp = 5.4A

Then:

18.5V × 5.4A ≈ 100W

The module’s open-circuit voltage could be around 22V.

Now compare that with a nominal 12V battery.

A battery might sit around 12–13V depending on chemistry, state of charge, temperature and charging condition.

The panel therefore has enough voltage headroom for the charge controller to regulate charging.

This is also why connecting a so-called “12V panel” directly to a battery is not the same thing as building a properly controlled charging system.

For most practical installations, the safer design approach is:

12V solar panel → properly rated charge controller → 12V battery

rather than treating the module as a regulated 12V power supply.

12V Solar Panel vs 12V Battery

They sound like they should match exactly.

They don’t.

Component	“12V” Means
12V solar panel	Nominal PV system voltage class
12V battery	Nominal battery voltage
12V DC appliance	Nominal operating-voltage class
Charge controller	Device that manages energy between PV and battery

A nominal 12V battery can have a voltage significantly different from 12.0V during operation.

The same applies to the solar module.

This is why a solar panel rated “12V” can legitimately have a Vmp around 18V.

The numbers are describing different parts of the electrical system.

How Does a 12V Solar Panel Charge a Battery?

The basic process is straightforward:

1. Sunlight reaches the PV cells.
2. The panel produces DC electricity.
3. The charge controller receives the PV power.
4. The controller regulates voltage and current.
5. The battery stores the electrical energy.
6. DC loads consume energy directly or an inverter converts DC to AC.

The charge controller is the traffic manager.

Without it, the panel and battery do not have a controlled charging relationship.

PWM Charge Controller

PWM controllers are relatively simple and can work well in appropriate small systems.

They effectively connect and disconnect the PV source in a controlled charging process.

MPPT Charge Controller

MPPT controllers actively track the panel’s maximum-power operating point and convert the available PV voltage/current into a suitable battery-charging output.

For installations where panel voltage is substantially higher than battery voltage, MPPT can be particularly useful.

The important thing is not to decide based on the word “MPPT” alone.

Check the actual controller’s:

• Maximum PV voltage
• Maximum charging current
• PV input power limit
• Battery voltage range
• Battery chemistry settings
• Operating temperature range

Best 12V Solar Panel Wattage for Different Applications

There is no universal “best” wattage.

The right size depends on the energy consumed each day.

A rough starting point:

Application	Suggested Starting Range
Battery maintenance	20–50W
Small electronics	50–100W
Weekend camper	100–200W
Small RV	200–400W
Moderate RV use	400–600W
Small off-grid cabin	300–800W+
Heavy off-grid loads	800W–1kW+

These are planning ranges, not guaranteed production levels.

A 100W panel might be plenty for a parked trailer whose main job is maintaining the battery.

The same 100W panel may be frustrating for someone running a compressor refrigerator, Starlink, laptop and inverter every day.

I have learned to ask about daily watt-hours before discussing panel count.

It takes longer at the beginning.

It saves a lot of redesign later.

How Much Power Does a 12V Solar Panel Produce?

Panel wattage tells you the maximum rated power.

Energy production is measured in watt-hours or kilowatt-hours.

For example:

100W × 4 equivalent peak-sun hours = 400Wh

That is a simplified theoretical calculation.

Actual output will be affected by:

• Solar irradiance
• Cloud cover
• Panel temperature
• Orientation
• Shading
• Soiling
• Wiring
• Charge-controller behavior
• Battery charging conditions
• System availability

NREL’s PVWatts documentation specifically includes system-loss factors such as soiling, shading, wiring, mismatch and connections in its modeling approach.

NREL also warns that PVWatts results are estimates rather than guarantees. Its published documentation describes potential differences between modeled typical weather and actual year-to-year conditions.

So a useful rule is:

Panel wattage × usable solar hours ≠ guaranteed daily production.

It is a starting estimate.

12V Solar Panel for RV

RV applications are one of the most natural uses for a 12V solar panel.

Most RV electrical systems already contain a 12V DC side for equipment such as:

• LED lighting
• Water pumps
• Fans
• Refrigerator controls
• USB charging
• Ventilation
• Control electronics

Solar can replenish the house battery that supplies these loads.

A simple RV architecture might look like:

Solar panel → MPPT/PWM controller → house battery → 12V distribution

An inverter can then be added when AC appliances are required:

Battery → inverter → AC appliances

That inverter changes the calculation.

A 12V battery supplying 1,000W through an inverter can require very high DC current. As a simplified example:

1,000W ÷ 12V ≈ 83A

Actual current will be higher because the battery voltage varies and the inverter has conversion losses.

This is why large RV inverter systems often move toward higher battery-system voltages.

A 12V architecture is excellent for small loads.

It becomes increasingly demanding as power increases.

Real RV Example: Why 200W Can Feel Very Different From 100W

Consider a small travel trailer.

Daily consumption:

Load	Approx. Daily Use
LED lights	70Wh
Phones/tablets	40Wh
Water pump	50Wh
Laptop	120Wh
Refrigerator controls	100Wh
TV	100Wh
Miscellaneous	50Wh
Total	530Wh/day

A 100W array producing around 300–400Wh under favorable conditions would offset a substantial portion of this consumption.

A 200W array potentially doubles the PV nameplate capacity and gives the system more room to recover after a cloudy period.

But the battery still matters.

If the battery is undersized, excess midday solar may have nowhere useful to go once the battery reaches its charging limit.

That is one of the less obvious points in small solar design.

More panels are not always the first upgrade.

Sometimes the battery or controller is the bottleneck.

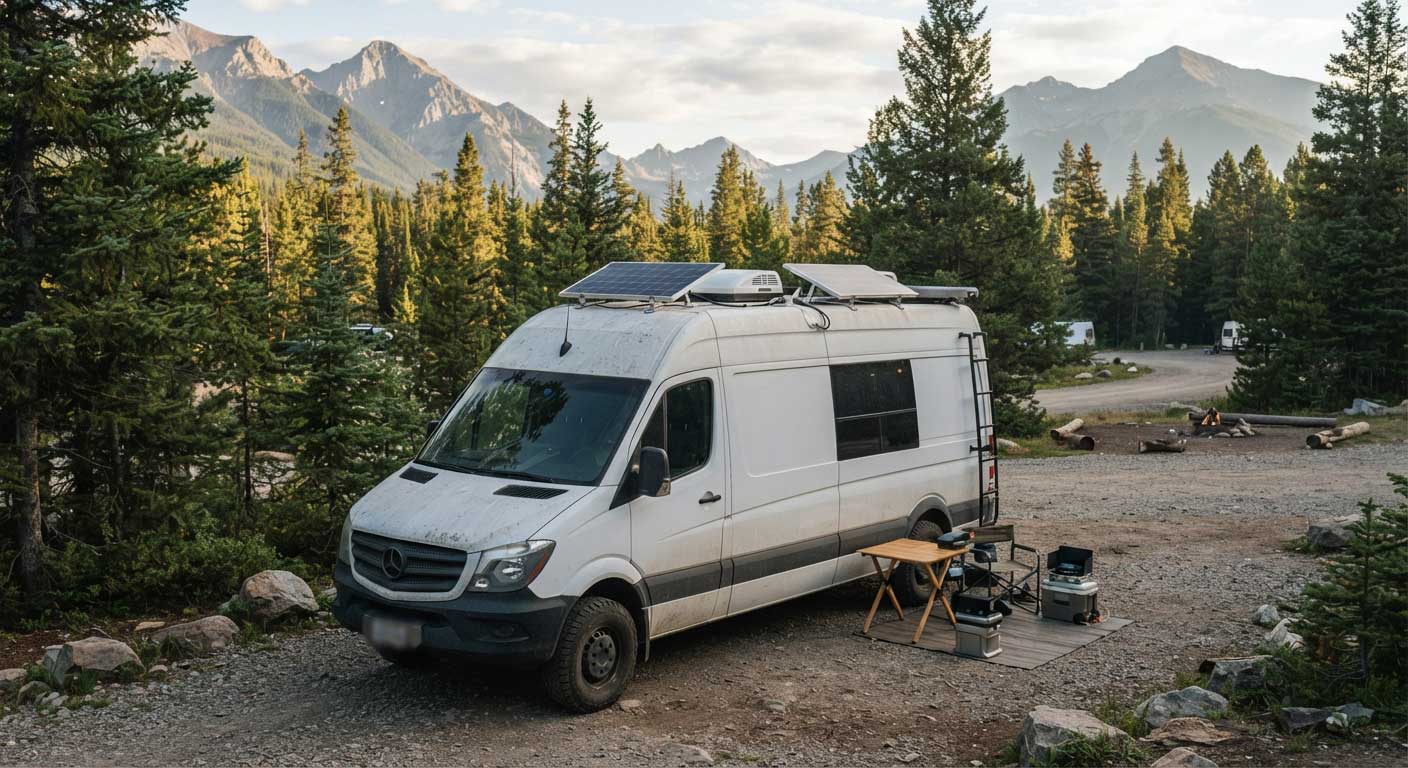

12V Solar Panel for Camper and Van

Camper vans present a different physical problem.

Roof space is limited.

A typical van roof may already contain:

• Roof fans
• Air conditioners
• Satellite equipment
• Skylights
• Roof racks
• Antennas

A compact 12V solar panel can make use of smaller roof sections.

Flexible solar panels can be especially attractive when low profile and weight are important.

But flexible does not mean electrically simpler.Visit product page:Flexible Solar Panels

You still need to verify:

• Vmp
• Voc
• Imp
• Isc
• Maximum system voltage
• Charge-controller compatibility
• Cable size
• Battery chemistry

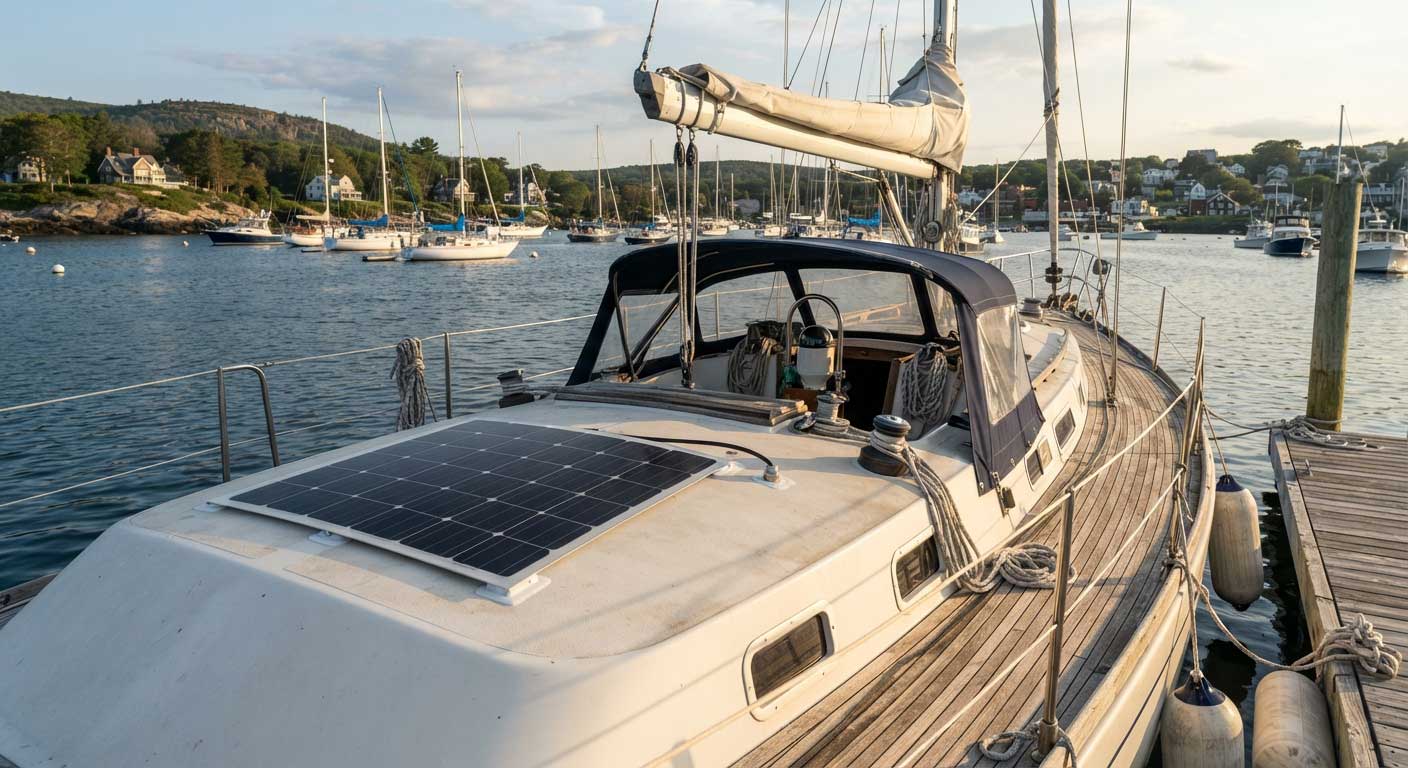

12V Solar Panel for Marine Applications

Marine solar has another layer of complexity: the environment.

A boat solar installation may face:

• Salt spray
• High humidity
• Constant UV exposure
• Water intrusion
• Limited mounting area
• Movement
• Curved surfaces
• Difficult cable routing

A marine 12V solar system therefore needs more than a suitable electrical rating.

The physical construction matters.

For marine projects, I would specifically review:

1. Surface material
2. Panel flexibility
3. Junction-box protection
4. Cable connectors
5. UV exposure
6. Water resistance
7. Mounting method
8. Cable-entry sealing
9. Charge-controller location
10. Battery compartment requirements

A 12V solar panel on a boat may spend hours exposed to direct sun while the vessel is unattended.

That makes installation quality just as important as nominal wattage.

12V Solar Panel for Battery Charging

A common search phrase is “12V solar panel battery charger.”

The important question is what battery?

Different battery chemistries have different charging requirements.

Lead-Acid Batteries

Flooded, AGM and gel batteries have different charging characteristics and manufacturer recommendations.

The charge controller should be configured according to the battery manufacturer’s specifications.

LiFePO4 Batteries

Lithium iron phosphate batteries have different voltage and charging requirements from lead-acid batteries.

A controller designed for lithium charging should be configured according to the battery manufacturer’s specifications.

Do not assume that because both batteries are called “12V,” they can be charged using exactly the same settings.

The nominal voltage is only one part of the specification.

12V Solar Panel Battery Sizing Example

Suppose an RV uses:

600Wh/day

and the owner wants approximately one day of stored energy.

A nominal 12V, 100Ah battery represents roughly:

12V × 100Ah = 1,200Wh

of nominal stored energy.

That does not mean 1,200Wh is necessarily usable.

Usable energy depends on:

• Battery chemistry
• Recommended depth of discharge
• Temperature
• Battery age
• BMS settings
• Inverter losses
• Manufacturer specifications

For a lithium battery, the usable portion may be substantially different from an equivalent lead-acid installation.

So the correct design is not:

“100Ah always equals 1,200Wh usable.”

It is:

Nominal energy first, then apply the manufacturer’s usable-energy and operating limits.

NREL’s storage modeling also demonstrates that usable storage depends on assumptions such as depth of discharge and inverter efficiency. In one published residential-storage analysis, NREL used 80% depth of discharge and 90% inverter efficiency for a particular backup scenario.

Those figures should not be treated as universal battery specifications, but they illustrate why nominal battery capacity and delivered energy are different quantities.

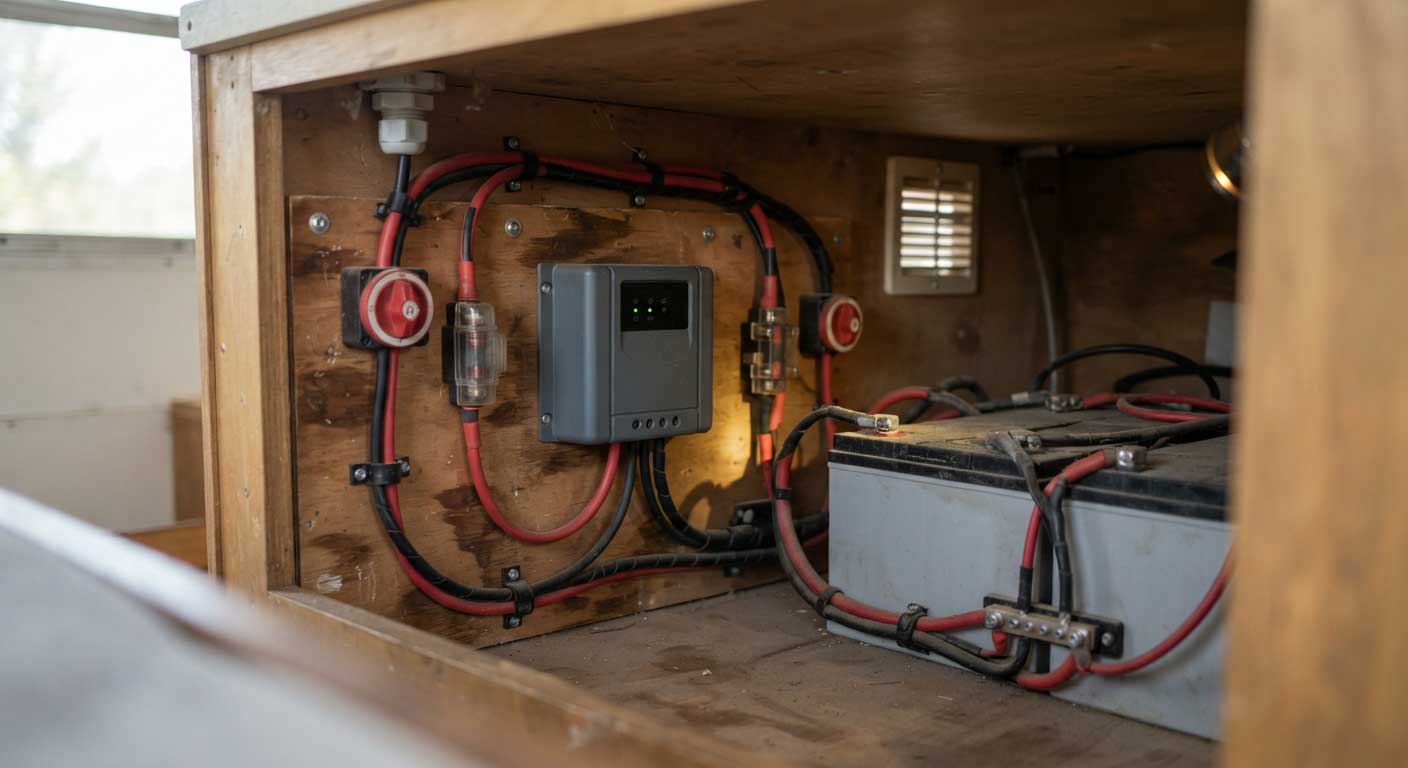

How to Connect a 12V Solar Panel to a Battery

For a basic installation, the connection path is:

Solar Panel → Charge Controller → Battery

Then:

Battery → DC Fuse/Protection → DC Loads

And if AC power is required:

Battery → Fuse/Disconnect → Inverter → AC Loads

Practical Installation Sequence

1. Confirm the panel’s Voc, Vmp, Isc and Imp.
2. Confirm the battery’s nominal voltage and chemistry.
3. Select a compatible charge controller.
4. Confirm the controller’s PV voltage and current limits.
5. Select suitable cable sizes for the current and cable length.
6. Install appropriate overcurrent protection and disconnects where required.
7. Mount the panel securely.
8. Route the PV cable away from sharp edges and excessive heat.
9. Make connections according to the equipment manufacturer’s instructions.
10. Verify polarity before energizing the system.
11. Confirm charging voltage/current at the controller.
12. Monitor production under different sunlight conditions.

Do not skip the polarity check.

A multimeter costs very little compared with troubleshooting a wiring mistake after everything has been installed.

12V Solar Panel Series vs Parallel

If one 12V solar panel is enough, the wiring is simple.

The question becomes more interesting when adding panels.

Parallel Connection

Parallel wiring generally:

• Keeps voltage approximately similar
• Increases current
• Can be useful for 12V battery systems
• Requires attention to cable sizing and controller current limits

For two identical 100W modules:

100W + 100W = 200W

If each operates around 18V and 5.5A:

18V × 11A ≈ 198W

Series Connection

Series wiring generally:

• Increases voltage
• Keeps current approximately similar
• Can reduce current for a given power level
• Requires careful checking of controller maximum PV voltage

Two identical 100W modules could produce approximately:

36V × 5.5A ≈ 198W

Same approximate power.

Different voltage.

Different controller requirements.

For a 12V battery system, the controller’s maximum PV input voltage is critical when using series-connected panels.

Cold temperatures can increase PV open-circuit voltage, so the design should use the module’s temperature coefficients and the expected minimum ambient temperature rather than checking Voc only at room temperature.

Choosing the Right 12V Solar Panel Size

Instead of starting with panel wattage, calculate the daily energy requirement.

Example:

Device	Power	Daily Runtime	Daily Energy
LED lights	10W	4h	40Wh
Laptop	60W	3h	180Wh
Water pump	50W	0.5h	25Wh
Fan	20W	5h	100Wh
USB charging	15W	2h	30Wh
Refrigerator controls	—	—	120Wh
Total			495Wh/day

The next step is estimating available solar energy.

If the system can reasonably produce around 350Wh per 100W of panel capacity on a particular design basis, then:

495 ÷ 350 ≈ 1.41

A practical design might therefore start around 200W, rather than 100W.

But that is still not a final engineering calculation.

The actual production should be modeled for the location.

NREL’s PVWatts tool exists precisely because solar production varies by location and system configuration.

12V Solar Panel Efficiency and Temperature

Panel efficiency is often discussed as though it directly tells you how much energy you will receive.

It doesn’t.

Efficiency describes how effectively the module converts available sunlight into electrical power under defined test conditions.

Real-world output also depends on:

• Irradiance
• Temperature
• Angle
• Spectral conditions
• Soiling
• Shading
• Electrical losses

A panel with higher efficiency can be valuable when roof space is limited.

For an RV, van or boat, that can be a major advantage.

If two modules produce the same wattage but one requires significantly less surface area, the smaller module may be easier to position away from shade and roof obstacles.

That can matter more than a small difference in laboratory efficiency.

12V Solar Panel Installation: Three Details I Check First

1. Shade at the Wrong Time

I have seen installations that looked perfectly clear at 10 a.m. but developed a long shadow from an air conditioner or nearby tree around noon.

The panel was not defective.

The location was.

2. Cable Distance

A panel may work correctly while still losing useful energy through an unnecessarily long, undersized cable run.

Current, cable length and conductor resistance need to be considered together.

3. Controller Location

Putting the controller next to the panel because it is convenient can increase the distance to the battery.

In some installations, keeping the controller closer to the battery makes more sense electrically.

The final choice should be based on the complete voltage-drop and installation requirements.

12V Solar Panel for Small Off-Grid Systems

A 12V system works particularly well when the loads are already DC.

Examples include:

• Remote cameras
• Gate openers
• Small cabins
• Monitoring equipment
• Lighting
• Communication equipment
• Agricultural sensors
• Small pumps
• RVs
• Boats

A small system might consist of:

100W solar panel + 12V battery + MPPT controller

A larger system could use:

400W solar array + 12V battery bank + MPPT controller + inverter

At higher power levels, though, current becomes significant.

For example:

400W ÷ 12V ≈ 33A

Again, real charging voltage and system efficiency change the actual current.

At 1,000W:

1,000W ÷ 12V ≈ 83A

That is a very different electrical installation.

This is one reason I would not automatically scale a 12V architecture indefinitely simply by adding more panels.

Common 12V Solar Panel Mistakes

Assuming the Panel Produces Exactly 12V

A nominal 12V panel normally has a higher operating voltage.

Connecting the Panel Directly to the Battery

Use a charge controller designed for the panel and battery system.

Ignoring Battery Chemistry

Charging settings must follow the battery manufacturer’s requirements.

Selecting a Controller From Wattage Alone

Voc and current limits are just as important.

Forgetting Cable Losses

Long cable runs can create meaningful voltage drop.

Installing Where Shade Is Unavoidable

A slightly smaller panel in clear sunlight can outperform a larger panel in a poor location.

Treating Nominal Battery Capacity as Usable Energy

Battery chemistry, depth of discharge and conversion efficiency affect the energy actually available to loads.

FAQ: 12 V Solar Panel

What is a 12 V solar panel?

A 12 V solar panel is a nominal-voltage PV module designed for systems using 12V-class batteries and DC loads. Its actual operating voltage is usually higher than 12V so a charge controller can regulate energy into the battery.

Can a 12V solar panel charge a 12V battery?

Yes. A properly specified 12V solar panel can charge a 12V battery through a compatible solar charge controller. The panel’s Vmp, Voc, current and the battery’s charging requirements should all be checked before installation.

Does a 12V solar panel produce exactly 12 volts?

No. “12V” generally refers to the nominal system-voltage class. The panel’s actual Vmp is commonly higher than 12V, while Voc is higher still. The exact values must be taken from the panel datasheet.

What size 12V solar panel do I need to charge a 100Ah battery?

The answer depends on battery chemistry, battery state of charge, daily energy use and available sunlight. A 100W panel can charge a 100Ah battery, but it may take significant time to recover a deeply discharged battery. Larger panels reduce charging time when the controller and battery can accept the additional power.

Can I connect two 12V solar panels together?

Yes. Two compatible panels can generally be connected in series or parallel, provided the charge controller and wiring are rated for the resulting voltage and current. Series increases voltage; parallel increases current.

Are 12V solar panels good for RVs?

Yes. They are particularly well suited to RV battery systems and low-power DC loads such as lighting, fans, pumps and electronics. Larger RV electrical loads may require a larger solar array, battery bank and inverter.

Are flexible 12V solar panels suitable for boats?

They can be useful for marine applications where low-profile installation, limited space or curved surfaces make conventional framed modules inconvenient. Marine installations should use components and installation methods appropriate for the moisture, UV and environmental conditions involved.

Final Takeaway: 12 V Solar Panel

A 12 v solar panel is not simply a panel that outputs exactly 12 volts.

It is normally a PV module designed for a 12V-class battery and electrical system, with a higher operating voltage that allows a properly selected charge controller to manage battery charging.

For an RV, camper, boat or small off-grid system, the basic architecture is straightforward:

Panel → Charge Controller → Battery → Loads

The difficult part starts when the system grows.

Then you need to consider:

• Daily energy consumption
• Panel wattage
• Vmp and Voc
• Battery chemistry
• Battery capacity
• Charge-controller limits
• Series vs parallel wiring
• Cable length and voltage drop
• Shade
• Temperature
• Inverter demand
• Local solar resource

NREL’s PVWatts research and modeling work reinforces an important point: PV output should be evaluated from the actual system and location rather than from a single generic production number.

For Bright Solar, that is the practical way to approach a 12V project.

Start with the load.

Then size the battery.

Then select the solar capacity.

Finally, match the panel, controller, wiring and protection equipment to the complete system.

The “12V” label gets you into the right neighborhood.

The electrical specifications determine whether the system actually works there.
