Solar Panels for Battery Charging: How to Choose the Right System and Maximize Battery Performance

Solar panels for battery charging provide a reliable and cost-effective way to keep batteries powered by converting sunlight into stored energy. When properly matched with battery capacity and a quality charge controller, solar charging can significantly extend battery life while reducing dependence on grid electricity or generators.

After working with mobile solar systems for RVs, boats, mobile homes, farms, and remote monitoring equipment over the past decade, I’ve noticed something interesting.

Most battery failures blamed on batteries are actually charging problems.

Not manufacturing defects.

Not poor cell quality.

Not bad luck.

Simply charging problems.

A battery that is consistently undercharged rarely reaches its expected lifespan. A battery that is repeatedly overcharged can degrade even faster. Solar charging solves many of these issues—but only when the system is designed correctly.

That is where understanding solar panels for battery charging becomes important.

Why Solar Panels Are Ideal for Battery Charging

The principle is straightforward.

A solar panel generates DC electricity.

A charge controller regulates that electricity.

The battery stores the energy.

Yet what sounds simple becomes surprisingly complex once real-world conditions enter the picture.

Cloud cover changes production.

Temperature affects voltage.

Battery chemistry affects charging behavior.

Load demand fluctuates throughout the day.

According to the U.S. Department of Energy, solar energy remains one of the fastest-growing electricity sources globally because of falling equipment costs and increasing efficiency.

Source:

https://www.energy.gov

For battery-based systems, solar provides several advantages:

Continuous Charging

Unlike generators, solar panels charge whenever sunlight is available.

Low Operating Cost

After installation, sunlight is free.

Fuel costs disappear.

Silent Operation

This becomes particularly valuable for:

• RV owners
• Boat owners
• Mobile homes
• Remote cabins
• Wildlife monitoring stations

Reduced Battery Sulfation

Lead-acid batteries suffer when left partially charged.

Consistent solar charging helps minimize this issue.

Understanding How Solar Panels Charge Batteries

A surprising number of buyers believe solar panels connect directly to batteries.

Technically possible.

Practically dangerous.

Modern charging systems require regulation.

The basic structure looks like this:

Solar Panel → Charge Controller → Battery → Electrical Loads

Without a controller:

• Battery overheating may occur
• Voltage can exceed safe limits
• Battery lifespan decreases
• System reliability drops

The controller acts as traffic management between solar generation and battery storage.

Choosing the Correct Solar Panel Size for Battery Charging

One of the most common questions I hear is:

“How large should my solar panel be?”

The answer starts with battery capacity.

Example: Charging a 100Ah Battery

A typical 12V 100Ah battery stores approximately:

12V × 100Ah = 1200Wh

Of course, no battery is 100% efficient.

Most systems experience charging losses.

Therefore, replacing 1200Wh generally requires slightly more solar production.

Estimated Solar Panel Sizing

Battery Size	Recommended Solar Panel
50Ah	100W–150W
100Ah	200W–300W
200Ah	400W–600W
300Ah	600W–900W
400Ah	800W–1200W

Actual sizing depends heavily on:

• Geographic location
• Seasonal sunlight
• Battery chemistry
• Daily energy consumption

Battery Types and Solar Charging Requirements

Not all batteries behave the same way.

One charging profile does not fit every battery.

Lead-Acid Batteries

Traditional flooded batteries remain common in:

• Farms
• Backup power systems
• Older RVs

Advantages:

• Low cost
• Widely available

Disadvantages:

• Maintenance required
• Lower cycle life
• Slower charging

AGM Batteries

AGM batteries improved many lead-acid limitations.

Benefits include:

• Sealed construction
• Lower maintenance
• Better vibration resistance

This makes AGM popular in marine applications.

Lithium LiFePO4 Batteries

Today, most new off-grid systems use LiFePO4.

According to Battery University, lithium iron phosphate batteries commonly achieve 2,000–5,000 charge cycles depending on operating conditions.

Source:

https://batteryuniversity.com

Benefits include:

• Lightweight
• High efficiency
• Deep discharge capability
• Fast charging

For solar charging systems, lithium often provides the best long-term value despite higher upfront costs.

Solar Charge Controllers: The Most Overlooked Component

People spend hours comparing solar panels.

Then purchase the cheapest controller available.

That decision often causes the most problems.

PWM Controllers

Pulse Width Modulation (PWM) controllers remain affordable.

Advantages:

• Low cost
• Simplicity

Disadvantages:

• Lower efficiency
• Limited flexibility

Best suited for small systems.

MPPT Controllers

Maximum Power Point Tracking (MPPT) controllers have become the preferred choice for modern solar installations.

According to NREL research, MPPT technology can significantly improve energy harvest under varying weather conditions compared with basic regulation methods.

Source:

https://www.nrel.gov

Advantages:

• Higher efficiency
• Better cold-weather performance
• Greater charging output
• Improved battery charging consistency

For systems above 200W, MPPT usually pays for itself.

Step-by-Step Process for Designing a Solar Battery Charging System

After reviewing hundreds of installations, I generally follow the same process.

Step 1 – Determine Daily Energy Consumption

List every load:

Appliance	Daily Consumption
LED Lights	100Wh
Refrigerator	800Wh
Water Pump	150Wh
Laptop	200Wh

Total energy demand determines battery requirements.

Step 2 – Size the Battery Bank

Estimate desired autonomy.

Example:

Daily Use = 1500Wh

Two Days Backup = 3000Wh

Required battery capacity:

3000Wh ÷ 12V ≈ 250Ah

Step 3 – Calculate Solar Production Requirements

Average peak sun hours vary significantly.

According to NREL solar resource maps, many southern U.S. regions receive between 5 and 6 peak sun hours daily annually.

Source:

https://www.nrel.gov

Example:

1500Wh daily demand

5 sun hours

Required array:

1500 ÷ 5 = 300W

After accounting for losses:

Recommended:

400W–500W solar array

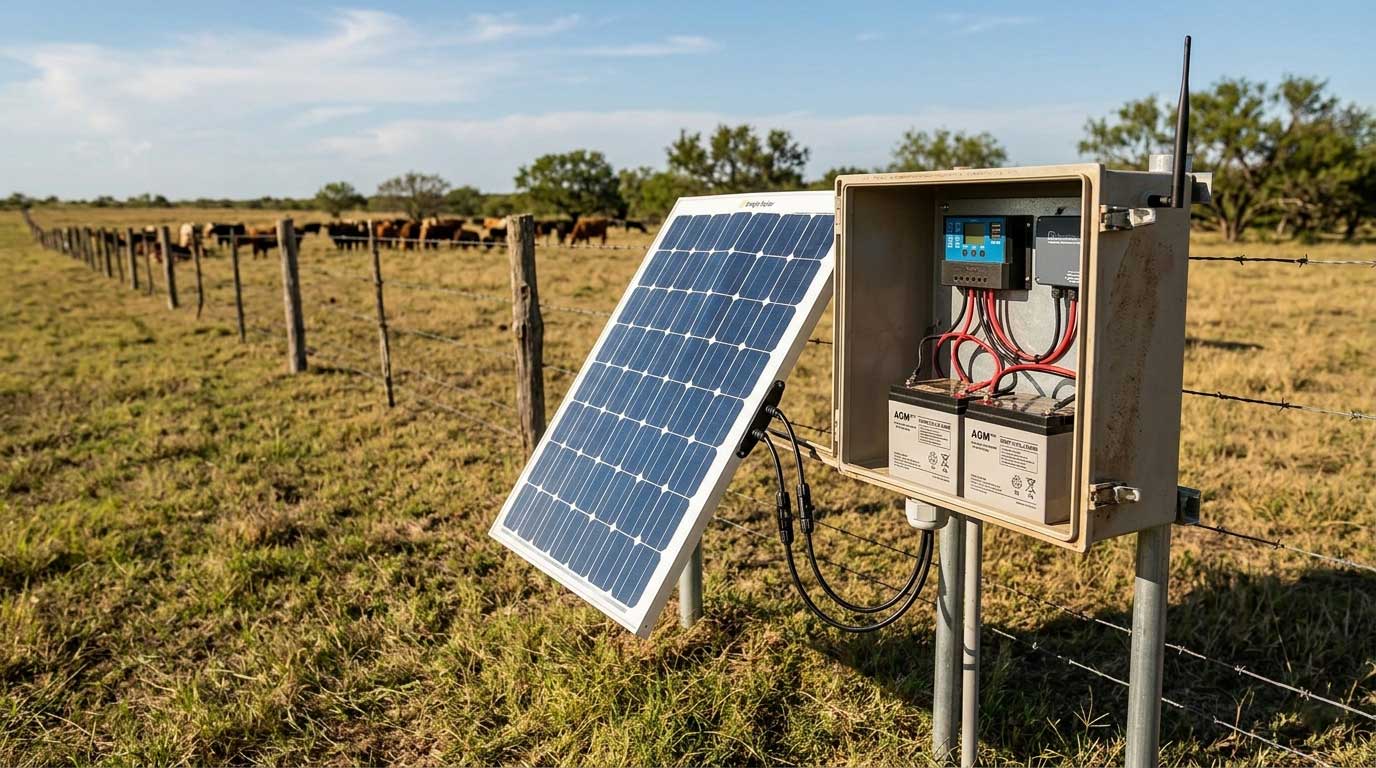

Real Installation Example From a Rural Property

A customer in Texas contacted us regarding repeated battery failures.

The setup looked reasonable at first glance.

• 200Ah AGM battery
• Security camera system
• Livestock monitoring sensors
• Cellular gateway

The original charging source consisted of a single 50W panel.

That panel simply could not keep up.

Especially during winter.

We upgraded the installation to:

• 200W Bright Solar flexible panel
• 20A MPPT controller
• Existing 200Ah AGM battery

Within the first month:

• Battery voltage stabilized
• Low-voltage alarms disappeared
• Generator usage dropped dramatically

Interestingly, the battery itself was never the problem.

The charging source was.

The Biggest Mistakes People Make When Using Solar Panels for Battery Charging

Before discussing advanced optimization methods, it is worth examining the mistakes that shorten battery life the fastest.

The surprising part?

Most are completely preventable.

Buying Panels Based Only on Wattage

A 400W panel sounds impressive.

But if battery storage is undersized, excess production becomes wasted potential.

System balance matters more than panel size alone.

Ignoring Seasonal Sunlight Variations

Many installations are designed around summer conditions.

Winter arrives.

Production drops.

Battery complaints begin.

A properly designed system accounts for the worst month—not the best month.

Advanced Strategies to Improve Battery Charging Efficiency

The difference between a solar system that “works” and one that performs reliably year after year often comes down to small details.

Not panel wattage.

Not battery brand.

Details.

I learned this while troubleshooting a fleet of mobile inspection trailers used at construction sites across the Southwest United States.

Each trailer had nearly identical equipment:

• Cellular routers
• Laptops
• LED lighting
• Battery banks

Yet charging performance varied significantly.

The culprit turned out to be installation quality rather than hardware.

Some systems suffered from voltage drop.

Others had improperly sized wiring.

A few were charging through inexpensive controllers that never allowed batteries to reach full absorption voltage.

Once corrected, charging efficiency improved immediately.

Keep Cable Runs Short

Every foot of cable creates resistance.

Resistance creates voltage loss.

Voltage loss reduces charging efficiency.

For battery charging systems:

• Shorter wiring is usually better.
• Larger cable diameters reduce losses.
• Controller-to-battery wiring deserves special attention.

The American Boat and Yacht Council (ABYC) recommends minimizing voltage drop in DC charging circuits, particularly in critical charging applications.

Source:

https://www.abycinc.org

In practical installations, I often see users spend hundreds on larger panels while losing energy through undersized wiring.

Optimize Panel Orientation

Solar production changes dramatically with angle.

A flat-mounted RV panel and a properly angled panel may have identical wattage ratings yet produce noticeably different daily energy.

According to the National Renewable Energy Laboratory (NREL), solar orientation and tilt angle significantly influence annual energy production.

Source:

https://www.nrel.gov

For permanent installations:

• Face true south in the Northern Hemisphere.
• Avoid shading during peak sunlight hours.
• Adjust tilt if seasonal optimization is possible.

For mobile applications, minimizing shading generally matters more than achieving perfect tilt.

Monitor Battery State of Charge

One of the most valuable upgrades today costs far less than an additional solar panel.

A battery monitor.

Without monitoring:

You are guessing.

With monitoring:

You understand:

• Charging current
• Battery voltage
• Daily energy harvest
• State of charge
• Historical performance

This information often reveals issues long before failures occur.

Solar Panels for Battery Charging: Series vs Parallel Configurations

As systems grow larger, another question appears.

Should the solar panels be wired in series?

Or in parallel?

The answer depends on the application.

Series Configuration

When panels are connected in series:

• Voltage increases
• Current remains unchanged

Example:

Two 100W panels:

• 18V + 18V = 36V
• Current remains constant

Advantages:

• Lower cable losses
• Longer wire runs possible
• Better MPPT controller performance

Disadvantages:

• Shading affects the entire string

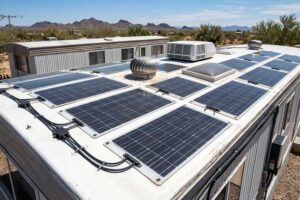

Parallel Configuration

When panels are connected in parallel:

• Voltage remains constant
• Current increases

Advantages:

• Better performance under partial shading
• Greater redundancy
• Ideal for mobile installations

Disadvantages:

• Higher current requires larger cables

My Practical Recommendation

For:

• RVs
• Boats
• Mobile homes
• Flexible solar panel systems

Parallel configurations frequently perform better because real-world shading is unavoidable.

For:

• Ground-mounted arrays
• Permanent residential systems
• Open-field installations

Series wiring often provides higher efficiency.

The best design depends on the environment rather than theory.

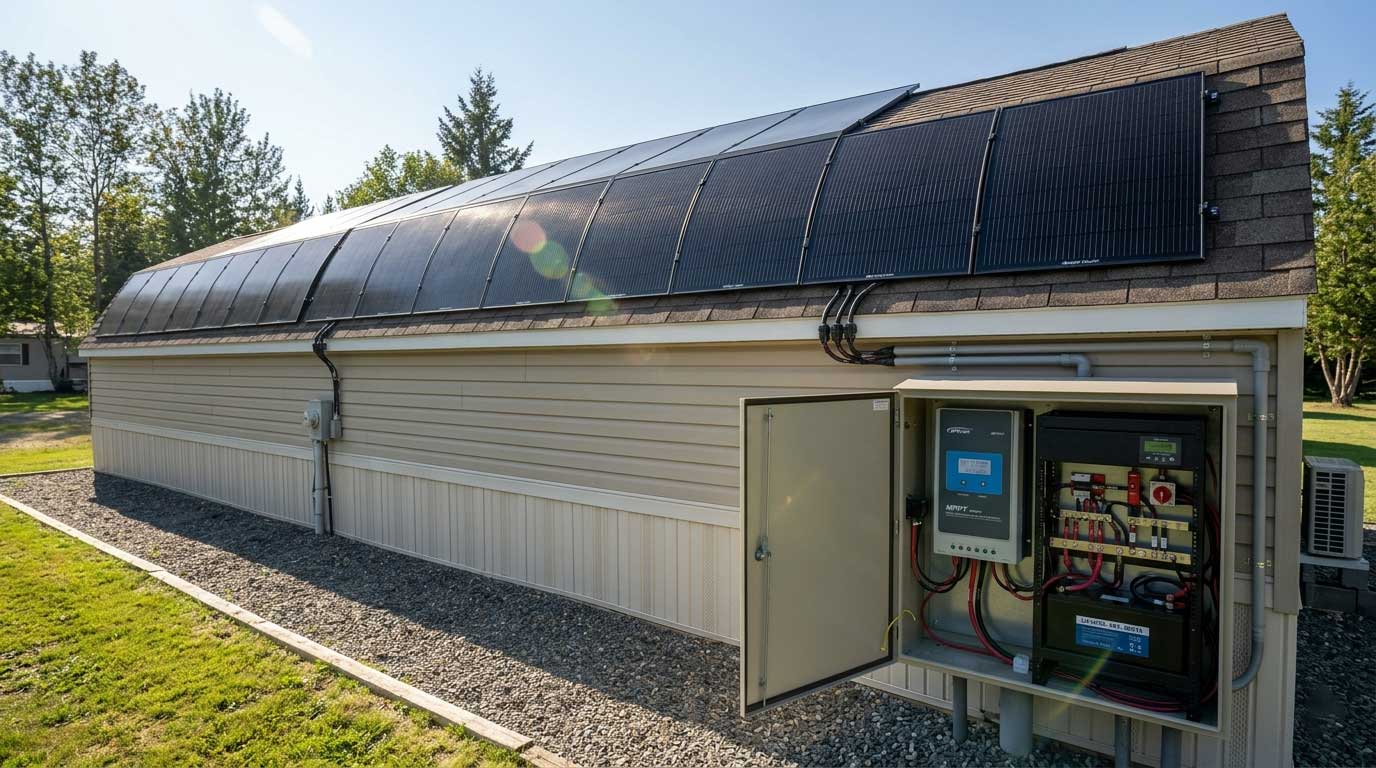

Case Study: Charging Lithium Batteries in a Mobile Home

One Bright Solar customer in Nevada upgraded from AGM batteries to LiFePO4.

Their previous system included:

• 400W solar array
• 200Ah AGM bank
• PWM controller

Performance was inconsistent.

Battery voltage frequently remained below optimal levels.

After upgrading:

• 400W Bright Solar flexible panels
• 200Ah LiFePO4 battery bank
• 40A MPPT controller

The owner tracked performance for six months.

Results showed:

Metric	Before Upgrade	After Upgrade
Average Daily Harvest	1.6 kWh	2.1 kWh
Generator Runtime	18 hrs/month	4 hrs/month
Average Battery SOC	63%	91%

The most noticeable difference wasn’t energy production.

It was reliability.

The system simply felt predictable.

How Weather Affects Solar Battery Charging

Weather influences charging more than many people expect.

Not just sunlight intensity.

Temperature matters too.

Hot Weather

High temperatures reduce panel voltage.

Production may drop despite bright sunshine.

Solar panels often operate less efficiently on extremely hot roofs than on cooler days.

Cold Weather

Cold conditions generally improve photovoltaic efficiency.

This surprises many first-time owners.

A sunny winter day can sometimes produce higher panel voltage than a hot summer afternoon.

Cloudy Conditions

Cloud cover reduces output.

However, modern panels continue generating electricity under diffuse light.

Battery charging slows.

It rarely stops completely.

This is one reason oversized solar arrays often outperform minimally sized systems.

Solar Panel Sizing Guide for Common Battery Applications

Small Maintenance Charging

Applications:

• Security systems
• Gate openers
• Trailer batteries

Typical setup:

Battery Size	Solar Panel
20Ah–50Ah	20W–50W

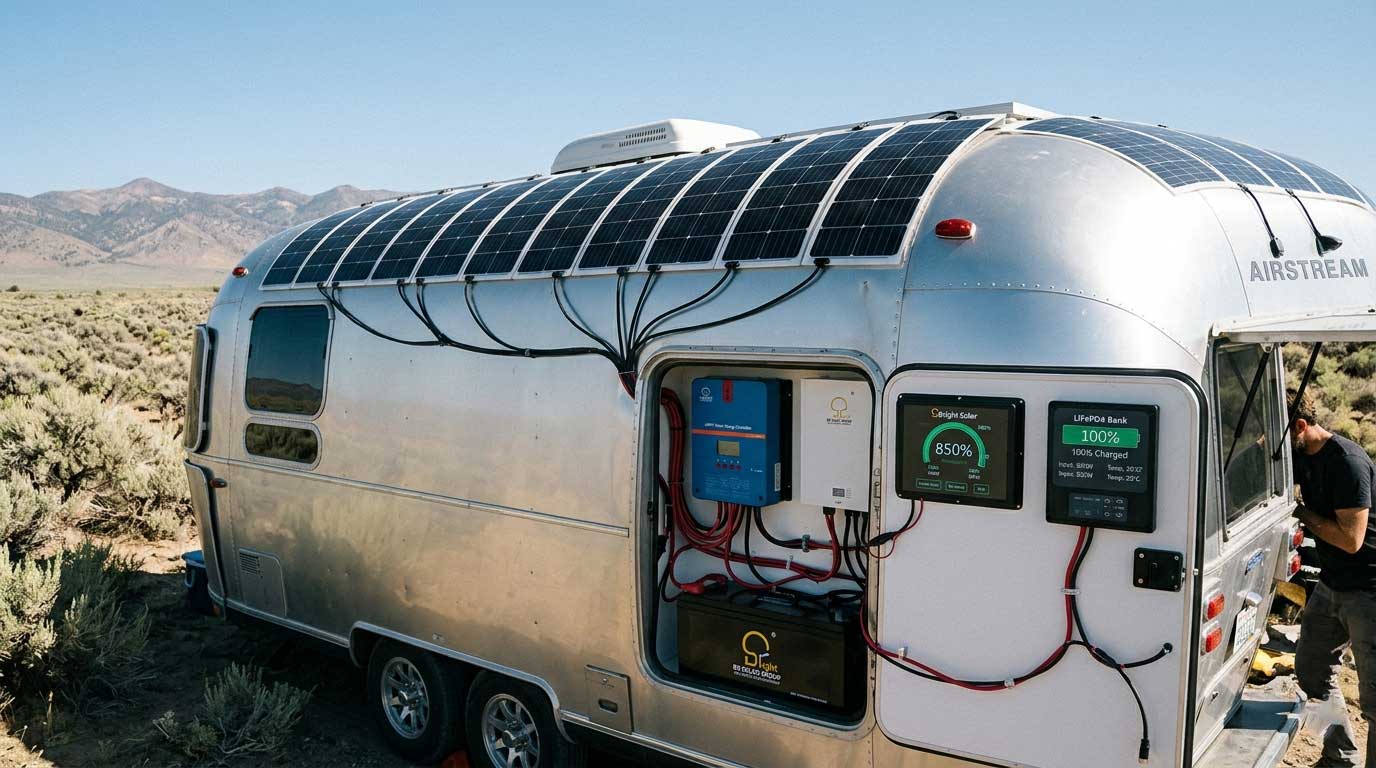

RV and Mobile Home Systems

Applications:

• Lighting
• Water pumps
• Electronics

Typical setup:

Battery Capacity	Solar Array
100Ah	200W–300W
200Ah	400W–600W
300Ah	600W–900W

Off-Grid Living Systems

Applications:

• Refrigerators
• Communication systems
• Daily household loads

Typical setup:

Battery Capacity	Solar Array
400Ah	800W–1200W
600Ah	1200W–1800W
800Ah	1600W–2400W

Actual sizing depends on location and energy demand.

FAQs About Solar Panels for Battery Charging

Can a solar panel directly charge a battery?

Technically yes.

Practically no.

A charge controller should always be used to regulate voltage and protect battery health.

What size solar panel do I need to charge a 12V battery?

A 100Ah 12V battery typically pairs well with a 200W–300W solar panel system for reliable charging under average sunlight conditions.

Are lithium batteries better for solar charging?

In most modern installations, yes.

LiFePO4 batteries provide:

• Longer cycle life
• Higher efficiency
• Faster charging
• Lower maintenance

Do solar panels charge batteries on cloudy days?

Yes.

Output decreases significantly, but charging usually continues under indirect sunlight.

How long will a battery last with solar charging?

Battery life depends on:

• Chemistry
• Temperature
• Charging quality
• Depth of discharge

Well-maintained LiFePO4 batteries commonly last several thousand charge cycles.

Visit the product page:Flexible Solar Panel

Final Thoughts on Solar Panels for Battery Charging

After years of working with RV owners, farmers, boat operators, mobile homeowners, and off-grid users, one lesson remains consistent:

Reliable battery charging rarely depends on buying the largest solar panel available.

It depends on matching every component correctly.

The panel.

The controller.

The battery.

The wiring.

The environment.

When those pieces work together, solar panels for battery charging become one of the most dependable power solutions available today. Whether powering a mobile home, maintaining a backup battery bank, supporting agricultural equipment, or enabling off-grid living, a properly designed solar charging system delivers something every user appreciates:

Predictable energy.

And that predictability is often worth more than raw wattage.
