A solar panel for 12V battery charging is one of the most efficient and cost-effective ways to maintain battery health, extend service life, and create reliable off-grid power. For most applications, a properly matched solar panel and charge controller can keep a 12V battery charged for years with minimal maintenance.

I have spent more than a decade working with off-grid solar systems for RVs, boats, agricultural equipment, remote monitoring stations, and backup power systems. One thing becomes obvious very quickly: most battery failures are not caused by defective batteries. They happen because batteries spend long periods partially discharged.

A correctly sized solar panel changes that completely.

Why Use a Solar Panel for 12V Battery Charging?

Walk through almost any marina, campground, ranch, or remote property and you’ll find equipment sitting idle for weeks or months.

The batteries inside:

• Travel trailers
• Boats
• Utility vehicles
• Electric fences
• Backup power systems
• Security cameras
• Farm equipment

all experience self-discharge.

According to the U.S. Department of Energy, renewable energy systems paired with battery storage continue to grow because batteries provide dependable energy when sunlight is unavailable.

A solar panel continuously replaces lost energy and helps prevent sulfation, one of the leading causes of premature lead-acid battery failure.

The result is simple:

• Longer battery lifespan
• Reduced maintenance
• Lower replacement costs
• Improved reliability

Understanding How a 12V Battery Actually Charges

One of the biggest misconceptions I encounter involves voltage.

Many people assume a 12V battery can be charged directly using a 12V solar panel.

Technically, that is not true.

A fully charged lead-acid battery usually sits between:

Battery State	Voltage
100%	12.7V–12.8V
75%	12.4V
50%	12.2V
25%	12.0V
Discharged	11.8V

To charge effectively, solar voltage must exceed battery voltage.

This is why many “12V solar panels” actually operate around:

• 18V Vmp (maximum power voltage)
• 21V–22V Voc (open circuit voltage)

The extra voltage allows energy to flow into the battery through a charge controller.

Choosing the Correct Solar Panel Size

There is no universal answer because every battery experiences different daily loads.

I normally start by calculating three things:

1. Battery capacity
2. Daily energy consumption
3. Available sunlight

Small Maintenance Charging

Applications:

• Boat batteries
• Motorcycle batteries
• Trailer batteries
• Seasonal equipment

Typical panel size:

• 10W–30W

These systems primarily offset self-discharge.

Moderate Daily Usage

Applications:

• Security systems
• Remote cameras
• Gate openers
• Small cabins

Typical panel size:

• 50W–100W

Heavy Daily Cycling

Applications:

• RV batteries
• Off-grid systems
• Deep cycle battery banks

Typical panel size:

• 200W–400W+

Real Example From a Mobile Equipment Fleet

Several years ago I assisted a contractor operating a fleet of remote utility trailers in Arizona.

Each trailer contained:

• GPS tracking
• Cellular communication
• Monitoring equipment

Battery capacity:

• 100Ah AGM battery

Daily consumption:

• Approximately 20Ah

The original setup used a small 20W maintenance panel.

The result?

Dead batteries every few weeks.

After monitoring actual consumption, we upgraded to:

• 120W solar panel
• MPPT charge controller

Battery voltage remained above 12.6V throughout most of the year.

Unexpected service visits dropped by roughly 70%.

The lesson was simple:

The cheapest solar panel is often the most expensive solution.

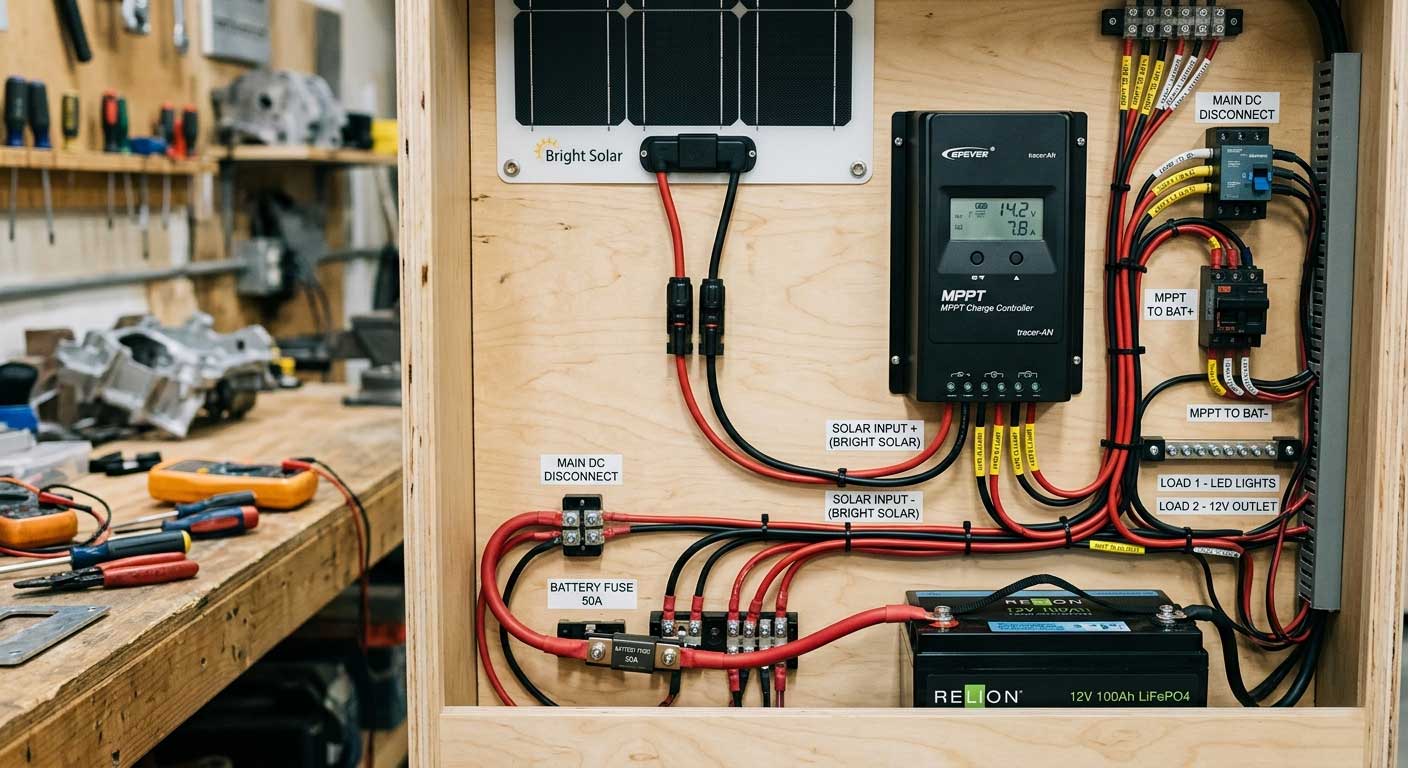

PWM vs MPPT Charge Controllers

A solar panel should never connect directly to a battery without protection.

The charge controller manages:

• Charging stages
• Voltage regulation
• Overcharging protection
• Battery health

PWM Controllers

Advantages:

• Lower cost
• Simple installation
• Reliable for smaller systems

Best for:

• 20W–100W solar setups

MPPT Controllers

Advantages:

• Higher efficiency
• Better cold-weather performance
• Improved power harvest

According to studies published by the U.S. National Renewable Energy Laboratory (NREL), MPPT technology can significantly improve energy harvest compared with simpler charging methods under varying environmental conditions.

Best for:

• 100W+ systems
• Lithium batteries
• Mobile power systems

In my field installations, MPPT controllers frequently deliver 15–30% more usable charging energy during winter conditions.

Battery Types Matter More Than Most People Think

Not all batteries respond identically to solar charging.

Flooded Lead-Acid

Pros:

• Lowest purchase price
• Widely available

Cons:

• Requires maintenance
• Water replacement needed

AGM Batteries

Pros:

• Sealed design
• Lower maintenance
• Better vibration resistance

Ideal for:

• Boats
• RVs
• Mobile equipment

Lithium LiFePO4 Batteries

Pros:

• Lightweight
• Deep discharge capability
• Long service life

According to battery manufacturers such as Battle Born Batteries and RELiON, LiFePO4 batteries commonly achieve 3,000–6,000 charge cycles depending on operating conditions.

For mobile solar applications, lithium batteries increasingly dominate new installations.

How Much Solar Power Does a 100Ah Battery Need?

This is one of the most searched questions online.

The answer depends on recharge speed.

Assume:

• 100Ah battery
• 50Ah consumed

Approximate recharge requirements:

Solar Panel Size	Estimated Recovery Time
50W	2–3 sunny days
100W	1–2 sunny days
200W	Less than 1 day
400W	Several hours of strong sunlight

Actual results vary based on:

• Temperature
• Controller efficiency
• Sun angle
• Geographic location

Common Mistakes That Kill Batteries

After inspecting hundreds of solar installations, I repeatedly see the same problems.

Mistake #1

Undersized solar panels.

Mistake #2

No charge controller.

Mistake #3

Incorrect wiring gauge.

Mistake #4

Permanent shading.

Mistake #5

Ignoring battery temperature.

One shaded solar cell can reduce output far more than most owners expect.

I’ve measured systems losing over 40% of expected production simply because a roof vent shadow crossed one corner of a panel during peak afternoon sunlight.

My Recommendation After Years of Field Testing

For most people purchasing a solar panel for 12V battery charging today, I generally recommend:

• 100W–200W solar capacity
• MPPT controller
• LiFePO4 battery when budget allows
• High-quality marine-grade wiring
• Proper fuse protection

The upfront investment is slightly higher, but system reliability improves dramatically.

More importantly, users spend less time troubleshooting and more time actually using their equipment.

Advanced Solar Panel Sizing for Real-World 12V Battery Systems

Most online sizing calculators assume perfect sunlight, ideal temperatures, and brand-new equipment.

Reality is messier.

Last summer, I reviewed performance logs from three nearly identical 12V battery systems installed within 80 miles of each other in Nevada. Each used a 200W solar panel and a 100Ah lithium battery.

The results surprised the owners:

System	Average Daily Solar Production
Open desert site	950Wh
Partial tree shade	690Wh
Dust-covered panel	610Wh

Same equipment.

Very different outcomes.

The dust-covered installation lost over 35% of expected energy production simply because nobody cleaned the panel surface for several months.

That experience reinforced something I often tell customers:

Solar sizing should account for real-world losses, not laboratory specifications.

For most installations, I add a 20–30% safety margin beyond calculated energy demand.

How to Calculate the Correct Solar Panel for a 12V Battery

The easiest approach is to begin with daily energy consumption.

Formula:

Daily Watt-Hours = Battery Voltage × Amp-Hours Used

Example:

• Battery system = 12V
• Daily consumption = 40Ah

Calculation:

12 × 40 = 480Wh

Assuming 5 peak sun hours:

480 ÷ 5 = 96W

After adding a 25% safety factor:

96 × 1.25 = 120W

Recommended system:

• 120W–150W solar panel
• MPPT controller

This approach generally produces far more reliable results than simply matching panel wattage to battery size.

Solar Panel Size Recommendations by Battery Capacity

Based on field installations and energy consumption patterns, the following chart works well for most applications.

Battery Capacity	Maintenance Charging	Moderate Daily Use	Heavy Daily Use
20Ah	10W	20W	40W
50Ah	20W	50W	100W
100Ah	30W	120W	200W+
200Ah	50W	250W	400W+
300Ah	80W	400W	600W+

These recommendations assume average North American sunlight conditions.

Locations such as Arizona, Nevada, and Southern California generally require less panel area than northern climates.

Solar Panel for 12V Battery in Different Applications

The best system depends heavily on how the battery is used.

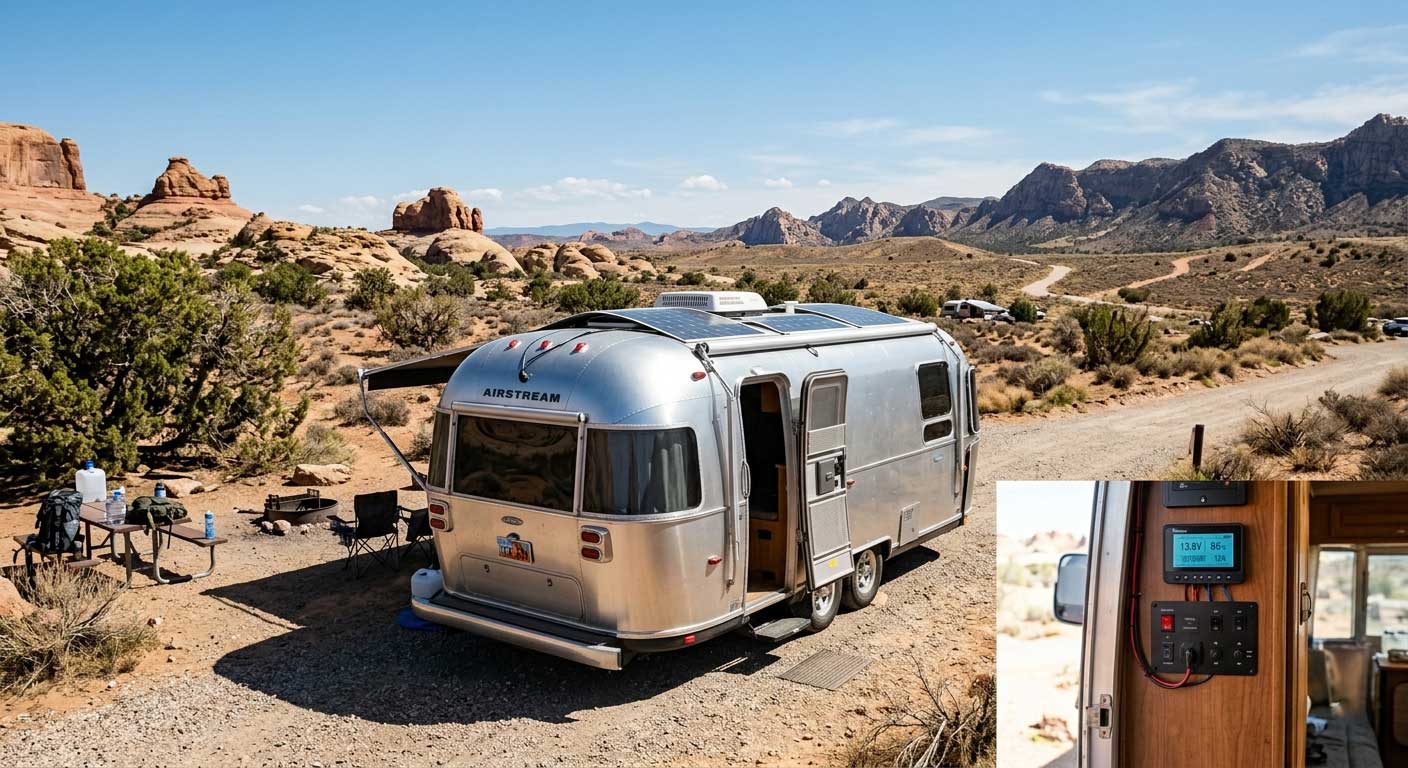

RV and Travel Trailer Batteries

Most RV owners consume:

• Lighting
• Water pumps
• Ventilation fans
• Phone charging
• Refrigerators

Typical recommendation:

• 200W–400W solar
• 100Ah–200Ah lithium battery

Marine Batteries

Boat owners face additional challenges:

• Salt exposure
• Humidity
• Limited mounting space

Marine installations benefit greatly from flexible solar panels because weight reduction matters onboard.

Farm Equipment

Agricultural systems often use solar charging for:

• Electric fences
• Water pumps
• Remote monitoring equipment
• Livestock tracking systems

Here, reliability usually matters more than maximum efficiency.

Security Systems

Remote cameras and communication devices often require continuous operation.

A properly sized solar panel for 12V battery systems can provide year-round autonomous operation with minimal maintenance.

The Economics of Solar Charging

Battery replacement costs accumulate surprisingly fast.

Consider a common scenario:

• Lead-acid battery replacement: $150
• Replacement frequency without maintenance: every 2–3 years
• System lifespan: 10 years

Potential battery costs:

$600–$750

A properly maintained battery charged through solar often lasts significantly longer.

In many installations, the solar system effectively pays for itself through reduced battery replacements and lower maintenance visits.

This is especially true for remote sites where technician travel costs exceed equipment costs.

Seasonal Performance Expectations

One mistake I see frequently is judging solar performance only during summer.

Winter changes everything.

In many northern U.S. states:

• Sun angle decreases
• Daylight hours shorten
• Snow accumulation becomes a factor

According to data published by the U.S. National Renewable Energy Laboratory (NREL), solar resource availability can vary dramatically throughout the year depending on location.

A system producing 1,000Wh daily in July might produce only 400–600Wh in December.

This is why professional designers always size systems around worst-case conditions rather than peak-season performance.

Installation Checklist

Before connecting a solar panel for 12V battery charging, verify the following:

Electrical Checklist

✓ Correct panel wattage

✓ Proper fuse sizing

✓ Appropriate wire gauge

✓ Weatherproof connectors

✓ Quality charge controller

Battery Checklist

✓ Battery chemistry selected correctly

✓ Voltage compatibility verified

✓ Battery terminals clean

✓ Proper ventilation for lead-acid batteries

Solar Panel Checklist

✓ No shading during peak sunlight

✓ Secure mounting

✓ Proper airflow beneath panel

✓ Regular cleaning schedule

What Most Buyers Get Wrong

After helping customers evaluate hundreds of systems, I notice several purchasing mistakes.

People often focus on:

• Maximum wattage
• Lowest price
• Highest advertised efficiency

But rarely consider:

• Warranty support
• Cell quality
• Connector quality
• Lamination durability
• Real-world operating temperatures

The cheapest panel can become the most expensive purchase if it fails after two summers.

Quality construction consistently delivers better long-term value.

Bright Solar’s Approach to 12V Battery Charging Systems

At Bright Solar, our design philosophy emphasizes practical performance rather than marketing specifications.

When developing flexible solar solutions, we focus on:

• Weight reduction
• Durability
• Stable charging output
• Corrosion resistance
• Long-term reliability

Because many customers use their systems in RVs, boats, farms, and remote installations, reliability often matters more than achieving another 1% of laboratory efficiency.

Real-world energy production is the metric that matters.

FAQ About Solar Panel for 12V Battery

Can a solar panel charge a 12V battery directly?

Technically no. A charge controller should always be used between the solar panel and battery to regulate charging and prevent damage.

What size solar panel do I need for a 100Ah battery?

For maintenance charging, 30–50W may be sufficient. For daily use, 100–200W is generally recommended.

How long does it take to charge a 12V battery with solar?

Charging time depends on battery size, panel wattage, sunlight availability, and controller efficiency. A 100W panel may recharge a partially discharged 100Ah battery within one to two sunny days.

Are flexible solar panels suitable for charging batteries?

Yes. High-quality flexible solar panels are widely used for RVs, boats, mobile homes, and off-grid battery systems where weight and mounting flexibility are important.

Is MPPT worth the extra cost?

For systems above 100W or for lithium batteries, MPPT controllers usually provide enough efficiency improvement to justify the investment.

Final Thoughts

Choosing the right solar panel for 12V battery charging is less about chasing the highest wattage and more about matching solar production to real-world energy demand. A properly sized system using quality components can extend battery life, reduce maintenance costs, and provide dependable power for years.

Whether the application involves an RV, boat, farm, security system, or backup power installation, investing in a correctly designed solar panel for 12V battery setup almost always delivers better long-term results than repeatedly replacing damaged batteries.
