Solar Panel for 12 Volt Battery – Charging Guide & Sizing

A solar panel for 12 volt battery charging provides a reliable, low-maintenance way to keep batteries powered for RVs, boats, cabins, electric fences, trailers, and backup systems. Most 12V batteries charge effectively when paired with a properly sized solar panel and charge controller matched to daily energy consumption.

The first 12-volt solar charging system I ever inspected wasn’t on an RV.

It wasn’t on a cabin.

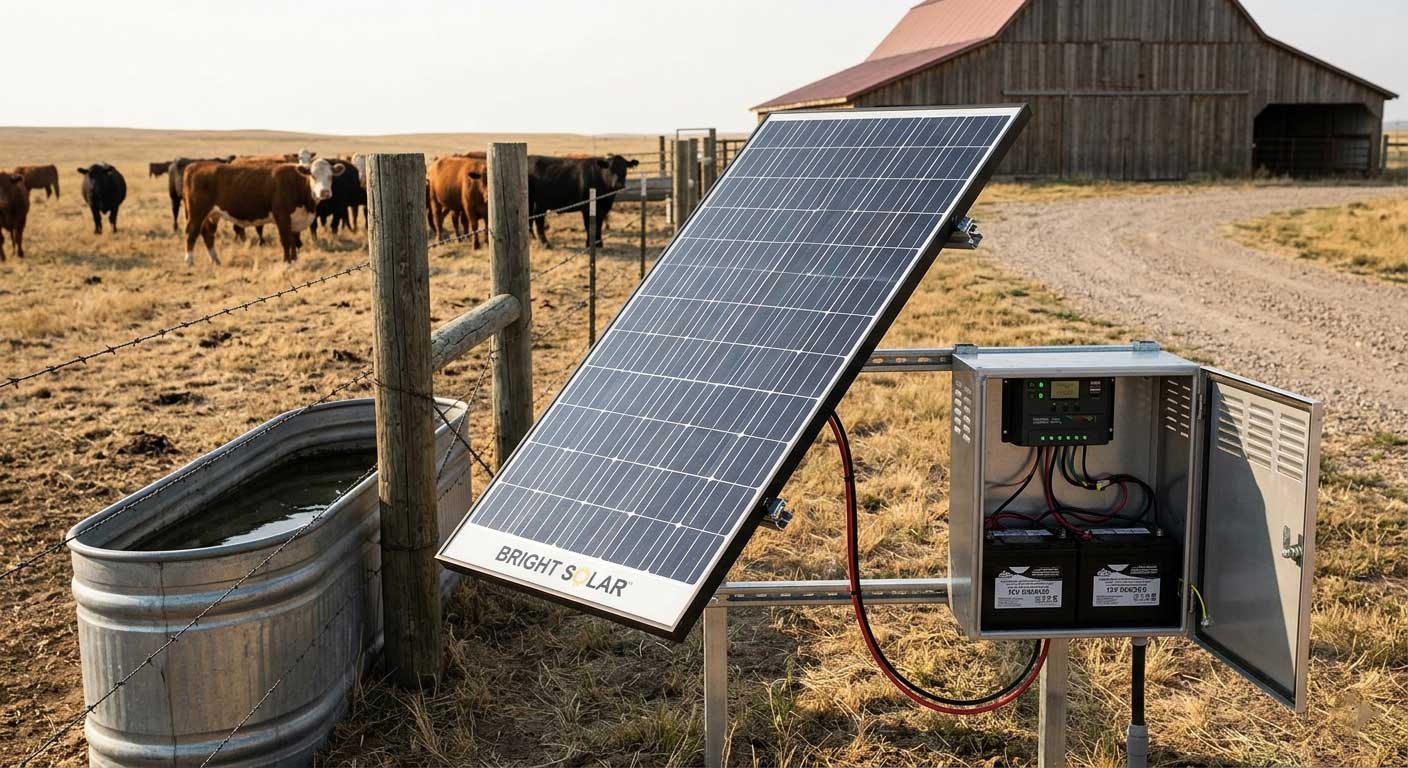

It sat in the middle of a cattle pasture in western Texas.

A weathered deep-cycle battery was mounted inside a steel box beneath an electric fence controller. Above it, a small solar panel tilted toward the south, coated with a thin layer of dust accumulated over months.

The ranch owner told me something interesting.

“I haven’t touched that battery in almost three years.”

That statement stayed with me because it demonstrated what properly designed solar charging systems actually do.

Not produce impressive numbers.

Not generate marketing headlines.

Simply work.

At Bright Solar, we’ve evaluated hundreds of small solar charging systems used for recreational vehicles, agricultural applications, marine environments, remote monitoring equipment, backup power stations, and off-grid cabins. The most successful systems almost always follow the same principle:

The Flexible solar panel must be matched to the battery—not the other way around.

Many buyers focus entirely on panel wattage.

Experienced installers start with battery requirements.

Why Use a Solar Panel for a 12 Volt Battery?

The popularity of 12V battery systems continues to grow because they power countless applications:

• RV house batteries
• Travel trailers
• Boats
• Trolling motors

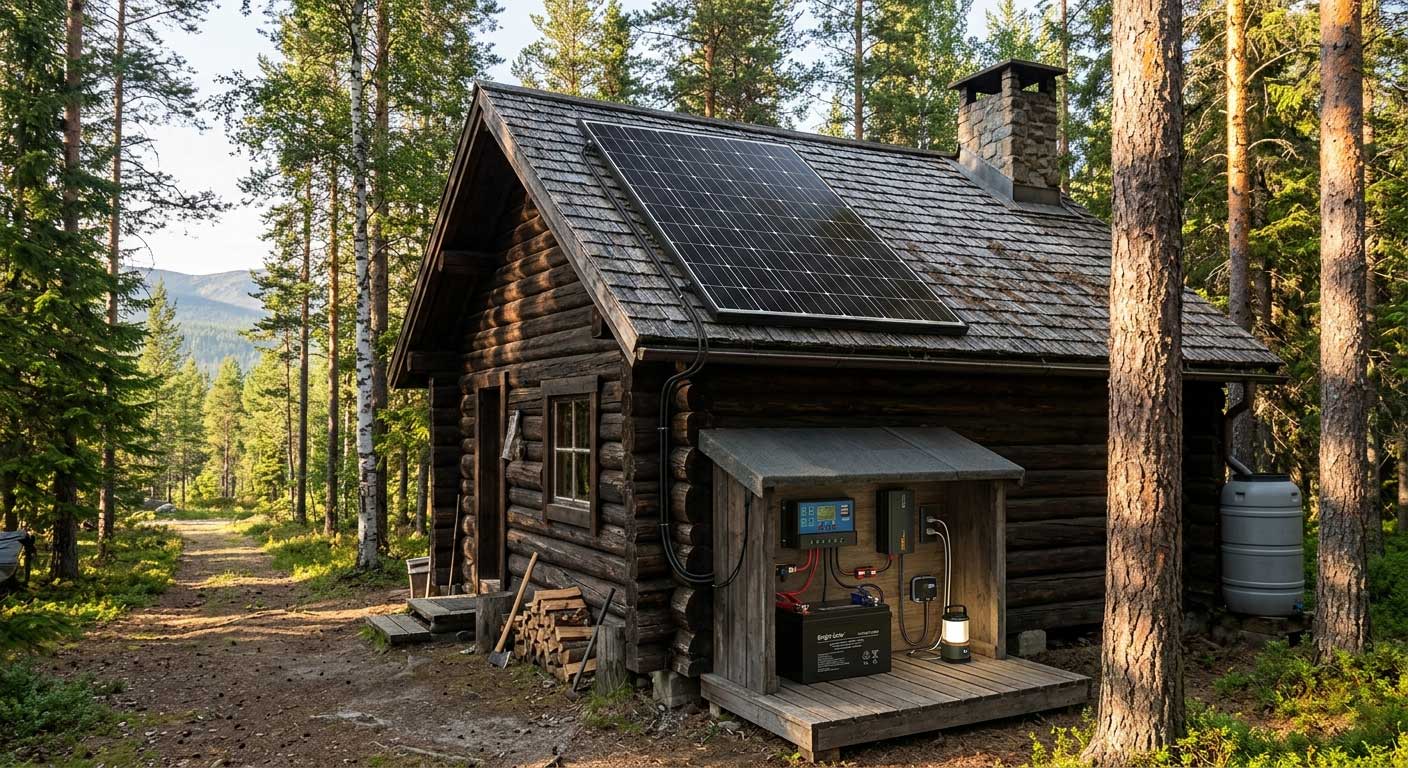

• Off-grid cabins
• Electric fence energizers
• Remote security systems
• Agricultural monitoring equipment
• Backup lighting systems

Unlike grid-connected energy storage systems, these batteries are often located far from utility power.

Solar charging becomes the simplest solution.

Once installed properly, the system can operate with minimal maintenance for years.

The Real Advantage Isn’t Free Electricity

Many people assume solar charging is primarily about reducing energy costs.

In smaller battery applications, convenience is often more important.

Consider these examples:

A rancher driving two hours to replace discharged batteries.

A boat owner discovering dead batteries after months in storage.

A cabin owner arriving for a weekend getaway with no available power.

The cost of battery failure often exceeds the value of the electricity itself.

Solar solves a reliability problem.

Understanding How a 12 Volt Battery Charges

This is where many online articles become misleading.

A “12-volt battery” doesn’t actually charge at 12 volts.

A fully charged lead-acid battery typically rests around:

12.6V–12.8V

During charging, voltage often rises to:

13.8V–14.7V

Depending on battery chemistry.

That means a solar panel designed to charge a 12V battery must produce a higher voltage than the battery itself.

This is why common “12V solar panels” generally have operating voltages between 17V and 22V.

Without sufficient voltage differential, charging becomes ineffective.

Why Charge Controllers Matter

One of the most common mistakes I encounter is connecting solar panels directly to batteries.

Sometimes it works temporarily.

Long-term, it often creates problems.

A charge controller regulates:

• Charging voltage
• Charging current
• Battery protection
• Overcharge prevention
• Battery health

Without a controller, battery lifespan may decline significantly.

According to battery charging guidelines published by Trojan Battery, maintaining proper charging profiles is one of the most important factors influencing battery longevity.

Source:

https://www.trojanbattery.com

Choosing the Correct Solar Panel Size

The right solar panel for 12 volt battery systems depends on daily energy consumption.

Not battery size alone.

Let’s look at several common scenarios.

Battery Maintenance Charging

Battery:

100Ah

Usage:

Minimal

Goal:

Prevent self-discharge

Recommended Panel:

10W–20W

Typical Applications:

• Stored RVs
• Boats in marinas
• Seasonal equipment

Light Daily Usage

Battery:

100Ah

Daily Consumption:

15–25Ah

Recommended Panel:

50W–100W

Typical Applications:

• Small cabins
• Security cameras
• Lighting systems

Moderate Daily Usage

Battery:

100Ah–200Ah

Daily Consumption:

30–50Ah

Recommended Panel:

150W–300W

Typical Applications:

• RV house systems
• Fishing boats
• Agricultural systems

Heavy Daily Usage

Battery Bank:

200Ah+

Daily Consumption:

60Ah+

Recommended Panel:

300W–600W+

Typical Applications:

• Full-time RV living
• Off-grid cabins
• Mobile workstations

Real Charging Times: What Actually Happens Outdoors?

Manufacturers often publish charging estimates under ideal laboratory conditions.

The field tells a different story.

Let’s use a realistic example.

Battery:

12V 100Ah

Usable Energy:

Approximately 1.2 kWh

Solar Panel:

200W

Average Peak Sun Hours:

5 hours/day

Expected Daily Production:

Approximately 800–1,000Wh after system losses

Under favorable weather conditions, a 200W panel can often recharge a deeply discharged 100Ah battery in roughly one to two days.

Not two hours.

Not half a day.

Real-world charging takes time.

This is one reason system sizing matters.

Battery Type Changes Everything

Not all batteries charge the same way.

A major source of system failure comes from treating all battery chemistries identically.

Flooded Lead-Acid Batteries

Advantages:

• Low initial cost
• Proven technology

Challenges:

• Water maintenance
• Ventilation requirements
• Lower cycle life

Typical Charging Voltage:

14.4V–14.8V

AGM Batteries

Advantages:

• Maintenance-free
• Lower self-discharge
• Better vibration resistance

Common Applications:

• Marine systems
• RVs
• Backup power

Typical Charging Voltage:

14.2V–14.6V

Lithium Iron Phosphate (LiFePO4)

Advantages:

• Longer lifespan
• Faster charging
• Greater usable capacity

According to the U.S. Department of Energy, lithium-based battery technologies continue to see widespread adoption due to higher cycle life and energy density.

Source:

https://www.energy.gov

Challenges:

• Higher upfront cost
• Requires compatible charging equipment

Typical Charging Voltage:

14.2V–14.6V

The battery chemistry should influence controller selection from the beginning.

Common Applications for Solar Panel for 12 Volt Battery Systems

One reason this market continues growing is versatility.

The same solar charging principles apply across dozens of industries.

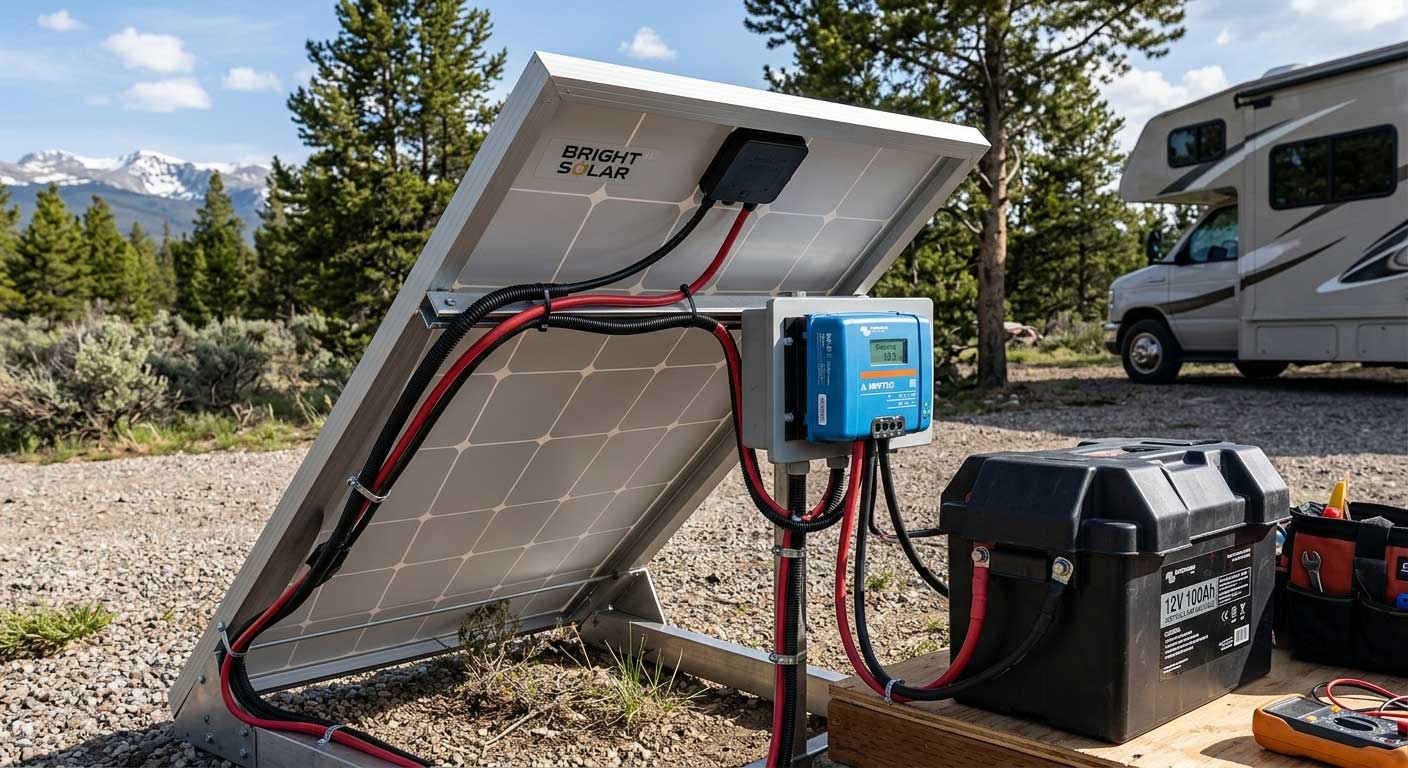

RV and Travel Trailer Systems

Solar keeps batteries charged while:

• Boondocking
• Dry camping
• Long-term storage

Many RV owners start with a single battery and eventually expand into larger solar systems.

Marine Battery Charging

Boat owners frequently use solar charging for:

• House batteries
• Navigation systems
• Bilge pumps
• Trolling motors

The marine environment introduces additional concerns such as corrosion and salt exposure.

Equipment selection becomes critical.

Agricultural Applications

Some of the most dependable solar systems I’ve encountered are located on farms.

Applications include:

• Electric fences
• Water pumps
• Remote gates
• Livestock monitoring

Many operate unattended for years.

The Most Overlooked Factor: Sunlight Availability

A surprising number of buyers calculate system size without evaluating sunlight.

That approach creates disappointment.

A 100W panel installed in Arizona behaves very differently from a 100W panel installed in Washington State.

According to data published by the National Renewable Energy Laboratory (NREL), solar resource availability varies significantly across North America.

Source:

https://www.nrel.gov

Location matters.

Season matters.

Shading matters.

Even a small shadow across a solar panel can reduce charging performance dramatically.

Long-Tail Keyword Section: Solar Battery Charger 12V Systems

Many searches for a solar panel for 12 volt battery eventually become searches for a complete solar battery charger 12V system.

A complete charging solution typically includes:

• Solar panel
• Charge controller
• Battery cables
• Fuse protection
• Mounting hardware
• Battery monitoring system

The panel is only one component.

The entire charging ecosystem determines reliability.

Advanced Solar Panel Sizing for a 12 Volt Battery

By the time most buyers start comparing 100W, 200W, and 300W solar panels, they’re already asking the wrong question.

The better question is:

“How many amp-hours am I using every day?”

A solar panel does not charge a battery based on battery capacity alone.

It charges based on energy removed from the battery.

Years ago, I inspected a remote hunting cabin where the owner had installed a 400W solar array to maintain a single 100Ah battery.

The system looked impressive.

It was also oversized.

Meanwhile, another client was trying to run a refrigerator, lights, and communications equipment from a 50W panel.

That system was undersized.

Neither problem came from equipment quality.

Both came from poor sizing.

Practical Daily Consumption Estimates

Device	Daily Consumption
LED Light	5–15Wh
Phone Charging	10–20Wh
Laptop	50–100Wh
Portable Fridge	300–700Wh
Water Pump	100–300Wh
Security Camera	20–100Wh

When these loads are added together, a surprisingly small system can become a large system very quickly.

A battery doesn’t care about panel wattage.

It only knows whether energy is being replaced.

MPPT vs PWM Charge Controllers

Few components create more confusion than charge controllers.

Both technologies work.

They simply perform differently.

PWM Controllers

Advantages:

• Lower cost
• Simpler design
• Reliable for smaller systems

Limitations:

• Lower efficiency
• Reduced performance during cold weather
• Less effective with higher-voltage panels

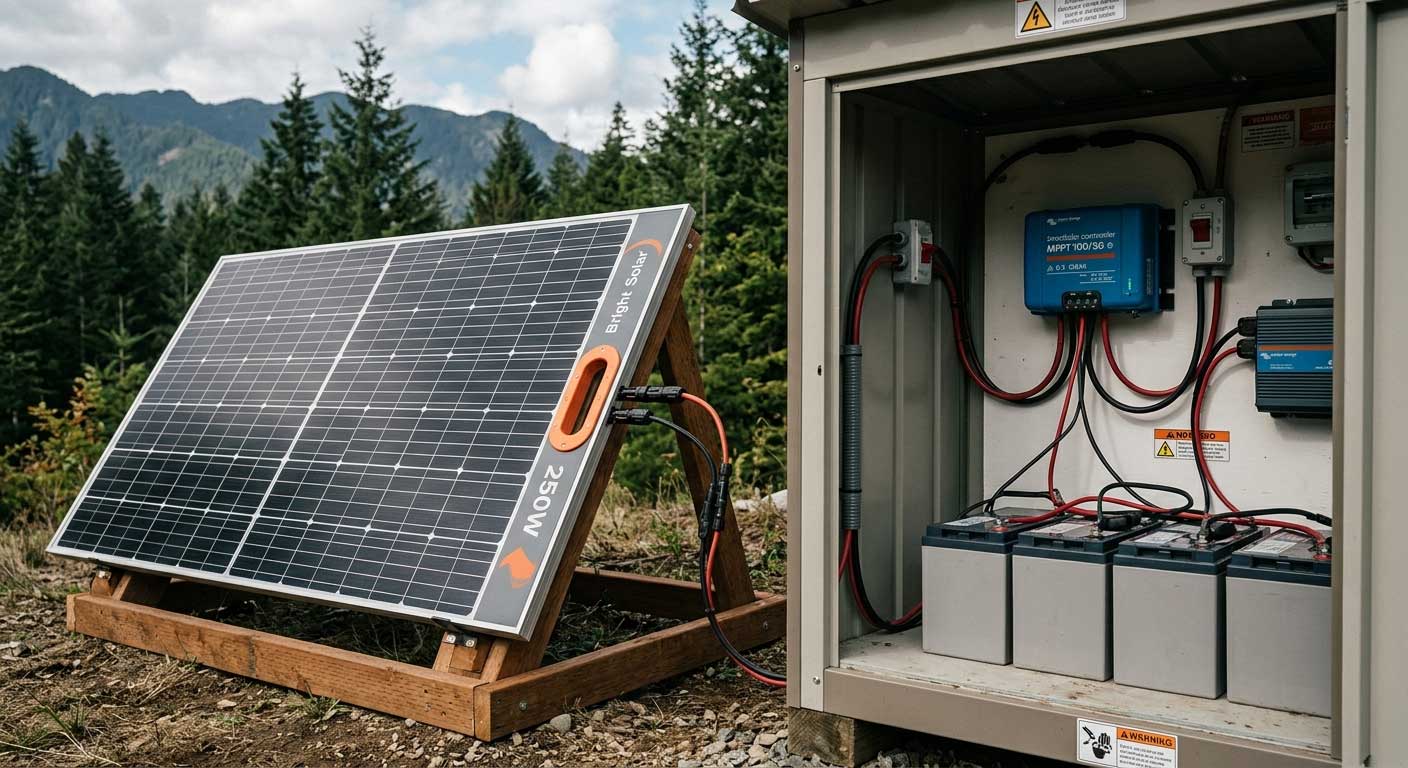

MPPT Controllers

Advantages:

• Higher charging efficiency
• Better cold-weather performance
• Improved energy harvest

According to technical data published by Victron Energy and Morningstar Corporation, MPPT controllers can improve energy harvest significantly under certain operating conditions compared with PWM technology.

Sources:

https://www.victronenergy.com

https://www.morningstarcorp.com

For systems above roughly 200W, I typically recommend MPPT technology whenever budget allows.

The difference becomes noticeable over time.

What Happens When Solar Panels Are Undersized?

Most solar discussions focus on panel output.

Less attention is given to what happens when output is insufficient.

The symptoms are predictable.

Early Warning Signs

• Battery voltage declines every day
• Charging never reaches full absorption stage
• Reduced runtime
• Premature battery failure

I’ve seen batteries replaced multiple times before owners realized the actual problem was inadequate solar production.

The battery was being blamed for a charging problem.

Real-World Case Study: Boat Battery Charging System

One of the more interesting projects I reviewed involved a fishing boat operating along the Gulf Coast.

The owner’s complaint seemed straightforward.

The batteries kept dying.

Initially, he assumed the batteries were defective.

After inspection, the problem was obvious.

The solar panel installed on the boat produced less energy than the electronics consumed each day.

Equipment included:

• Fish finder
• GPS
• Bilge monitoring
• Communication systems

Daily demand exceeded solar production.

No battery can survive that imbalance indefinitely.

The solution was surprisingly simple.

Solar capacity increased from 50W to 200W.

Battery failures disappeared.

Sometimes the best troubleshooting tool is a calculator.

How Weather Impacts Battery Charging

Laboratory performance figures rarely reflect outdoor reality.

Cloud cover matters.

Temperature matters.

Season matters.

A solar panel rated at 200W may produce:

• 180–200W under ideal conditions
• 120–150W during partial cloud cover
• Less during winter months

The National Renewable Energy Laboratory (NREL) has documented substantial seasonal differences in solar resource availability throughout North America.

Source:

https://www.nrel.gov

This is why experienced designers include production margins.

Solar systems should be designed for normal conditions rather than perfect conditions.

Maintenance Requirements Are Surprisingly Small

One reason solar charging systems remain popular is simplicity.

Compared with generators, maintenance requirements are minimal.

Typical annual maintenance includes:

• Cleaning panel surfaces
• Inspecting cable connections
• Checking battery terminals
• Verifying controller operation

That’s often it.

I have inspected solar charging systems still operating after years with little more than occasional cleaning.

The fewer moving parts involved, the fewer failures generally occur.

Long-Tail Keyword Section: Solar Panel for Deep Cycle Battery Applications

Deep-cycle batteries represent one of the largest segments of the solar charging market.

Unlike automotive starting batteries, deep-cycle batteries are designed for repeated charging and discharging.

Common applications include:

• RV energy storage
• Marine systems
• Solar backup power
• Remote cabins
• Agricultural installations

The best solar panel for deep cycle battery charging is not necessarily the largest panel available.

It is the panel that consistently restores the energy removed from the battery while maintaining healthy charging voltages.

Consistency beats peak performance.

Mistakes That Shorten Battery Life

The battery usually receives the blame.

Often unfairly.

The real culprit is frequently system design.

Mistake #1: Ignoring State of Charge

Repeatedly operating below 50% charge can significantly reduce lead-acid battery lifespan.

Mistake #2: Poor Wiring

Voltage drop is one of the least discussed problems in small solar systems.

Undersized cables waste energy before it reaches the battery.

Mistake #3: Incorrect Charge Profiles

Using lithium settings on lead-acid batteries—or vice versa—creates charging issues.

Mistake #4: Assuming Rated Output Is Constant

Solar production fluctuates continuously.

Designing around peak output alone creates unrealistic expectations.

Return on Investment: Is Solar Battery Charging Worth It?

For small systems, ROI calculations often overlook convenience.

Consider a remote gate, monitoring station, or electric fence.

Without solar:

• Regular battery replacement
• Travel costs
• Downtime risks

With solar:

• Reduced maintenance visits
• Improved reliability
• Longer battery life

In many cases, the savings come from avoided service calls rather than electricity generation.

This becomes especially important in remote locations.

FAQ: Solar Panel for 12 Volt Battery

What size solar panel do I need for a 12 volt battery?

It depends on daily energy consumption. A maintenance charger may require only 10–20W, while active off-grid systems often use 100–300W or more.

Can a solar panel directly charge a 12V battery?

Technically yes, but it is not recommended. A charge controller protects the battery and regulates charging voltage.

How long does it take to charge a 100Ah battery with solar?

A 200W solar panel may recharge a heavily discharged 100Ah battery in approximately one to two days under favorable sunlight conditions.

Is MPPT better than PWM?

For many medium and large systems, MPPT controllers provide greater efficiency and improved energy harvest.

Can I leave a solar panel connected all the time?

Yes, when paired with a properly configured charge controller designed for the battery chemistry being used.

Do solar panels charge batteries on cloudy days?

Yes. Output is reduced but charging can still occur under diffuse sunlight.

Final Thoughts on Choosing a Solar Panel for 12 Volt Battery Systems

The best solar panel for 12 volt battery charging is rarely the biggest panel available.

It’s the panel that matches real-world energy consumption, local sunlight conditions, battery chemistry, and long-term reliability requirements.

Over the years, I’ve seen tiny 20W systems operate flawlessly for years because they were properly sized. I’ve also seen oversized installations underperform because the fundamentals were ignored.

Successful solar charging begins with understanding the battery.

Everything else follows from that.

When properly designed, a solar panel for 12 volt battery applications can provide dependable power for RVs, boats, farms, cabins, backup systems, and countless off-grid projects with remarkably little maintenance.
