Portable Solar Generator for RV: Complete Buying and Setup Guide

A portable solar generator for RV combines battery storage, an inverter, and charging electronics in one mobile power unit. When paired with compatible solar panels, it can provide quiet off-grid electricity for RV lighting, electronics, refrigeration, and selected AC appliances without relying entirely on campground hookups.

What Is a Portable Solar Generator for RV?

Despite the name, a Portable Solar Panel generator does not generate electricity by itself.

It stores electricity in a battery and uses an inverter and control electronics to make that stored energy available to RV appliances.

A typical system contains:

• Battery pack
• Battery management system
• Inverter
• AC outlets
• DC outputs
• USB charging ports
• Solar charging input
• AC charging input
• Display or monitoring system

The solar panel is the energy source.

The battery is the storage.

The inverter converts stored DC electricity into AC electricity for compatible appliances.

The U.S. Department of Energy describes batteries as a way to store solar-generated electricity and use it later when sunlight is unavailable. It also distinguishes energy capacity from power capacity—two specifications that RV owners should not confuse.

That distinction becomes very obvious at a campsite.

A refrigerator may consume relatively little energy over an entire day but still require a higher startup or operating power level for a short period. A coffee maker may need substantial power but run for only a few minutes.

Battery capacity and inverter output therefore answer different questions.

How Does a Solar Generator Work in an RV?

The basic energy path looks like this:

Solar Panel → Solar Input → Battery → Inverter → RV Appliance

For DC equipment:

Solar Panel → Battery → DC Output → Device

During the day, solar panels charge the battery.

When clouds move in—or when the sun goes down—the battery supplies stored electricity.

That makes the system different from using a solar panel alone.

The U.S. Department of Energy notes that solar production varies with time of day, season, clouds, dust, obstructions, rain, snow, and other conditions. Energy storage allows generated electricity to be used at a different time from when it was produced.

For RV travel, that timing matters.

You may have strong sunlight at 1 p.m., but the refrigerator, lights, laptop, and ventilation fan may be needed at 9 p.m.

The battery bridges that gap.

Portable Solar Generator for RV vs Traditional RV Generator

A portable battery-based solar generator has a very different operating profile from a gasoline or propane generator.

Feature	Portable Solar Generator	Fuel Generator
Fuel required	No during solar operation	Yes
Solar charging	Yes	No
Operating noise	Very low	Noticeable
Exhaust	None during battery operation	Yes
Indoor operation	Follow manufacturer safety requirements	Not suitable due to exhaust
Maintenance	Battery/electrical system maintenance	Engine maintenance
Night operation	Battery dependent	Fuel dependent
AC power	Yes, through inverter	Yes
Weight	Depends on battery size	Depends on engine size
Best use	Quiet camping, electronics, backup	High continuous loads

The distinction is especially useful for campsite use.

A battery system can be sitting beside the RV while powering a laptop, refrigerator, lights, or other compatible loads without an engine running.

For larger loads, however, inverter capacity and battery capacity become limiting factors.

A portable solar generator is not automatically a substitute for every generator.

It is a different type of power system.

How Much Power Does an RV Solar Generator Need?

Start with the appliances.

Do not start with the battery capacity printed on the product box.

A practical RV energy audit might look like this:

RV Load	Approx. Power	Example Daily Use	Daily Energy
LED lights	20W	4 hours	80Wh
Laptop	60W	3 hours	180Wh
Phone charging	10W	3 hours	30Wh
Ventilation fan	30W	5 hours	150Wh
Refrigerator	60W average while running	8 hours equivalent	480Wh
Small electronics	30W	2 hours	60Wh
Example total	—	—	980Wh/day

These figures are an example, not universal RV consumption data.

Actual refrigerator cycling, inverter losses, ambient temperature, battery temperature, and user behavior can change the result considerably.

Still, the exercise reveals something important.

A person using around 1,000Wh per day needs a very different system from someone using only 300Wh.

Battery Capacity: Wh Matters More Than “Big Battery”

Portable power stations are usually described using watt-hours (Wh).

For example:

• 500Wh
• 1,000Wh
• 1,500Wh
• 2,000Wh
• 3,000Wh

A 1,000Wh battery theoretically stores 1,000 watt-hours.

But the appliance does not necessarily receive all 1,000Wh.

Energy is lost during conversion.

The U.S. Department of Energy explicitly notes that energy storage is not 100% efficient because energy is lost during conversion and retrieval.

NREL‘s 2024 Annual Technology Baseline uses 85% round-trip efficiency as a representative value for its modeled battery-storage systems, although actual portable power stations vary by battery chemistry, electronics, load, temperature, and operating conditions.

For a simple planning example:

1,000Wh × 85% = 850Wh

That does not mean every portable power station delivers exactly 850Wh of usable energy.

It illustrates why calculating from nameplate capacity alone can create unrealistic expectations.

What Size Portable Solar Generator Is Best for an RV?

There is no single correct size.

A useful starting point is:

Battery Capacity	Typical RV Use
300–600Wh	Phones, lights, small electronics
600–1,000Wh	Weekend camping and basic appliances
1,000–2,000Wh	Refrigerator, electronics, moderate off-grid use
2,000–3,000Wh+	Larger energy demands and longer stays

These are planning ranges rather than guarantees.

The actual runtime depends on what is connected.

A 1,500Wh battery running a 100W load continuously would theoretically provide:

1,500Wh ÷ 100W = 15 hours

Real runtime will be shorter after conversion losses and battery operating limits.

Change the load to 1,500W:

1,500Wh ÷ 1,500W = 1 hour

Again, real runtime will be shorter.

This is why battery capacity alone cannot determine whether a solar generator is appropriate.

Inverter Size for RV Appliances

The inverter determines how much AC power the portable unit can deliver at one time.

Common inverter ratings include:

• 600W
• 1,000W
• 1,500W
• 2,000W
• 3,000W

A 2,000Wh battery does not necessarily mean the system can operate a 2,000W appliance.

Battery capacity is energy.

Inverter rating is power.

Those are different measurements.

Consider these examples:

Appliance	Example Power
Phone charger	10W
LED lighting	20–50W
Laptop	45–100W
Small fan	20–60W
TV	50–150W
Coffee maker	800–1,500W
Microwave	1,000–1,500W
RV air conditioner	Often well above small power-station capability

Actual appliance ratings vary.

Check the nameplate of the equipment you intend to operate.

Can a Portable Solar Generator Run an RV Air Conditioner?

Sometimes—but this is where many RV buyers underestimate the system requirements.

An RV air conditioner can require substantially more power than small electronics.

The challenge is not only the air conditioner’s running load.

Starting or compressor cycling can create additional demand, depending on the equipment.

A portable power station intended for air-conditioning use therefore needs:

• Sufficient inverter continuous output
• Adequate surge capability
• Enough battery capacity
• Appropriate output waveform
• A suitable connection method
• Sufficient solar recharge capability

A 500Wh portable power station should not be marketed as a realistic all-day RV air-conditioning solution simply because it has an AC outlet.

That would confuse outlet availability with energy capacity.

For serious air-conditioning use, the complete system needs to be sized around the air conditioner’s actual electrical consumption.

How Many Solar Panels Does an RV Solar Generator Need?

This depends on the solar generator’s maximum solar input.

Suppose a portable unit accepts up to 400W of solar input.

Installing 600W of panels does not necessarily mean the power station will accept 600W.

The input specification must be checked.

For example:

Solar generator solar input: 400W maximum

Possible panel arrangement:

2 × 200W = 400W

That fits the nominal input limit.

Another system might accept 800W.

The appropriate array would be different.

Solar panels also have their own voltage and current specifications, so panel wattage is not enough.

Check:

• Maximum PV voltage
• Maximum PV current
• Maximum solar input wattage
• Connector type
• MPPT operating range

The U.S. Department of Energy emphasizes that PV modules are only one component of a complete PV system; power electronics and storage also play important roles.

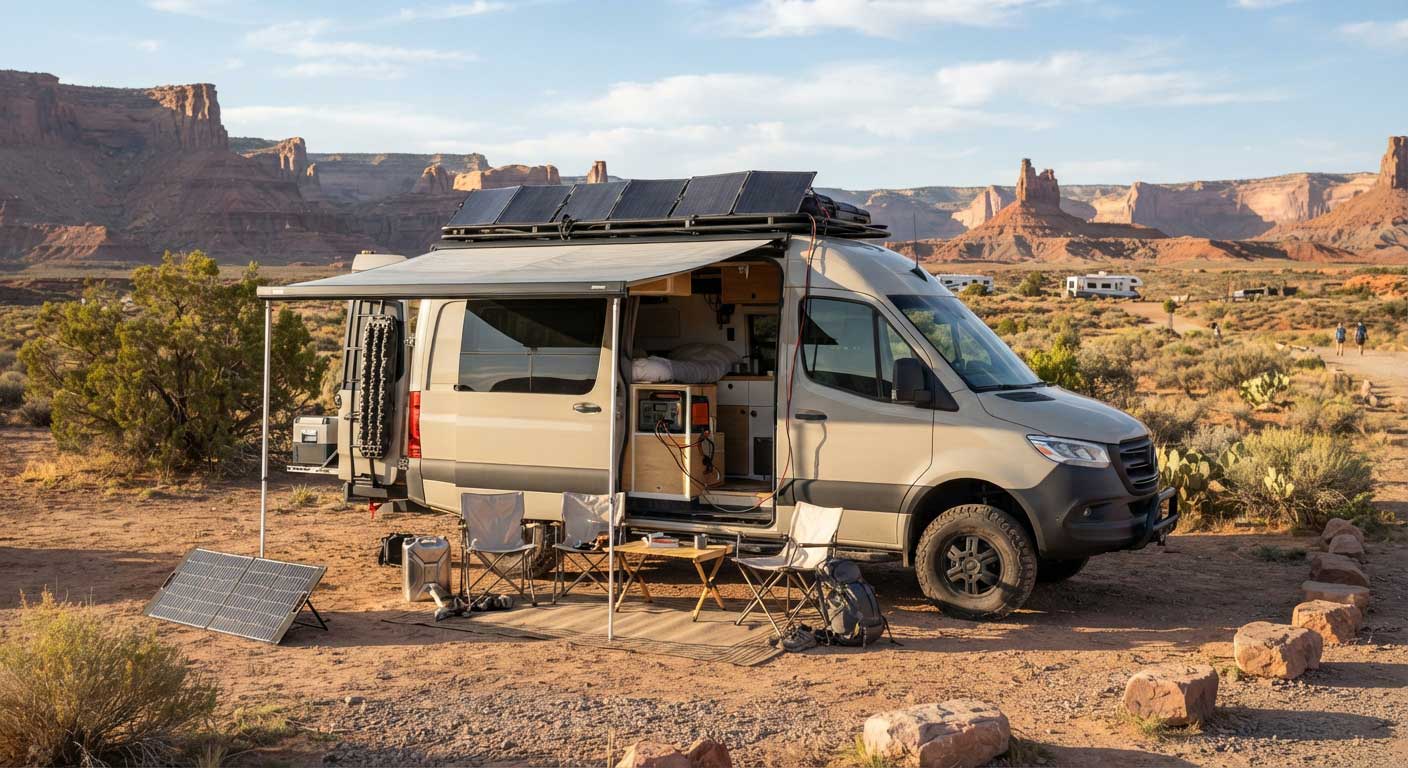

Portable Solar Generator for RV With Flexible Solar Panels

This combination is particularly interesting for RV owners.

Flexible or semi-flexible solar panels can be useful when the roof has:

• Limited mounting space
• Curved sections
• Weight restrictions
• Roof vents
• Air-conditioning equipment

A portable generator can remain inside or near the RV while the solar panels are positioned where sunlight is strongest.

This creates a modular arrangement.

For example:

Roof-mounted flexible panels → portable power station

or:

Portable/folding solar panels → portable power station

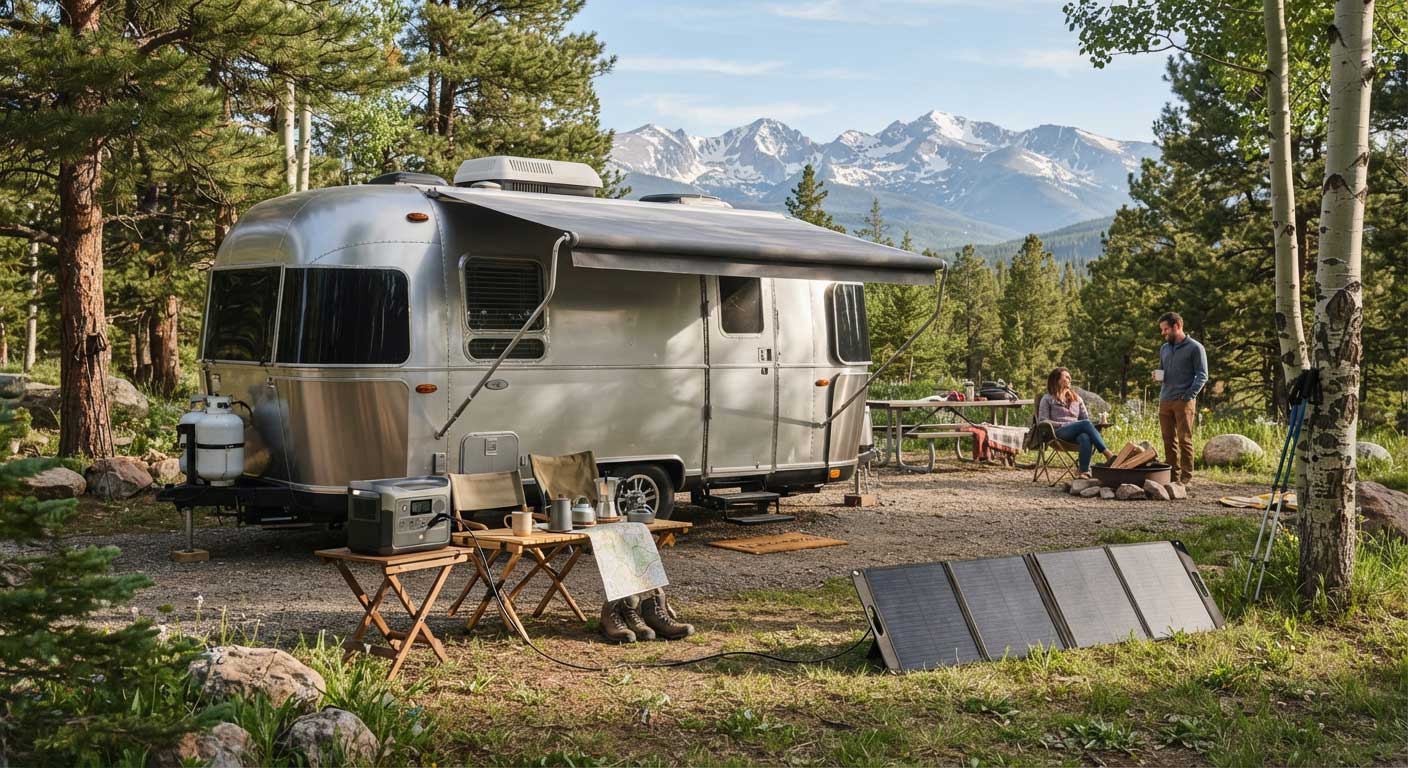

The second arrangement has an obvious advantage for campsite positioning.

The RV can remain parked under partial shade while the panels are moved into sunlight.

That sounds minor until you spend a hot afternoon inside a parked RV.

Keeping the vehicle shaded while moving the solar array into direct sunlight can be more useful than simply adding another panel.

Portable Solar Generator for RV With 100W Solar Panels

Bright Solar’s lightweight solar panels can be used as part of a customized mobile energy system when their electrical specifications are compatible with the generator’s solar input.

For example:

1 × 100W panel

can serve as a small charging source.

2 × 100W panels

provide a nominal 200W array.

4 × 100W panels

provide a nominal 400W array.

But the generator must accept the resulting voltage and current.

Do not connect panels simply because the wattage adds up correctly.

A 400W array can still be incompatible with a portable power station if the PV voltage exceeds its input limit.

This is one of the most common technical details overlooked in casual RV solar recommendations.

Solar Generator for RV: Portable vs Roof-Mounted Solar

A portable solar generator can work with both portable and roof-mounted solar panels.

Portable solar setup

Best for:

• Campgrounds
• Short trips
• Rental RVs
• Temporary installations
• Shaded parking areas

Roof-mounted system

Best for:

• Full-time RV living
• Frequent travel
• Permanent installation
• Automatic daytime charging

Hybrid setup

A hybrid arrangement can use both.

For example:

Roof solar → battery

plus:

Portable panels → additional solar input

The exact connection method depends on the power station’s charging architecture.

How to Set Up a Portable Solar Generator for RV

A practical setup can be completed in several stages.

Step 1: List the Loads

Write down every appliance you expect to use.

Do not rely on memory.

Include:

• Refrigerator
• Lights
• Laptop
• Fan
• TV
• Microwave
• Coffee maker
• CPAP
• Chargers

Then estimate daily operating hours.

Step 2: Calculate Daily Energy

Use:

Watts × Hours = Watt-hours

Example:

100W refrigerator-equivalent load × 5 hours = 500Wh

50W laptop × 4 hours = 200Wh

30W lighting × 4 hours = 120Wh

Total:

820Wh/day

Step 3: Select Battery Capacity

Choose enough storage to cover your expected use while allowing for conversion losses and reserve capacity.

Step 4: Check Inverter Output

The inverter must handle the appliances you intend to run.

Check both:

• Continuous output
• Surge output

Step 5: Match Solar Input

Verify the portable generator’s:

• Maximum solar wattage
• Maximum PV voltage
• Maximum PV current

Then select compatible panels.

RV Solar Generator Case Study: 1,000Wh Weekend Setup

Consider a couple traveling for two nights in a compact travel trailer.

Their daily electrical demand is approximately:

Load	Daily Use
Refrigerator	400Wh
Lighting	60Wh
Phones	30Wh
Laptop	150Wh
Ventilation	100Wh
Small electronics	60Wh
Total	800Wh/day

They use a portable power station with approximately 1,000Wh nominal battery capacity and add solar charging during the day.

The system is not designed to run air conditioning.

That decision is important.

Instead, the couple uses the stored energy for smaller loads and conserves battery capacity during the evening.

A solar input of several hundred watts can replenish part of the daily energy consumption during good sunlight.

The result is a realistic weekend setup rather than an oversized system designed around appliances they rarely use.

Portable Solar Generator for RV: Safety and Practical Details

A portable power station is still an electrical energy-storage device.

Treat it accordingly.

Keep the unit:

• Dry
• Properly ventilated
• Away from excessive heat
• Protected from physical impact
• Used within manufacturer specifications

Do not modify electrical connections without understanding the equipment’s ratings.

Do not assume an AC outlet means every RV appliance is suitable.

And never connect a portable inverter output to an RV electrical system in a way that can backfeed an external circuit unless the system and connection method are specifically designed for that purpose.

For integrated RV electrical systems, use equipment and installation methods appropriate to the RV’s electrical architecture.”Learn more about the Flexible Solar Panel Installation Guide“

What to Look for When Buying a Portable Solar Generator for RV

The battery capacity gets most of the attention.

It shouldn’t get all of it.

Check these specifications:

Battery Capacity

Measured in Wh.

This determines how much stored energy is available.

Continuous Inverter Output

Measured in watts.

This determines what loads can operate simultaneously.

Surge Capacity

Important for equipment with starting loads.

Solar Input

Check maximum:

• Watts
• Volts
• Amps

Battery Chemistry

Battery chemistry affects:

• Weight
• Cycle behavior
• Operating characteristics
• System design

Charging Options

Useful systems may support:

• Solar
• AC
• Vehicle charging

Display and Monitoring

A clear display showing:

• Input watts
• Output watts
• Battery percentage
• Estimated runtime

is surprisingly useful in actual RV use.

Instead of guessing, you can see whether the refrigerator is drawing power or whether solar production has fallen behind.

Portable Solar Generator for RV Maintenance

Portable power stations generally require less mechanical maintenance than combustion generators, but they are not maintenance-free.

Pay attention to:

• Battery temperature
• Ventilation
• Charging cables
• Connector condition
• Dust accumulation
• Storage charge level
• Manufacturer storage instructions

If the RV sits unused for several months, follow the manufacturer’s recommended storage procedure rather than leaving the battery at an arbitrary state of charge.

Solar panels also need occasional inspection.

Check for:

• Damaged cables
• Cracked connectors
• Dirt buildup
• Physical damage

A clean solar input source is especially important when the portable generator has limited solar charging capacity.

FAQ About Portable Solar Generator for RV<

What is the best portable solar generator for an RV?

The best portable solar generator depends on the RV’s daily energy use, appliance power requirements, desired battery capacity, inverter output, and available solar input. A larger battery is not automatically better if the solar input cannot recharge it efficiently.

Can a portable solar generator power an RV refrigerator?

Yes. A suitably sized power station can operate an RV refrigerator, but runtime depends on the refrigerator’s actual energy consumption, battery capacity, inverter efficiency, temperature, and cycling behavior.

How many solar panels do I need for an RV power station?

It depends on the power station’s maximum solar input and your daily energy consumption. For example, a system accepting 400W of PV input could potentially use a compatible 400W solar array, provided voltage and current remain within its specifications.

Can a portable solar generator run an RV air conditioner?

Some high-capacity systems can operate certain RV air conditioners for limited periods, but air conditioning is a high-energy load. The inverter, battery capacity, startup requirements, and solar recharge rate all need to be checked before relying on this setup.

How long will a 1,000Wh solar generator run?

Runtime depends on the load. A theoretical 100W load could consume 1,000Wh in 10 hours, before conversion losses and usable-capacity limits. A 500W load would consume the same nominal energy in about two hours.

Can I charge an RV solar generator while using it?

Many portable power stations support simultaneous charging and discharging, but this is manufacturer-dependent. Check the model’s specifications before designing the system around pass-through or simultaneous operation.

Is a portable solar generator better than a gas generator for RV camping?

For quiet camping and smaller electrical loads, a battery-based solar generator can be very convenient because it produces no engine noise during battery operation and can recharge from solar. For high continuous loads over long periods, a fuel generator may offer different advantages.

Bright Solar Solar Panels for Portable RV Power Systems

Bright Solar focuses on lightweight and flexible solar modules for applications where conventional rigid panels are not always practical.

For RV applications, our solar panels can be integrated into portable power solutions when their electrical specifications match the selected battery power station.

Typical applications include:

• Camper vans
• Travel trailers
• Motorhomes
• Marine systems
• Outdoor power
• Off-grid equipment

A portable solar generator becomes considerably more useful when the solar charging source is designed around its actual input limits.

That is where panel selection matters.

A 200W solar array that is electrically compatible with a power station can be more useful than a larger array that exceeds the generator’s PV input specifications.

Conclusion: Portable Solar Generator for RV

A portable solar generator for RV is best viewed as a complete mobile energy-storage system rather than simply a large battery.

The right setup balances four things:

• Battery capacity for stored energy
• Inverter output for appliance power
• Solar input for daytime recharge
• Daily consumption for realistic runtime

For basic camping, a smaller power station with 300–600Wh of storage may be sufficient. Longer off-grid stays generally benefit from 1,000Wh or more, while heavy loads require a larger inverter and significantly more stored energy.

Solar panels then determine how quickly that stored energy can be replenished.

Bright Solar flexible and semi-flexible panels can be considered when an RV requires lightweight, low-profile solar generation that works with a compatible portable power station.

The important specification is not simply the biggest battery or the highest panel wattage.

It is whether the entire system works together.
