how solar panels create electricity?

Solar panels create electricity by using photovoltaic cells to convert sunlight directly into direct-current electricity. Sunlight energizes electrons inside a semiconductor, creating current that is collected by metal contacts. An inverter then converts the panel’s DC output into AC electricity for household appliances, batteries, or grid-connected systems.

How do solar panels create electricity from sunlight?

The basic process is the photovoltaic effect.

Inside a solar panel are many photovoltaic cells, usually made from crystalline silicon. When sunlight reaches the cell, photons transfer energy to electrons in the semiconductor. The cell structure separates and directs these charge carriers, allowing an electrical current to flow through an external circuit.

The U.S. Department of Energy explains that a PV cell absorbs sunlight and transfers its energy to electrons. Those electrons move through the semiconductor and are collected by conductive metal contacts.

It is worth being precise here: the panel does not “store” sunlight and release it later. Electricity is generated while usable light reaches the photovoltaic material and the electrical circuit is available.

What happens inside a solar cell?

A simplified silicon PV cell has several functional layers rather than being just a piece of silicon.

Component	Main function
Semiconductor	Absorbs sunlight and generates charge carriers
Electrical junction	Helps separate electrons and holes
Metal contacts	Collect electrical current
Protective layers	Protect the cell from moisture and mechanical damage
External circuit	Carries DC electricity away from the cell

DOE notes that silicon cells are processed to create a diode structure that separates electrical charges and allows current to flow in one direction.

That small internal structure is doing the real work. The glass, encapsulant, backsheet, frame, and junction box are essential to making a durable module, but they are not what converts sunlight into electricity.

How does a solar panel turn DC electricity into usable power?

A photovoltaic module produces direct current (DC).

Most household electrical systems use alternating current (AC), so a complete solar installation normally includes an inverter. The inverter changes the electrical output from the modules into AC electricity suitable for the building’s electrical system or grid connection. DOE describes PV modules and arrays as one part of a complete system, with power electronics converting module-generated DC into AC.

The basic energy path looks like this:

Sunlight → PV cell → DC electricity → inverter → AC electricity → load, battery, or grid

For battery systems, the architecture can be different because charge controllers and battery-compatible power electronics may be used between the PV array and storage.

From a manufacturing perspective, this distinction matters. A panel’s rated wattage describes its electrical output under specified test conditions; it does not mean the same amount of AC power will appear continuously at a household outlet.

Does sunlight intensity affect solar panel electricity production?

Yes. Light intensity directly affects how much current a PV cell can produce.

But sunlight intensity is only part of the picture. DOE identifies several factors that influence PV conversion efficiency, including wavelength, recombination, temperature, and reflection. Higher temperatures generally cause voltage to decrease, while excessive reflection prevents some incoming light from reaching the semiconductor.

This is one reason a panel’s nameplate rating should not be interpreted as its guaranteed hourly production.

Consider a 400 W module. Under ideal rated test conditions, its maximum power point is approximately 400 W. In an actual installation, output changes throughout the day.

Condition	Likely effect
Strong direct sunlight	Higher instantaneous output
Morning or late afternoon	Lower output
Partial shading	Can substantially reduce system output
High cell temperature	Usually lowers voltage and power
Dust or soiling	Reduces light reaching cells
Poor orientation	Reduces available solar radiation
Electrical mismatch	Can reduce array performance

The practical lesson is simple: 400 W is a rating, not a promise of 400 Wh every hour.

How much electricity can solar panels create?

The amount depends on panel power, sunlight availability, temperature, orientation, shading, system losses, and operating conditions.

A useful starting calculation is:

Energy = Rated power × equivalent full-sun hours × system performance factor

For example, a 400 W panel receiving an equivalent 4.5 hours of full-power sunlight would have a theoretical energy figure of:

0.4 kW × 4.5 h = 1.8 kWh

Real output will be lower or higher depending on actual conditions and system losses.

This distinction becomes especially important when comparing rigid and flexible solar panels. A flexible module may be selected because its weight, form factor, or installation surface solves a problem that a conventional framed panel cannot. Electrical output is only one part of the engineering decision.

Why don’t solar panels convert all sunlight into electricity?

No practical solar panel converts all incoming sunlight into electricity.

Some photons have unsuitable energy levels for the semiconductor. Some light is reflected. Some absorbed energy becomes heat, and some charge carriers recombine before they contribute to usable current.

DOE notes that the theoretical efficiency limit for a single-junction silicon solar cell is about 32%, while commercial panels historically operate well below that theoretical ceiling.

That gap is not a manufacturing defect. It comes from fundamental semiconductor physics as well as real-world optical, electrical, and thermal losses.

Silicon remains dominant because it offers a strong combination of efficiency, cost, availability, and long service life. DOE states that crystalline silicon currently provides a combination of high efficiency, low cost, and long lifetime, with modules expected to last 25 years or more while still producing more than 80% of their original power after that period.

How has solar electricity technology developed?

The scale of photovoltaic deployment shows how quickly this technology has moved beyond its early niche applications.

IEA PVPS reports that global cumulative PV capacity exceeded 2,260 GW at the end of 2024, while approximately 553–601 GW of new PV capacity was installed worldwide during 2024. The same report says n-type technologies represented about 70% of global production and bifacial modules accounted for more than 75% of production.

For manufacturers, this shift is visible in the cell technologies being developed and adopted: TOPCon, HJT, back-contact designs, tandem structures, and increasingly sophisticated module architectures.

For the end user, however, the underlying principle has not changed.

Light reaches the semiconductor. Charge carriers are generated and separated. Current is collected. Power electronics make that electricity usable.

What affects how much electricity a solar panel produces?

The most important variables are not mysterious. They can be observed and measured.

• Solar irradiance
• Panel orientation and tilt
• Cell temperature
• Partial shading
• Soiling and surface contamination
• Module efficiency
• Electrical resistance and mismatch
• Inverter or power-electronics losses
• System operating conditions

DOE specifically identifies wavelength, recombination, temperature, and reflection as factors affecting PV conversion efficiency.

One practical insight from the manufacturing side is that rated efficiency and real-world energy yield are not interchangeable terms. A high-efficiency module can be useful when roof area is limited, but installation conditions still determine how much electricity reaches the load over an entire day.

FAQ about how solar panels create electricity

How do solar panels create electricity?

Solar panels use photovoltaic cells to absorb sunlight. The absorbed energy excites electrons in a semiconductor, creating DC electrical current that is collected through conductive contacts.

Do solar panels create AC or DC electricity?

Solar panels produce DC electricity. An inverter normally converts this DC output into AC electricity for conventional building loads or grid connection.

Do solar panels work when it is cloudy?

Yes. PV cells can generate electricity from diffuse sunlight, although output is generally lower than under strong direct sunlight.

Why does solar panel output decrease when it gets hot?

Higher cell temperatures generally reduce voltage, which can lower electrical power. DOE identifies temperature as an important factor affecting PV conversion efficiency.

What is the photovoltaic effect?

The photovoltaic effect is the process in which a semiconductor absorbs light and generates electrical charge carriers, producing usable electrical current.

How long do solar panels produce electricity?

Modern crystalline-silicon modules are designed for long operating lives. DOE states that modules are expected to last 25 years or more and still produce more than 80% of their original power after that period.

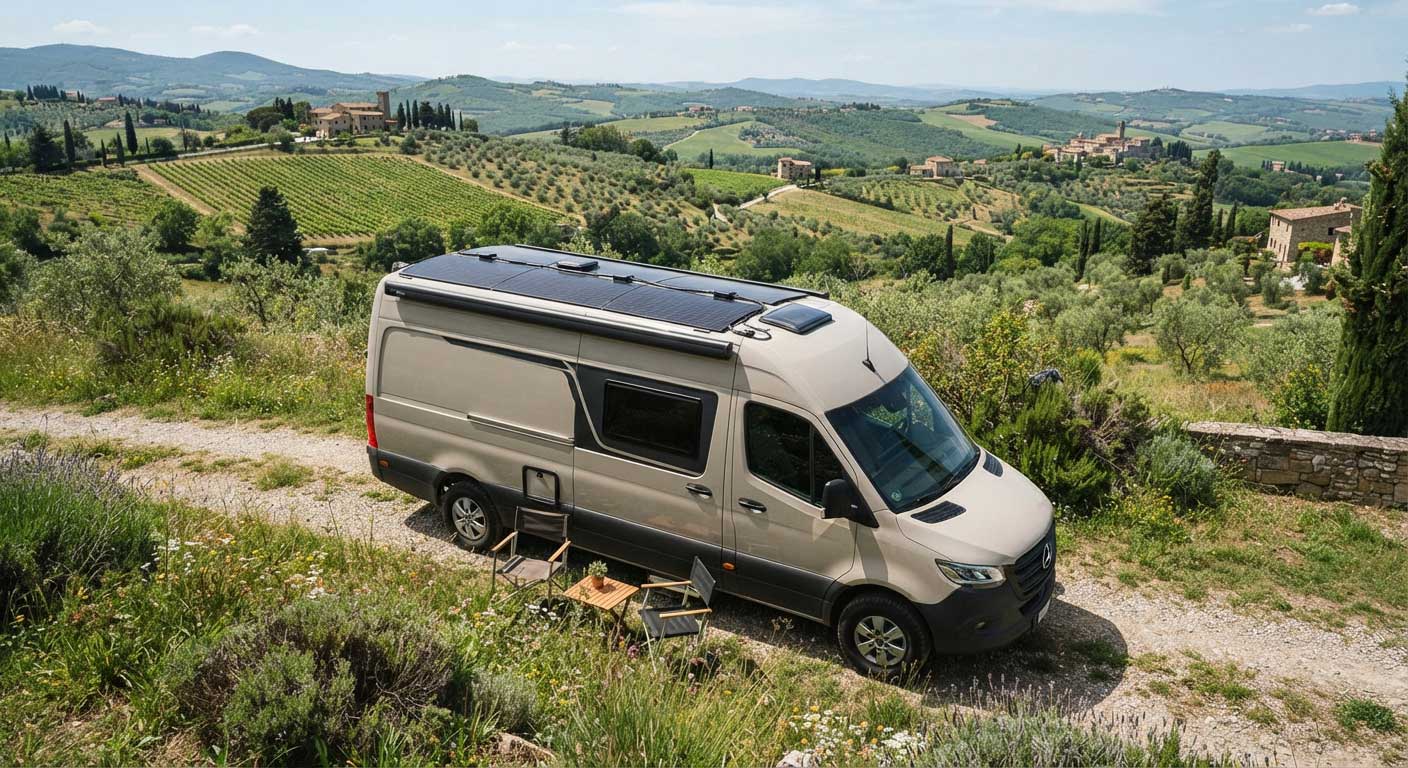

Do flexible solar panels create electricity differently?

No. Flexible solar panels use the same fundamental photovoltaic effect. The difference is primarily in module construction, materials, weight, and mechanical form, allowing the panel to suit curved or weight-sensitive surfaces.

Final answer

The answer to how solar panels create electricity begins inside the photovoltaic cell, not the inverter. Sunlight energizes charge carriers in a semiconductor, the cell separates and collects that charge, and the resulting DC electricity is routed through the system. Better module design then determines how effectively that basic process works under real operating conditions.
