How to Connect Solar Panels?

How to connect solar panels? Connect solar panels by choosing series, parallel, or series-parallel wiring based on your system voltage and power needs. Proper solar panel wiring ensures stable output, improves safety, and helps your solar system perform efficiently.

When installing flexible solar panels for RVs, marine applications, or off-grid projects, the connection method directly affects charging performance. At Bright Solar, we have tested different wiring layouts across residential and portable solar applications, and the right configuration always depends on the inverter, charge controller, battery voltage, and available sunlight conditions.

Understanding How Solar Panels Are Connected

Connecting solar panels means linking multiple photovoltaic modules together to create a larger solar array. Each panel produces DC electricity, and the wiring method determines the final voltage and current output.

Before connecting panels, check:

• Solar panel rated voltage (V)
• Solar panel rated current (A)
• Charge controller input limits
• Inverter voltage requirements
• Battery bank voltage

A common mistake we see during field consultations is connecting panels first and checking equipment specifications later. This can cause over-voltage problems, inefficient charging, or unnecessary system redesign.

According to the U.S. Department of Energy Solar Photovoltaic System Basics, photovoltaic systems must be properly designed and matched with balance-of-system components to achieve reliable energy production.

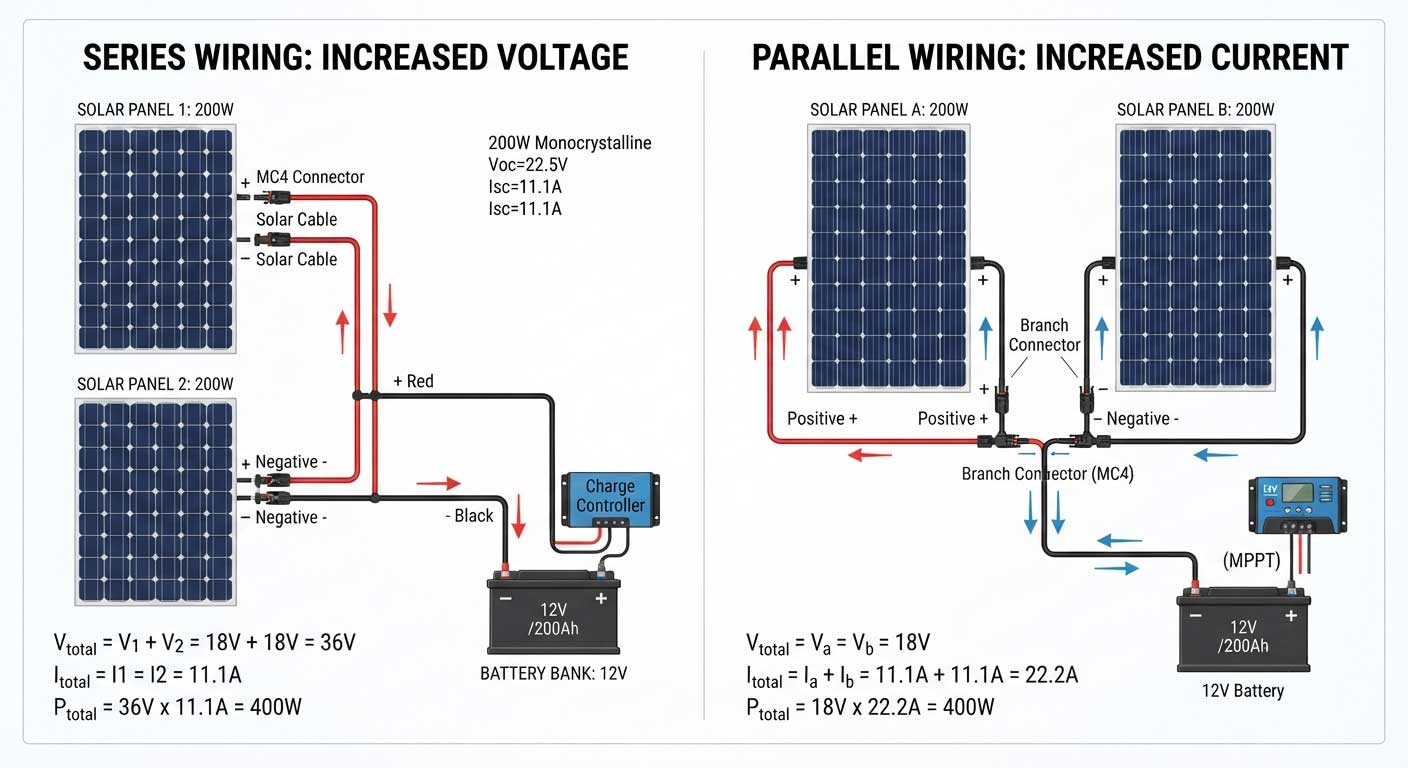

Solar Panel Series vs Parallel: Which Connection Method Is Better?

The two most common methods are solar panels in series and solar panels in parallel. The correct choice depends on your application.

Solar Panels in Series

When solar panels are connected in series, the positive terminal of one panel connects to the negative terminal of the next panel.

The main effect:

• Voltage increases
• Current remains the same
• Suitable for higher-voltage systems

Example:

Two 200W solar panels:

• Panel voltage: 20V
• Panel current: 10A

Series connection:

• Total voltage: 40V
• Total current: 10A
• Total power: 400W

Series wiring is commonly used when the cable distance is long because higher voltage reduces transmission losses.

Solar Panels in Parallel

Parallel wiring connects all positive terminals together and all negative terminals together.

The main effect:

• Voltage remains the same
• Current increases
• Suitable for systems requiring higher charging current

Example:

Two 200W solar panels:

Parallel connection:

• Total voltage: 20V
• Total current: 20A
• Total power: 400W

For RV solar setups with limited roof space, parallel connections are often preferred because partial shading on one panel has less impact on the entire system.

Solar Panel Series vs Parallel Comparison

Connection Type	Voltage Output	Current Output	Best Application
Series	Increases	Same	Long cable runs, high-voltage systems
Parallel	Same	Increases	RVs, portable systems, shaded areas
Series-Parallel	Increases	Increases	Large solar arrays

How to Install Solar Panels and Prepare Wiring

Before you install solar panels, preparation is more important than the final connection step.

From our experience working with flexible solar panel installations, most connection failures happen because of poor cable management, loose connectors, or incorrect polarity.

Follow these preparation steps:

1. Check Panel Specifications

Confirm:

• Maximum power voltage (Vmp)
• Open circuit voltage (Voc)
• Short circuit current (Isc)
• Maximum system voltage

Never connect panels with incompatible electrical ratings.

2. Plan Solar Panel Wiring Layout

A professional solar panel wiring plan should include:

• Panel arrangement
• Cable length
• Connector position
• Fuse protection
• Charge controller location

For example, a 12V RV battery system may require parallel-connected panels, while a 48V home solar system usually benefits from series-connected modules.

3. Use Proper Solar Connectors

Most modern solar systems use weather-resistant connectors such as MC4 connectors.

During installation:

• Keep connectors dry
• Avoid reversing polarity
• Use correct crimping tools
• Protect cables from sharp edges

The National Renewable Energy Laboratory (NREL) Photovoltaic System Reliability Research highlights that installation quality and component reliability are important factors affecting long-term photovoltaic system performance.

Common Mistakes When Connecting Solar Panels

Even experienced installers occasionally overlook small details. These mistakes can reduce system efficiency:

Mixing Different Solar Panels

Using panels with different wattages, voltages, or current ratings can create performance imbalance.

Ignoring Shade Conditions

A shaded panel in a series connection can reduce the output of the entire string.

Choosing Incorrect Cable Size

Thin cables increase voltage drop and waste generated energy.

Connecting Too Many Panels

Every inverter and charge controller has maximum voltage limitations. Exceeding these limits may damage equipment.

Step-by-Step Guide: How to Connect Solar Panels Safely

After selecting the correct wiring method, the next step is making the physical connection. Whether you are installing flexible solar panels on an RV roof or building an off-grid solar system, the process should follow a clear electrical sequence.

At Bright Solar, we recommend connecting and testing each section before completing the entire array. During practical installations, checking voltage after every connection helps identify reversed polarity or loose connections before they become larger problems.

How to Connect Solar Panels Step by Step

Step 1: Position and Secure the Solar Panels

Before electrical wiring, make sure the panels are properly installed.

For flexible solar panels:

• Clean the mounting surface
• Confirm panel orientation
• Leave enough space for cable routing
• Avoid sharp bends near junction boxes

A properly installed solar panel reduces mechanical stress and improves long-term reliability.

Step 2: Connect Solar Panels Together

Choose the correct wiring method:

For series connection:

1. Connect the positive terminal of the first panel to the negative terminal of the second panel.
2. Continue connecting panels in the same pattern.
3. Connect the remaining positive and negative wires to the controller or inverter.

For parallel connection:

1. Connect all positive terminals together.
2. Connect all negative terminals together.
3. Use branch connectors if multiple panels are installed.

Always check polarity before connecting the solar array to other equipment.

Step 3: Connect Panels to Charge Controller

The typical connection order is:

Solar panels → Charge controller → Battery → Inverter

Do not connect the solar panels directly to a battery unless the system is specifically designed for direct charging.

A charge controller regulates voltage and protects batteries from overcharging.

Step 4: Test Solar Panel Wiring

After completing installation:

Check:

• Open circuit voltage
• Current output
• Connector stability
• Charge controller readings

A multimeter is useful for confirming whether the actual output matches the expected values.

For example, if three 100W panels are connected in series, the voltage should increase while current remains close to one panel’s rated current.

Solar Panel Wiring for Different Applications

The best connection method depends on where the solar system will be used.

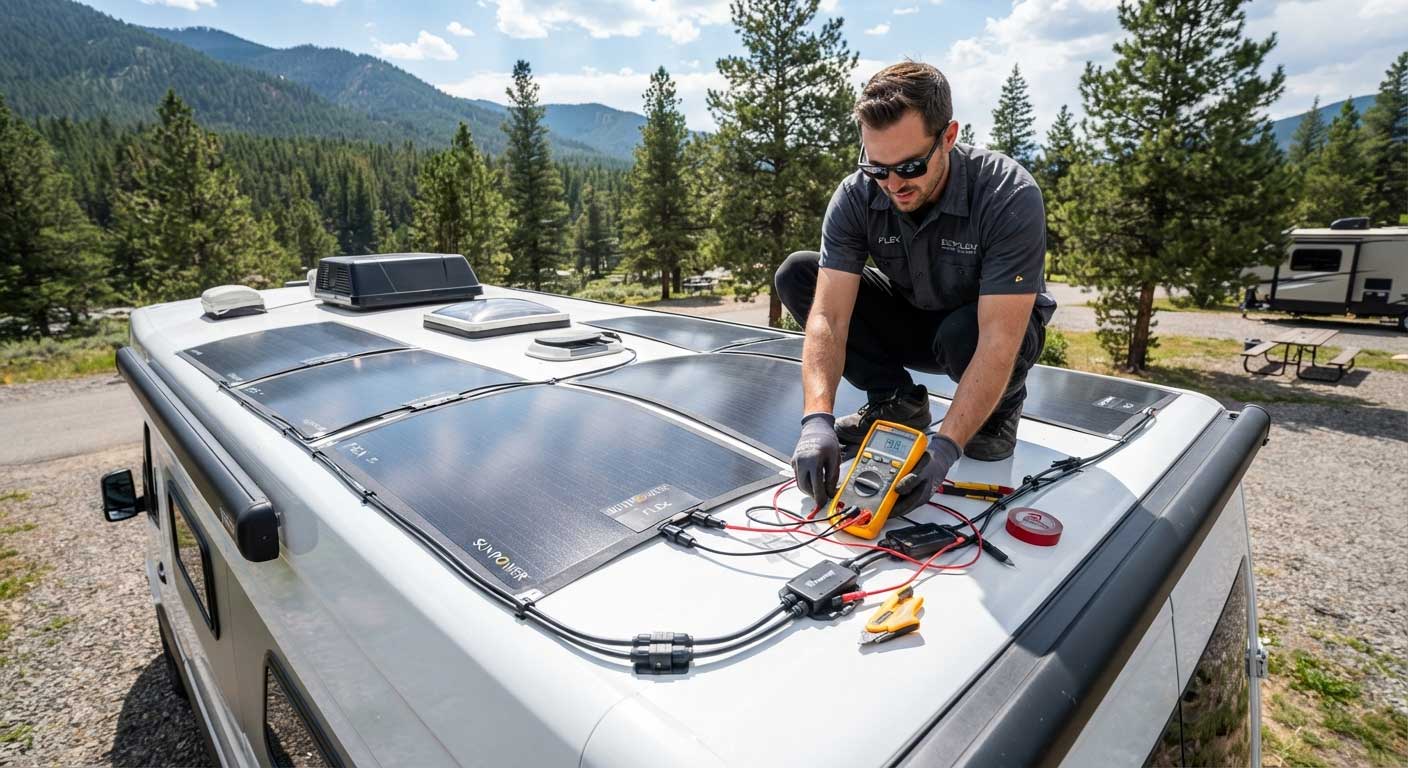

RV Solar Panel Wiring

RV systems usually focus on:

• Lightweight installation
• Limited roof space
• Battery charging efficiency

Many RV owners choose parallel wiring because it maintains better output when one panel receives partial shade from trees, antennas, or roof equipment.

Flexible solar panels from Bright Solar are commonly used in RV applications because their lightweight design allows installation on curved surfaces where traditional rigid panels may not fit.

Off-Grid Solar System Wiring

Off-grid systems usually require higher voltage configurations.

Common setup:

• Solar panels connected in series
• MPPT charge controller
• Battery storage system
• Inverter for AC appliances

Higher voltage reduces cable losses, especially when panels are installed far from batteries.

Marine Solar Panel Wiring

Marine environments require additional protection:

• Waterproof connectors
• Corrosion-resistant materials
• UV-resistant cables
• Secure mounting methods

Saltwater exposure can accelerate connector damage, so regular inspection is recommended.

Solar Panel Connection Safety Checklist

Before powering your system, review this checklist:

Inspection Item	What to Check
Panel polarity	Positive and negative terminals are correct
Cable size	Suitable for system current and distance
Connector condition	Fully locked and waterproof
Voltage range	Within controller and inverter limits
Mounting	Panels are secure and protected
Grounding	System follows local electrical requirements

A small wiring mistake can affect the entire solar system. Taking five extra minutes to test connections is usually cheaper than repairing damaged components later.

FAQ About How to Connect Solar Panels?

Can I connect solar panels directly to a battery?

No. Most solar panels should connect through a solar charge controller before reaching the battery. The controller manages charging voltage and prevents battery damage.

Should solar panels be connected in series or parallel?

It depends on your system design. Solar panels in series increase voltage and work well for longer cable distances, while parallel connections increase current and are often suitable for RV and portable solar applications.

Can I connect different watt solar panels together?

It is possible, but not recommended. Different panel specifications can reduce overall system performance because the lower-performing panel may limit the output of the entire connection.

How many solar panels can I connect together?

The number depends on your inverter, charge controller, and maximum system voltage. Always calculate total Voc and current before adding more panels.

Do solar panels produce more power in series?

Solar panels connected in series do not create extra power by themselves. The total wattage remains the sum of all panels, but voltage increases while current stays similar.

What cable is used for solar panel wiring?

Solar systems typically use UV-resistant photovoltaic cables designed for outdoor conditions. The cable size depends on current, distance, and acceptable voltage loss.

How do I know if my solar panel connection is working?

Use a multimeter or monitor display to check voltage and current output. A properly connected system should show expected voltage values under suitable sunlight conditions.

Expert Tips Before You Install Solar Panels

After years of working with solar applications, one pattern is clear: the electrical design matters as much as the panel quality.

Many users focus only on choosing a higher wattage panel, but a poorly designed connection can waste the energy the panel produces.

A practical approach is:

1. Calculate energy requirements first.
2. Select suitable panel quantity.
3. Choose series or parallel wiring.
4. Match the controller and inverter.
5. Test every connection before final operation.

A reliable solar system is not only about generating electricity; it is about delivering stable power every day.

Conclusion: Choose the Right Way to Connect Solar Panels

How to connect solar panels correctly depends on your system voltage, application, and equipment requirements. Series wiring increases voltage, parallel wiring increases current, and combined configurations support larger solar installations.

Whether installing RV panels, marine solar systems, or off-grid solutions, proper solar panel wiring improves safety, efficiency, and long-term performance. Bright Solar focuses on flexible solar solutions designed for real-world installation conditions.
