how do portable solar panels work?

how do portable solar panels work?

Portable solar panels work by converting sunlight into direct current (DC) electricity through photovoltaic cells. That electricity is then regulated by a charge controller and used to power batteries, portable power stations, lights, or electronic devices in off-grid environments.

That sounds simple on paper. Out in the field, though, there’s more happening than most people realize.

I first understood how sensitive portable solar systems could be during a remote outdoor lighting installation in southern Australia. Two identical foldable solar panels were sitting only a few meters apart. One delivered almost 30% more charging power than the other.

The difference? Angle. Heat. Dust. Small things that spec sheets never explain well.

What Happens Inside Portable Solar Panels?

At the core of every portable solar panel are photovoltaic (PV) cells.

These cells absorb sunlight and trigger what’s called the photovoltaic effect, where photons knock electrons loose inside semiconductor material—usually silicon.

That movement creates electricity.

According to the U.S. Department of Energy (energy.gov), modern monocrystalline solar cells commonly exceed 20% conversion efficiency, especially under ideal sunlight conditions.

The basic process looks like this:

1. Sunlight hits the solar cells
2. Cells generate DC electricity
3. Charge controller regulates voltage
4. Power flows into batteries or devices
5. Inverter converts DC to AC if needed

That sequence happens instantly.

portable solar panel charging system

The Real Components Behind the Setup

Portable solar panels are only one part of the system.

A practical off-grid setup usually includes:

Component	Purpose
Solar panel	Collects sunlight
Charge controller	Protects batteries
Battery or power station	Stores electricity
Inverter	Converts DC to AC
Cables/connectors	Transfers energy

The charge controller matters more than many buyers think.

Cheap PWM controllers waste potential power. Higher-end MPPT controllers track voltage dynamically and can improve charging efficiency by 15–30% depending on conditions.

That becomes noticeable on cloudy days.

foldable solar panel technology

Why Modern Portable Panels Perform Better

Older portable solar panels had several weaknesses:

• Low efficiency
• Heavy glass construction
• Poor heat management
• Weak connectors

Modern systems improved dramatically.

Today’s better portable solar panels commonly use:

• Monocrystalline PERC cells
• ETFE laminated surfaces
• Half-cut cell architecture
• Multi-busbar technology

According to the National Renewable Energy Laboratory (NRL.gov), advanced monocrystalline cells now achieve some of the highest commercially available efficiencies in consumer solar products.

You can feel the difference in actual charging speed.

How Electricity Flows in Real Conditions

This part surprises first-time users:

Portable solar panels rarely produce their advertised wattage continuously.

A “200W” panel may realistically output:

• 160–180W in strong midday sun
• 90–130W under partial clouds
• Much lower output in poor orientation

Heat also changes performance.

During summer testing with Bright Solar systems, we’ve recorded panel surface temperatures above 70°C on dark gravel jobsites. As temperatures rise, solar efficiency drops.

That’s why airflow behind the panel matters.

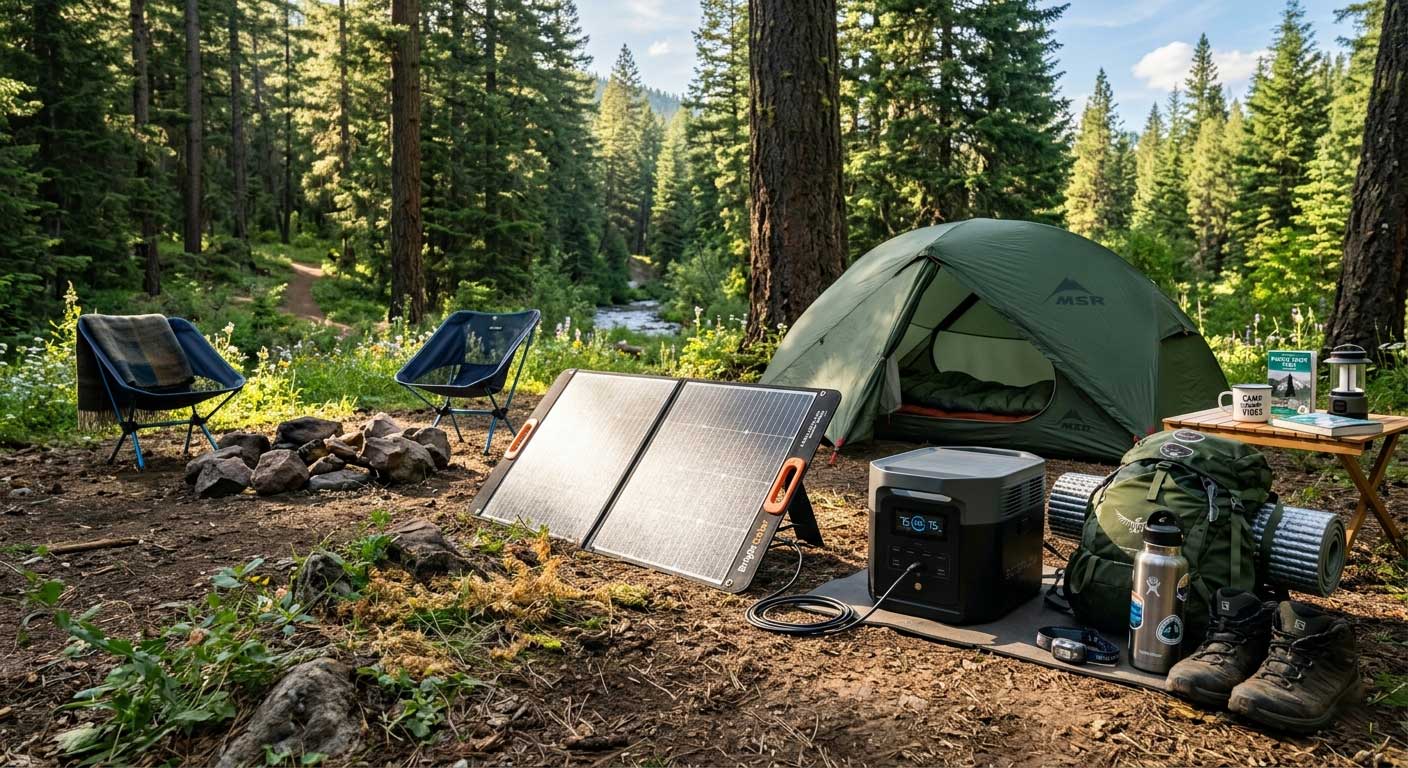

portable solar panels for camping

Why Campers Prefer Portable Solar

Portable solar systems became popular with campers for one reason:

Silence.

Generators create noise, vibration, fuel smell, and maintenance headaches. Portable solar systems quietly recharge:

• Phones
• Portable refrigerators
• LED lighting
• Drones
• Cameras
• Power stations

And unlike generators, solar panels keep working while you hike, cook, or sleep.

Portable Solar Does Not Store Power by Itself

This misunderstanding happens constantly.

Solar panels generate electricity—but they do not store it.

Storage comes from:

• Lithium batteries
• Portable power stations
• Deep-cycle battery banks

Without storage, the panel only works while sunlight is available.

That’s why many outdoor users pair portable solar panels with lithium power stations.

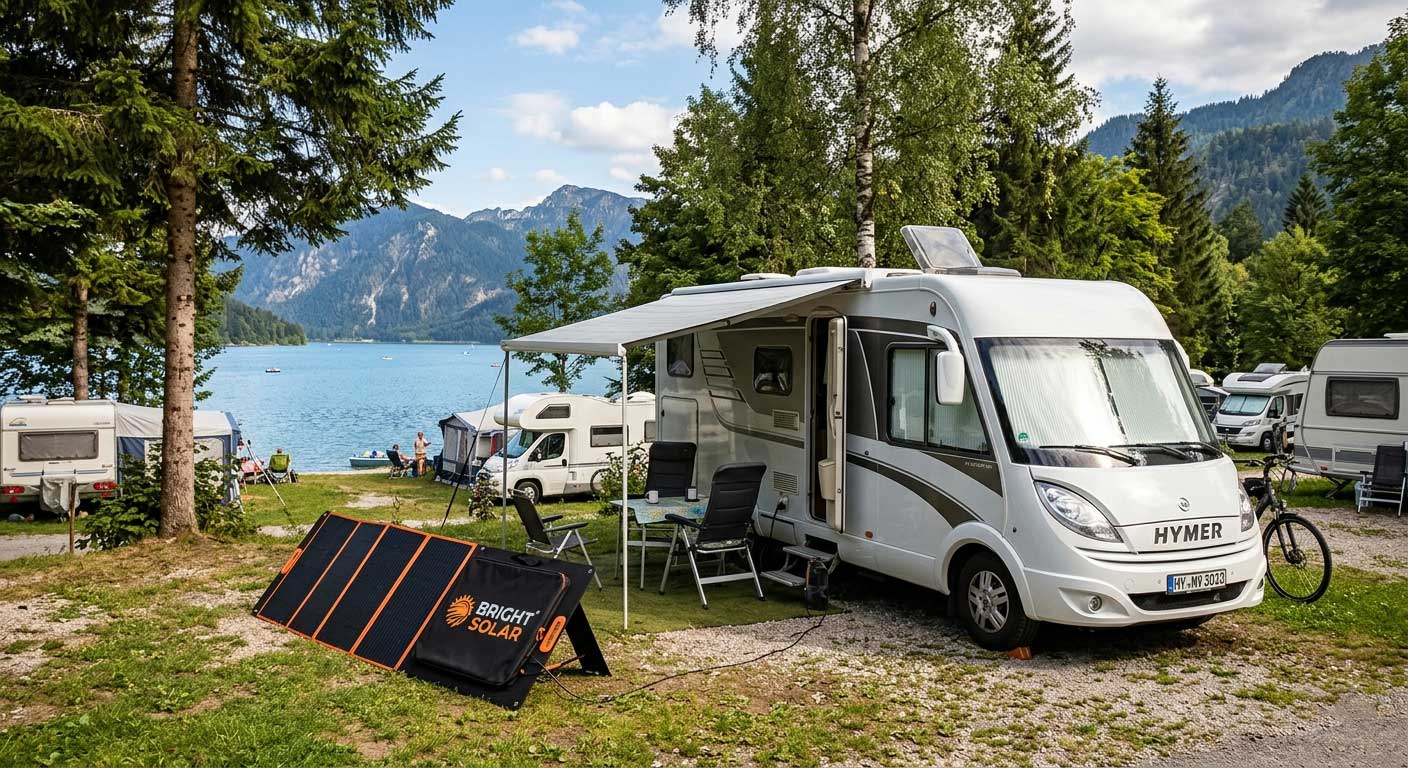

portable solar power for rv systems

What RV Owners Usually Learn Quickly

Power consumption matters more than panel size.

For example:

Device	Approximate Power Use
LED light	5–15W
Laptop	45–90W
Portable fridge	40–80W
Coffee maker	800–1200W

A portable solar panel easily handles lighting and electronics.

Heating appliances? Much harder.

That’s why efficient energy planning matters in mobile solar systems.

Author Experience

I’ve spent more than 10 years working with outdoor lighting systems, mobile solar charging setups, and temporary off-grid power applications.

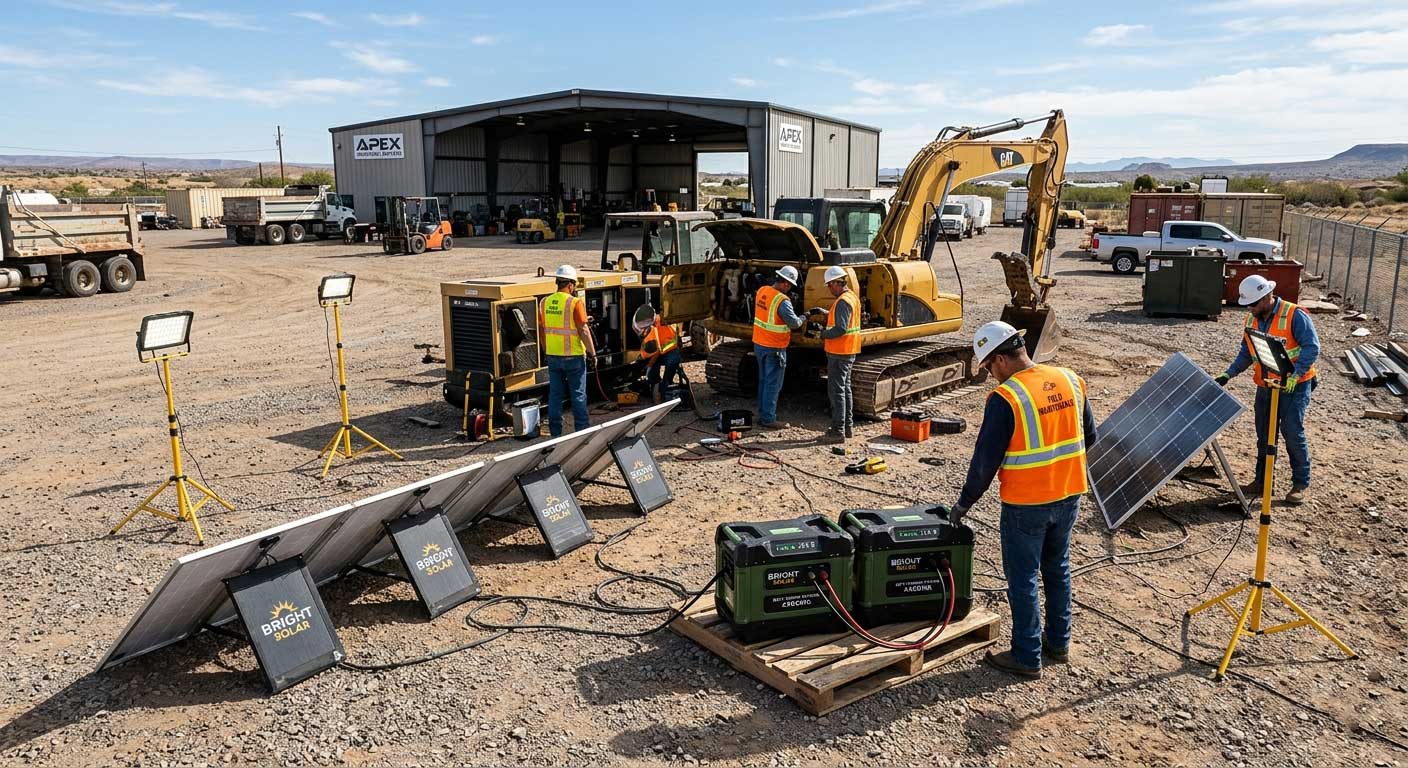

At Bright Solar, we regularly test portable solar products in:

• High heat
• Humid coastal environments
• Dust-heavy agricultural areas
• Remote construction sites

One thing becomes obvious very quickly:

Portable solar panels work extremely well when users understand their limitations.

Most complaints come from unrealistic expectations—not from the technology itself.

What Reduces Portable Solar Performance?

Common Efficiency Killers

Even high-quality panels lose output under:

• Tree shading
• Dirty panel surfaces
• Incorrect tilt angle
• Excessive heat
• Cheap cables
• Low-grade controllers

A tiny shadow across one section of the panel can dramatically reduce power generation.

That still catches people off guard.

FAQ:how do portable solar panels work?

Do portable solar panels work on cloudy days?

Yes, but power output decreases significantly depending on cloud density and panel efficiency.

Can portable solar panels charge a battery directly?

Yes, but a charge controller should always regulate charging to protect battery health.

How long do portable solar panels last?

Quality monocrystalline portable panels often last 10–20 years with proper care.

Do portable solar panels need direct sunlight?

Direct sunlight delivers the best performance, but panels can still generate reduced power under indirect light.

Are foldable solar panels waterproof?

Most are weather-resistant, though connectors and control boxes should still be protected from heavy rain.

Final Thoughts

So, how do portable solar panels work?
They convert sunlight into usable electricity through photovoltaic cells, then regulate and distribute that energy to devices, batteries, and portable power systems.

The technology itself is surprisingly mature now.

What matters most is not whether portable solar works—it absolutely does—but whether the system is designed realistically for the environment and power demand.
