how much silver is in a solar panel? A modern crystalline-silicon solar panel typically contains a few grams of silver, with the exact amount depending on cell technology and power rating. Based on current industry silver-loading data, a 400W panel can contain roughly 3–8 grams of silver, although newer metallization designs continue to reduce silver use per watt.

How Much Silver Is in a Solar Panel?

The silver is not sitting inside the panel as a visible layer.

It is mainly used in the photovoltaic cells as a highly conductive metallization material. During cell production, silver paste is applied to the silicon wafer to form fine electrical contacts that collect and transport the current generated by the cell. The Silver Institute describes silver as an important material in PV because of its electrical conductivity and its role in carrying electricity from the photovoltaic cell.

The actual quantity varies considerably.

According to IEA PVPS data based on ITRPV industry information, Tier-1 manufacturers reported approximate silver consumption of 7–8 mg/W for PERC, 12–16 mg/W for TOPCon, and 17–20 mg/W for HJT.

That gives a useful way to estimate the silver in a module:

Cell technology	Approx. silver use	Estimated silver in 400W panel
PERC	7–8 mg/W	2.8–3.2 g
TOPCon	12–16 mg/W	4.8–6.4 g
HJT	17–20 mg/W	6.8–8.0 g

These are estimates, not universal product specifications. Actual silver loading can change with cell size, metallization process, efficiency, busbar design, and manufacturer.

For Bright Solar, that distinction matters. Two 400W modules can have the same nameplate power while using noticeably different amounts of silver because their cells are built differently.

Why Is Silver Used in Solar Cells?

Silver has an unusual combination of electrical conductivity, chemical stability, and manufacturability.

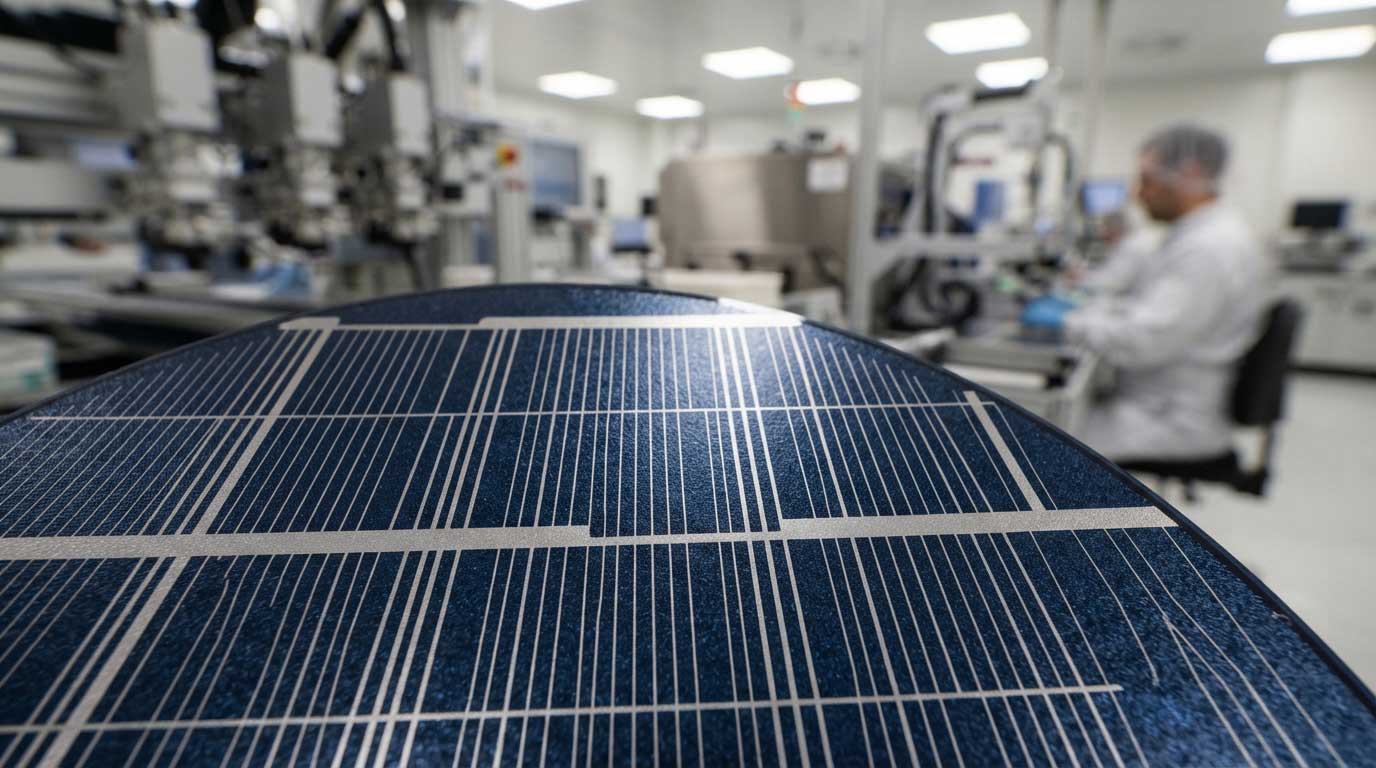

In a crystalline-silicon solar cell, extremely fine conductive lines collect current from the silicon surface. The metallization has to carry electricity efficiently while covering as little active cell area as practical.

It sounds simple until you look closely at the cell.

The conductive fingers are tiny. Their geometry, spacing, thickness, and contact resistance all affect the finished cell. Adding more metal can reduce resistance, but it also increases material cost and can create optical or manufacturing trade-offs.

That is why solar manufacturers have spent years reducing silver consumption without sacrificing cell efficiency.

Silver Is Measured Per Watt, Not Just Per Panel

For comparing technologies, mg/W is more useful than grams per module.

Consider two hypothetical 500W panels:

• Panel A at 8 mg/W → 4.0 g silver
• Panel B at 14 mg/W → 7.0 g silver

Both are 500W modules. The difference comes from the cell technology and metallization approach rather than the panel’s external dimensions alone.

This is also why older articles claiming that “every solar panel contains X grams of silver” can be misleading.

The PV industry has changed quickly.

IEA PVPS reported that n-type technologies accounted for about 70% of global PV production in 2024, while bifacial modules represented more than 75% of production. The cell architecture behind a modern module is therefore increasingly different from the PERC-heavy market of only a few years ago.

How Much Silver Is in a 400W Solar Panel?

A 400W panel provides a convenient example because it sits within the common range of residential and commercial module power ratings.

Using the published silver-loading ranges:

400W × 7 mg/W = 2.8 grams

At the other end:

400W × 20 mg/W = 8.0 grams

So a reasonable technology-dependent range is approximately 2.8–8 grams of silver per 400W module.

For a quick comparison:

Panel rating	8 mg/W	14 mg/W	20 mg/W
400W	3.2 g	5.6 g	8.0 g
500W	4.0 g	7.0 g	10.0 g
600W	4.8 g	8.4 g	12.0 g

These calculations are deliberately simple. They are useful for understanding material intensity, but they should not be mistaken for a bill of materials for a specific Bright Solar module.

Has Silver Use in Solar Panels Decreased?

Yes. Silver consumption per watt has been falling as manufacturers improve cell metallization.

The historical change is substantial. The Silver Institute has documented a long-term reduction in silver loading as PV manufacturers have developed thinner fingers, improved screen-printing processes, and introduced alternative metallization approaches. More recently, the Institute reported that advances in PV manufacturing contributed to a sharp reduction in silver loadings in 2024.

At the same time, the picture is not completely linear.

N-type technologies such as TOPCon and HJT can use more silver per watt than conventional PERC. IEA PVPS reported the corresponding ranges of 12–16 mg/W for TOPCon and 17–20 mg/W for HJT, compared with 7–8 mg/W for PERC.

So there are two competing trends:

• Higher-efficiency cell architectures can initially require more silver.
• Manufacturing improvements are steadily reducing silver loading.
• Copper and silver-coated copper are being developed as alternatives.
• Higher module power changes the total grams per module.
• mg/W remains the cleaner metric for technology comparison.

This is one of the less obvious parts of the silver-and-solar discussion.

TOPCon, HJT, and PERC Do Not Use the Same Amount

The current transition toward n-type technology makes the simple “silver per panel” question even less precise.

IEA PVPS notes that TOPCon and SHJ cell architectures are evolving rapidly, with new designs being implemented in commercial modules on relatively short development cycles. Reducing silver consumption is one of the drivers behind these changes.

In practical terms, a module buyer should not assume that a higher-wattage or higher-efficiency module automatically contains more silver in direct proportion to its power.

Cell architecture changes the equation.

How Much Silver Does the Solar Industry Use?

The amount becomes enormous when individual cells are multiplied across global PV manufacturing.

The Silver Institute reported 197.6 million ounces of silver used in solar cell manufacturing in 2024, representing approximately 17% of total global silver demand that year.

For context, 197.6 million troy ounces is roughly 6,145 metric tonnes of silver.

That is a remarkable number—but it needs to be read alongside the scale of solar deployment.

IEA PVPS reported that global cumulative PV capacity exceeded 2,260 GW by the end of 2024, with approximately 553–601 GW of new PV installed during 2024 alone.

This is where material efficiency becomes a manufacturing issue rather than just a raw-material curiosity.

Even a reduction of 1 mg/W becomes significant when applied to hundreds of gigawatts of annual production.

Will Solar Panels Use Less Silver in the Future?

The industry is clearly moving in that direction.

Current research and manufacturing efforts include:

• Lower-silver metallization
• Silver-coated copper pastes
• Copper particle-based screen printing
• Busbar-less and advanced interconnection designs
• More efficient cell structures
• Improved printing precision

IEA PVPS and the Silver Institute both identify silver reduction and substitution as important areas of PV manufacturing development.

Copper is particularly interesting because it is much more abundant and less expensive than silver. But replacing silver is not simply a matter of changing one metal for another. Contact resistance, adhesion, corrosion, manufacturing compatibility, and long-term reliability all have to work at commercial scale.

For module manufacturers, that last part is critical. A cheaper metallization material has little value if it compromises 25- or 30-year field performance.

FAQ About Silver in Solar Panels

How much silver is in a solar panel?

A modern crystalline-silicon panel generally contains a few grams of silver. Based on current industry loading ranges, a 400W module may contain approximately 2.8–8 grams, depending on whether it uses PERC, TOPCon, HJT, or another architecture.

How much silver is in a 400W solar panel?

Using published silver-loading ranges of 7–20 mg/W, a 400W panel would contain approximately 2.8–8 grams of silver. The actual amount depends on the cell manufacturer and metallization process.

Which solar panels use the most silver?

Among the major technologies covered by current ITRPV industry data, HJT generally has higher silver consumption per watt than TOPCon and PERC. Published ranges are approximately 17–20 mg/W for HJT, 12–16 mg/W for TOPCon, and 7–8 mg/W for PERC.

Why is silver used in solar panels?

Silver provides highly conductive electrical contacts on the photovoltaic cell. Silver paste is processed into fine metallization patterns that collect and transport the electrical current generated by the silicon cell.

Are solar manufacturers replacing silver?

Yes. Manufacturers and researchers are developing silver-coated copper and copper-based metallization, alongside printing and cell-design improvements that reduce silver consumption.

Is silver valuable enough to make old solar panels worth recycling?

Silver has recoverable value, but the economics depend on the complete recycling process, collection costs, module composition, and silver loading. The presence of a few grams of silver does not automatically make an individual old panel profitable to recycle.

Does a higher-wattage solar panel contain more silver?

Not necessarily in direct proportion. Total silver can increase with module power, but the more meaningful comparison is silver per watt because cell technology and metallization efficiency can vary substantially.

Final Answer

how much silver is in a solar panel depends on the cell technology, power rating, and metallization process. For a modern 400W crystalline-silicon module, approximately 2.8–8 grams is a reasonable industry-based estimate, with PERC generally toward the lower end and HJT toward the higher end. The trend, however, is toward less silver per watt.
