How many volts should a 100 watt solar panel produce?

How many volts should a 100 watt solar panel produce?

A 100 watt solar panel should produce around 18–20 volts during normal operation and 21–24 volts at open circuit voltage. The exact voltage depends on the solar cell type, temperature, sunlight intensity, and whether the panel is connected to a load or charge controller.

During my years working with solar module testing and product development at Bright Solar, I have measured hundreds of small solar panels in different environments. One detail many users miss is that wattage does not determine voltage alone. A 100W panel can still show different voltage readings depending on its electrical design.

How many volts does a 100 watt solar panel produce?

A typical 100 watt solar panel voltage output follows this range:

Measurement Condition	Typical Voltage Output
Open Circuit Voltage (Voc)	21V–24V
Maximum Power Voltage (Vmp)	17V–20V
Charging a 12V Battery System	13V–14.6V battery charging voltage
Low Sunlight Conditions	10V–18V

Most 100W solar panels designed for 12V battery systems use 36 or 40+ solar cells connected in series. The panel voltage is intentionally higher than the battery voltage because the charge controller needs additional voltage difference to transfer energy efficiently.

According to the National Renewable Energy Laboratory (NREL) Photovoltaic Research Program, photovoltaic module output changes with environmental conditions, especially temperature, irradiance, and electrical load. This means the voltage printed on a solar panel label is usually a laboratory-rated value rather than a constant real-world number.

What is the normal voltage of a 100W solar panel?

For most consumer 100W solar panels, the important specifications are:

Open Circuit Voltage (Voc)

Voc is the highest voltage a panel can produce when it is not connected to any equipment.

Typical value:

• 21V–24V for standard 100W 12V panels
• Higher-voltage panels may reach 30V–40V depending on design

Voc is mainly used for checking whether a panel is functioning correctly.

For example:

If a 100W panel label shows:

• Maximum Power Voltage (Vmp): 18.5V
• Open Circuit Voltage (Voc): 22.8V

A multimeter reading around 22V under strong sunlight usually indicates the panel is operating normally.

Maximum Power Voltage (Vmp)

Vmp is the voltage when the panel produces its rated power.

For a 100W panel:

Example:

• Voltage: 18V
• Current: 5.5A

Calculation:

18V × 5.5A = 99W

This is why a 100W panel does not usually output exactly 100 watts all day. The panel needs ideal sunlight, correct temperature, and proper positioning to reach rated power.

100 watt solar panel voltage and current calculation

Solar panel power is calculated using:

Power (W) = Voltage (V) × Current (A)

Common 100W solar panel specifications:

Panel Type	Voltage (Vmp)	Current (Imp)	Total Power
Standard Monocrystalline 100W	18V	5.5A	99W
High Efficiency 100W Panel	19V	5.3A	101W
Flexible 100W Solar Panel	18V–20V	5A–5.5A	100W

In real installations, I usually see slightly lower output during summer afternoons because solar cells become hotter. Many customers expect maximum power when sunlight is strongest, but excessive heat can actually reduce voltage.

The National Renewable Energy Laboratory (NREL) PV Temperature Effects Research explains that photovoltaic module efficiency decreases as cell temperature rises, which directly affects voltage performance.

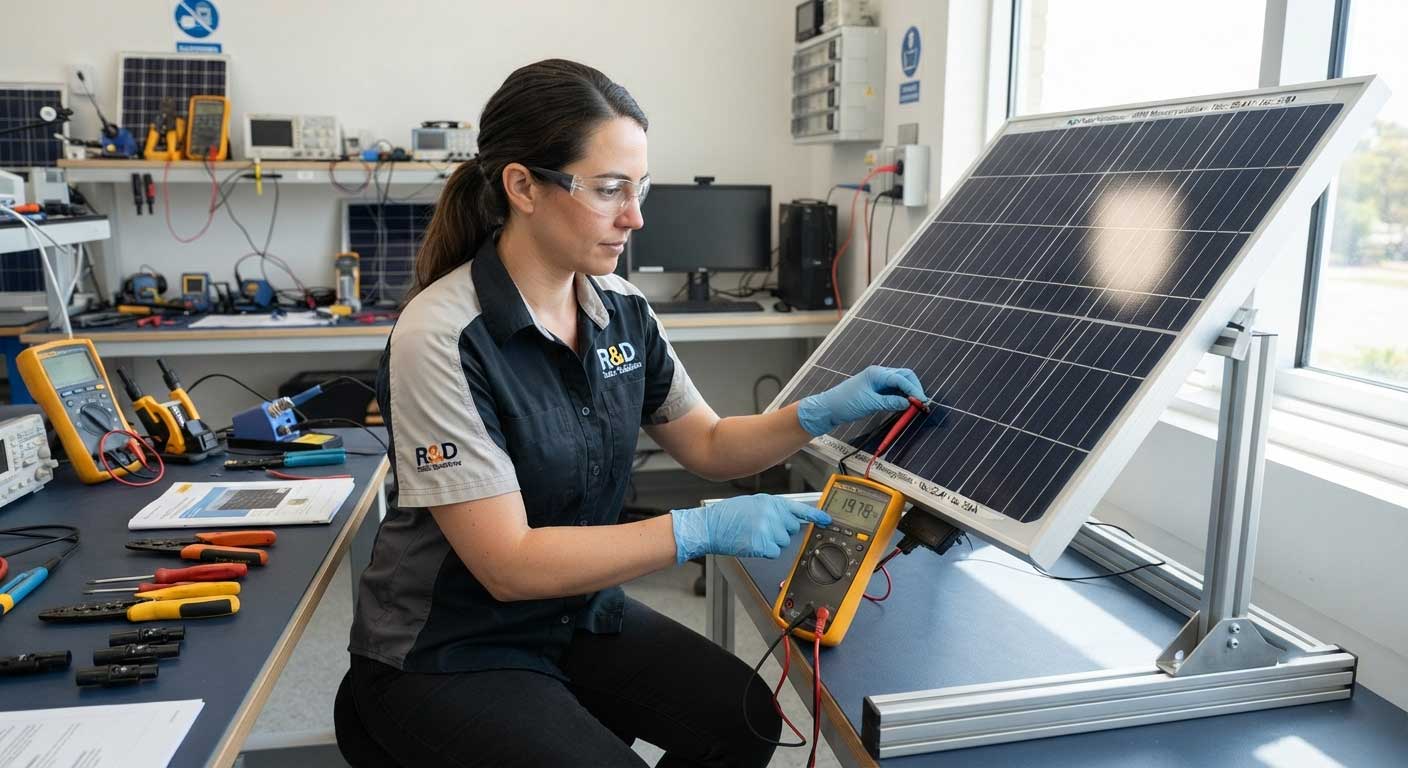

How to test the voltage of a 100W solar panel?

Testing a 100 watt solar panel voltage is straightforward if you use a digital multimeter.

Follow these steps:

1. Place the solar panel under direct sunlight.
2. Set the multimeter to DC voltage mode.
3. Connect the red probe to the positive terminal.
4. Connect the black probe to the negative terminal.
5. Compare the reading with the panel specification label.

A healthy 100W solar panel should normally show:

• Around 21V–24V when disconnected
• Around 17V–20V when producing maximum power

Why does my 100W solar panel show lower voltage?

A 100W solar panel may display lower voltage because of several practical factors:

Temperature

Solar panels lose voltage as temperature increases. A panel tested at 25°C in a factory will usually show higher voltage than one installed on a hot rooftop.

Sunlight Intensity

Cloudy weather, shade, or early morning conditions reduce the panel’s operating voltage.

Cable Resistance

Long or thin cables create voltage drops between the panel and charge controller.

Controller Type

A PWM controller may operate closer to battery voltage, while an MPPT controller can extract more available power by adjusting voltage and current.

For Bright Solar installations, we recommend checking the complete system design rather than focusing only on the voltage number. Panel voltage, battery voltage, controller type, and cable size must work together for reliable energy production.

How many volts should a 100 watt solar panel produce for a 12V battery?

A 100 watt solar panel designed for a 12V battery system usually produces 18–20 volts while charging, which is necessary because the battery charging voltage is higher than its nominal rating.

Many beginners assume a 12V solar panel should output exactly 12 volts, but that is not how photovoltaic systems work. A 12V lead-acid battery normally requires around 13.8–14.6V during charging, so the solar panel must provide additional voltage to overcome charging losses.

A typical 100W solar charging setup includes:

Component	Typical Specification
Solar Panel	100W, 18–20V Vmp
Battery	12V lead-acid or lithium battery
Charge Controller	10A MPPT/PWM controller
Charging Voltage	Around 13.8–14.6V

From practical installation experience, I have found that many performance issues are not caused by the solar panel itself. They often come from incorrect controller selection, undersized cables, or placing a panel in partial shade.

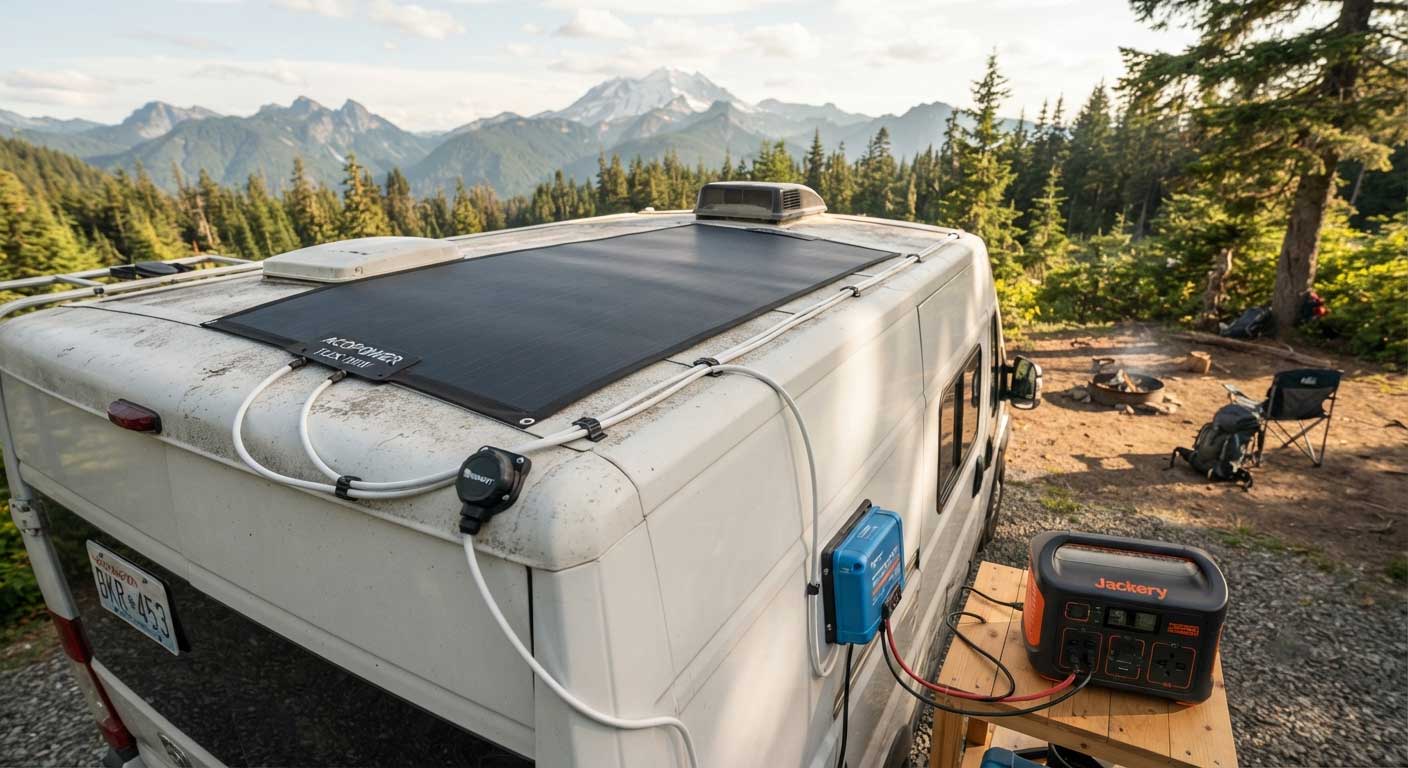

For example, a 100W flexible solar panel mounted on an RV roof may show a good open-circuit voltage in the morning but produce much less charging power if an air conditioner vent or roof rack creates a small shadow area.

100 watt solar panel voltage output in different conditions

Solar panel voltage is not fixed. It changes throughout the day.

Condition	Expected Voltage Range
Bright midday sunlight, no load	21–24V
Normal charging condition	17–20V
Morning or evening	12–18V
Heavy shading	Below 12V possible

This variation is normal. Solar modules are semiconductor devices, and their output follows environmental conditions.

The U.S. Department of Energy Solar Photovoltaic Basics explains that photovoltaic cells convert sunlight into electricity, but the electrical output depends on available solar radiation and system conditions.

Can a 100W solar panel produce 24 volts?

Yes, a 100W solar panel can produce around 24 volts when measuring its open-circuit voltage, but it normally does not operate at 24 volts continuously.

A typical example:

• Open Circuit Voltage (Voc): 22.5V
• Maximum Power Voltage (Vmp): 18.5V
• Maximum Current (Imp): 5.4A

The panel reaches approximately:

18.5V × 5.4A = 99.9W

This is why reading only voltage with a multimeter does not tell the complete performance of a solar panel. Current measurement is equally important.

100W flexible solar panel voltage performance

Flexible solar panels have become popular for RVs, boats, cabins, and portable solar applications because they are lightweight and easy to install.

Bright Solar flexible 100W solar panels are designed for applications where traditional rigid modules may not be practical. Their electrical characteristics are similar to standard panels, but installation conditions can affect output.

Common flexible 100W solar panel specifications:

Specification	Typical Value
Rated Power	100W
Working Voltage	18V–20V
Open Circuit Voltage	21V–24V
Weight	Lower than rigid panels
Application	RV, marine, off-grid systems

FAQ About how many volts should a 100 watt solar panel produce?

What voltage should a 100 watt solar panel read?

A 100W solar panel should usually read around 21–24 volts when measured without a load. During normal operation, the working voltage is typically around 17–20 volts.

Is 18 volts normal for a 100W solar panel?

Yes. Around 18 volts is a common operating voltage for a 100W solar panel designed for a 12V battery system.

Can a 100 watt solar panel charge a 12V battery?

Yes. A 100W solar panel can charge a 12V battery when connected through a suitable charge controller. An MPPT controller usually provides better energy utilization compared with a PWM controller.

Why is my 100W solar panel only showing 12 volts?

A reading near 12 volts may indicate low sunlight, a connected battery load, shading, cable losses, or a possible panel issue. Testing should be performed under direct sunlight with the panel disconnected.

How many amps does a 100 watt solar panel produce?

A typical 100W solar panel produces approximately 5–6 amps under ideal conditions.

Calculation:

100W ÷ 18V ≈ 5.5A

Does a 100W solar panel always produce 100 watts?

No. The rated 100W output is measured under laboratory conditions. Real-world output depends on sunlight, temperature, angle, and system efficiency.

Is a 100W solar panel enough for an off-grid system?

A single 100W panel is suitable for small devices, batteries, lighting systems, and portable applications. Larger loads require multiple panels connected together.

Final Thoughts: how many volts should a 100 watt solar panel produce?

The answer to how many volts should a 100 watt solar panel produce is generally 18–20 volts during normal operation and around 21–24 volts when measured as open circuit voltage. The exact reading depends on sunlight, temperature, and system configuration.

At Bright Solar, we recommend evaluating solar panels by the complete electrical profile, including voltage, current, efficiency, and application requirements. A correct voltage match ensures better battery charging, improved system reliability, and longer equipment life.
