how many kilowatts will a solar panel produce?

A solar panel’s kilowatt output depends on its rated wattage. A 400W panel is rated at 0.4 kW, while a 500W panel is rated at 0.5 kW. Actual power varies with sunlight, temperature, shading, orientation, and system conditions, so rated kW should not be confused with daily energy production in kWh.

What Does the Kilowatt Rating of a Solar Panel Mean?

When people ask how many kilowatts will a solar panel produce, they are usually referring to the panel’s rated power.

The conversion is simple:

Kilowatts = Panel wattage ÷ 1,000

Solar Panel Rating	Rated Power
300W	0.30 kW
400W	0.40 kW
450W	0.45 kW
500W	0.50 kW
550W	0.55 kW
600W	0.60 kW

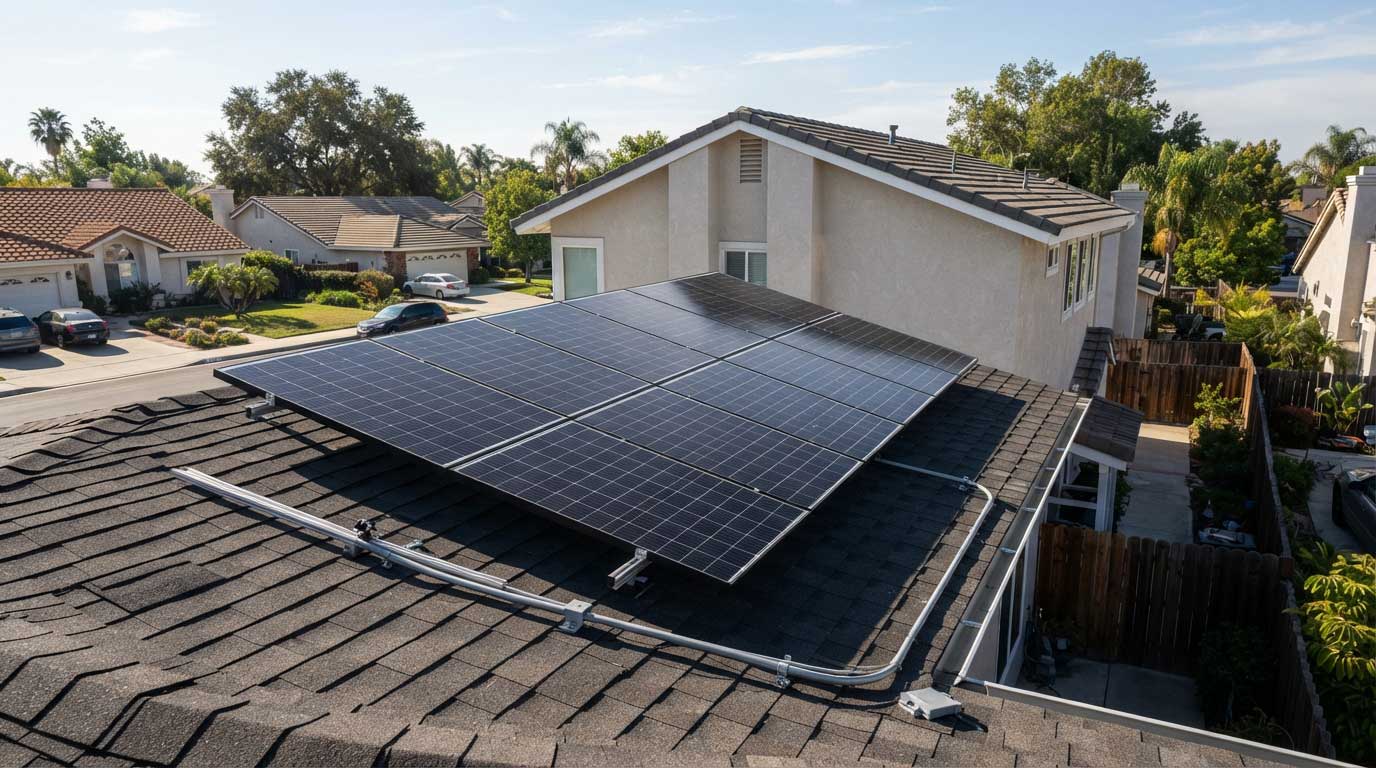

A 400W module, for example, has a 0.4 kW DC nameplate rating. That does not mean it continuously produces 0.4 kW throughout the day.

Solar module ratings are measured under Standard Test Conditions (STC), defined around 1,000 W/m² irradiance and a 25°C cell temperature. Real outdoor conditions are rarely identical to those laboratory conditions.

How Much Power Will a Solar Panel Actually Produce?

The number printed on the panel is only the starting point.

During an actual installation, sunlight changes from morning to afternoon. Clouds can move across the array. Roof-mounted modules can run considerably warmer than the reference temperature used for the rating. Shade from a chimney, tree, railing, or neighboring structure can affect individual modules.

DOE notes that higher cell temperatures generally reduce PV voltage and therefore reduce electrical output.

For example, consider a 400W panel:

• Rated output: 0.40 kW
• Strong sunlight: output can approach its rated power under suitable conditions
• Morning or late afternoon: output is normally lower
• Cloudy conditions: output can fall substantially
• Partial shade: output depends on the shading pattern and system architecture
• Hot module conditions: power is reduced by temperature effects

This is why a technical assessment should distinguish instantaneous power in kW from energy produced over time in kWh.

A 400W Panel Is Not a 400W-per-Day Panel

A 400W panel has a power rating of 0.4 kW. If, purely as an illustration, it delivered an average of 0.4 kW for four equivalent full-sun hours, the energy would be:

0.4 kW × 4 hours = 1.6 kWh

That is an example calculation, not a production guarantee.

NREL’s PVWatts model accounts for irradiance and module temperature when estimating photovoltaic output, rather than assuming that the nameplate rating remains constant.

How Many Kilowatts Will a Solar Panel Produce Per Day?

Strictly speaking, a solar panel does not produce a fixed number of kilowatts per day.

Kilowatt (kW) describes power at a particular moment.
Kilowatt-hour (kWh) describes energy accumulated over time.

That distinction becomes important when estimating a solar system.

For example:

Panel	Rated Power	Example Energy at 4 Equivalent Full-Sun Hours
300W	0.30 kW	1.2 kWh
400W	0.40 kW	1.6 kWh
500W	0.50 kW	2.0 kWh
600W	0.60 kW	2.4 kWh

These figures are mathematical examples based on four equivalent full-sun hours. They are not universal daily production values.

DOE explains that solar availability changes with location, time of day, season, weather, and the angle at which sunlight reaches the module.

That is also why annual production is usually more useful than taking one sunny day’s output and multiplying it by 365.

What Factors Change Solar Panel Kilowatt Output?

Several conditions determine how close a panel gets to its rated power.

Solar Irradiance

The intensity of sunlight reaching the module is fundamental. A panel receiving less irradiance cannot normally deliver its full STC-rated power.

Temperature

Heat matters. DOE identifies temperature as an important factor in PV efficiency, with increasing temperature generally reducing voltage.

Shading and Orientation

Even partial shading can change the electrical behavior of an array. Roof direction, tilt, nearby structures, and seasonal sun position also affect production.

System Losses

The electricity leaving a module is not necessarily the same amount that reaches a household load. Wiring, inverter conversion, mismatch, and other balance-of-system effects need to be considered.

NREL‘s PVWatts documentation models the DC array from its nameplate capacity while incorporating irradiance and temperature effects.

Panel Age

DOE cites a typical PV module degradation rate of about 0.5% per year, although actual degradation varies by technology and product.

How Many Solar Panels Make 5 kW or 10 kW?

Panel wattage directly changes the number of modules required.

For a 5 kW DC array:

• 400W panels → 12.5 mathematically, so 13 panels = 5.2 kW
• 500W panels → 10 panels = 5.0 kW
• 600W panels → 8.33 mathematically, so 9 panels = 5.4 kW

For a 10 kW DC array:

• 400W panels → 25 panels
• 500W panels → 20 panels
• 600W panels → approximately 17 panels = 10.2 kW

DOE’s 2025 residential PV benchmark uses an 8 kW DC system with twenty 400W modules, providing a useful real-world reference for how module wattage translates into system size.

How Bright Solar Applies Panel Wattage to Flexible Solar Projects

For flexible solar panels, rated power is only one part of the specification.

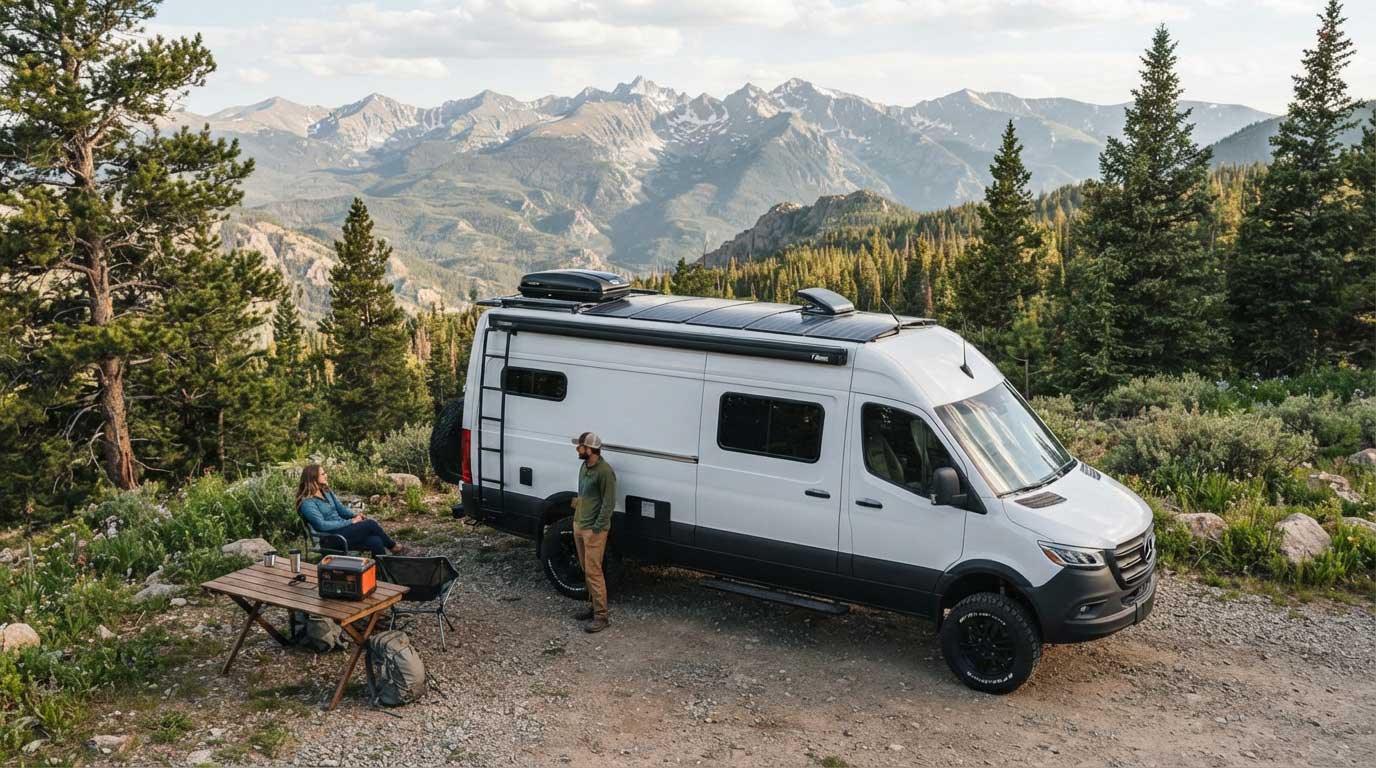

In B2B projects, the physical installation can be just as important. RV roofs, camper roofs, boats, and other curved surfaces may have different dimensional, weight, bending, and mounting requirements than conventional residential rooftops.

Bright Solar develops flexible and semi-flexible solar panel solutions for applications where module format and installation conditions need to be considered alongside electrical capacity. For OEM, ODM, and bulk projects, buyers should evaluate the complete module specification rather than selecting a panel only from its wattage number.

FAQ About how many kilowatts will a solar panel produce?

How many kilowatts does a 400W solar panel produce?

A 400W solar panel has a rated capacity of 0.4 kW. Its actual instantaneous output changes according to sunlight, temperature, shading, orientation, and other operating conditions.

Can one solar panel produce 1 kW?

Yes, if the panel has a 1,000W rated capacity. Most commonly installed residential modules have lower individual wattage ratings.

How many 400W panels do I need for 5 kW?

You need 12.5 panels mathematically. Since panels cannot normally be installed as half a module, 13 × 400W = 5.2 kW DC.

Does a 500W solar panel always produce 0.5 kW?

No. 0.5 kW is its rated power, not a guaranteed continuous output. Outdoor irradiance and temperature change throughout the day.

What is the difference between kW and kWh?

kW measures power at a given moment. kWh measures the amount of energy produced or consumed over a period of time. Solar panel ratings are normally expressed in watts or kilowatts, while electricity generation is commonly reported in kWh.

Does hot weather increase solar panel output?

Generally, no. Solar cells can receive strong sunlight in hot weather, but higher cell temperatures generally reduce voltage and electrical output.

How can I estimate the actual output of my solar panels?

Use the panel’s rated capacity together with location-specific solar irradiance, orientation, temperature, shading, and system characteristics. PV performance models such as NREL PVWatts are designed to estimate energy production under these varying conditions.

Conclusion

The answer to how many kilowatts will a solar panel produce starts with the module rating: 400W equals 0.4 kW, 500W equals 0.5 kW, and 600W equals 0.6 kW. Actual production moves with the sun, temperature, shading, installation, and system losses. For a reliable project estimate, the panel’s nameplate rating should always be separated from its expected kWh energy yield.
