How Many Kilowatts Can Solar Panels Produce?

How many kilowatts can solar panels produce? Solar panels produce electricity according to their rated capacity and the sunlight they receive. A 400-watt panel is rated at 0.4 kilowatts under standard test conditions, while a 5-kilowatt array can deliver up to 5 kW under suitable conditions. Actual output varies with weather, temperature, shade, orientation, and system losses.

Kilowatts vs. Kilowatt-Hours: What Is the Difference?

Kilowatts (kW) measure power at a particular moment. Kilowatt-hours (kWh) measure energy produced or consumed over time.

For example, a solar array producing 4 kW continuously for one hour would generate 4 kWh during that hour. In practice, solar output changes throughout the day, so a 4 kW system does not normally operate at its rated power for every daylight hour.

The National Renewable Energy Laboratory’s PVWatts calculator estimates energy production using system capacity, location, array orientation, mounting type, and loss assumptions. Its current version uses updated weather and photovoltaic models, making it a useful starting point for location-specific estimates rather than relying on panel wattage alone.

How Many Kilowatts Can Different Solar Panel Systems Produce?

A system’s rated capacity is the sum of its panel ratings. The examples below show the arithmetic, not guaranteed real-world output.

Solar panel rating	Number of panels	Total rated capacity
400 W	5	2 kW
400 W	10	4 kW
400 W	15	6 kW
400 W	20	8 kW
500 W	10	5 kW

To calculate the rated capacity, multiply the panel wattage by the number of panels, then divide by 1,000.

Example: 12 panels × 400 W = 4,800 W, or 4.8 kW DC.

Rated capacity is usually stated under Standard Test Conditions (STC). PVWatts documentation defines STC using irradiance of 1,000 W/m², a cell temperature of 25°C, and an air mass of 1.5. Actual modules in the field rarely remain at those exact conditions throughout the day.

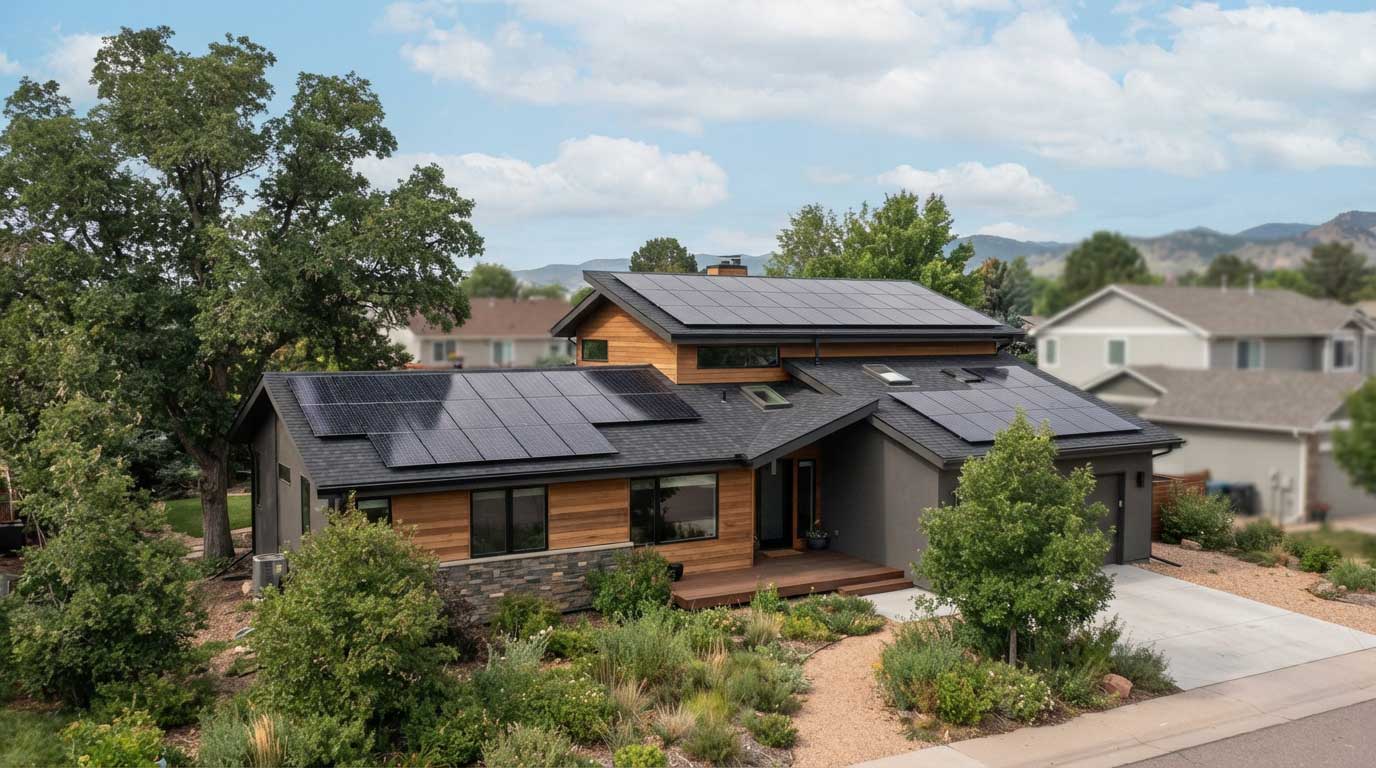

What Determines the Actual Kilowatts Solar Panels Produce?

The rated capacity tells you what the array is designed to deliver under specified test conditions. Field output is affected by several variables:

• Sunlight intensity: Cloud cover, season, and time of day change the available solar energy.
• Module temperature: Solar cells generally lose voltage as they heat up, which can reduce power output.
• Shading: Trees, chimneys, nearby buildings, and even partial obstruction can reduce production.
• Orientation and tilt: The direction and angle of the array affect how much sunlight reaches it.
• System losses: Dirt, wiring, connections, mismatch, inverter behavior, and other factors reduce delivered energy.

NREL’s PVWatts documentation uses a 14% default total system-loss assumption in its model. That is a modeling default—not a universal measurement for every installation. A shaded roof, dusty environment, or unusual system design may require different assumptions.

A useful planning habit is to separate three figures: the array’s DC nameplate capacity, the inverter’s AC rating, and the estimated energy production over a day or year. They describe different things and should not be used interchangeably.

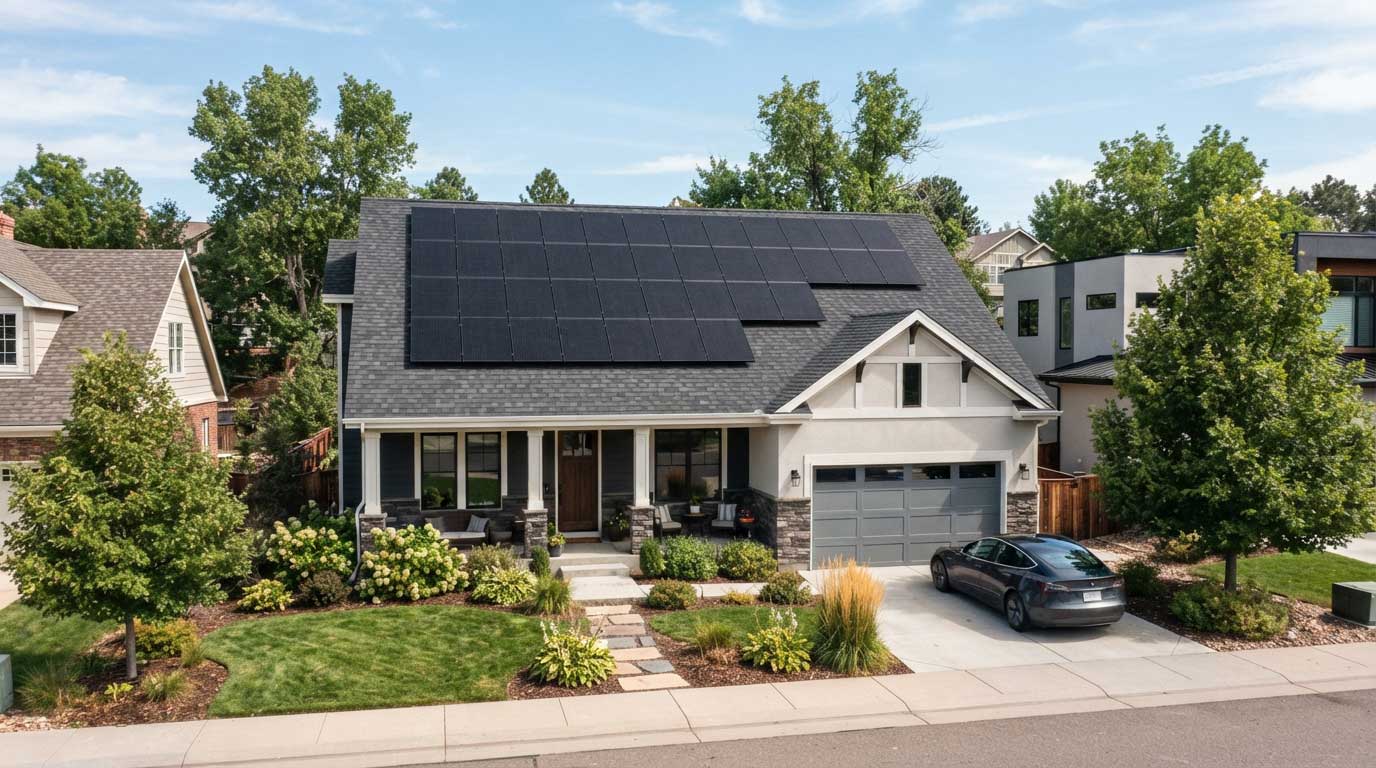

How Many Kilowatts Does a Typical Residential Solar System Have?

NREL’s 2024 Annual Technology Baseline models a representative residential rooftop PV system at 7.9 kW DC, with a fixed-tilt roof-mounted array and a DC-to-AC ratio of 1.21. This is a reference assumption for its analysis, not a required size for every household.

A suitable home system depends on the household’s electricity use, available roof area, local solar resource, utility rules, and budget. Two houses with the same system capacity can generate different amounts of energy if one has a shaded roof or less favorable orientation.

How Bright Solar Approaches Solar Panel Capacity

Bright Solar supplies flexible and semi-flexible solar panel solutions for B2B applications such as RVs, campers, outdoor power, selected marine uses, and off-grid systems.

For a project, panel wattage should be considered alongside the installation surface, available area, electrical configuration, operating environment, and intended use. A larger rated capacity does not automatically mean a better fit if the modules cannot be installed appropriately or the system is not designed around the application.

Bright Solar also supports B2B discussions around OEM, ODM, and bulk procurement requirements. Product dimensions and configuration should be confirmed against the project specification before a final system design is selected.

FAQ About How Many Kilowatts Can Solar Panels Produce?

Can one solar panel produce 1 kilowatt?

A panel rated at 1,000 watts has a nominal capacity of 1 kW under its specified test conditions. Many individual residential panels have lower ratings, so several modules are commonly combined to reach 1 kW or more.

Does a 5 kW solar system produce 5 kWh every hour?

Not necessarily. Five kilowatts is its rated power capacity, while kWh measures energy. The system produces energy over time, and its output varies with sunlight and operating conditions.

Can solar panels produce more than their rated kilowatts?

Actual instantaneous output can vary around a module’s nominal rating under particular operating conditions, but system design and equipment limits matter. Do not assume a system will continuously exceed its nameplate capacity.

How do I estimate the energy a solar system will generate?

Use a location-specific estimator such as NREL’s PVWatts calculator. It accounts for system size, weather, orientation, mounting, and loss assumptions to estimate energy production.

Does hot weather increase solar panel output?

No. Although sunlight is needed for generation, higher cell temperatures generally reduce voltage and can lower power output.

Is a 7.9 kW system necessary for a house?

No. NREL uses 7.9 kW DC as a representative residential modeling system in its 2024 baseline, but an individual home’s appropriate capacity depends on electricity demand, site conditions, and system objectives.

Conclusion

How many kilowatts can solar panels produce? Their rated capacity depends on the wattage and number of modules, while actual output changes with sunlight, temperature, shading, orientation, and system losses. For a useful estimate, distinguish rated kW from energy in kWh and evaluate the installation using site-specific data.
