How Does a Solar Panel Work?

How Does a Solar Panel Work?

A solar panel works by converting sunlight into electricity through photovoltaic cells. When sunlight strikes silicon cells, electrons begin moving and generate direct current electricity, which is then converted into usable alternating current power by an inverter.

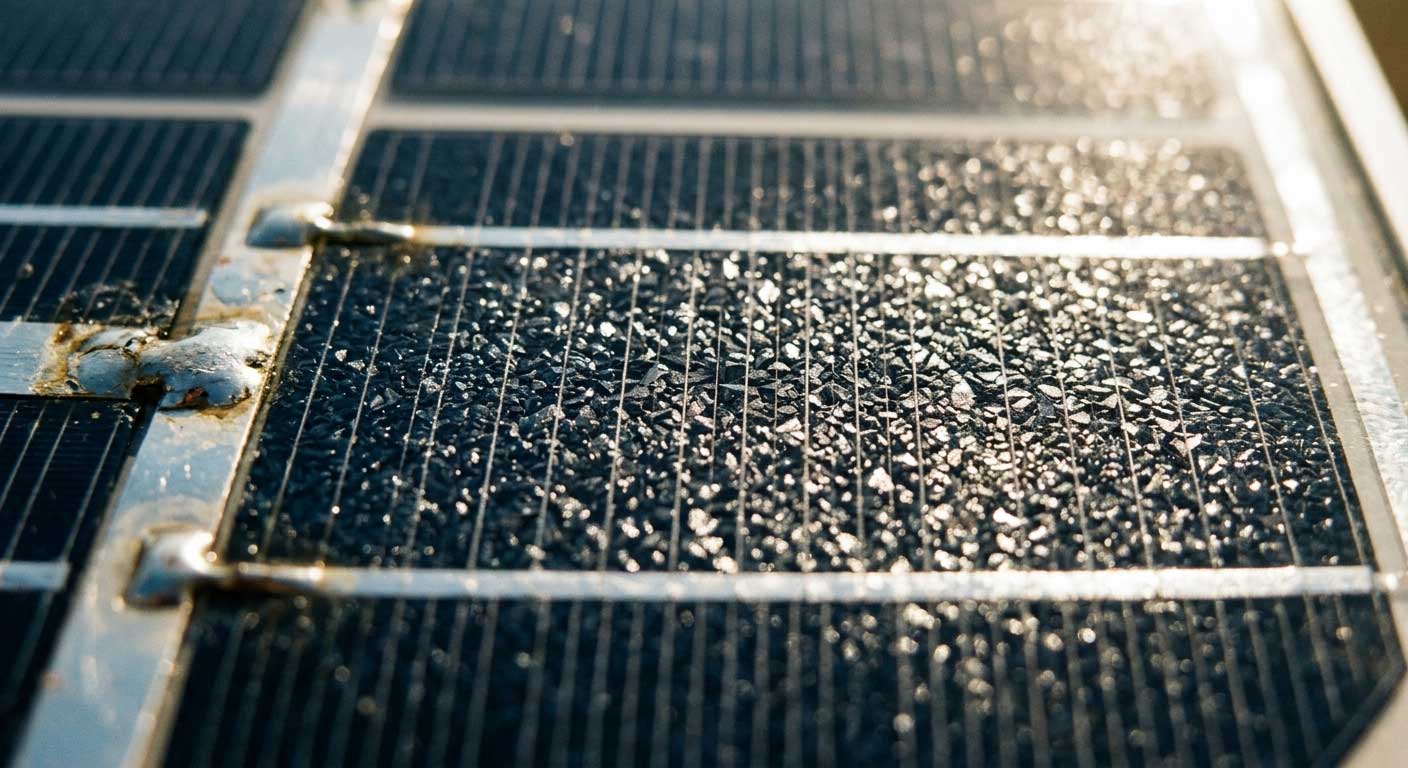

The first solar panel I ever opened was already broken.

A technician placed it on a workbench, removed the backsheet, and exposed dozens of cracked cells connected by thin silver ribbons.

Nothing inside looked particularly powerful.

No moving parts.

No engine.

No fuel.

Just silicon.

Yet the panel had spent nearly fifteen years quietly producing electricity on a farmhouse roof.

That moment changed how I explain solar technology. The process is scientific, certainly. But seeing electricity emerge from sunlight still feels slightly unbelievable, even after years in the industry.

The Basic Principle Behind Solar Panels

Every solar panel operates using the photovoltaic effect.

This phenomenon was first observed in the nineteenth century and later became the foundation of modern solar technology.

According to the U.S. Department of Energy, photovoltaic cells convert sunlight directly into electricity by exciting electrons inside semiconductor materials.

Source:

https://www.energy.gov

The process involves:

• Sunlight reaching the panel.
• Photons striking silicon cells.
• Electrons becoming energized.
• Electric current flowing.
• The inverter converting electricity for household use.

No combustion occurs.

Nothing burns.

No fuel enters the system.

The sunlight itself becomes the energy source.

What Happens Inside a Solar Cell?

At first glance, a solar cell appears simple.

In reality, several microscopic layers work together.

The main material is silicon.

The cell contains:

• Negative silicon layer.
• Positive silicon layer.
• Electric field between layers.
• Conductive metal contacts.

When sunlight hits the surface, photons transfer energy to electrons.

Those electrons begin moving.

Electricity appears.

The National Renewable Energy Laboratory explains that this movement of electrons creates direct current electricity.

Source:

https://www.nrel.gov

The entire process happens instantly.

You never hear it.

You never see it.

The roof remains silent.

The Photovoltaic Effect

The photovoltaic effect is the foundation of solar power.

Without it, solar panels would simply become warm pieces of glass.

Steps:

1. Sunlight strikes the cell.
2. Photons release electrons.
3. Electric fields direct electron movement.
4. Current flows through conductors.
5. Electricity exits the panel.

Albert Einstein received the Nobel Prize in Physics partly for explaining the photoelectric effect, which later supported modern photovoltaic technology.

Source:

https://www.nobelprize.org

Why Solar Panels Produce Direct Current

Solar cells generate direct current electricity.

This is called DC power.

Homes use alternating current.

This is called AC power.

The inverter performs the conversion.

Without the inverter, most household appliances could not use the electricity.

One homeowner once told me:

“I thought the panels powered my house directly.”

Technically, they do.

But the inverter quietly performs one of the most important jobs in the entire system.

Solar System Components

Component	Function
Solar panel	Generates DC electricity
Inverter	Converts DC to AC
Mounting system	Supports panels
Wiring	Transfers electricity
Battery (optional)	Stores energy
Monitoring system	Tracks performance

The panel receives most of the attention.

The inverter often does the most work.

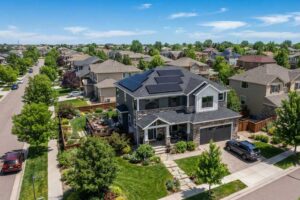

How Much Electricity Can One Panel Produce?

Modern residential panels commonly produce:

• 350W.
• 400W.
• 450W.
• 500W.

Actual energy production depends on:

• Sunlight.
• Temperature.
• Orientation.
• Weather.
• Shade.

According to the National Renewable Energy Laboratory, solar production varies significantly by location.

Source:

https://www.nrel.gov

A 400W panel may generate:

• 1.5–2.5 kWh per day.
• 500–700 kWh annually.

Two identical panels can perform differently depending on geography.

I once measured identical modules installed in Arizona and Oregon.

The difference surprised the homeowner.

The panels were the same.

The sky was not.

Why Heat Reduces Performance

People often assume solar panels perform best during extremely hot weather.

They do not.

Solar panels need sunlight.

Not necessarily heat.

According to the Solar Energy Industries Association, higher temperatures can reduce efficiency.

Source:

https://www.seia.org

On a summer roof:

• Panel temperatures may exceed 150°F (65°C).
• Efficiency can decline.
• Output temporarily drops.

Cold sunny days sometimes produce surprisingly high output.

One January inspection in Colorado generated more power than expected because the air remained cold and the sky was perfectly clear.

Do Solar Panels Work on Cloudy Days?

Yes.

Production decreases.

It does not stop.

Clouds scatter sunlight.

Panels continue receiving diffuse radiation.

Typical production:

• Clear day: 100%.
• Partly cloudy: 50–80%.
• Heavy clouds: 10–30%.

Many people overestimate the importance of direct sunlight.

Germany became one of the world’s largest solar markets despite having less sunshine than many U.S. states.

Solar works with available light, not perfect weather.

Flexible Solar Panels Work the Same Way

Flexible panels use the same photovoltaic principle.

The difference lies in construction.

Features:

• Lightweight materials.
• Flexible backing.
• Reduced weight.
• Curved installation capability.

Applications include:

• RVs.
• Boats.
• Camper vans.
• Portable systems.

The electricity behaves exactly the same.

The silicon still performs the work.

Author Experience

Michael Turner has spent more than twelve years evaluating photovoltaic systems, inspecting solar installations, and analyzing solar performance in residential, commercial, RV, and off-grid applications.

Professional experience includes:

• Solar performance analysis.
• Flexible panel testing.
• Residential system inspections.
• Product evaluations.
• Long-term degradation studies.

Many examples in this article come directly from field visits, failed panel inspections, and real-world performance measurements.

FAQ About How Does a Solar Panel Work?

How does a solar panel create electricity?

Sunlight excites electrons inside silicon cells, creating electric current.

Do solar panels need direct sunlight?

No. Solar panels can still produce electricity under cloudy conditions.

Why do solar panels produce DC power?

Photovoltaic cells naturally generate direct current electricity.

What does the inverter do?

The inverter converts DC electricity into AC electricity for household use.

Do solar panels work at night?

Visit product page:Flexible Solar Panel

No. Solar panels require sunlight to generate electricity.

Final Thoughts

People searching how does a solar panel work often expect an engineering diagram.

Wires.

Arrows.

Technical terms.

Those explanations are useful.

But after years of opening damaged panels, measuring electrical output, and climbing rooftops, I still find the simplest explanation the most accurate.

Sunlight touches silicon.

Electrons begin moving.

Electricity appears.

There is no engine.

No fuel tank.

No noise.

Just sunlight falling onto a roof and quietly becoming power.

That small miracle repeats itself every morning.
