How do you wire solar panels?

How do you wire solar panels? Solar panels are wired by connecting panels in series, parallel, or a combination of both depending on system voltage, current requirements, and inverter specifications. Proper solar panel wiring ensures safe energy transfer, improves efficiency, and prevents issues such as overvoltage or power loss.

At Bright Solar, we have worked with flexible solar panels, RV solar systems, and off-grid applications where wiring decisions directly affect real-world performance. A common mistake we see on installation sites is choosing a wiring method based only on panel quantity. The correct approach starts with checking the solar controller, inverter limits, cable distance, and environmental conditions.Visit the product page:Flexible Solar Panels

According to the National Electrical Code (NEC) Article 690, photovoltaic systems must consider conductor sizing, overcurrent protection, and maximum system voltage to maintain safe operation.

Understanding solar panel wiring before installation

Solar panel wiring is not simply connecting positive and negative terminals together. The way panels are connected changes the electrical characteristics of the entire array.

The three common configurations are:

Wiring Method	Voltage Output	Current Output	Typical Application
Solar panels in series	Increases	Remains the same	Higher voltage systems, MPPT controllers
Wiring solar panels in parallel	Remains the same	Increases	Low-voltage systems, shaded environments
Series-parallel wiring	Increases	Increases	Large solar arrays

The decision between series and parallel depends on your equipment requirements. When solar panels are connected in series, the voltage of each panel adds together while current stays close to the rating of one panel. Parallel wiring keeps voltage unchanged but combines current from multiple panels.

Solar panel series vs parallel: Which wiring method is better?

Solar panels in series

When wiring solar panels in series, the positive terminal of one panel connects to the negative terminal of the next panel.

For example:

• Panel A: 20V, 10A
• Panel B: 20V, 10A
• Panel C: 20V, 10A

Connected in series:

• Total voltage: 60V
• Current: 10A

This method is commonly used with MPPT charge controllers because higher voltage reduces current losses over longer cable distances.

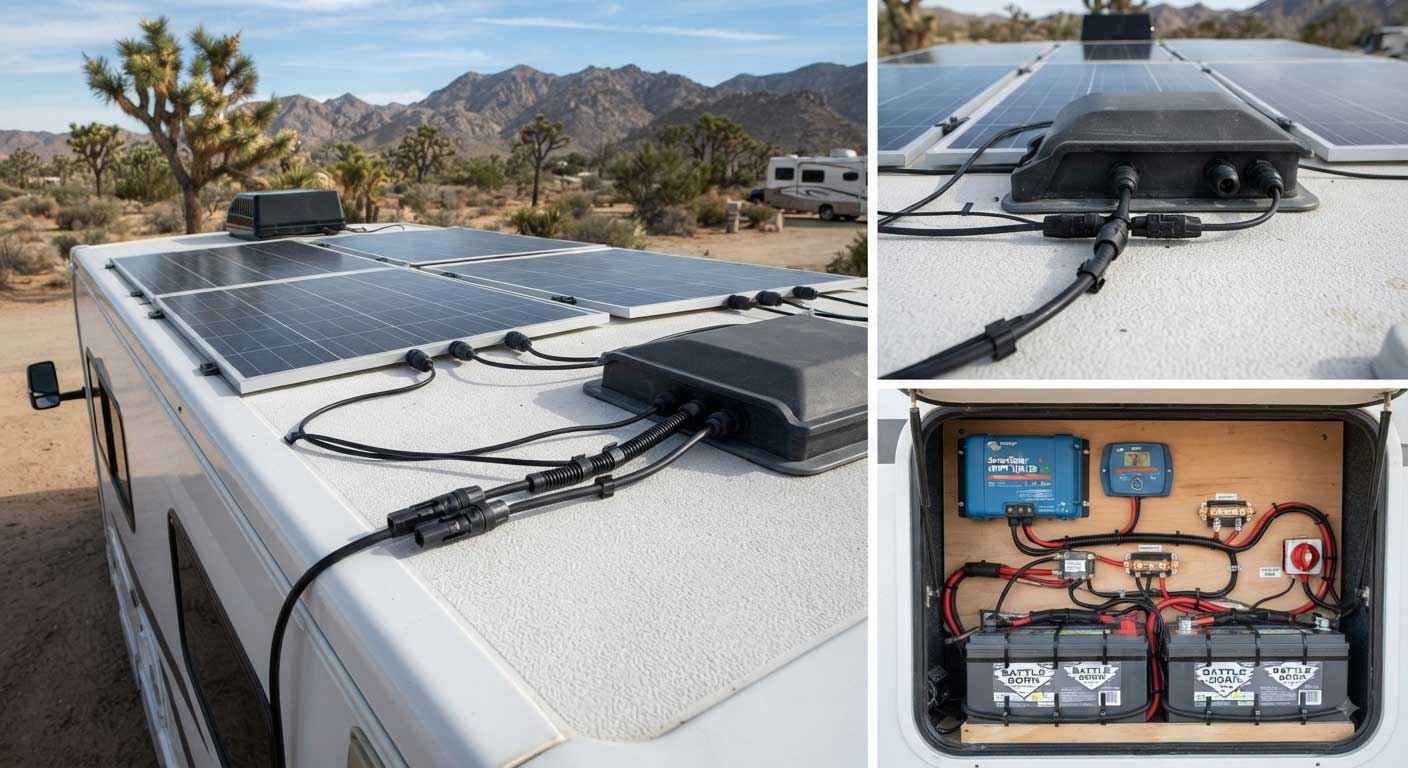

During an RV solar installation project, our technicians often choose series wiring when panels are mounted far from the controller. Increasing voltage allows the system to transmit power more efficiently while keeping cable size manageable.

However, series wiring has one limitation: shading on one panel can reduce output from the entire string. For rooftop systems with partial shading from trees or nearby structures, this needs careful evaluation.

Wiring solar panels in parallel

Wiring solar panels in parallel means connecting all positive terminals together and all negative terminals together.

Example:

• Panel A: 20V, 10A
• Panel B: 20V, 10A
• Panel C: 20V, 10A

Connected in parallel:

• Total voltage: 20V
• Current: 30A

Parallel wiring is useful when maintaining the same system voltage is important, especially for smaller battery-based applications.

However, higher current means thicker cables may be required. Many installers underestimate this point. A system that looks simple on paper can require significantly larger conductors after current increases.

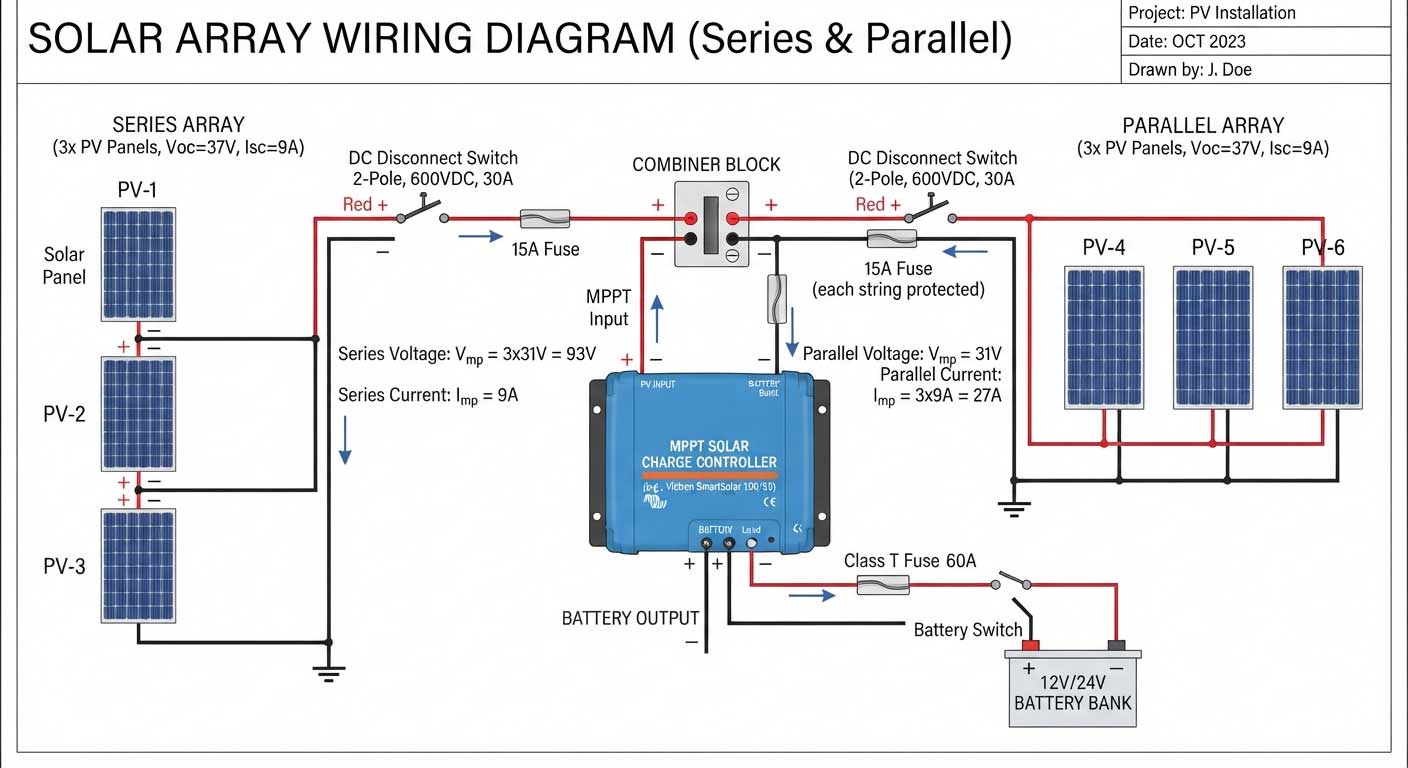

Solar Wiring Diagram: A Practical Guide for Connecting PV Panels

A solar wiring diagram helps installers understand how electricity moves from solar panels to charge controllers, batteries, and inverters. Before connecting cables, we normally confirm three values first: open-circuit voltage (Voc), operating voltage (Vmp), and short-circuit current (Isc).

A wiring mistake usually does not damage the solar panel immediately. The problem appears later — unstable charging, inverter shutdown, overheating cables, or reduced energy harvest.

For example, connecting too many solar panels in series can exceed the maximum input voltage of an MPPT controller. On the other hand, connecting too many panels in parallel can push current beyond the cable or controller rating.

The National Electrical Code (NEC) Article 690 requires PV system designs to consider maximum voltage, conductor protection, grounding, and appropriate wiring methods for photovoltaic installations.

How to Read a Solar Wiring Diagram

A basic solar wiring diagram includes:

• Solar panels
• PV connectors
• Combiner box (for larger systems)
• Charge controller or inverter
• Battery storage (off-grid systems)
• DC disconnect switch
• Protective devices

The electrical path usually follows:

Solar Panels → PV Wiring → Charge Controller/Inverter → Battery or Electrical Load

When designing systems at Bright Solar, we often check cable routing before panel installation begins. A technically correct connection can still lose efficiency if cables are too long, poorly protected, or exposed to extreme weather.

For outdoor installations, selecting proper PV-rated cables is essential. NEC guidance allows listed photovoltaic wire and approved wiring methods for PV systems, especially where outdoor exposure and system voltage require additional protection.

Common Mistakes When Wiring Solar Panels

Even experienced installers encounter wiring problems. These are some issues we have seen during real projects:

1. Mixing incompatible solar panels

Different panels may have different voltage and current ratings. Combining them randomly can create an uneven array where stronger panels cannot perform at their expected level.

A better approach is matching:

• Same wattage
• Similar voltage rating
• Similar current rating
• Same panel technology

2. Ignoring temperature effects

Solar panel voltage changes with temperature.

A panel producing normal voltage on a hot afternoon may generate a higher voltage on a cold morning. This matters especially when using solar panels in series because voltage adds together.

Installers should always check the panel manufacturer’s temperature coefficient before finalizing the design.

3. Using undersized cables

Cable size affects voltage drop.

A small residential setup may work with short cables, but an RV or off-grid system with panels installed far from the battery requires more careful planning.

Common factors include:

• Cable length
• System voltage
• Current level
• Installation environment

Increasing system voltage through series wiring is often used to reduce current and minimize cable losses.

Solar Panel Wiring Checklist Before Power-Up

Before activating a solar system, experienced installers usually verify:

• Confirm panel voltage and current ratings
• Check series string voltage
• Check parallel array current
• Verify controller maximum input limits
• Inspect all positive and negative connections
• Confirm cable polarity using a multimeter
• Protect outdoor cables from UV exposure
• Test system output under sunlight

A few minutes of checking can prevent expensive troubleshooting later.

FAQ About How Do You Wire Solar Panels?

Can solar panels be wired in series and parallel together?

Yes. Many larger systems use a series-parallel configuration. Panels are first connected in series to increase voltage, then multiple strings are connected in parallel to increase current.

Is solar panel series vs parallel better?

Neither method is always better. Series wiring is useful for increasing voltage and reducing current loss, while parallel wiring increases current while maintaining voltage. The correct choice depends on the controller, inverter, and installation environment.

What happens if solar panels are wired incorrectly?

Incorrect wiring may cause low output, equipment shutdown, excessive voltage, overheating cables, or permanent damage to connected components.

Do solar panels in series charge faster?

Not necessarily. Series wiring increases voltage, but charging speed depends on total solar power, battery condition, controller efficiency, and sunlight availability.

What is the best wiring method for RV solar panels?

For many RV applications, series wiring with an MPPT controller can provide advantages because higher voltage allows efficient power transmission through longer cable runs. However, shading conditions and equipment ratings must be considered.

How do I create a solar wiring diagram?

Start by listing panel specifications, then calculate total voltage and current. Add the controller, inverter, battery, and protection devices according to manufacturer requirements.

Can flexible solar panels use the same wiring method?

Yes. Flexible solar panels follow the same electrical principles as rigid panels. The difference is usually installation method, weight, and mounting conditions rather than wiring logic.

Final Thoughts: How do you wire solar panels correctly?

How do you wire solar panels? The correct method depends on system voltage, current requirements, equipment limits, and installation conditions. A reliable solar panel wiring design balances electrical performance with long-term safety.
