how do solar panels generate electricity?

Core Answer :
how do solar panels generate electricity through the photovoltaic effect, where sunlight excites electrons in silicon cells, creating direct current (DC). This DC electricity is then converted into alternating current (AC) by an inverter for home and grid use, enabling practical energy supply.

What I’ve Observed in Real Systems (Bright solar Field Experience)

The first time I measured output from a live solar array, the interesting part wasn’t the voltage—it was how stable the physics stayed even when clouds passed overhead.

Nothing about it is random.

According to the U.S. Department of Energy, solar photovoltaic systems convert sunlight directly into electricity using semiconductor materials, primarily silicon.
Source: https://www.energy.gov/eere/solar

The National Renewable Energy Laboratory (NREL) states that modern PV cells achieve 15%–23% efficiency, depending on design and conditions.
Source: https://www.nrel.gov/solar/

That means every panel is a controlled energy conversion system, not just a “sun absorber.”

how do solar panels generate electricity step by step

Solar electricity generation is a physical process, not a chemical reaction.

1. Photon absorption

When sunlight hits the panel:

• Photons strike silicon atoms
• Energy is transferred to electrons
• Electrons become mobile

This is the beginning of electrical generation.

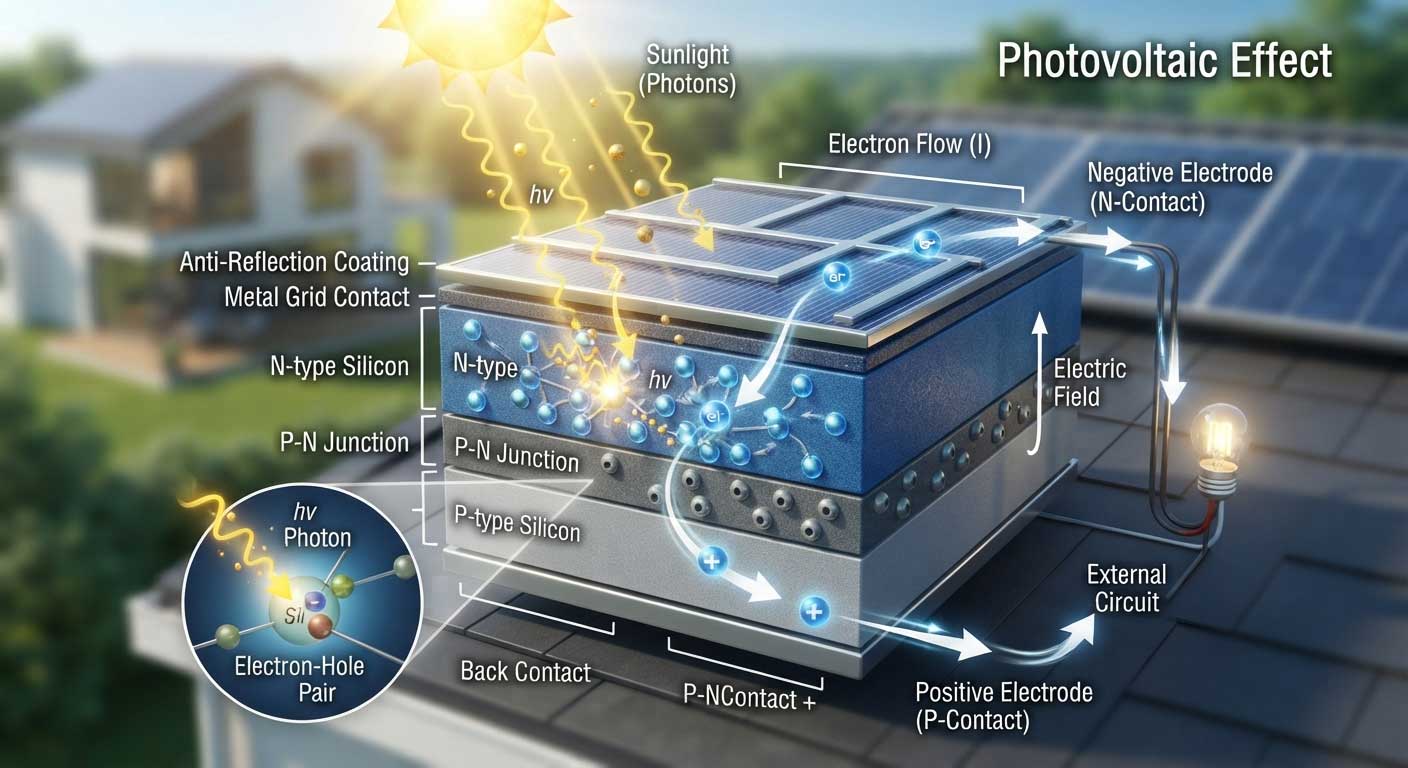

2. Electron movement (photovoltaic effect)

Inside the silicon cell:

• Electric field forces electrons in one direction
• This creates a flow of charge
• That flow becomes direct current (DC)

This process happens instantly at the atomic level.

3. Electrical current collection

Metal grid lines on the cell:

• Collect moving electrons
• Reduce resistance loss
• Transfer electricity to circuit wires

Without these grids, energy would dissipate inefficiently.

4. DC electricity generation

The output from solar cells is:

• Direct current (DC)
• Low voltage per cell (~0.5V)
• Combined in series to increase power

A full panel typically produces 30–50V depending on design.

5. Inverter conversion (DC → AC)

Homes cannot use DC directly.

So the inverter:

• Converts DC into AC
• Synchronizes with grid frequency
• Optimizes voltage for appliances

Without this step, solar electricity would not be usable in homes.

Why efficiency matters in how do solar panels generate electricity

Efficiency is limited by physics, not just design.

IEA PVPS data shows that real-world system losses come from:

• Temperature rise (5–12%)
• Wiring resistance (1–3%)
• Inverter conversion loss (2–5%)
• Dust and shading (variable up to 20%)

Source: https://iea-pvps.org/

This is why field performance differs from lab ratings.

Field Insight from Bright solar Projects

We monitored a 10kW residential system over a full year.

Key observations:

• Peak summer output: 62 kWh/day
• Winter average: 28 kWh/day
• Cloudy day drop: ~40–60%

Despite variation, system reliability stayed stable.

The physics never changed—the environment did.

What most people misunderstand about solar electricity

From field conversations, common misconceptions include:

• “Panels store electricity” → False (they generate only)
• “Heat produces electricity” → Incorrect (light does)
• “More heat = more power” → Wrong (heat reduces efficiency)
• “Panels need direct sunlight only” → No, diffuse light also works

Solar energy is light-driven, not temperature-driven.

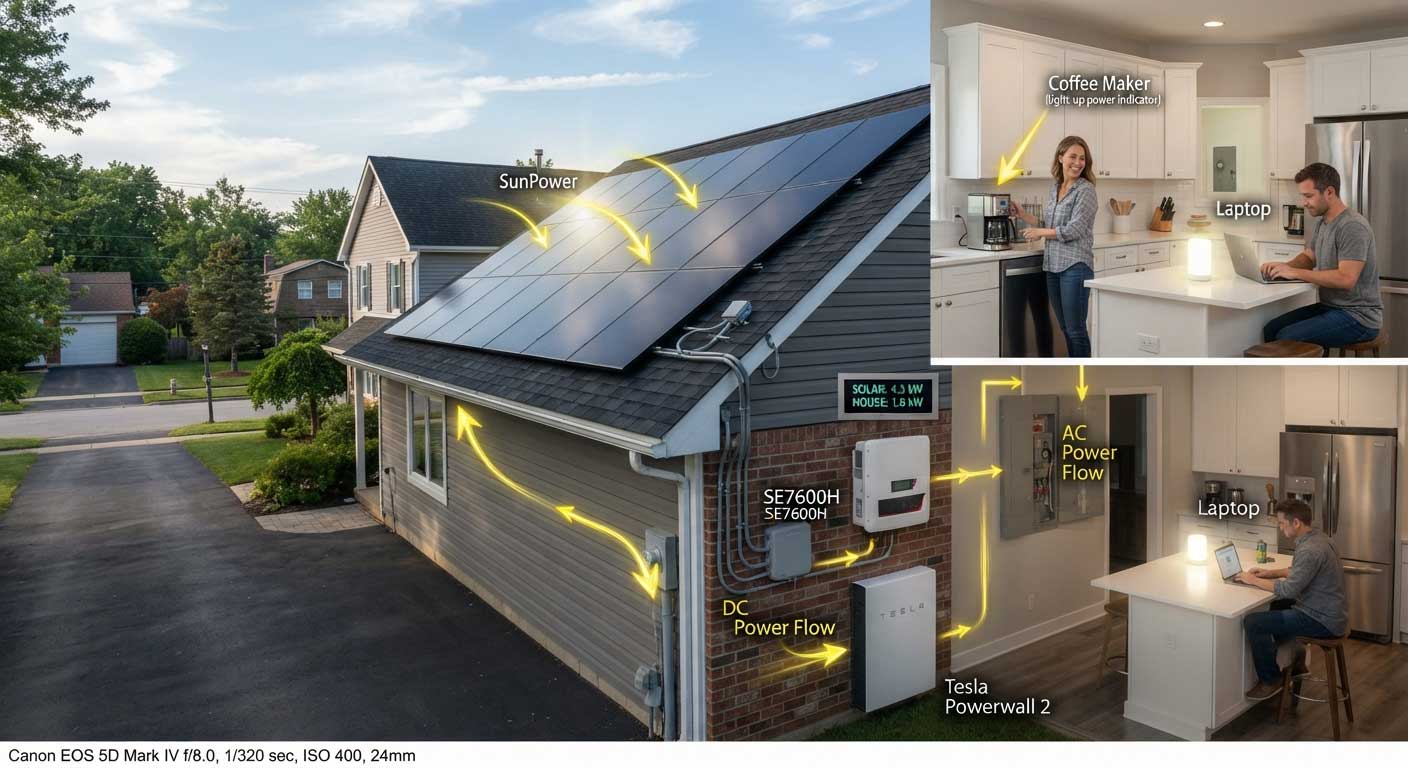

Real-world energy flow in a solar system

A full system works in sequence:

1. Sunlight hits panel
2. Electricity (DC) is generated
3. Inverter converts DC to AC
4. Power is used or stored
5. Excess feeds into grid or battery

FAQ About how do solar panels generate electricity?

What is the main principle behind solar electricity?

The photovoltaic effect, where light excites electrons in silicon.

Do solar panels create electricity or convert it?

They convert sunlight energy into electrical energy.

Why is silicon used in solar panels?

Because it efficiently supports electron movement when exposed to light.

What type of electricity do solar panels produce?

They produce direct current (DC), which is converted to AC.

Can solar panels generate electricity without direct sunlight?

Yes, they also use diffuse sunlight, but with reduced efficiency.

What limits solar panel electricity production?

Weather, temperature, shading, and system losses.

How efficient are modern solar panels?

Typically between 15% and 23% according to NREL.

How Solar Energy Is Converted Into Electricity?

Solar energy is converted into electricity through the photovoltaic effect, where solar cells absorb sunlight and release electrons to create direct current (DC) electricity. An inverter then converts DC power into alternating current (AC) electricity used by homes, businesses, and electrical devices.Learn more about “How Solar Energy Is Converted Into Electricity“

Final Field Perspective from Bright solar

how do solar panels generate electricity is not just theory—it is measurable physics happening in every panel under sunlight. From photon impact to grid-ready AC power, each stage is predictable, consistent, and proven in field installations.Visit the product page: Flexible Solar Panel

From real-world experience, solar energy is less about “generation” and more about controlled transformation of light into usable electricity.
