200 Watt Flexible Solar Panels: Lightweight Power Solution for RV, Marine and Off-Grid Applications

200 watt flexible solar panels provide a powerful yet lightweight solar solution for RVs, boats, camping systems, and off-grid applications. They offer higher energy output than smaller flexible panels while maintaining easy installation on curved and limited spaces.

When customers ask Bright Solar which flexible solar panel size provides a practical upgrade from basic portable systems, 200 watts is often the turning point.

A 100W panel can handle essential charging needs.

A 200W flexible solar panel moves into a different category.

It provides enough energy capacity for users who want more independence while still avoiding the weight and installation challenges of traditional rigid modules.

During our product development and application testing, Bright Solar engineers evaluated 200W flexible solar panels in environments where conventional solar modules were difficult to install.

These included:

• Camper vans traveling through European routes
• Marine equipment exposed to coastal conditions
• Remote power systems with limited mounting space

The feedback was consistent.

Users did not simply want more watts.

They wanted more usable energy without adding unnecessary weight or complicated structures.

That balance is where 200 watt flexible solar panels create real value.

What Are 200 Watt Flexible Solar Panels?

200 watt flexible solar panels are photovoltaic modules designed to generate up to 200 watts of power under Standard Test Conditions (STC) while maintaining a lightweight and bendable construction.

Unlike traditional glass solar panels, flexible modules replace heavy structures with advanced materials.

A typical 200W flexible solar panel consists of:

Component	Function
High-efficiency monocrystalline cells	Convert sunlight into electricity
Flexible substrate	Allows installation on curved surfaces
ETFE protective coating	Improves UV and weather resistance
Encapsulation layers	Protect internal electrical components
Junction box	Provides safe electrical connection

The purpose of flexible solar technology is not simply reducing thickness.

It is solving installation problems.

A rigid panel may perform well on a flat rooftop.

But many real-world surfaces are not flat.

Examples include:

• RV roofs
• Boat cabins
• Camper trailers
• Portable structures

A flexible 200W panel adapts to these environments.

How Much Energy Can a 200 Watt Flexible Solar Panel Produce?

A 200W flexible solar panel can theoretically generate 200 watts of electricity under ideal laboratory conditions.

However, outdoor performance depends on several factors:

• Solar radiation
• Location
• Panel angle
• Temperature
• Weather conditions
• System efficiency

A simple calculation:

Daily Energy Output = Solar Panel Wattage × Peak Sun Hours × System Efficiency

Example:

200W × 5 peak sun hours × 80% efficiency

≈ 800Wh per day

This energy level can support many mobile applications, including:

• RV battery charging
• Portable refrigerators
• LED lighting
• Communication devices
• Outdoor electronics

According to the National Renewable Energy Laboratory (NREL), photovoltaic energy production depends on solar resource availability, environmental conditions, and system design.

Source:

National Renewable Energy Laboratory
https://www.nrel.gov/solar/

This is why professional solar engineers evaluate complete energy requirements rather than only looking at panel wattage.

Why Choose 200 Watt Flexible Solar Panels?

The popularity of 200W flexible solar panels comes from their balance between energy output and installation flexibility.

Many users reach a point where smaller panels are no longer enough.

They need more power, but they still face limitations:

• Limited roof space
• Weight restrictions
• Curved surfaces
• Portable requirements

A 200W flexible solar panel addresses these challenges.

Higher Power Output Without Heavy Installation

For mobile applications, increasing power usually means increasing panel size.

However, traditional solar upgrades often introduce additional weight.

A rigid 200W solar module typically requires:

• Glass protection
• Aluminum framing
• Mounting brackets

Flexible solar panels reduce these structural requirements.

Benefits include:

• Lower transportation weight
• Easier installation
• Reduced roof loading
• Cleaner appearance

At Bright Solar, we found through customer discussions that installation convenience often determines whether a solar project moves forward.

A technically excellent product that is difficult to install may never deliver its full value.

Suitable for Limited Installation Areas

Space is often the biggest challenge in mobile solar applications.

An RV roof may already contain:

• Air conditioners
• Ventilation systems
• Roof windows
• Storage equipment

A boat may have even less usable space.

Flexible 200W solar panels allow designers to use areas that traditional panels cannot easily cover.

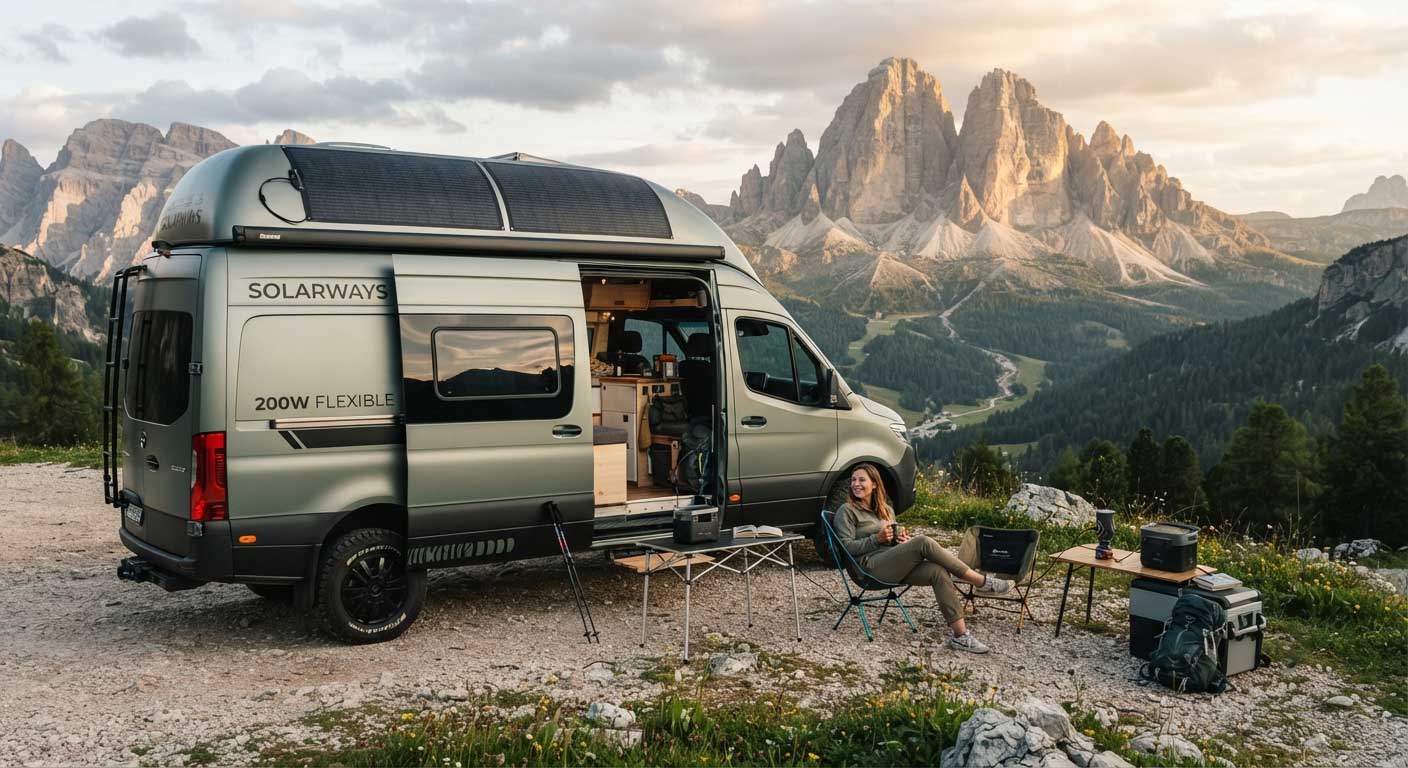

200 Watt Flexible Solar Panels for RV Applications

RV owners are one of the largest groups adopting flexible solar technology.

Modern travelers increasingly rely on electricity for:

• Refrigerators
• Cameras
• Internet devices
• Lighting
• Charging stations

A 200W flexible solar panel system can provide a stronger energy foundation compared with smaller portable panels.

Typical RV configuration:

200W Flexible Solar Panel → MPPT Charge Controller → Lithium Battery → DC Appliances

This setup is common among:

• Camper vans
• Motorhomes
• Travel trailers

Real RV Application Case From Bright Solar Experience

A European RV equipment supplier contacted Bright Solar because their customers wanted longer off-grid travel capability.

The original design used smaller solar modules.

The problems were:

• Insufficient daily energy production
• Multiple panels required
• More complicated installation

Bright Solar engineers tested a 200W flexible solar solution.

The redesign focused on:

• Increasing energy output
• Reducing installation complexity
• Maintaining a low-profile appearance

The final system supported daily energy needs including:

• Battery maintenance
• Interior lighting
• Mobile electronics

The most valuable feedback was not about the wattage increase.

It was about freedom.

Users could stay longer away from traditional charging locations.

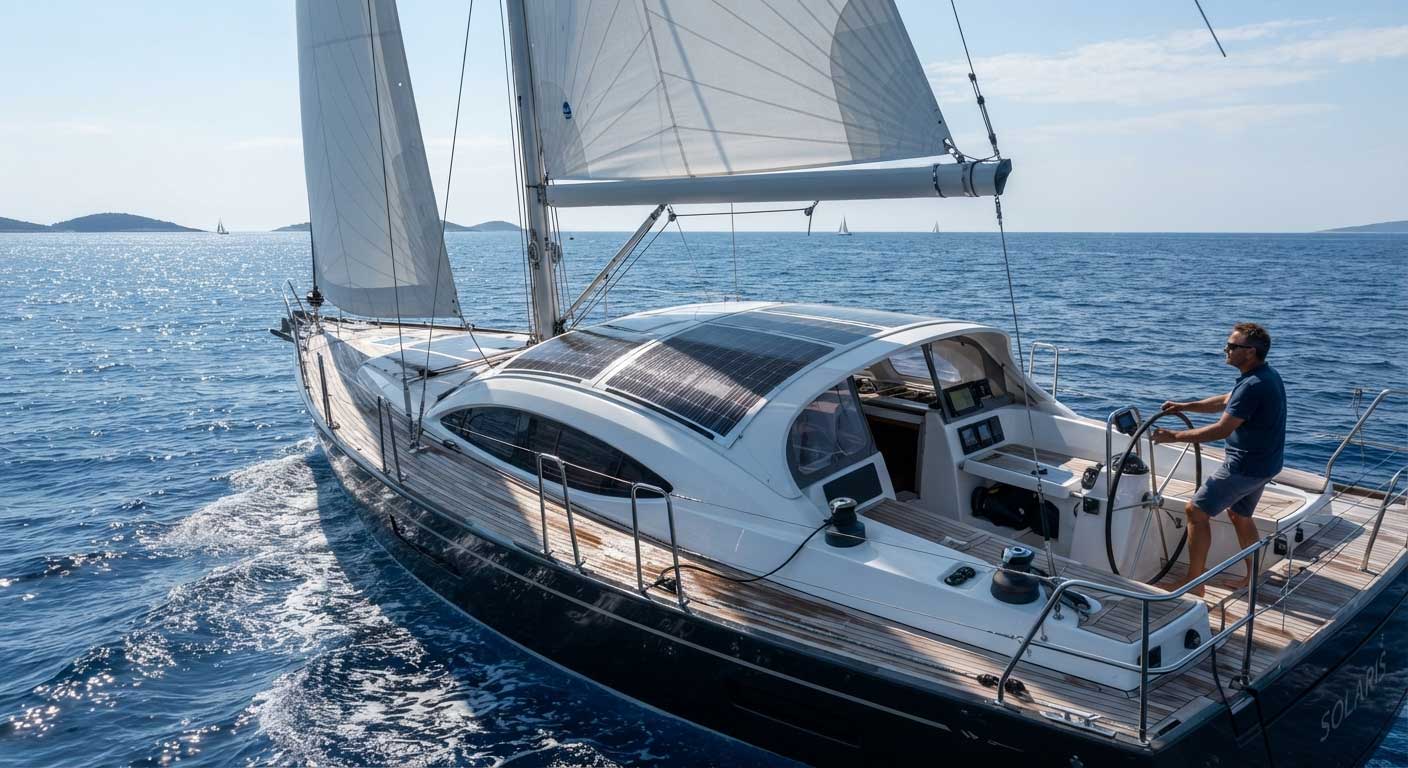

200 Watt Flexible Solar Panels for Marine Applications

Marine environments require reliable energy solutions.

Boats often need power for:

• Navigation equipment
• Communication systems
• Battery charging
• Lighting
• Safety devices

However, marine installation creates special challenges.

Available space is limited.

Weight affects performance.

Saltwater exposure affects materials.

Flexible 200W solar panels provide advantages because they can be integrated into:

• Yacht cabins
• Boat roofs
• Curved deck areas
• Marine covers

Marine Solar Testing Experience

During Bright Solar marine application testing, engineers focused on real environmental conditions rather than only laboratory measurements.

Testing considerations included:

• UV exposure
• Humidity
• Temperature variation
• Mechanical vibration

A marine solar panel must survive movement.

A boat is not a stationary rooftop.

Every wave creates additional stress on the structure and connections.

This experience helped Bright Solar focus on:

• Reliable encapsulation
• Durable surface materials
• Stable electrical connections

Materials Used in High-Quality 200 Watt Flexible Solar Panels

ETFE Surface Protection

The outer surface plays a critical role in outdoor solar durability.

Premium flexible panels often use ETFE because it provides:

• UV resistance
• Scratch protection
• Weather durability
• High light transmission

For RV and marine applications, surface protection directly affects long-term performance.

Monocrystalline Solar Technology

Because installation space is limited, efficient solar cells are important.

Monocrystalline photovoltaic cells are widely used in flexible solar products because they provide strong performance in compact designs.

According to the U.S. Department of Energy, photovoltaic technology continues improving through advances in materials, manufacturing, and system design.

Source:

U.S. Department of Energy Solar Energy Technologies Office
https://www.energy.gov/eere/solar

For mobile solar users, efficiency means more energy from available space.

How to Install 200 Watt Flexible Solar Panels Correctly

Installing 200 watt flexible solar panels is easier than installing many traditional rigid solar modules, but correct installation still determines system performance and service life.

At Bright Solar, we have reviewed different solar installations where the panel itself was not the problem. The failure usually came from small installation details:

• Poor surface preparation
• Incorrect cable protection
• Improper adhesive selection
• Poor waterproofing around connectors

A flexible solar panel is designed to simplify installation, not eliminate the need for careful engineering.

Step 1: Evaluate Your Installation Surface

Before installing a 200W flexible solar panel, check the available area.

The surface should provide:

• Direct sunlight exposure
• Minimal shading
• Strong structural support
• Safe cable routing

Common installation locations include:

Application	Installation Area
RV	Curved roof, camper roof surface
Boat	Cabin roof, deck, canopy
Van conversion	Vehicle roof panels
Off-grid system	Custom mounting surface

Avoid locations near:

• Roof vents
• Antennas
• Air conditioners
• Objects creating shadows

A small shadow can reduce output because solar cells are electrically connected in groups.

Step 2: Prepare the Mounting Surface

Surface preparation is one of the most important steps.

Recommended preparation:

1. Clean dust and dirt
2. Remove grease or wax residue
3. Dry the surface completely
4. Confirm adhesive compatibility

During a Bright Solar RV installation review, our engineers found that the solar panel performance was excellent, but the mounting surface had contamination from previous cleaning products.

The panel looked firmly attached at first.

After several weeks of temperature changes, the adhesive performance decreased.

After proper cleaning and preparation, the installation remained stable.

This experience reinforced an important point:

Installation quality starts before the panel touches the surface.

Step 3: Connect the 200W Solar Panel System

A typical 200W flexible solar system includes:

200W Flexible Solar Panel → MPPT Charge Controller → Battery → Electrical Devices

The charge controller is essential because it regulates energy between the panel and battery.

Common components:

Component	Function
Solar panel	Generates DC electricity
MPPT controller	Optimizes charging efficiency
Battery	Stores energy
Inverter	Converts DC to AC power

For mobile applications, lithium batteries are becoming increasingly common because of their:

• Higher usable capacity
• Lower weight
• Longer cycle life

How to Match a 200 Watt Flexible Solar Panel With a Battery

A common mistake is choosing a solar panel without considering battery capacity.

The solar system should be balanced.

Example:

A 200W flexible solar panel may generate approximately:

200W × 5 sunlight hours × efficiency factor

≈ 700–900Wh/day

A 12V battery system:

Energy = Voltage × Capacity

A 12V 100Ah battery:

12V × 100Ah = approximately 1200Wh storage capacity

This combination is commonly suitable for:

• RV travel
• Camping
• Marine electronics
• Backup power

The final design depends on:

• Location
• Daily usage
• Weather conditions
• Charging frequency

200 Watt Flexible Solar Panels vs 100 Watt Flexible Solar Panels

Many customers compare 100W and 200W flexible solar panels before purchasing.

Both have advantages.

Feature	100W Flexible Solar Panel	200W Flexible Solar Panel
Power Output	Basic energy needs	Higher daily energy production
Installation Space	Smaller	Larger
Weight	Lower	Higher
Best For	Small camping systems	RVs, marine, extended travel
Battery Charging Speed	Slower	Faster

A 100W panel works well for users who only need:

• Phone charging
• Small electronics
• Battery maintenance

A 200W flexible solar panel is more suitable when users need:

• Longer off-grid operation
• Larger battery charging
• More electrical devices

The right choice depends on energy demand, not simply panel size.

Bright Solar Manufacturing Experience With 200W Flexible Solar Panels

Bright Solar develops flexible solar products based on real application requirements.

Our engineering approach focuses on questions that are often ignored:

• Where will the panel actually be installed?
• How will users transport it?
• What weather conditions will it experience?
• How easy is maintenance?

One project involved an outdoor equipment company in North America.

Their customers were using portable power systems during:

• Remote camping trips
• Outdoor photography projects
• Field research activities

The original solar solution provided enough power but was difficult to integrate into compact equipment.

Bright Solar worked on:

• Panel structure optimization
• Cable arrangement
• Surface material selection

The result was a more practical 200W flexible solar solution.

The customer feedback highlighted one important lesson:

Solar products succeed when technology fits human behavior.

Applications of 200 Watt Flexible Solar Panels

RV and Camper Solar Systems

RV owners often choose 200W flexible solar panels because they provide a strong balance between:

• Energy output
• Roof space
• Installation simplicity

Typical uses include:

• Refrigerators
• Interior lighting
• Fans
• Charging devices
• Communication equipment

Marine Solar Power

Boat owners use flexible solar panels because traditional modules may not fit curved marine surfaces.

Applications include:

• Sailboats
• Yachts
• Fishing boats
• Marine monitoring systems

Off-Grid Energy Systems

Remote locations often require independent energy sources.

Examples:

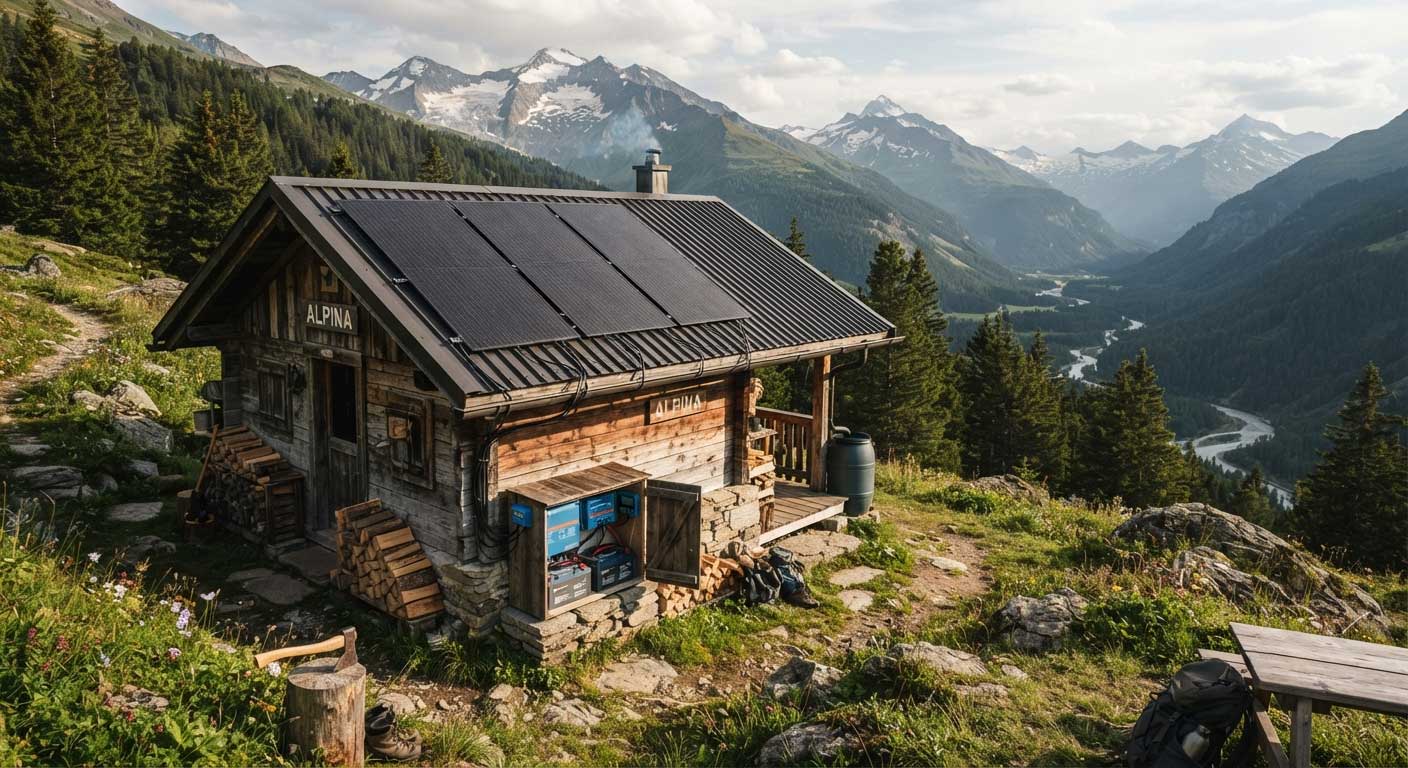

• Remote cabins
• Field equipment
• Emergency systems
• Outdoor monitoring stations

A 200W flexible solar panel can become part of a complete energy solution with battery storage.

Why Choose Bright Solar 200 Watt Flexible Solar Panels?

Bright Solar focuses on producing flexible solar solutions for practical outdoor applications.

Key advantages include:

Reliable Solar Materials

High-quality materials are essential for outdoor environments.

Important features include:

• Durable surface protection
• Stable electrical connections
• Weather-resistant construction

Application-Based Design

Bright Solar does not design panels only around specifications.

Products are developed around actual usage:

• RV installation requirements
• Marine conditions
• Portable applications

OEM and Custom Solutions

Different industries need different solar designs.

Bright Solar supports:

• Custom sizes
• Custom power ratings
• Cable modifications
• Integration solutions

This helps customers develop solar products for specific applications.

FAQ About 200 Watt Flexible Solar Panels

What can a 200 watt flexible solar panel power?

A 200 watt flexible solar panel can support RV batteries, marine electronics, LED lighting, portable refrigerators, communication devices, and other off-grid equipment depending on sunlight conditions.

Are 200 watt flexible solar panels good for RVs?

Yes. They are popular for RV applications because they provide higher energy output while maintaining lightweight installation advantages.

How much electricity does a 200W flexible solar panel produce?

Under ideal conditions, a 200W panel produces up to 200 watts at peak output. Actual daily production depends on sunlight hours, weather, location, and system efficiency.

Can a 200W flexible solar panel charge a 12V battery?

Yes. When connected through a suitable charge controller, a 200W flexible solar panel can charge compatible 12V battery systems.

Are flexible solar panels waterproof?

Quality flexible solar panels are designed with protective layers for outdoor use. However, connectors and installation methods also affect waterproof performance.

How long do 200 watt flexible solar panels last?

The lifespan depends on materials, installation conditions, and maintenance. Premium flexible panels with durable coatings are designed for long-term outdoor applications.

Is a 200W flexible solar panel better than two 100W panels?

It depends on the installation. A single 200W panel may simplify installation, while two 100W panels can provide more placement flexibility.

Final Thoughts: Choosing 200 Watt Flexible Solar Panels for Mobile Energy

200 watt flexible solar panels provide a practical solution for users who need more energy without the limitations of traditional rigid solar modules.

Their strongest advantages are:

• Higher power output
• Lightweight construction
• Flexible installation options
• Compatibility with mobile energy systems

For RV owners, boat operators, campers, and off-grid users, a 200W flexible solar panel can provide greater energy independence while maintaining installation flexibility.

At Bright Solar, our experience shows that the best solar solution is not simply the one with the highest specification.

It is the one that performs reliably in the environment where people actually use it.

A good flexible solar panel should become part of the system, not a limitation of the system.
