12V Solar Panel Folding: Output, Battery Charging and Setup Guide

A 12v solar panel folding system provides portable electricity for RVs, camping, and off-grid battery charging. Its performance depends on rated wattage, sunlight, and electrical compatibility, while a suitable charge controller helps regulate battery charging safely.

For travelers who need power away from a wall outlet, folding solar panels offer a practical alternative to permanent installations. They can be placed beside a campervan, repositioned as the sun moves, and packed away when the journey ends.

The key detail is that a panel described as “12V” does not necessarily produce exactly 12 volts. Its operating voltage must suit the charge controller and battery system. Bright Solar recommends evaluating the intended application, daily energy demand, and verified product specifications before choosing a portable solar solution.

What Is a 12V Solar Panel Folding System?

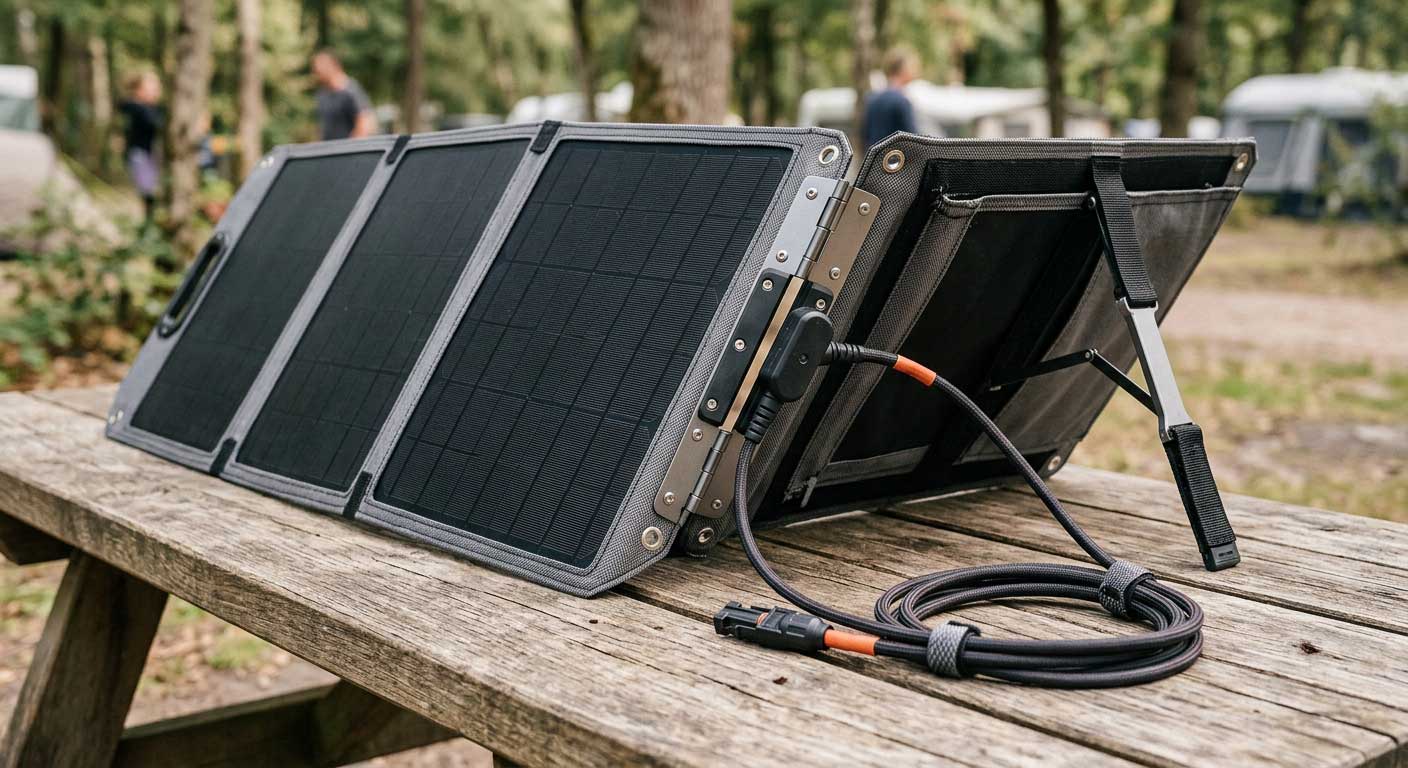

A 12V folding solar panel is a portable photovoltaic product designed to unfold for sunlight collection and fold into a compact package for transport. Depending on the model, it may contain several connected panel sections, a protective carrying case, support legs, and electrical cables.

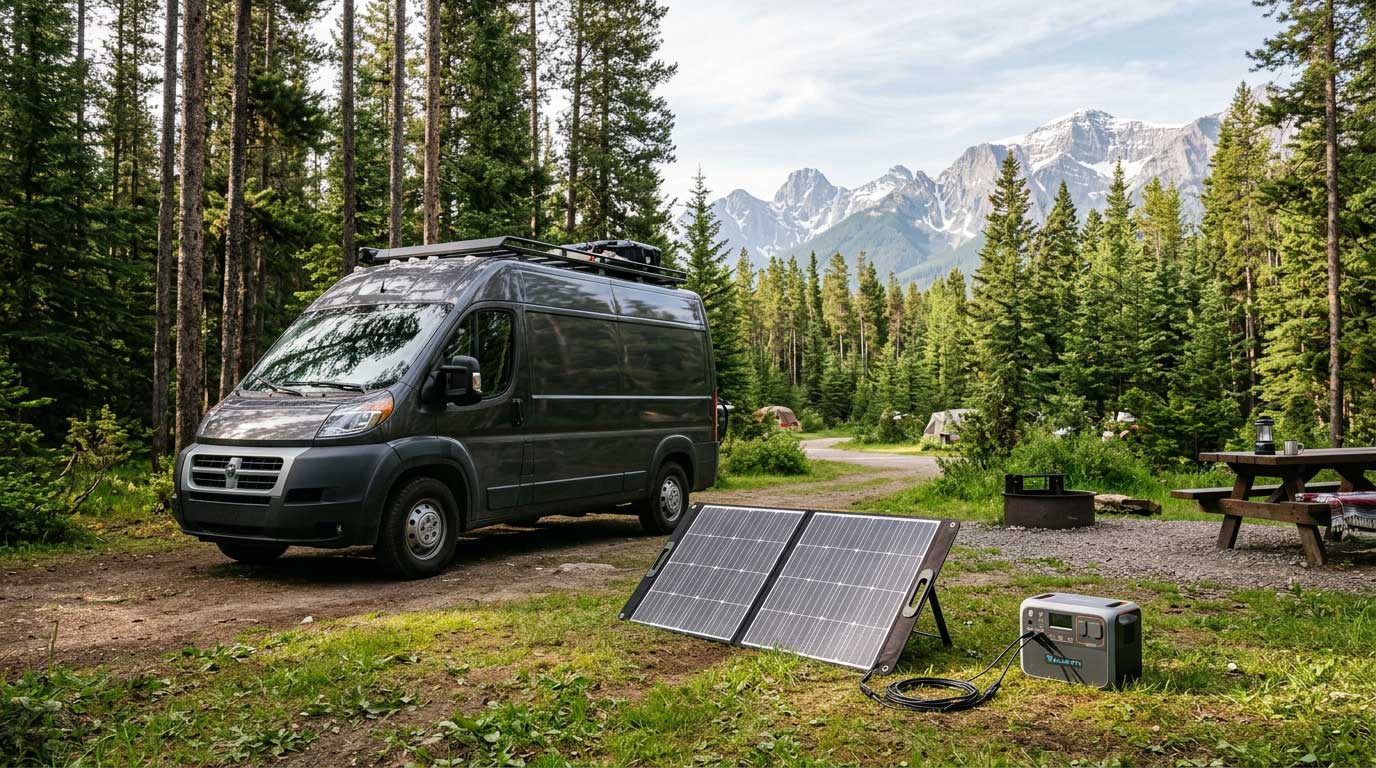

Unlike a fixed rooftop panel, a folding model can be moved to a sunny area next to a vehicle or campsite. That flexibility is particularly useful when an RV roof is occupied by vents, antennas, air-conditioning equipment, or other solar modules.

Common applications include:

• Camping: Charging compatible power stations, phones, lights, and camera batteries.
• RV travel: Supplementing a leisure battery while the vehicle is parked.
• Campervans: Providing temporary solar charging without permanent roof mounting.
• Outdoor recreation: Supporting small electronic devices away from grid power.
• Emergency preparedness: Replenishing a compatible battery system when mains electricity is unavailable.
• Remote work: Supplying supplemental energy for laptops and communication equipment through suitable charging equipment.

A folding panel is not automatically a complete battery charger. Some models include a controller or regulated USB output, while others require separate equipment. Always check the product datasheet and charging instructions before connecting a panel to a battery.

How Does a 12V Folding Solar Panel Work?

Solar cells convert sunlight into direct-current electricity. Their output varies with sunlight intensity, temperature, orientation, and shading. The connected equipment then determines how that electricity is regulated, stored, or delivered to devices.

A typical battery-based setup follows this arrangement:

Solar panel → charge controller → 12V battery → connected loads

An inverter may be needed for AC appliances. In a portable power station, the battery, solar charging electronics, and inverter may already be integrated into one unit.View Portable Solar Panels

Why a 12V Panel Does Not Always Output Exactly 12 Volts

A nominal 12V battery changes voltage as it charges and discharges. Its terminal voltage depends on battery chemistry, state of charge, current, and temperature.

For that reason, panels designed for 12V battery systems may operate at a higher voltage to give a compatible controller enough headroom to regulate charging.

Check these values on the manufacturer’s datasheet:

• Vmp: Voltage at maximum power.
• Imp: Current at maximum power.
• Voc: Open-circuit voltage.
• Isc: Short-circuit current.
• Rated power: Nominal output under specified test conditions.

The controller must accept the panel’s voltage and current, and its charging profile must suit the battery. The U.S. Department of Energy explains the role of modules and supporting equipment in its guide to solar photovoltaic system design.

How Much Energy Can a 12V Solar Panel Folding System Generate?

The energy produced by a folding solar panel depends on its rated wattage and the number of equivalent peak sun hours available. The “12V” label indicates the intended system class, not the panel’s power output.

The U.S. Department of Energy explains that standard PV module ratings use defined test conditions, including irradiance of 1,000 W/m² and a cell temperature of 25°C. Outdoor performance changes when these conditions differ. See the DOE’s Solar Photovoltaic Cell Basics.

Estimated Daily Output by Panel Wattage

The table below assumes four equivalent peak sun hours. The usable-energy estimates also assume an illustrative 80% energy-delivery factor to account for system losses. These are calculations, not measured Bright Solar product results.

Rated panel power	Theoretical daily energy	Estimated usable energy
50W	200Wh	160Wh
100W	400Wh	320Wh
120W	480Wh	384Wh
200W	800Wh	640Wh

For example, a 100W panel under these assumptions would deliver an estimated 320Wh of usable energy:

100W × 4 hours × 0.80 = 320Wh.

The 80% factor is illustrative rather than a universal efficiency figure. Actual results depend on sunlight, panel temperature, shading, controller behavior, battery condition, and the connected equipment.

For a location-specific production estimate, use the NREL PVWatts Calculator. It models photovoltaic energy production using location and system inputs. Since a folding panel can be moved and tilted manually throughout the day, treat the estimate as a planning reference rather than a guaranteed result.

What Reduces Solar Output in Real Conditions?

A folding panel may perform differently from one day to the next, even when the weather appears similar.

• Partial shading: A tree branch, awning, or vehicle shadow can reduce output. The effect depends on the panel’s cell layout and electrical design.
• High temperatures: Panel temperature affects photovoltaic performance, so bright sunshine does not always mean maximum rated output.
• Poor orientation: A panel facing away from direct sunlight may collect less energy than one positioned toward the sun.
• Battery charging limits: A nearly full battery or a power station with a restricted solar input may accept less power than the panel could otherwise provide.

One practical habit is to record both instantaneous watts and accumulated watt-hours. The first shows current output; the second shows how much energy has actually been collected over a period of time.

How to Choose the Right 12V Folding Solar Panel

The best panel depends on where it will be used, how much energy is needed, and what equipment will receive the electricity. A higher wattage can increase potential generation, but it may also mean more weight, a larger folded package, or different controller requirements.

Specifications to Compare Before Buying

Specification	What to verify
Rated power	Nominal output under specified test conditions
Vmp and Imp	Voltage and current at maximum power
Voc and Isc	Electrical limits for controller compatibility
Folded dimensions	Whether it fits your vehicle or storage space
Weight	Total carrying weight, including essential accessories
Cell technology	The cell type specified for the exact model
Charge controller	Whether it is integrated or sold separately
Connector	Plug type, polarity, and adapter requirements
Weather resistance	Published protection ratings and operating restrictions
Warranty	Coverage, exclusions, and claim requirements

Do not assume every folding panel is waterproof, walkable, or suitable for permanent outdoor exposure. Those properties must be confirmed in the manufacturer’s documentation.

Match the Panel to the Battery Chemistry

Lead-acid and lithium batteries can require different charging profiles. Some lithium batteries include a battery management system, but that does not remove the need to follow the manufacturer’s charging voltage, current, and temperature limits.

Before connecting a panel, confirm:

• The battery’s nominal voltage and chemistry.
• The controller’s supported battery types.
• The battery’s permitted charging voltage and current.
• The controller’s maximum PV input voltage and current.
• The manufacturer’s recommended connection sequence.

This is particularly important when an RV owner upgrades a battery but keeps the original charging equipment. The panel, controller, battery, and wiring must work together as one system.

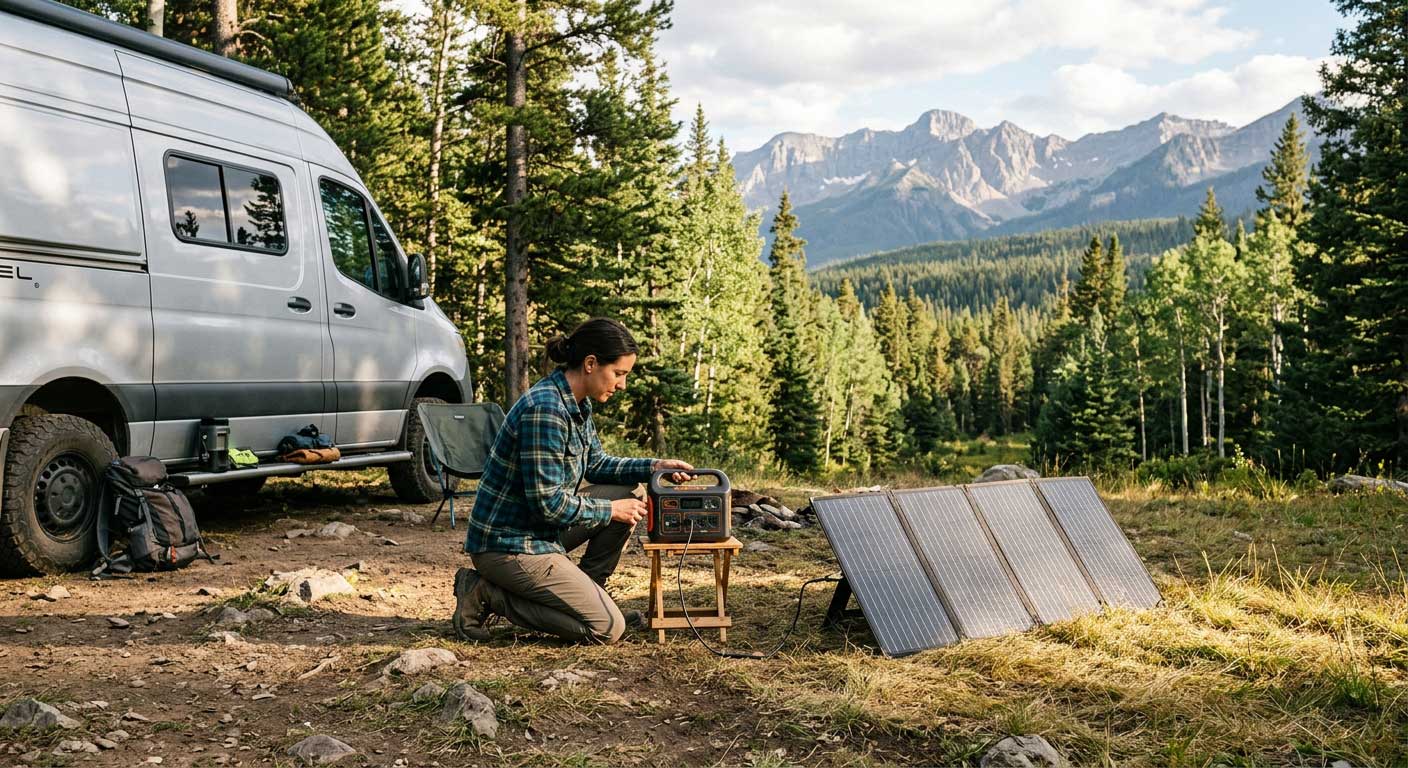

How to Set Up a 12V Solar Panel Folding System

A reliable setup starts with electrical compatibility, not simply placing the panel in direct sunlight. Follow the instructions supplied with the specific panel, controller, and battery.

Step 1 — Find a Sunny, Stable Location

Unfold the panel on level ground and check for shadows from trees, awnings, roof racks, and the vehicle itself. Leave room to adjust the angle and route cables away from walking paths.

Avoid locations where wind could overturn the panel or pull on its connectors.

Step 2 — Check Voltage and Current Limits

Compare the panel’s Voc and Isc with the controller’s permitted input limits. Follow the manufacturer’s guidance for cold-weather conditions, which can affect open-circuit voltage.

Confirm the battery chemistry and charging settings as well. If electrical specifications are missing, request the datasheet before connecting the equipment.

Step 3 — Connect the Equipment Correctly

Follow the controller manufacturer’s specified connection sequence. Some controllers require the battery to be connected before the solar input; the correct procedure depends on the model.

Verify connector compatibility and polarity. Never bypass protective equipment or connect an unregulated panel directly to a battery unless the manufacturer explicitly confirms that arrangement is suitable.

Step 4 — Monitor Actual Charging

Check the controller or power station display after setup. If the input power seems low, inspect the panel for shadows, adjust its orientation, and check the cables.

Also consider whether the battery is nearly full. Some systems reduce charging current as the battery approaches its target state of charge, so a low reading does not automatically indicate a faulty panel.

Step 5 — Clean and Store the Panel

Disconnect the system according to the manufacturer’s instructions. Clean the panel using an approved method, and let it dry as required before storage.

Fold it without pinching cables or forcing the joints. Protect the connectors from dirt and moisture, and keep heavy objects away from the photovoltaic surface.

A Practical Example — Planning Solar Power for a Weekend RV Trip

Consider a hypothetical RV traveler who wants to charge small devices over a two-day trip. The estimated daily consumption is 20Wh for phone charging, 30Wh for LED lights, 25Wh for camera batteries, and 60Wh for a small USB fan.

The total is 135Wh per day, or 270Wh over two days. These are illustrative load estimates, not measurements from a named customer or Bright Solar installation.

Under the earlier example, a 100W panel delivering an estimated 320Wh of usable energy over four peak sun hours could cover the planned daily load in favorable conditions. The traveler would still need to account for cloudy weather, shading, and additional consumption.

The more useful approach is to separate essential loads from optional ones. Start with a charged battery, monitor actual energy use, and reposition the panel when necessary. If the battery repeatedly ends the day with less energy than it started with, consider a larger panel, lower consumption, or another charging source.

For B2B buyers, this same calculation can help define the right product configuration. Bright Solar customers should confirm the actual electrical ratings, portability requirements, operating environment, and packaging details before selecting a model for their market.

FAQ About 12V Solar Panel Folding Systems

Can a 12V folding solar panel charge a 12V battery?

Yes, provided the panel and charging equipment are compatible with the battery. Many systems require a suitable charge controller to regulate voltage and current according to the battery manufacturer’s requirements.

How many watts do I need to charge a 12V battery?

The required wattage depends on battery capacity, daily energy consumption, available sunlight, and desired charging time. Estimate the daily energy deficit in watt-hours before selecting a panel.

Can I leave a folding solar panel connected all day?

This may be possible when the panel, controller, and battery are designed for continuous operation under the expected conditions. Follow the equipment manufacturer’s instructions and use the required charging protections.

Are folding solar panels suitable for RVs?

Yes. They can supplement an RV leisure battery while the vehicle is parked. Their contribution depends on panel wattage, sunlight, shading, battery capacity, and the energy consumed by onboard equipment.

Can a 12V folding solar panel run a refrigerator?

It may contribute to a refrigerator’s energy supply, but suitability depends on the refrigerator’s daily watt-hour consumption and the complete battery system. Calculate the load and provide adequate solar capacity and storage.

Are folding solar panels waterproof?

Not necessarily. Weather resistance varies by model and component. Check the manufacturer’s documented protection ratings and operating restrictions before exposing the panel, connectors, or controller to rain.

What should B2B buyers check before ordering folding solar panels?

Verify the model datasheet, rated power, electrical parameters, folded dimensions, weight, connectors, controller requirements, warranty, packaging, and intended operating environment. Confirm customization options and commercial terms directly with the manufacturer.

Conclusion — Choosing the Right 12V Solar Panel Folding Solution

A 12v solar panel folding system offers a practical way to collect portable solar energy for camping, RVs, and compatible off-grid battery systems. Its real value depends on matching panel output to daily energy needs, checking battery compatibility, and allowing for changes in sunlight.

Before purchasing, verify the electrical specifications and consider how the panel will be transported, deployed, and stored. For B2B sourcing, contact Bright Solar to discuss application requirements and confirm the specifications and configurations available for your project.
