how to hook up solar panels?

how to hook up solar panels correctly starts with choosing series or parallel wiring based on panel voltage, current, inverter limits, and system design. For home solar systems, the panels connect to an inverter before power reaches the home’s electrical system.

How Do You Hook Up Solar Panels?

The basic connection is:

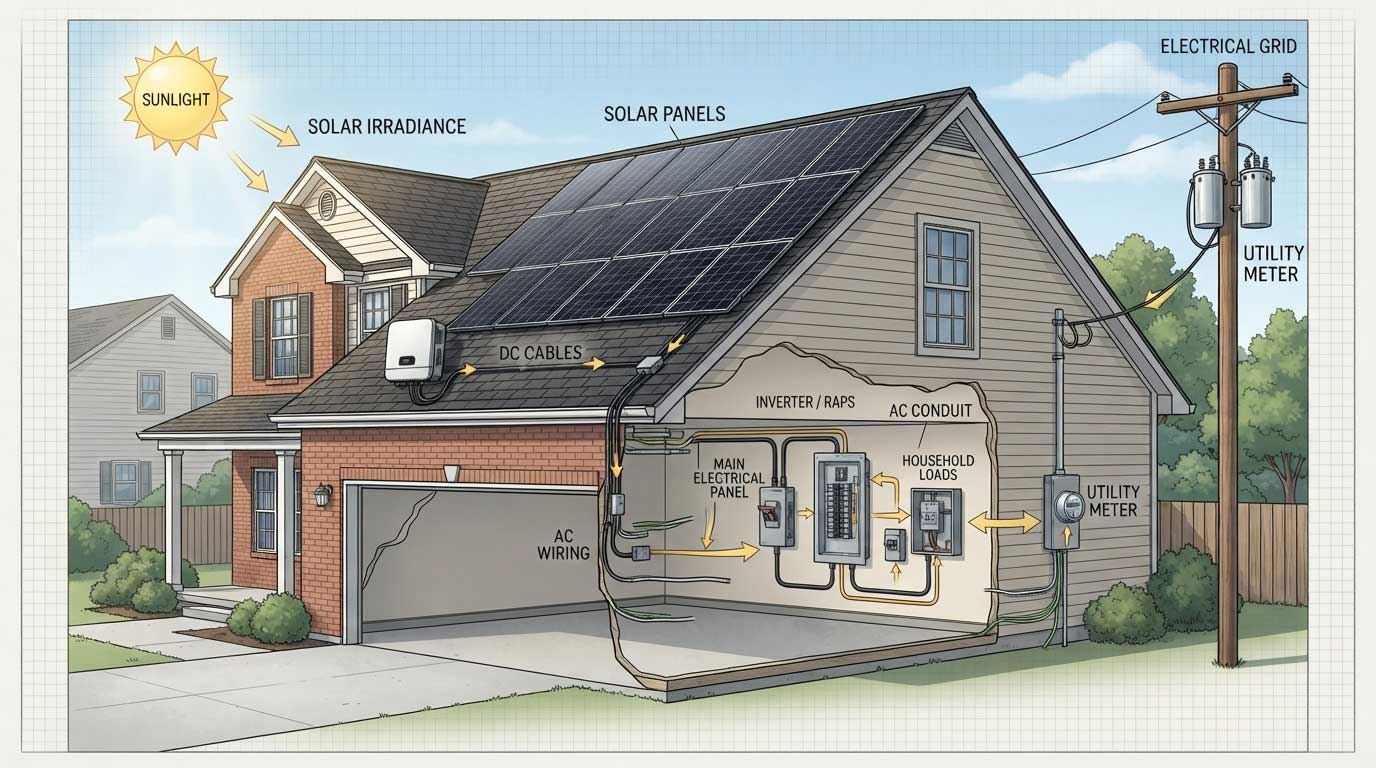

Solar panels → PV wiring → disconnect/combiner → inverter → AC panel → home loads

For solar for home projects, do not select the wiring method based only on panel wattage. Check the panel’s Voc, Vmp, Isc, and Imp, then compare those values with the inverter’s DC voltage and current limits.

The U.S. Department of Energy identifies PV modules, mounting structures, power electronics, wiring, and electrical interconnection as parts of a complete photovoltaic system. U.S. Department of Energy – Solar Photovoltaic System Design Basics

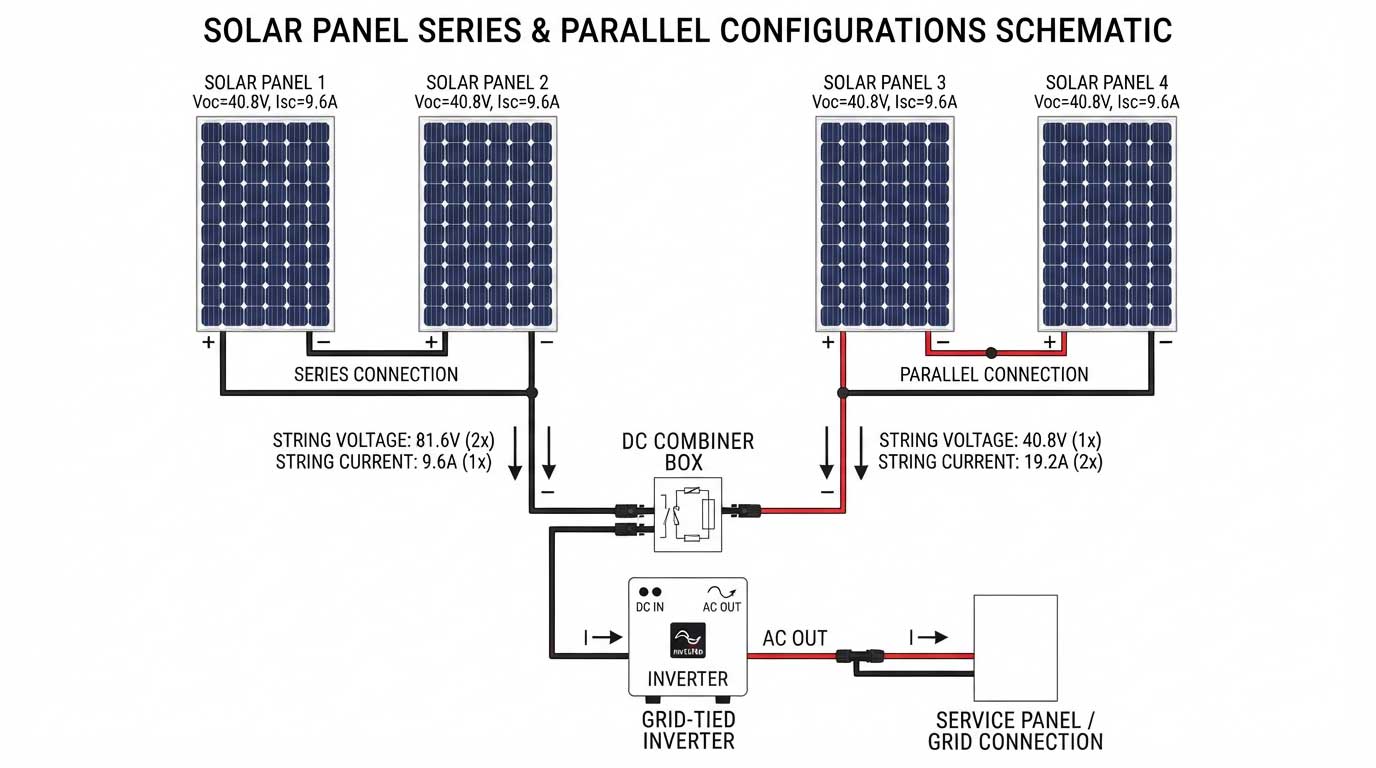

How to Connect Solar Panels in Series

In a series connection, connect the positive terminal of one panel to the negative terminal of the next panel.

For example, if two panels each have a 40 Vmp and 10 A operating rating:

Connection	Approx. Voltage	Approx. Current
2 panels in series	80 V	10 A
2 panels in parallel	40 V	20 A

Series wiring increases voltage while current remains approximately unchanged. This approach is common with string inverters because higher DC voltage can reduce current for a given power level.

But there is an important catch: cold-weather Voc can be considerably higher than the panel’s rated operating voltage.

That value must remain below the inverter’s maximum DC input voltage.

How to Connect Solar Panels in Parallel

Parallel wiring connects positive terminals together and negative terminals together.

This keeps system voltage approximately the same while increasing current.

Parallel wiring may be useful when a system requires more current at a particular operating voltage, but it can also require additional considerations for conductor sizing, overcurrent protection, combiner equipment, and cable routing.

For solar panels homes, the final choice should be based on the inverter’s MPPT range, panel specifications, roof configuration, shading, cable distance, and electrical code.

How Do Solar Panels Connect to an Inverter?

After the PV modules are configured into the required strings, the DC output feeds an appropriate inverter or module-level power electronics.

A string inverter receives DC electricity from PV strings and converts it into AC electricity. Microinverters perform this conversion at or near individual panels.

The choice can affect system performance, monitoring, shading behavior, and installation complexity. NREL research has documented the role of module-level power electronics in PV systems, including module-level monitoring and mismatch considerations. NREL – Photovoltaic System Installation and Design Guidance

For a grid-connected home solar systems project, the inverter’s AC output eventually connects to the home’s electrical service according to the approved design.

DOE notes that grid-connected solar installations require electrical interconnection with the utility and must follow applicable local requirements. U.S. Department of Energy – Solar Energy Guide for Homebuilders

What Should You Check Before Connecting Solar Panels?

Before making the final connection, verify:

• Panel Voc and Isc
• Panel Vmp and Imp
• Maximum inverter DC voltage
• Inverter MPPT operating range
• Maximum inverter input current
• Cold-weather string Voc
• PV cable ampacity
• Connector compatibility
• Grounding and bonding
• Required overcurrent protection
• Rapid-shutdown requirements
• Local electrical and utility requirements

This is where practical installation experience matters.

A string can look completely correct on the roof but still have reversed polarity, an incorrect cable route, or an unexpected voltage reading. Before energizing a system, installers should verify polarity and measure the completed string against the design calculation.

NREL’s photovoltaic installation specifications include checks covering electrical-panel capacity, inverter configuration, string voltage limits, permitting, and utility interconnection. NREL – PV Installation Specification

How Many Solar Panels Can You Connect Together?

There is no universal number.

The maximum number depends on panel Voc, inverter maximum DC voltage, MPPT operating range, current limits, ambient temperature, and system design.

For example, adding panels in series increases voltage. If the resulting cold-weather Voc exceeds the inverter’s maximum DC input, the string is improperly designed even when the total wattage appears reasonable.

This is why solar power installation should not be sized by wattage alone.

Is Series or Parallel Better for Home Solar?

Neither configuration is automatically better.

Series wiring is often useful when the inverter requires or benefits from higher DC voltage. Parallel wiring can be appropriate when additional current is needed without increasing system voltage.

Modern residential systems may also use microinverters or DC optimizers, so the correct configuration depends on the complete system architecture.

According to SEIA’s 2025 year-in-review data, the U.S. residential solar market installed 4,647 MWdc of solar capacity during 2025. SEIA – 2025 Year in Review

That scale also explains why installation quality matters: residential PV is no longer a niche electrical project. It is a major distributed-energy application.

Practical Solar Panel Wiring Checks

From an installation perspective, polarity is one of the first things worth checking before energizing a completed string.

A single incorrectly connected cable can produce an unexpected voltage reading even when every panel appears physically installed correctly.

For solar system installer teams, a useful commissioning routine is to:

1. Confirm the designed string configuration.
2. Verify connector compatibility.
3. Check polarity.
4. Measure string voltage.
5. Compare measured voltage with the expected value.
6. Verify inverter DC limits.
7. Complete required grounding and protection.
8. Follow the approved commissioning procedure.

Never connect an unfamiliar PV array directly to a home’s electrical panel. Residential solar involves hazardous DC and AC voltages and requires appropriate protection, grounding, disconnects, and interconnection procedures.

FAQ About How to Hook Up Solar Panels

Can I connect solar panels directly to my house?

No. A residential PV system normally requires an inverter or appropriate power electronics, protection equipment, wiring, and an approved electrical interconnection.

Should solar panels be wired in series or parallel?

It depends on the inverter, panel specifications, voltage requirements, shading, cable length, and overall system design.

Does series wiring increase solar panel power?

Series wiring increases voltage while current remains approximately the same. The total array power is determined by the combined electrical output of the connected panels.

Does parallel wiring increase voltage?

No. Parallel wiring keeps voltage approximately the same while increasing available current.

Can different solar panels be connected together?

They can sometimes be combined, but only when their electrical characteristics and the system design are compatible. Mixing unsuitable modules can create mismatch and performance problems.

Do I need a solar installer?

For a grid-connected residential system, professional installation is strongly recommended and may be required by local electrical codes, permitting authorities, or the utility.

What is the safest way to hook up solar panels?

Follow the panel and inverter manufacturer’s specifications, correctly size every circuit, verify polarity and string voltage, install required protection, and have the system inspected and commissioned according to local requirements.

Conclusion

how to hook up solar panels correctly requires more than connecting positive and negative cables. The panel specifications, series or parallel configuration, inverter limits, protection equipment, grounding, and utility requirements all need to work together.

For Bright Solar installations, the most reliable approach is to treat PV wiring as part of the complete system design from the beginning rather than as the final connection step.
