how do you hook up solar panels?

how do you hook up solar panels? Solar panels are connected by first wiring the modules in series or parallel, then routing the array through the appropriate protection and control equipment before connecting to an inverter, battery system, or compatible load. The correct arrangement depends on panel voltage, current, inverter limits, cable size, and system design.

How Solar Panel Wiring Actually Works

A panel does not simply plug into a wall outlet. The electricity produced by photovoltaic modules is DC electricity, while standard household circuits normally use AC electricity. The inverter handles that conversion. The U.S. Department of Energy describes the inverter as the component that converts PV-generated DC into AC for household and grid use.

Data source:https://www.energy.gov/cmei/systems/solar-integration-inverters-and-grid-services-basics

In practical installations, I pay attention to the electrical numbers before touching a connector. A panel may look identical to another module on the roof, but its voltage and current can be quite different.

A typical connection path looks like this:

Solar panels → PV wiring → protection/disconnect equipment → inverter → AC distribution → household loads

For an off-grid system with batteries, the architecture can instead include:

Solar panels → charge controller → battery → inverter → AC loads

The DOE identifies the PV modules, mounting structure, inverter, wiring, and associated balance-of-system equipment as parts of a complete photovoltaic system.

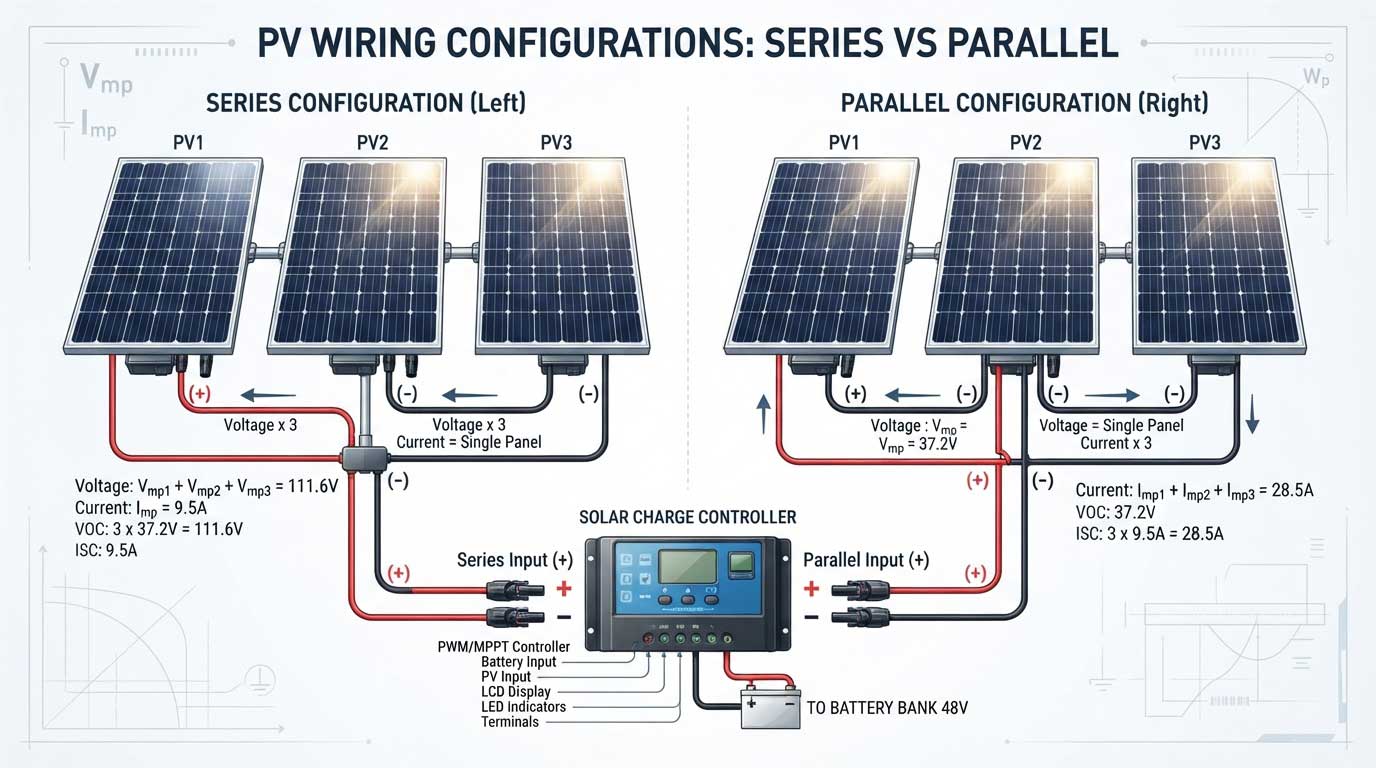

How to Wire Solar Panels in Series

Series wiring connects the positive terminal of one panel to the negative terminal of the next.

The important effect is straightforward: voltage increases while current remains approximately the same.

For example, if three modules each operate around 40 V at their maximum power point, a series string would operate around 120 V at that operating point, subject to actual module specifications and temperature.

Series wiring can be useful when an inverter or MPPT charge controller requires a higher PV input voltage. But there is a catch that is easy to overlook: cold-weather open-circuit voltage can rise significantly.

Never size a string only from the panel’s nominal operating voltage. The maximum string voltage must remain within the equipment’s permitted input range under the expected site temperature.

Solar Panel Wiring in Parallel

Parallel wiring connects positive terminals together and negative terminals together.

Here, voltage stays approximately the same while current increases.

Wiring method	Voltage	Current	Common advantage
Series	Increases	Similar	Higher PV voltage
Parallel	Similar	Increases	Higher current capacity
Series-parallel	Increases	Increases	Larger systems with controlled voltage/current

This is where cable selection becomes more than a detail. Higher current means greater potential voltage drop and greater conductor requirements.

For home solar systems, the final configuration should be matched to the inverter or charge controller’s maximum voltage, operating voltage range, maximum input current, and allowable short-circuit current.

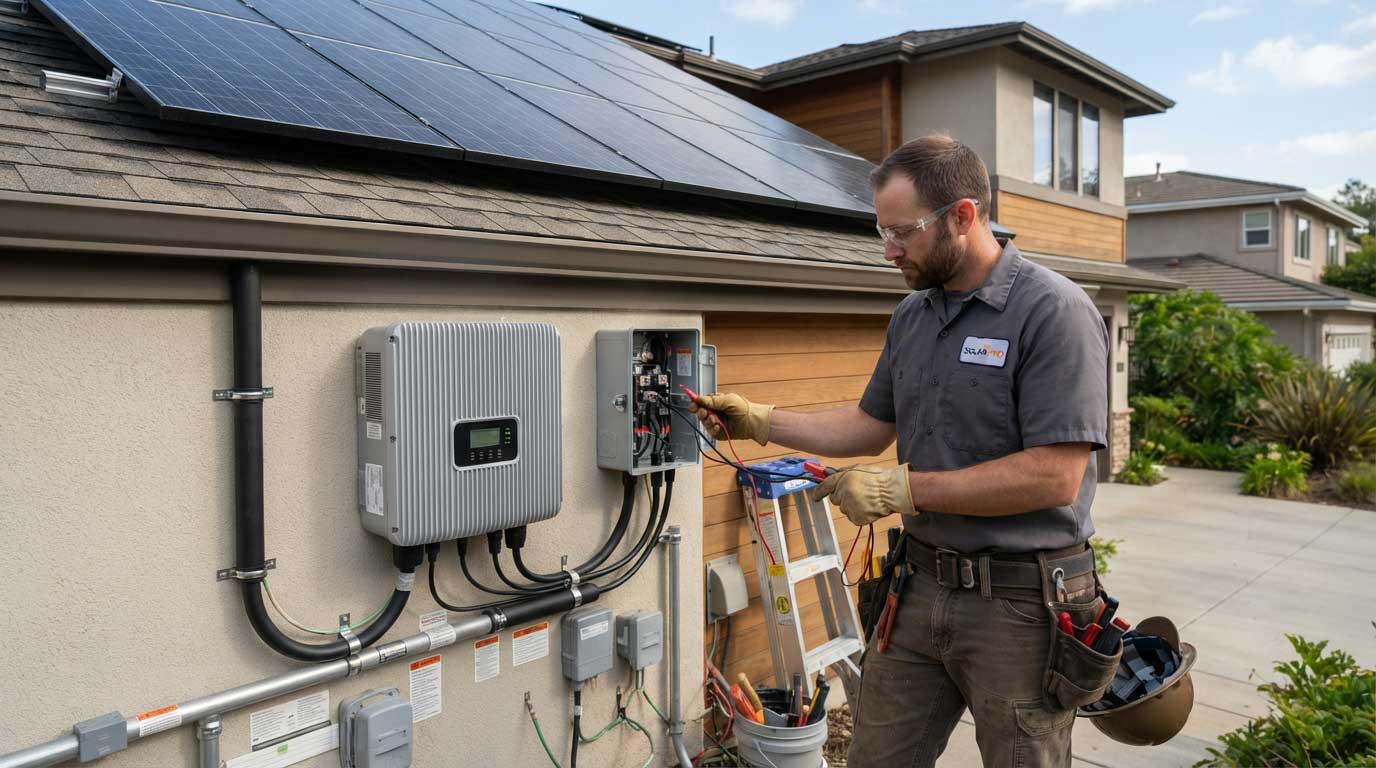

Connecting Solar Panels to an Inverter

For a grid-connected system, the solar array normally feeds an inverter rather than household appliances directly.

The inverter converts DC electricity from the array into AC electricity suitable for the building’s electrical system.

Modern systems may use:

• String inverters
• Microinverters
• Hybrid inverters
• Power optimizers combined with inverters

The choice changes how the panels are electrically grouped. DOE notes that string inverters connect a set of panels to one inverter, while microinverters operate at the individual module level.

A useful field check is to compare the actual panel string configuration against the inverter’s installation documentation—not just the product label.

Connecting Solar Panels to a Battery System

A battery-based solar system normally needs more than panels and a battery.

The charge controller regulates energy flowing from the PV array into the battery. MPPT controllers are commonly used because they can operate the PV array at a suitable voltage and extract available power efficiently.

The general architecture is:

Solar panels → charge controller → battery → inverter → AC loads

DOE documentation identifies the charge controller as the component that regulates charging and protects batteries from inappropriate charging conditions.

In newer solar-plus-storage systems, DC-coupled and AC-coupled configurations are both possible. DOE explains that DC-coupled systems connect PV and batteries through a bidirectional inverter, while AC-coupled systems use separate PV and battery conversion equipment.

Safety Checks Before Energizing the System

This is the part I would never rush.

PV modules can produce voltage whenever light reaches them. Disconnecting a connector does not automatically make an illuminated panel electrically harmless.

Before commissioning a system, verify:

• PV polarity
• Open-circuit voltage
• String voltage
• Short-circuit current where appropriate
• Connector compatibility
• Cable rating
• Grounding and bonding
• Overcurrent protection
• Disconnect requirements
• Inverter input limits

OSHA regulations specifically address disconnecting means for photovoltaic systems and require appropriate separation and disconnect provisions in covered installations.

For a residential grid-connected installation, the final electrical connection should be handled according to applicable electrical codes, utility requirements, permits, and qualified installer procedures.

Common Mistakes When Hooking Up Solar Panels

A few mistakes show up repeatedly in real installations.

Mixing panels with substantially different electrical characteristics.
A mismatched string can behave poorly, particularly when modules have different current ratings or operating conditions.

Ignoring temperature.
The number printed on a module datasheet is not the whole story. Voltage changes with temperature, so cold-weather calculations matter when determining maximum string voltage.

Using unsuitable connectors.
PV connectors should be properly matched and installed according to manufacturer specifications. Improvised connections are not a substitute for compatible PV-rated components.

Forgetting shading.
A string can lose useful production when one module or section is heavily shaded. DOE notes that microinverters can reduce the impact of one shaded module compared with a conventional string arrangement.

FAQ About how do you hook up solar panels?

Can I connect solar panels directly to my house?

No. A typical residential system needs appropriate conversion, protection, disconnects, and interconnection equipment. The inverter converts PV DC electricity into AC electricity used by household circuits.

Is it better to wire solar panels in series or parallel?

Neither is universally better. Series wiring is useful when higher PV voltage is needed; parallel wiring increases current. The correct choice depends on the inverter or charge controller and the site’s electrical requirements.

Can I connect solar panels directly to a battery?

Generally, no. A properly sized charge controller is normally required between a PV array and battery bank to regulate charging and prevent damaging charging conditions.

How many solar panels can I connect in one string?

There is no universal number. Calculate the string’s maximum voltage under the lowest expected temperature and compare it with the inverter or controller’s maximum PV input voltage and current specifications.

Do solar panels produce AC or DC electricity?

Solar photovoltaic panels produce DC electricity. An inverter converts that DC electricity into AC for household use or grid connection.

Can I install the wiring myself?

Small portable systems are different from permanent residential installations. Grid-connected PV wiring involves electrical hazards, code requirements, permits, and utility interconnection rules. A qualified solar or electrical professional should handle permanent building wiring.

How Do You Hook Up Solar Panels? A Practical Final Check

The phrase how do you hook up solar panels sounds simple until the numbers are on the table. The panel count, string voltage, current, inverter limits, temperature, cable selection, protection, and grounding all have to agree.

For a small portable setup, the wiring may be straightforward. A permanent home solar installation is different. The electrical design needs to be checked as a complete system, not panel by panel.

At Bright Solar, the practical lesson is simple: start with the module datasheet and the equipment limits, then design the string—not the other way around. A neat-looking cable layout can still be electrically wrong.
