Customized flexible solar panels for yacht customers

Bright solar News 3810

In 2019, a US marine solar distributor came to us on behalf of a yacht manufacturer: standard panels could not follow the curved, hatch-dotted deck of their sailing catamarans. We produced 200 W L-series flexible panels shaped to that deck — and the photos below show them installed across a twin-hull yacht.

Customer Needs: The customer required flexible solar panels suitable for their local yacht manufacturer clients. These panels needed to be lightweight, stable, and suitable for outdoor installation, as previous solar panels could not perfectly fit the deck.

Project Timeline: 2019
Country: USA
Customer Type: Marine Solar Panel Distributor
Product: Sunpower Flexible Solar Panel – L Series
Power: 200W
Our Solution: Based on the customer’s needs and application scenario, we provided flexible solar panels suitable for marine environments, especially yacht decks.

Highlights: Customized to the client’s end-user yacht manufacturer’s deck design; ultra-lightweight design; corrosion-resistant design; easy installation.

Fitting a Deck With Curves and Cut-outs

Yacht decks are the hardest surface in the marine world for solar: curves in two directions, hatches, winches, walkways. Rigid panels need brackets that puncture the deck. Our approach is dimensional design: the customer’s end user supplied the deck template, we adjusted each panel outline to run between hatches and walkways, and every panel stays within the safe bending radius of the laminate.

The build also had to live a salt-water life: edge sealing, a corrosion-resistant back sheet and an ultra-light build that does not change the yacht’s trim. Every panel passed 100% EL testing before shipment — the same inspection we describe in our EL testing guide.

ProjectDeck-integrated solar for a sailing catamaran, USA
Year2019
Customer typeMarine solar panel distributor
ProductL-series flexible panel (SunPower cell)
Power200 W per panel
VesselSailing catamaran (twin hull)
FeaturesCustom outline to the deck; ultra-light; corrosion-resistant

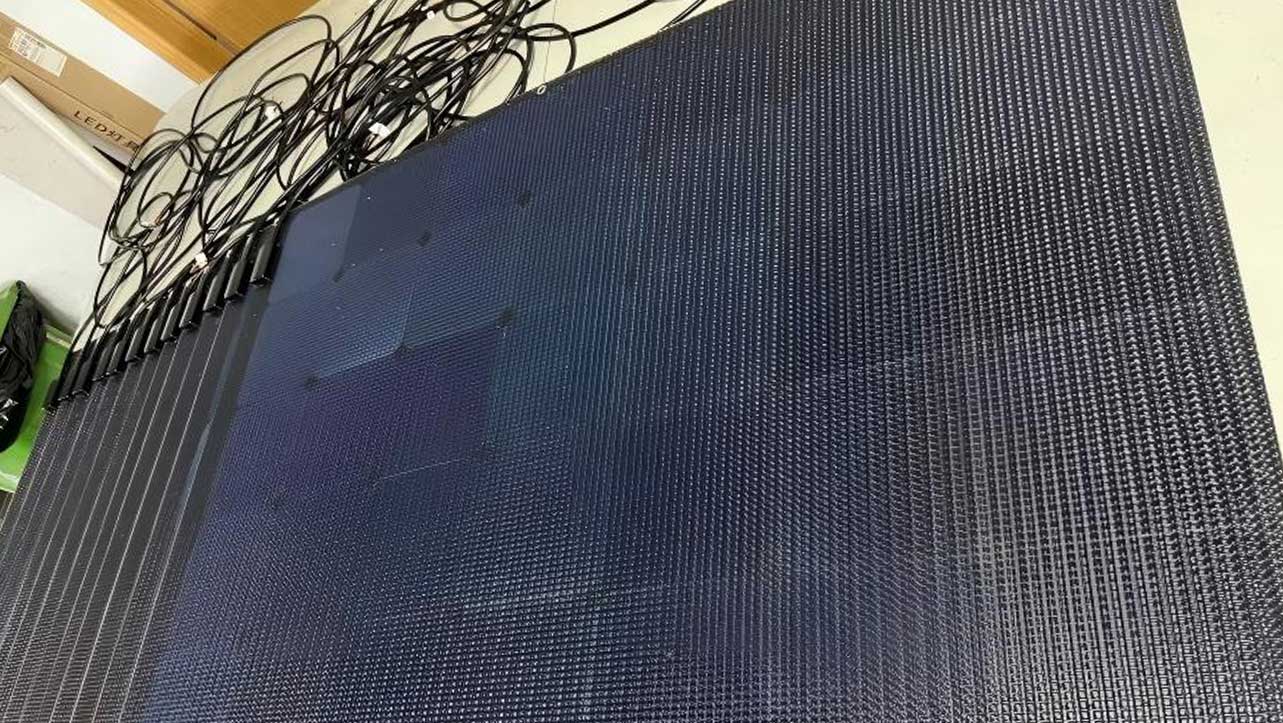

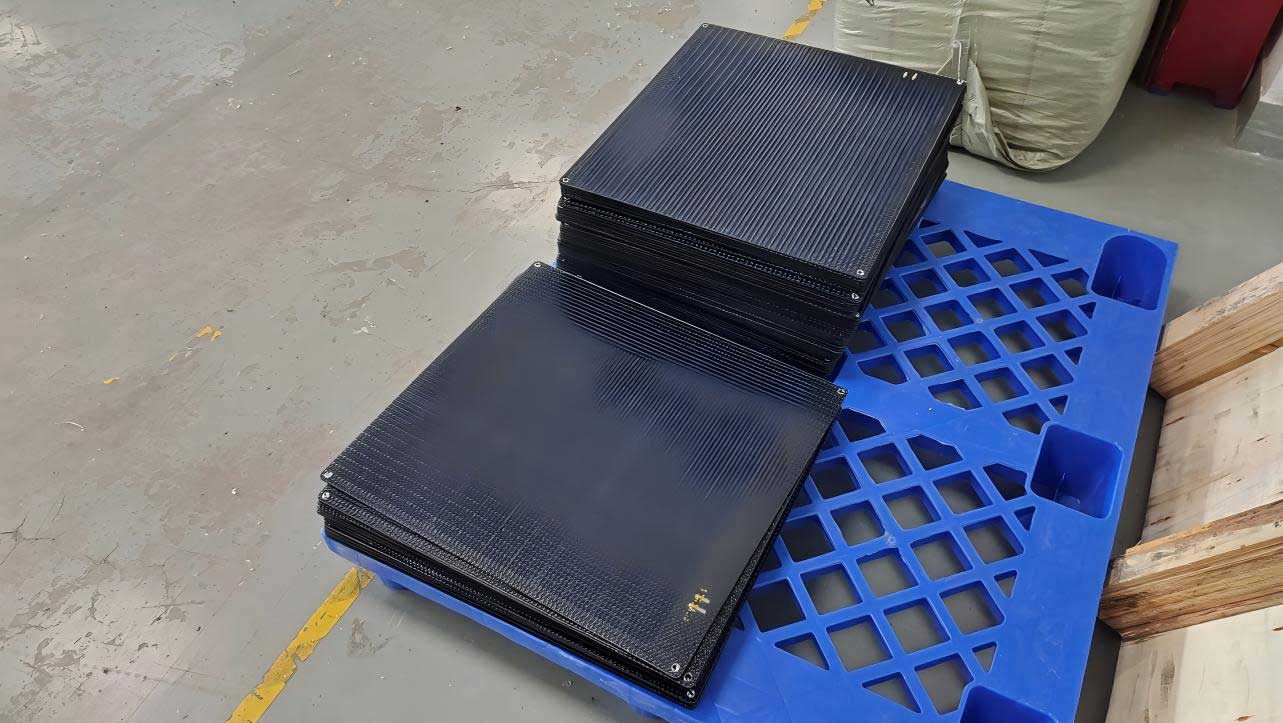

200W Deck Panels — Product Photos

2gfdshgfdhgf
1hgfdjhgfj

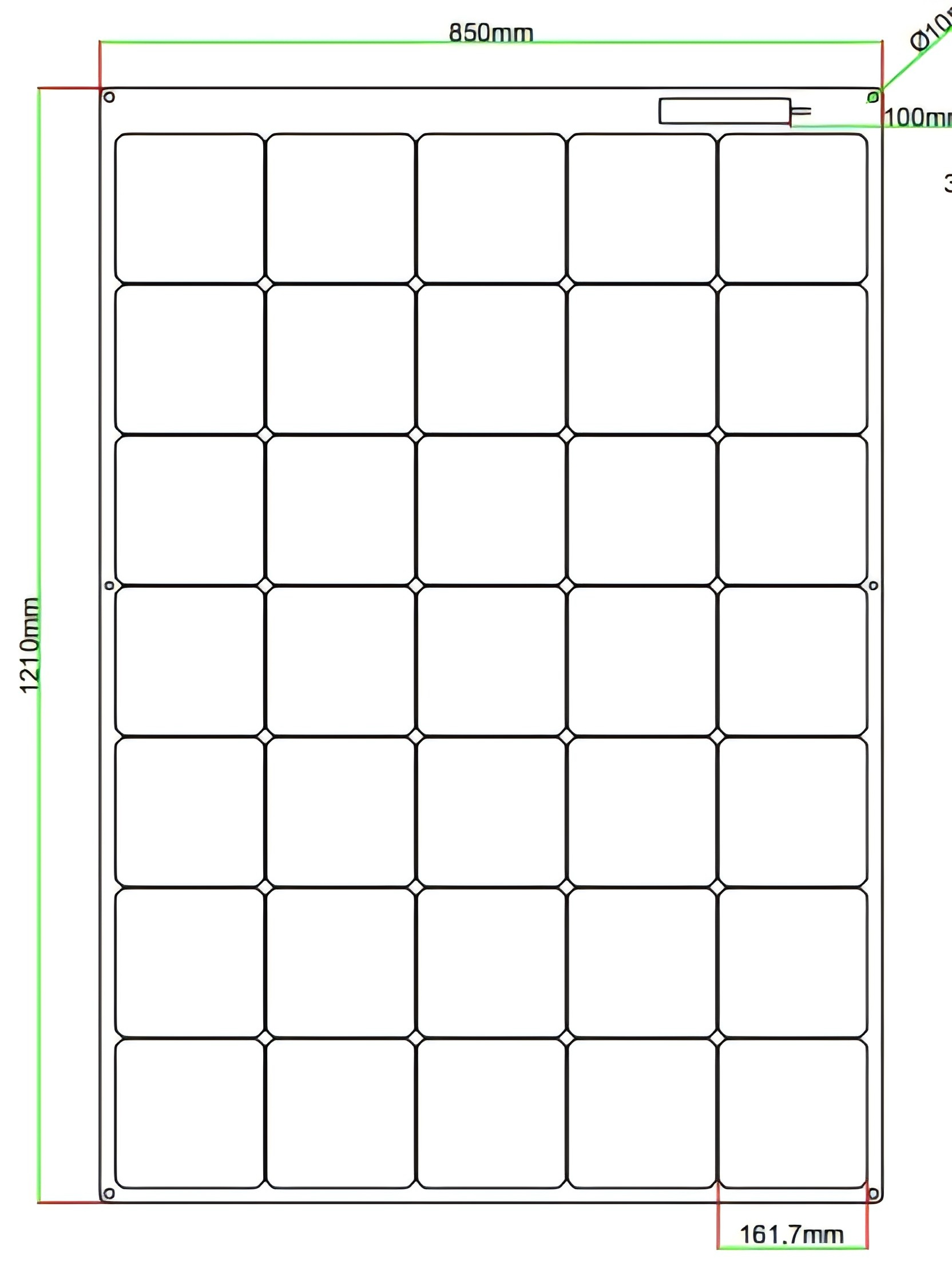

Product Design Drawings:

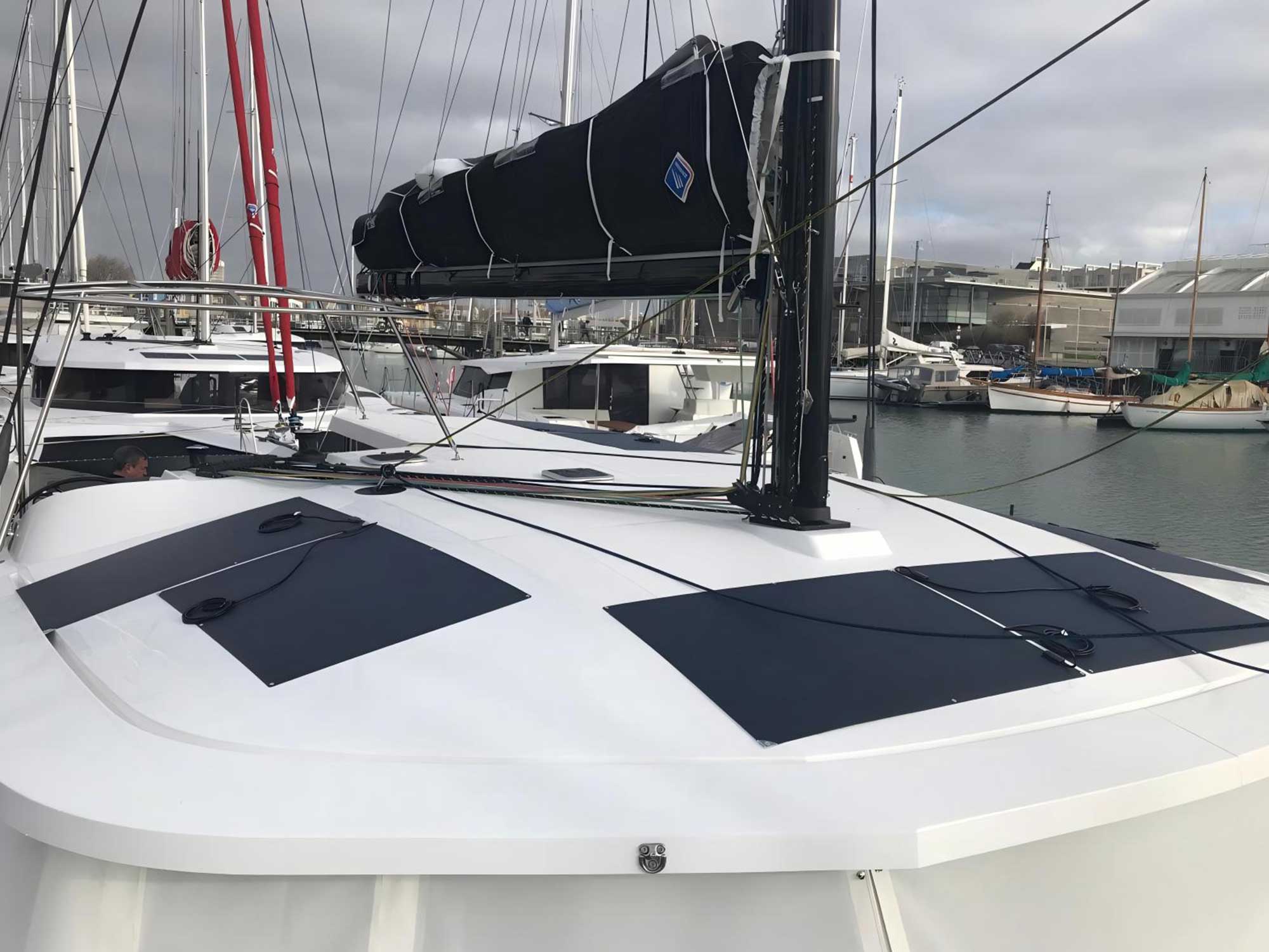

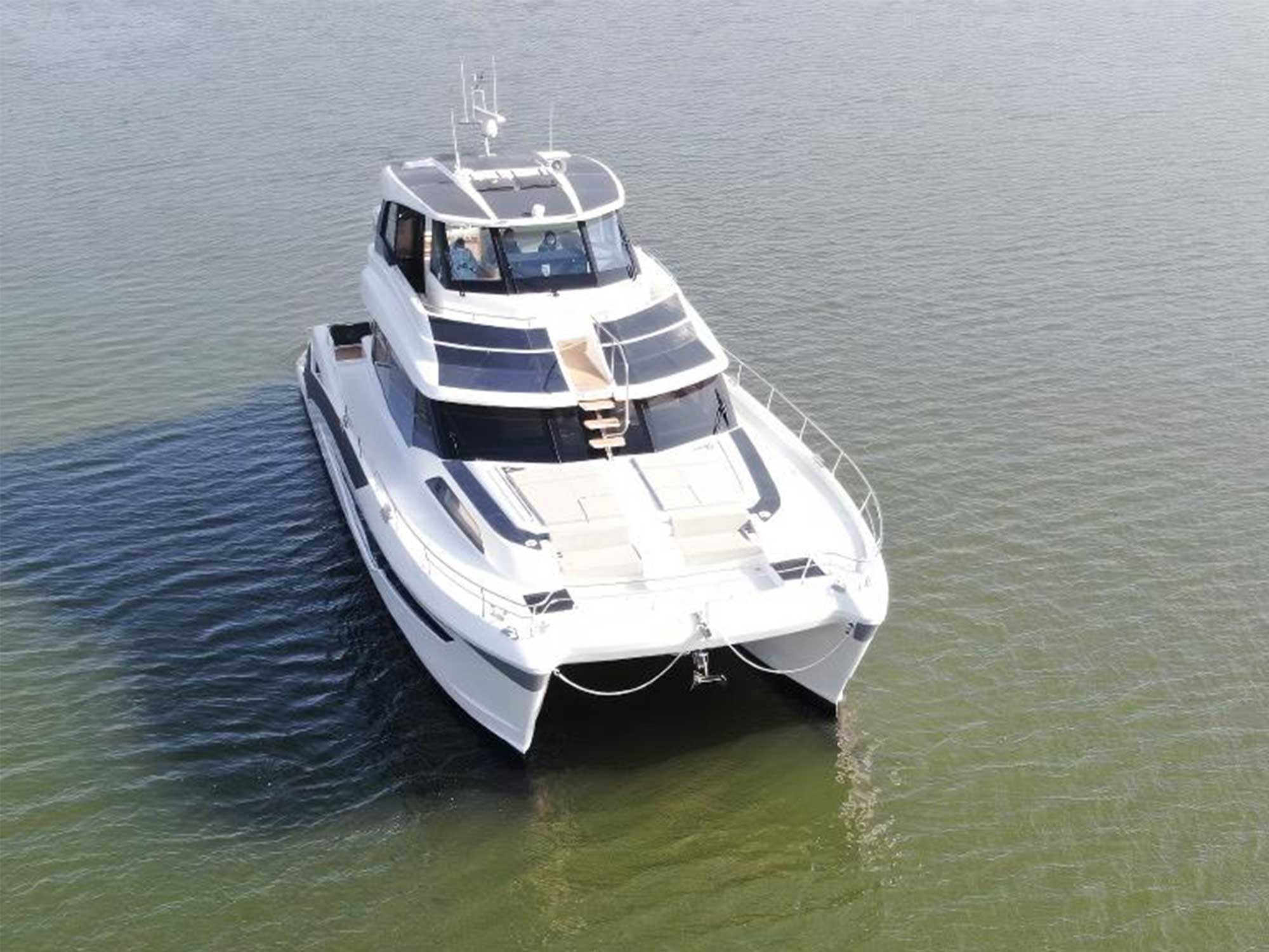

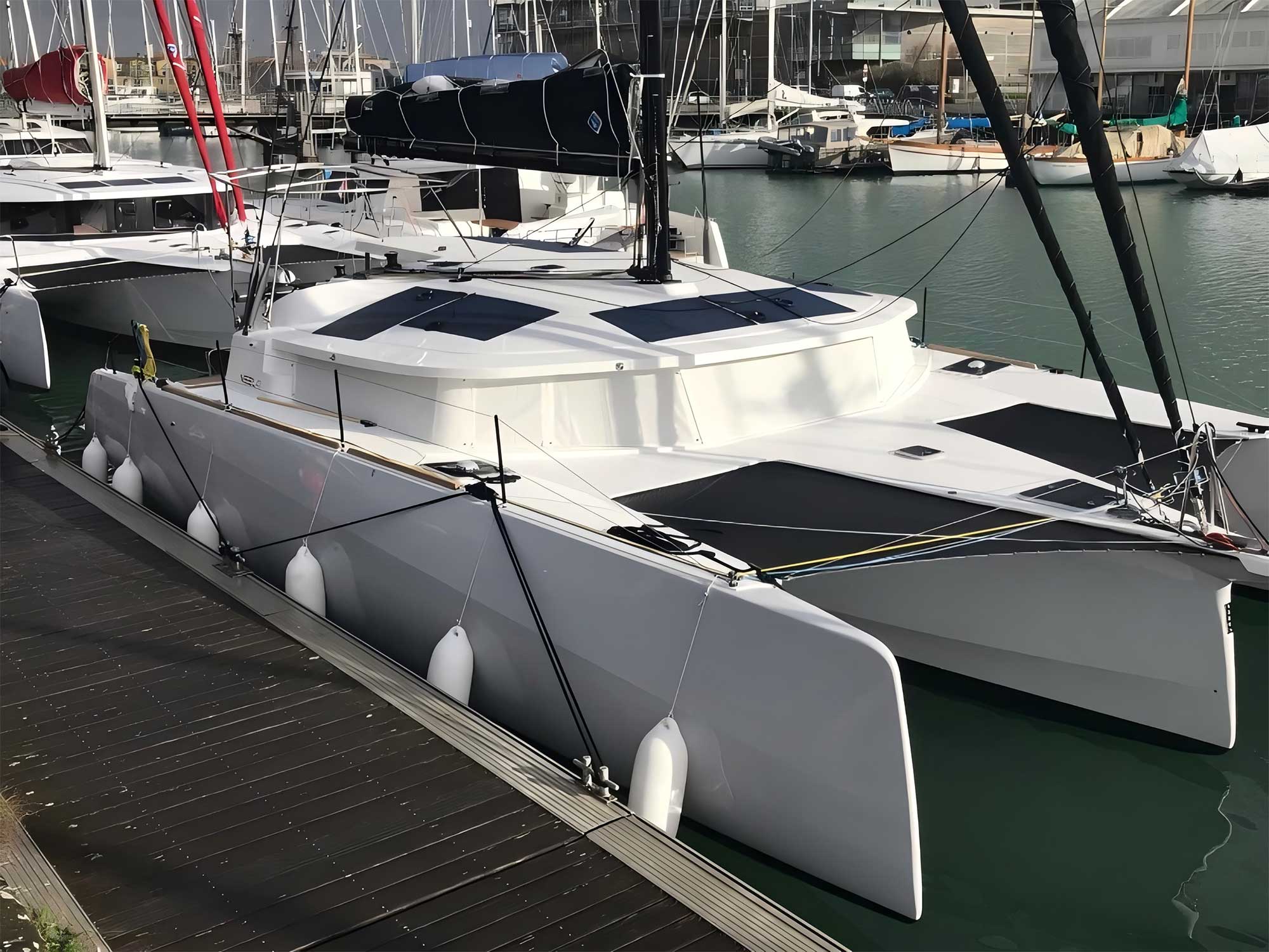

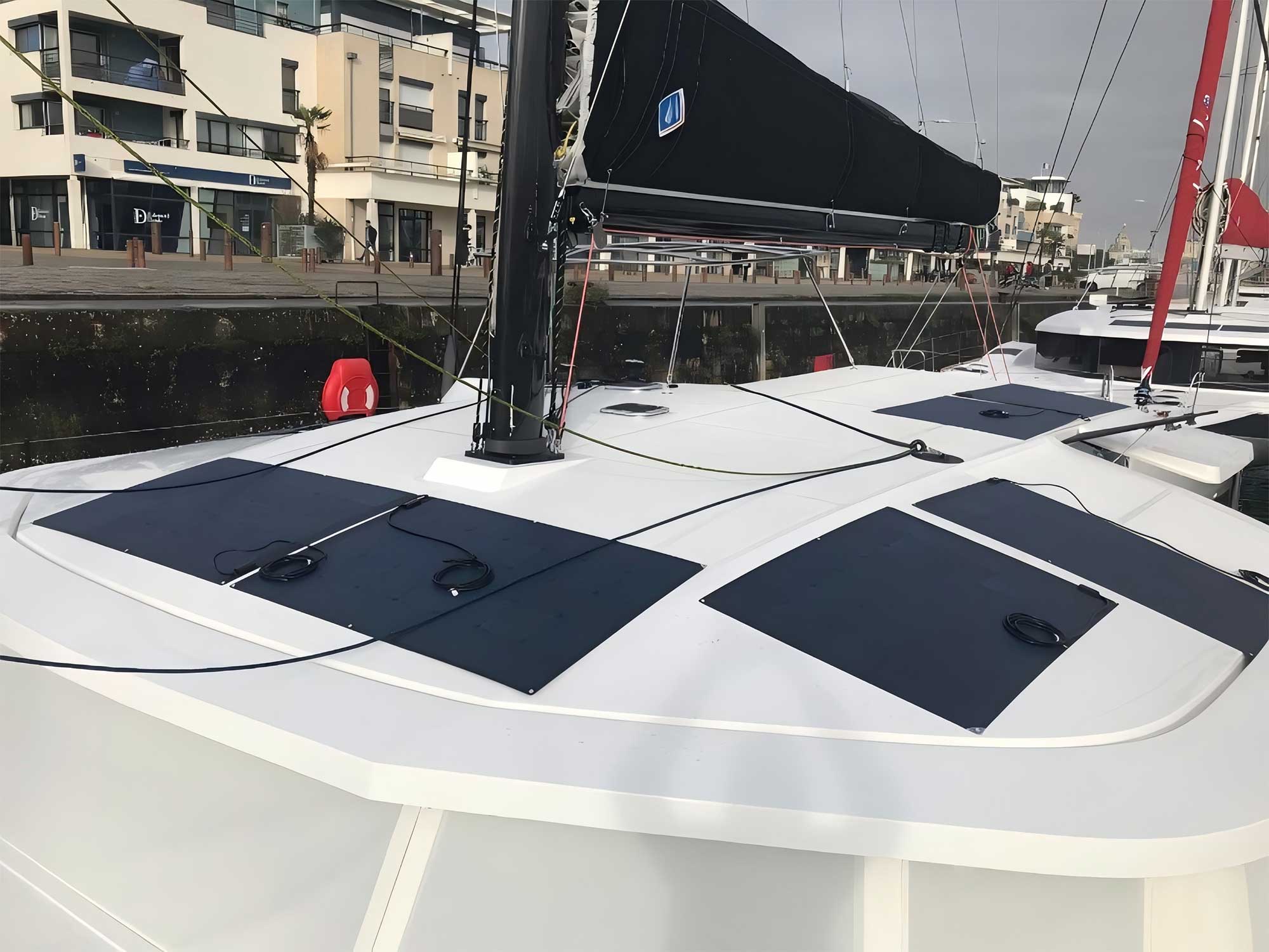

Installed on the Catamaran: Project Photos

3hgfdjhsdhdfsa
5gfdshgfdsgd
4gfdsahgfds
6gfdsagfdsg

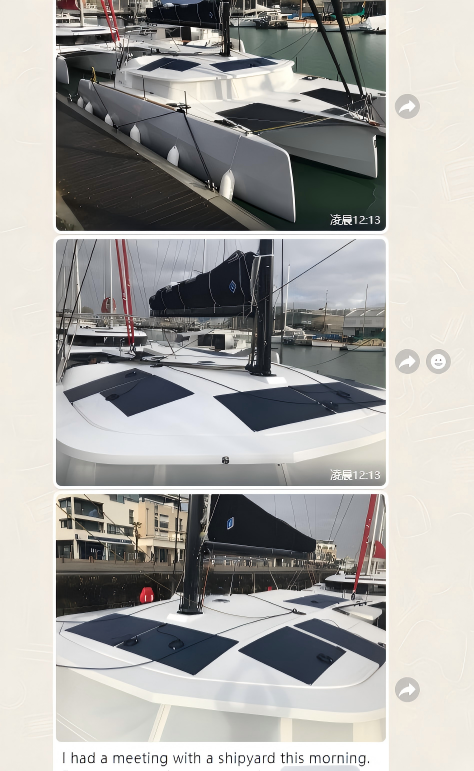

Customer Feedback:

WPS图片

The result is a catamaran deck that keeps its walkways and hatch access, with solar capacity that would otherwise be impossible. Planning a deck-integrated system? Compare the H-series marine panels for walkable decks, see custom flexible solar panels for size options, or read the complete marine guide for system sizing.

Can flexible solar panels fit a curved yacht deck?

Yes. Panels are cut to a template of the deck, each panel bends only within the laminate’s safe radius, and the layout runs panels between hatches and walkways instead of covering them.

Why flexible instead of rigid panels on a catamaran?

Weight, and no deck penetrations: no brackets, no screw holes, no sealant to maintain. Flexible laminates also follow curved coachroof sections where rigid glass cannot lie flat.

How are the panels protected against salt water?

Edge sealing plus a corrosion-resistant back sheet, with every panel passing 100% EL inspection before shipment to catch micro-cracks that salt-water vibration would otherwise widen.
