How Do Solar PV Panels Generate Electricity?

How do solar pv panels generate electricity? Solar PV panels generate electricity by converting sunlight into direct current (DC) electricity through solar cells. An inverter then converts DC power into alternating current (AC) electricity used by homes, businesses, and electrical devices.

The process starts with sunlight, but the technology behind it involves several precise steps. At Bright Solar, we have worked with flexible photovoltaic modules for residential, RV, marine, and off-grid applications, and we often explain to customers that solar power generation is not simply “capturing sunlight.” It is a controlled electrical reaction happening inside thousands of tiny solar cells.

Understanding How Solar PV Panels Generate Electricity

What Is Solar Power?

Solar power is electricity generated from sunlight using photovoltaic technology.

The word “photovoltaic” comes from:

• Photo = light
• Voltaic = electricity

Solar panels use semiconductor materials, usually silicon, to transform sunlight into electrical energy.

According to U.S. Department of Energy Solar Photovoltaic Technology Basics, photovoltaic devices convert sunlight directly into electricity through semiconductor materials without requiring moving mechanical parts.

How Do PV Panels Work?

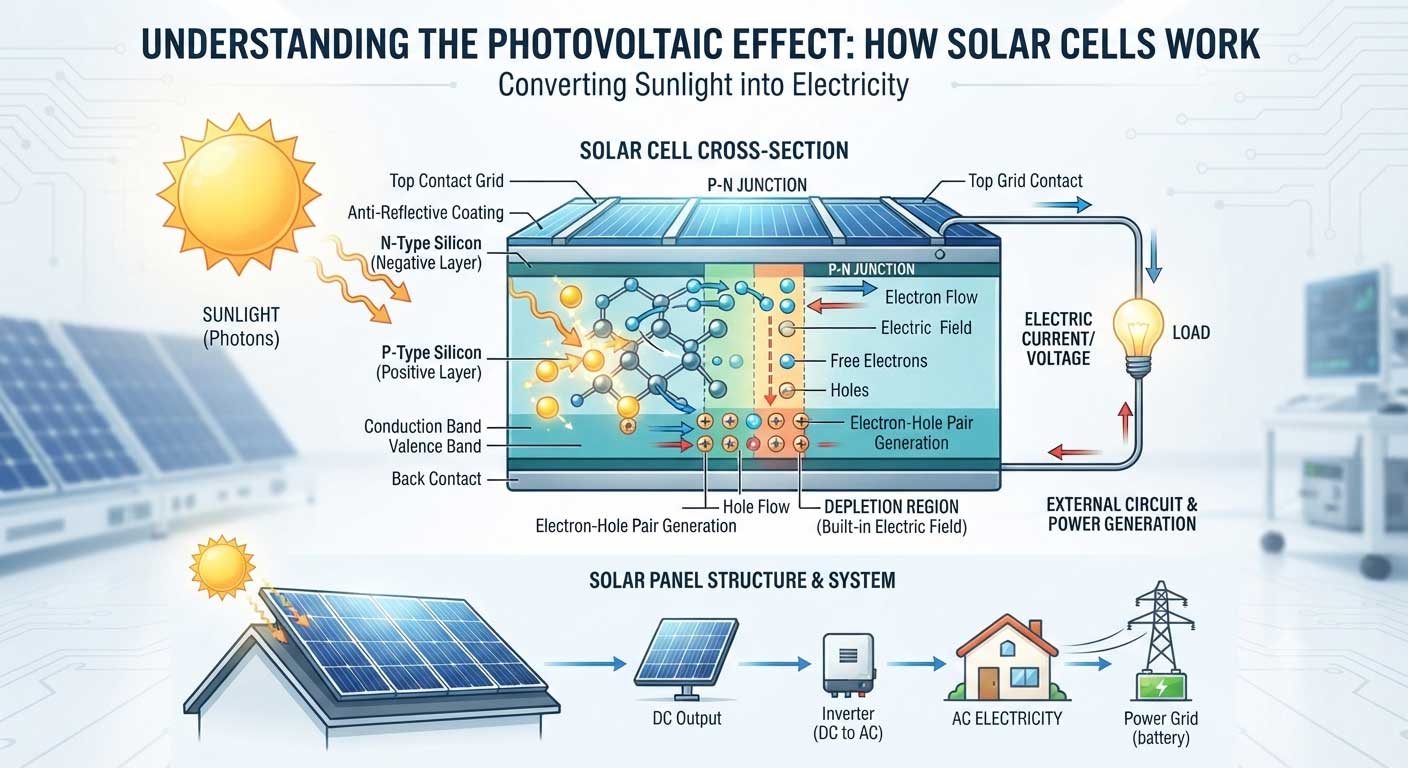

The Photovoltaic Effect Explained

The core principle behind solar electricity is the photovoltaic effect.

When sunlight reaches a solar cell:

1. Photons from sunlight hit the semiconductor material.
2. Energy from photons excites electrons.
3. Electrons begin moving through the material.
4. Electrical current is created.

A single solar cell produces only a small amount of electricity, so many cells are connected together to create a solar module.

The Role of Solar Cells in Electricity Generation

How Solar Cells Convert Sunlight Into Power

Solar cells are the smallest electricity-producing units inside a solar panel.

A typical solar cell contains:

• Silicon semiconductor layers
• Positive and negative electrical fields
• Metal contacts
• Protective layers

When sunlight enters the cell, electrons are pushed into motion. This movement creates DC electricity that can be collected and transferred through wiring.

Modern solar modules may contain dozens of individual solar cells working together.

Solar Energy Conversion Process Step by Step

Step 1: Sunlight Hits the Solar Panel

Solar radiation reaches the panel surface.

The amount of electricity produced depends on:

• Sunlight intensity
• Panel orientation
• Temperature
• Solar cell efficiency

More sunlight usually means more available energy, although extremely high temperatures can reduce electrical efficiency.

Step 2: Solar Cells Create Direct Current Electricity

Inside each solar cell, electrons move through the semiconductor structure.

This creates:

• Voltage
• Current
• Electrical power

The electricity produced at this stage is DC power.

Step 3: Solar Wiring Collects Electricity

Individual solar cells connect together inside the module.

Multiple modules can then connect into a larger solar array.

The system design determines:

• Total voltage
• Total current
• Energy output

For example:

A residential solar system may combine multiple panels to meet household electricity demand.

How Do We Use Solar Energy After Generation?

From Solar Panel to Home Electricity

Solar panels alone cannot directly power most household appliances because homes use AC electricity.

The typical energy flow is:

Sunlight → Solar Panels → DC Electricity → Inverter → AC Electricity → Home Appliances

The inverter is one of the most important components because it converts electricity into a usable form.

What Is PV in Solar Energy Systems?

Understanding Photovoltaic Technology

PV refers to photovoltaic technology, the method of converting light directly into electricity.

A complete PV system usually includes:

Component	Function
Solar panels	Capture sunlight and produce DC power
Inverter	Converts DC electricity into AC power
Mounting system	Secures panels
Monitoring system	Tracks energy production
Battery storage	Stores excess energy

Why Solar PV Panels Do Not Need Fuel

A Clean Electricity Generation Method

Unlike traditional power plants, solar panels do not burn fuel during electricity generation.

They operate using:

• Sunlight
• Semiconductor materials
• Electrical components

The absence of moving parts also reduces mechanical wear.

The International Energy Agency (IEA) Solar Energy Report identifies solar PV as one of the major renewable electricity technologies contributing to global energy transition.

Factors Affecting Solar Electricity Production

Why Two Solar Panels May Produce Different Energy

Even identical panels can produce different output depending on installation conditions.

Important factors include:

Sunlight Availability

More direct sunlight increases energy generation.

Panel Angle and Direction

Correct orientation helps maximize sunlight exposure.

Temperature

Solar cells generally perform better at moderate temperatures.

Shading

Partial shade can significantly reduce output, especially in traditional panel strings.

Real Application Experience From Solar Installations

In practical projects, we often see customers focus only on panel wattage. However, system performance depends on the entire design.

A 400W solar panel installed in poor conditions may generate less energy than a lower-wattage panel with better placement.

For flexible solar panels, this becomes especially important because these products are often installed on RV roofs, boats, curved surfaces, and lightweight structures where traditional mounting options are limited.

Bright Solar evaluates not only panel output but also installation environment, cable design, and application requirements.

How Efficiently Do Solar PV Panels Generate Electricity?

Understanding Solar Panel Efficiency

Solar panel efficiency describes how effectively a module converts sunlight into electricity.

Efficiency depends on:

• Solar cell technology
• Material quality
• Manufacturing process
• Environmental conditions

Higher efficiency panels can produce more electricity from limited installation space.

However, efficiency is not the only factor. Reliability, durability, and suitability for the application are equally important.

Components That Help Solar PV Panels Generate Electricity

Solar Inverter: Converting Solar Power Into Usable Electricity

Solar panels generate DC electricity, but most homes and businesses use AC electricity. The inverter solves this difference by converting the electricity produced by photovoltaic modules.

A solar inverter also manages:

• Voltage regulation
• System monitoring
• Grid connection
• Safety protection

Without an inverter, the electricity generated by solar panels cannot be efficiently used by standard household equipment.

Solar Batteries and Energy Storage

How Solar Energy Is Stored for Later Use

Solar panels generate the most electricity when sunlight is available during the daytime. However, many households use more electricity in the evening.

Battery storage allows excess solar energy to be saved.

The process becomes:

Sunlight → Solar Panels → DC Electricity → Inverter → Battery Storage → Home Electricity

Energy storage is especially useful for:

• Off-grid homes
• Remote locations
• Emergency backup systems
• Areas with unstable power supply

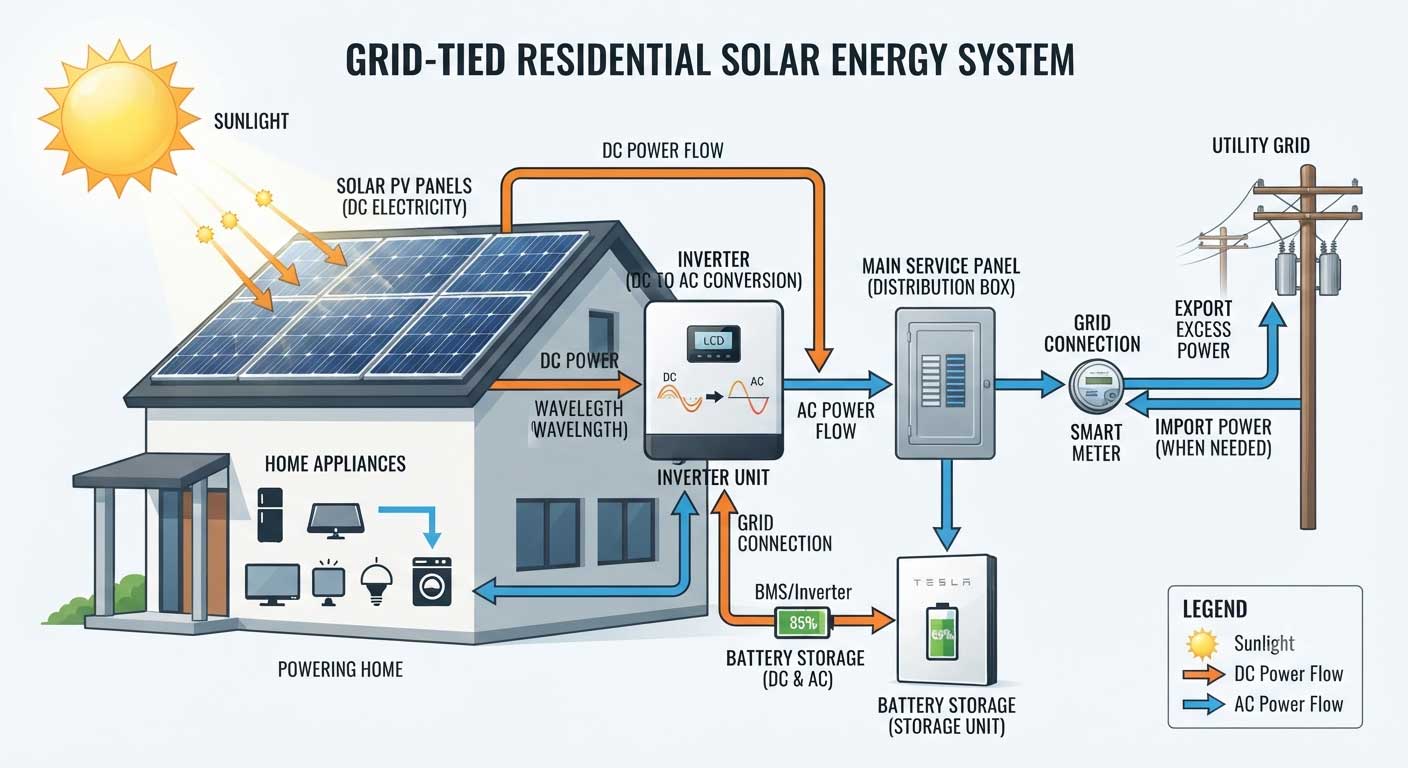

Grid-Tied Solar Systems Explained

How Solar Electricity Works With the Power Grid

Most residential solar systems connect to the local electricity grid.

During sunny periods:

• Solar panels produce electricity
• Home appliances use solar power first
• Extra electricity may be sent back to the grid

During periods of low sunlight:

• The home can draw electricity from the grid
• Battery storage can provide backup power if installed

This approach allows homeowners to use solar energy without completely disconnecting from traditional electricity sources.

Types of Solar PV Technologies

Monocrystalline Solar Panels

Monocrystalline panels use high-purity silicon cells.

Advantages:

• High efficiency
• Long lifespan
• Good performance in limited spaces

They are commonly used in residential and commercial solar installations.

Flexible Solar Panels

Flexible solar panels use lightweight materials that allow installation on curved or irregular surfaces.

Common applications include:

• RV solar systems
• Marine solar panels
• Portable solar solutions
• Lightweight structures

At Bright Solar, flexible photovoltaic technology is designed for applications where traditional rigid panels may not be suitable.

Thin-Film Solar Technology

Thin-film solar cells use very thin semiconductor layers.

Advantages:

• Lightweight design
• Flexible possibilities
• Better performance in some low-light conditions

However, efficiency varies depending on the material and application.

How Solar PV Panels Generate Electricity in Different Conditions

Do Solar Panels Work on Cloudy Days?

Yes, solar panels can still generate electricity under cloudy conditions because sunlight still reaches the Earth’s surface.

However, production decreases because:

• Less direct sunlight reaches cells
• Solar radiation intensity is lower
• Weather conditions affect output

Cloudy-day performance depends on panel technology and system design.

Do Solar Panels Work at Night?

No, solar panels do not generate electricity without sunlight.

At night:

• Solar cells stop producing power
• Batteries can provide stored energy
• Grid electricity may supply demand

This is why energy storage and grid connection are important parts of complete solar systems.

How We Use Solar Energy in Daily Life

Common Solar Power Applications

Solar electricity is now used in many areas:

Application	How Solar Energy Is Used
Homes	Power appliances, lighting, heating systems
Businesses	Reduce electricity costs
RVs	Provide mobile power
Boats	Support onboard electrical systems
Remote areas	Supply off-grid electricity
Industrial projects	Support large-scale energy needs

Solar PV Electricity Generation: Key Performance Factors

Installation Quality Matters

A solar panel’s rated power does not represent the energy it will always produce.

Actual performance depends on:

• Installation angle
• Geographic location
• Weather conditions
• Shading
• Maintenance

A properly designed system balances these factors instead of focusing only on the panel specification sheet.

Common Mistakes About Solar Electricity Generation

Mistake 1: Thinking Solar Panels Store Electricity

Solar panels only generate electricity.

Energy storage requires:

• Batteries
• Hybrid systems
• Grid connection

Mistake 2: Assuming More Panels Always Solve Problems

Adding more panels cannot fix:

• Poor orientation
• Severe shading
• Incorrect wiring
• System design problems

The complete system needs to be optimized.

Mistake 3: Ignoring Maintenance

Solar panels require relatively low maintenance, but regular checks help maintain performance.

Recommended checks include:

• Cleaning surface dirt
• Inspecting connectors
• Checking monitoring data
• Reviewing energy output

FAQ About How Do Solar PV Panels Generate Electricity?

How do PV panels work?

PV panels work by using solar cells to convert sunlight into DC electricity through the photovoltaic effect. An inverter then changes the electricity into AC power for practical use.

What is solar power?

Solar power is electricity generated from sunlight using photovoltaic technology. It converts renewable solar energy into usable electrical power.

How do solar cells generate electricity?

Solar cells generate electricity when sunlight photons excite electrons inside semiconductor materials. The movement of electrons creates electrical current.

How do we use solar energy at home?

Homes use solar energy through photovoltaic panels, inverters, and electrical systems that convert sunlight into power for appliances, lighting, and other devices.

What is PV in solar energy?

PV means photovoltaic. It describes technology that converts sunlight directly into electricity using semiconductor materials such as silicon.

Do solar panels generate electricity without direct sunlight?

Solar panels can generate electricity with indirect sunlight, such as cloudy conditions, but output is usually lower compared with direct sunlight.

How long can solar panels generate electricity?

Quality solar panels are designed for long-term operation. Many manufacturers provide warranties covering decades of performance, depending on product design and installation conditions.

Expert Insight: Understanding Solar Electricity Generation

Solar PV technology looks simple from the outside, but electricity generation depends on many connected components working together.

The panel captures sunlight.
The solar cells create electrical current.
The inverter makes electricity usable.
The system design determines real-world performance.

At Bright Solar, we focus on developing solar solutions that match different applications, from residential systems to flexible solar panels for mobile and off-grid environments.

Understanding how photovoltaic technology works helps customers choose better solar systems instead of only comparing panel wattage.

Conclusion: How Do Solar PV Panels Generate Electricity?

How do solar pv panels generate electricity? Solar PV panels generate electricity by converting sunlight into DC power through solar cells and transforming it into usable AC electricity through an inverter.

The photovoltaic process combines semiconductor technology, electrical conversion, and system design to create clean renewable energy.

Whether used for homes, RVs, marine applications, or commercial projects, solar panels provide a reliable way to convert sunlight into practical electricity when the system is correctly designed and installed.
