Solar Panels Series or Parallel: Which Wiring Method Is Better?

Introduction

Solar panels can be connected in series or parallel depending on your solar system design. Series wiring increases voltage while keeping current unchanged, while parallel wiring increases current while maintaining voltage. The best connection method depends on your battery voltage, charge controller type, shading conditions, and application requirements.

When installing multiple solar panels, one of the most important decisions is how to connect them together. The wiring method directly affects system voltage, current, efficiency, cable size, and overall performance.

Many RV owners, homeowners, and off-grid users ask the same question: Should solar panels be wired in series or parallel?

The answer is not simply that one method is better than the other. Each configuration has advantages depending on the environment and system design.

For example:

• A rooftop solar system with long cable distances may benefit from series wiring.
• An RV solar system with partial shading may perform better with parallel wiring.
• A larger off-grid system may require a combination of both.

Understanding the difference between solar panels series or parallel connections helps you build a safer and more efficient solar power system.

Bright Solar provides flexible solar panel solutions designed for RV, marine, and off-grid applications where efficient energy production and installation flexibility are important.

What Does Solar Panel Wiring Mean?

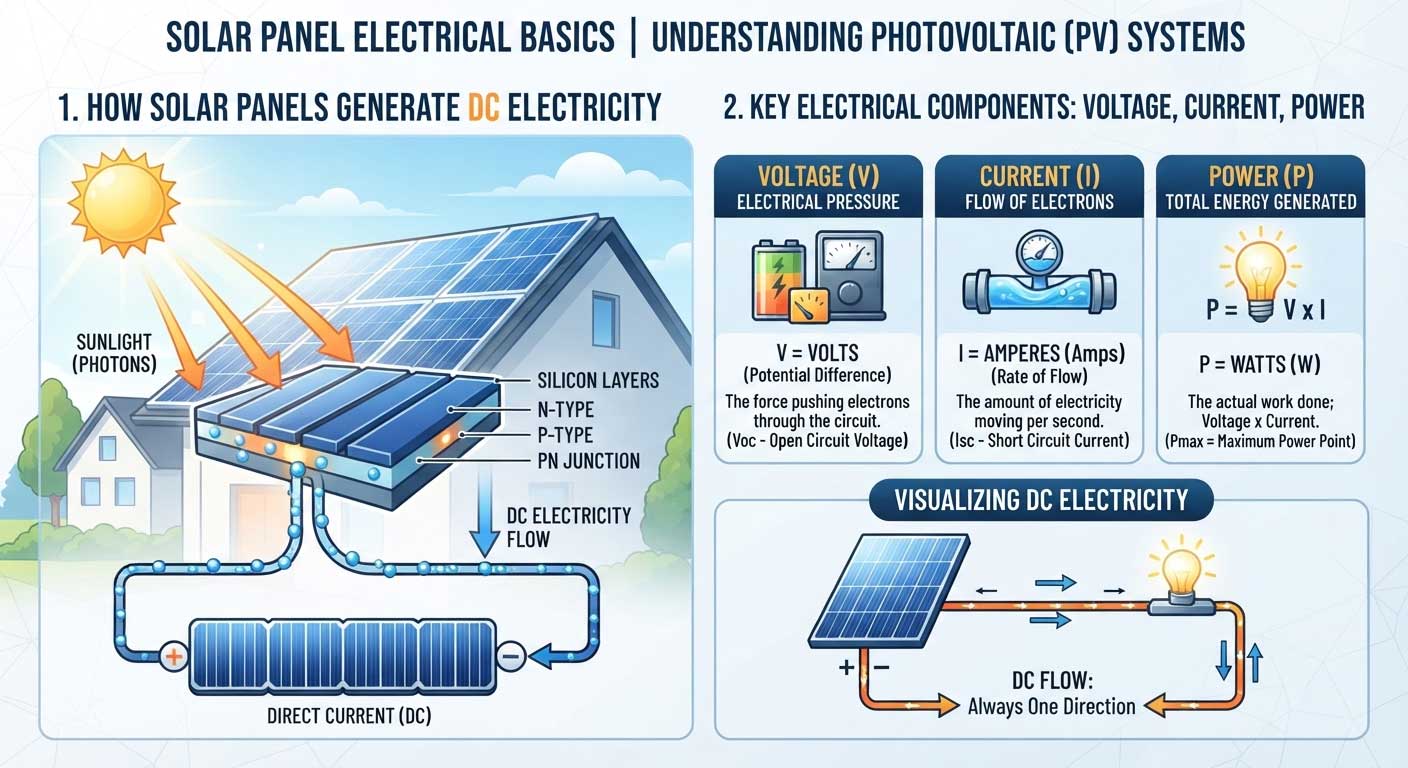

Solar panel wiring refers to the way multiple solar panels are electrically connected to create a larger solar array.

A single solar panel produces a limited amount of electricity. When more power is needed, multiple panels are connected together.

The way panels are connected determines two main electrical characteristics:

• Voltage (V)
• Current (A)

These two factors directly affect the total power output.

The basic electrical formula is:

Power (W) = Voltage (V) × Current (A)

For example:

A solar panel producing:

• 20V voltage
• 5A current

generates:

20V × 5A = 100W

When connecting multiple panels, you can increase either voltage or current depending on the wiring method.

Solar Panels in Series: How Does It Work?

Solar panels connected in series increase the total system voltage while keeping the current at the same level.

In a series connection, the positive terminal of one solar panel connects to the negative terminal of the next panel.

The remaining positive and negative terminals connect to the solar charge controller or inverter.

The wiring method looks like this:

Panel (+) → Panel (-) → Panel (+) → Panel (-)

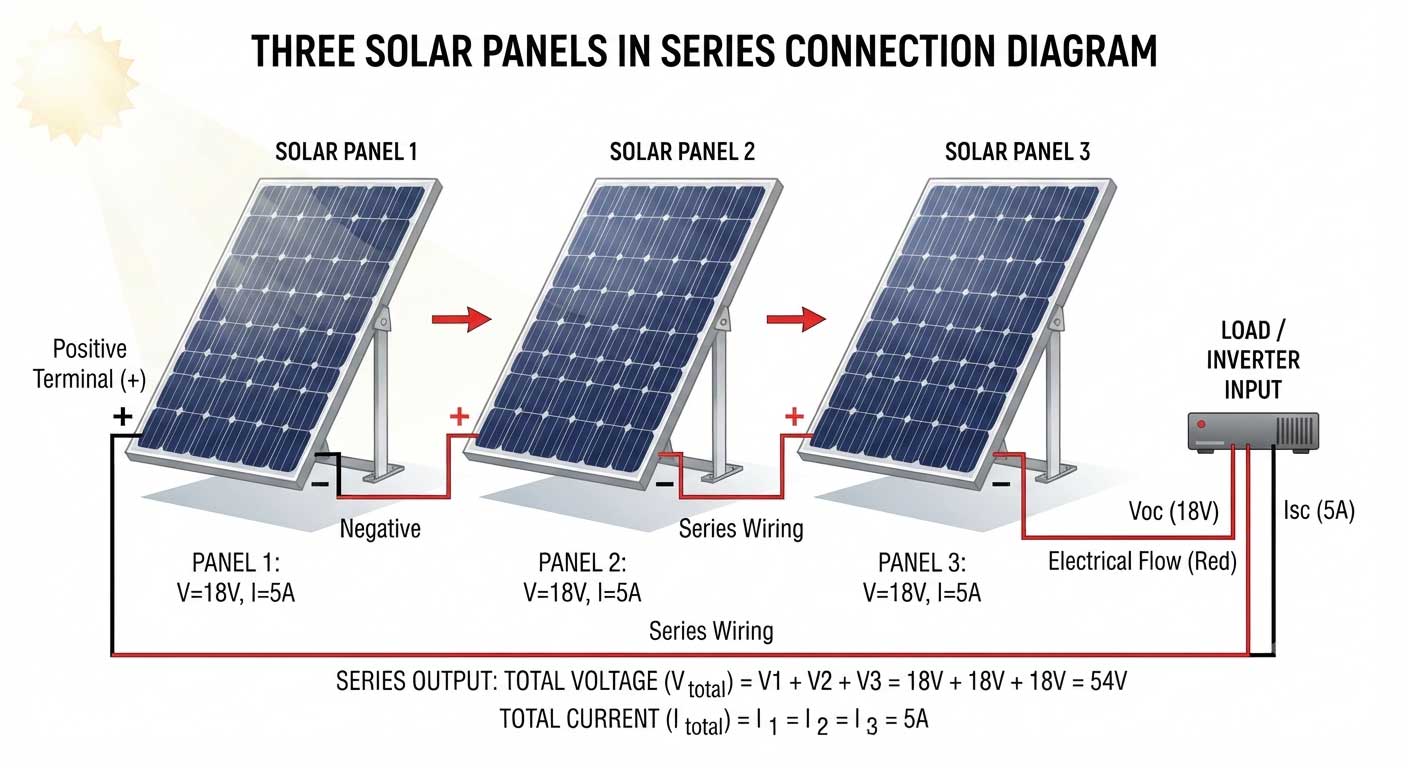

Example of Series Solar Panel Connection

Assume you have three 100W solar panels.

Each panel produces:

• Voltage: 20V
• Current: 5A

When connected in series:

Total voltage:

20V + 20V + 20V = 60V

Total current:

5A

Total power:

60V × 5A = 300W

The power output increases because the voltage increases.

Advantages of Solar Panels Connected in Series

Higher Voltage Output

The biggest advantage of series wiring is increased voltage.

Higher voltage allows electricity to travel more efficiently through cables.

Benefits include:

• Lower power loss
• Smaller cable requirements
• Better performance over long distances

This makes series wiring suitable for:

• Residential solar systems
• Large off-grid installations
• Ground-mounted solar arrays

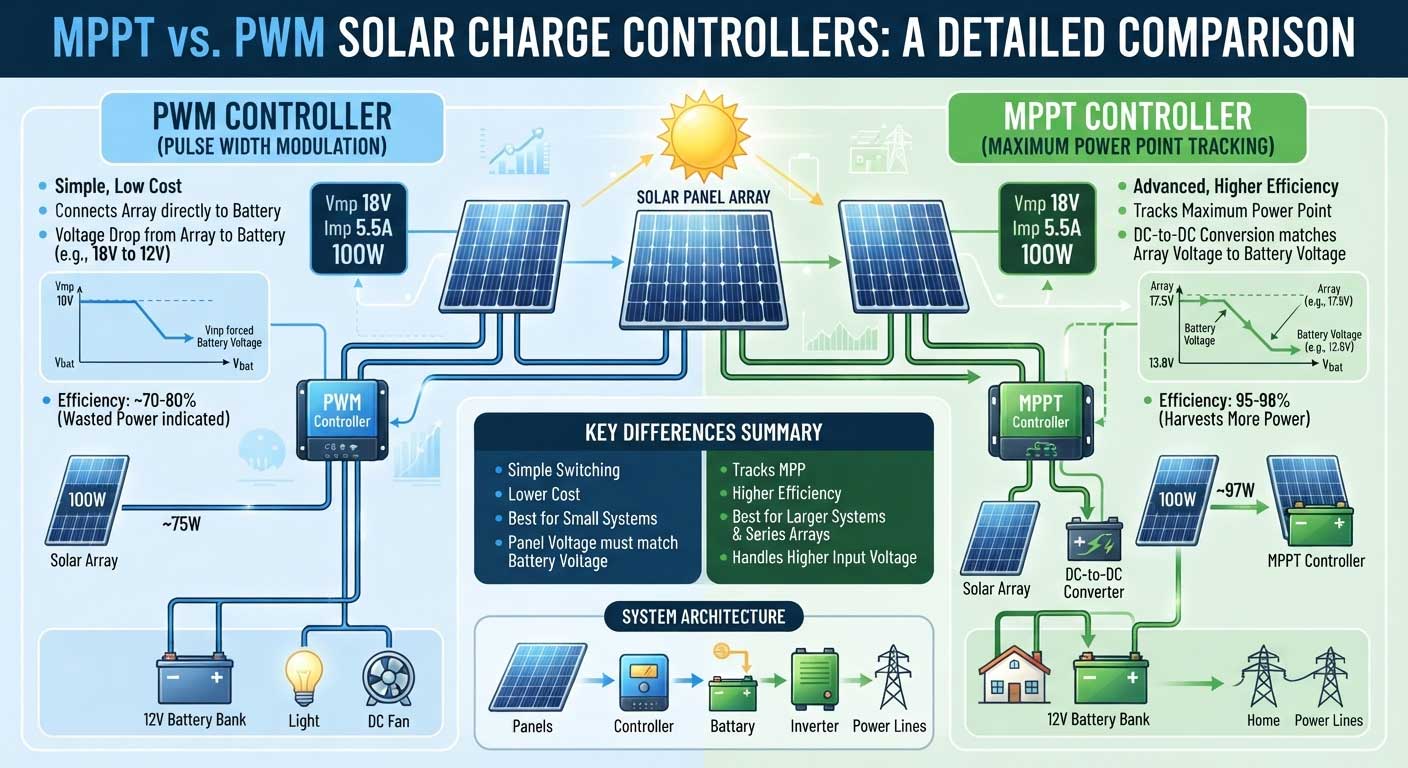

Better Compatibility With MPPT Controllers

Series solar panels work especially well with MPPT (Maximum Power Point Tracking) charge controllers.

MPPT controllers can convert higher solar input voltage into usable charging power efficiently.

For example:

A 24V battery system may benefit from solar panels producing 40V–80V input voltage.

This allows the controller to operate more efficiently.

Reduced Cable Loss

Electrical losses increase when current becomes higher.

Because series wiring increases voltage instead of current, it allows lower current transmission.

Lower current means:

• Less heat generation
• Lower voltage drop
• More efficient energy transfer

This is useful when solar panels are installed far away from batteries or inverters.

Disadvantages of Series Solar Panel Wiring

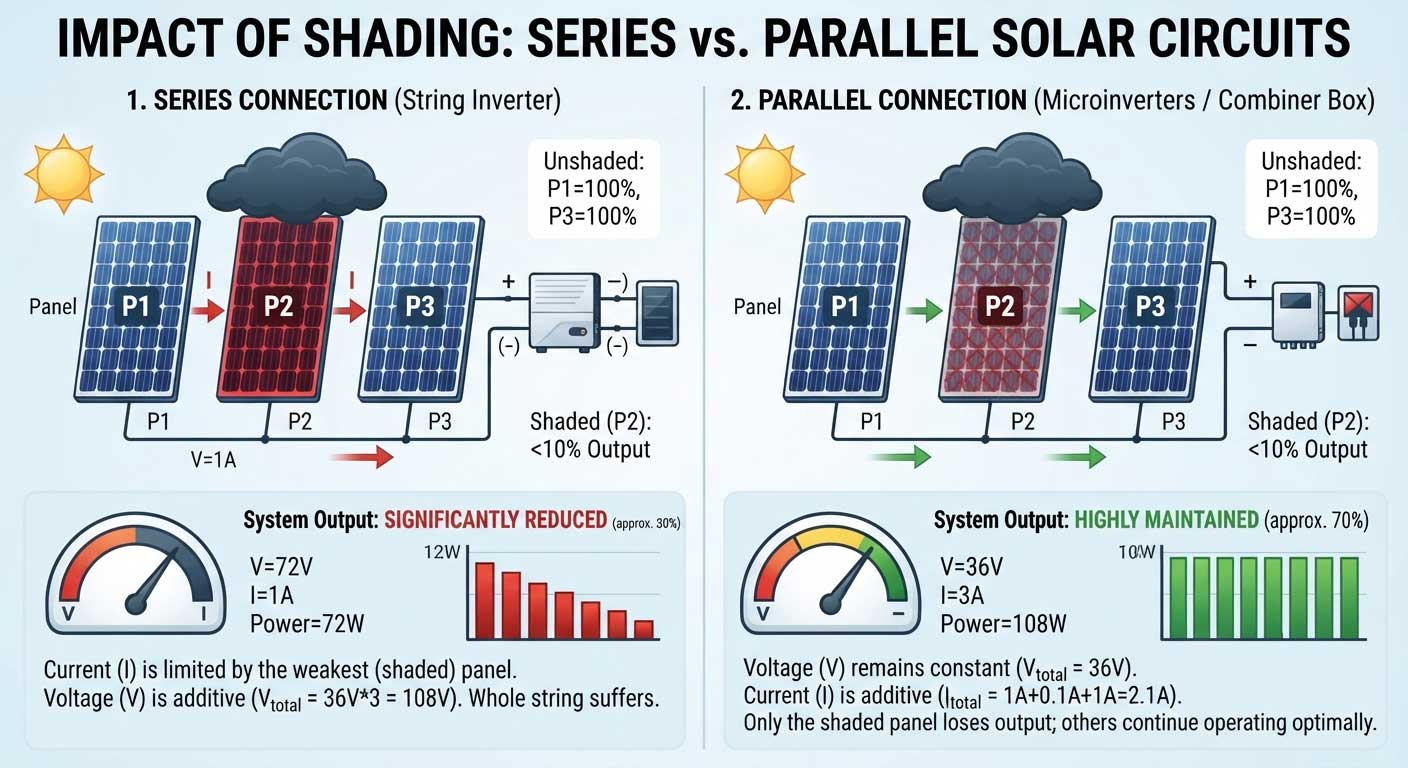

Shading Can Reduce Performance

One disadvantage of series connections is that all panels work together as one circuit.

If one panel is shaded, the output of the entire string may decrease.

Common shading problems include:

• Trees
• Roof vents
• Air conditioners
• Antennas

For example:

If three panels are connected in series and one panel receives significantly less sunlight, the entire system output can be affected.

Requires Correct Voltage Planning

Series systems produce higher voltage, so all components must be compatible.

Before installation, check:

• Charge controller maximum voltage
• Inverter input range
• Panel open-circuit voltage (Voc)

Exceeding voltage limits can damage equipment.

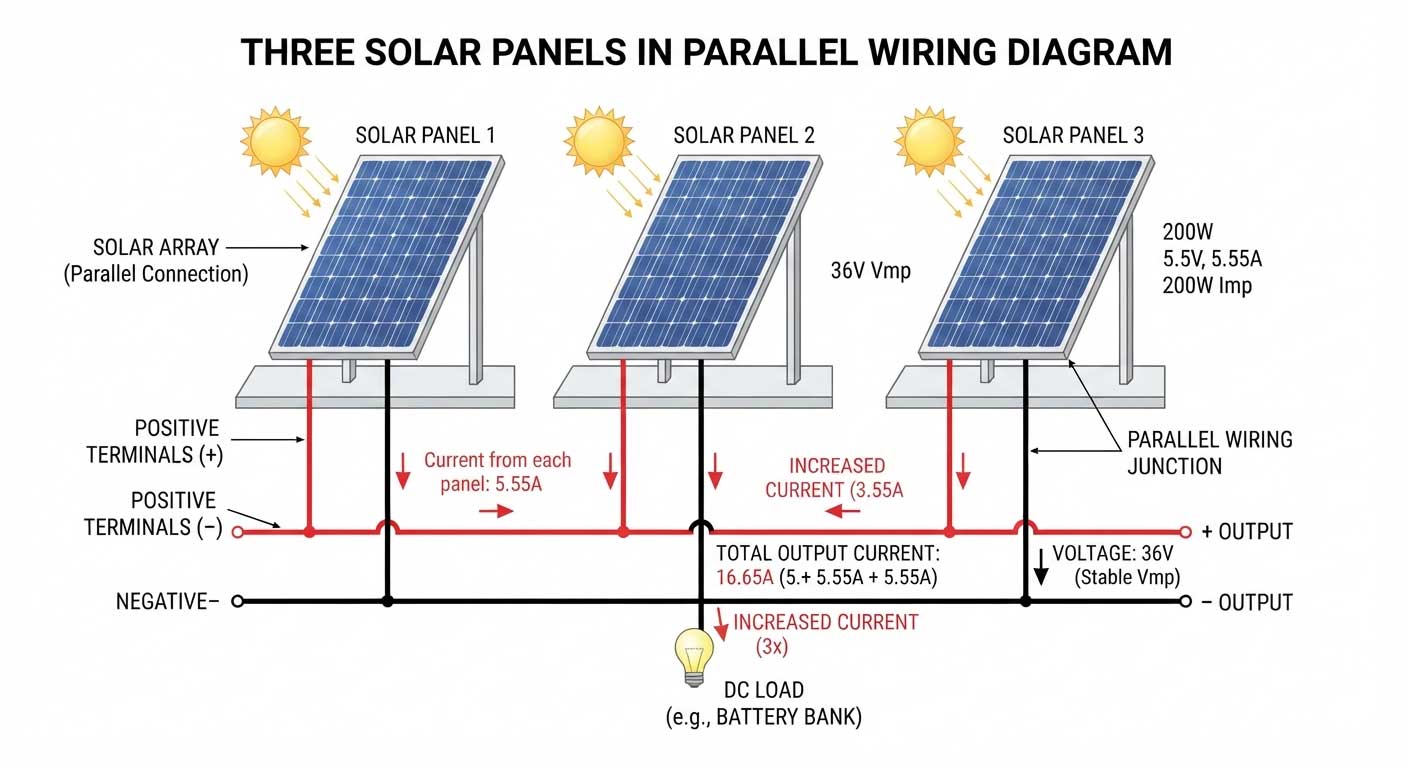

Solar Panels in Parallel: How Does It Work?

Solar panels connected in parallel increase current while maintaining the same voltage.

In a parallel connection:

• All positive terminals connect together
• All negative terminals connect together

The wiring method looks like:

Positive → Positive → Positive

Negative → Negative → Negative

The voltage remains unchanged, but the available current increases.

Example of Parallel Solar Panel Connection

Using the same three 100W solar panels:

Each panel produces:

• Voltage: 20V
• Current: 5A

When connected in parallel:

Total voltage:

20V

Total current:

5A + 5A + 5A = 15A

Total power:

20V × 15A = 300W

The system produces the same total power but with higher current.

Advantages of Solar Panels Connected in Parallel

Better Performance Under Partial Shading

One major advantage of parallel wiring is improved shading tolerance.

If one panel receives less sunlight, the other panels can continue producing electricity.

This makes parallel connections useful for:

• RV roofs
• Boats
• Mobile solar systems

where shading from nearby objects is common.

Suitable for Low Voltage Systems

Parallel solar panels are often used with:

• 12V battery systems
• Small RV solar setups
• Portable solar generators

They allow users to add more panels without significantly increasing system voltage.

Easier System Expansion

Parallel wiring makes future expansion simple.

For example:

Initial setup:

1 × 200W solar panel

Future upgrade:

Add another 200W panel

New system:

400W total output

This flexibility is useful for users who expect their energy requirements to grow.

Disadvantages of Parallel Solar Panel Wiring

Higher Current Requires Larger Cables

Because parallel wiring increases current, the system requires:

• Thicker cables
• Proper connectors
• Better protection devices

Higher current can create more energy loss if cables are undersized.

Less Efficient for Long Cable Runs

When current increases, voltage drop becomes a bigger concern.

Parallel systems are usually less suitable when:

• Panels are far from batteries
• Cable distances are long
• Large systems are required

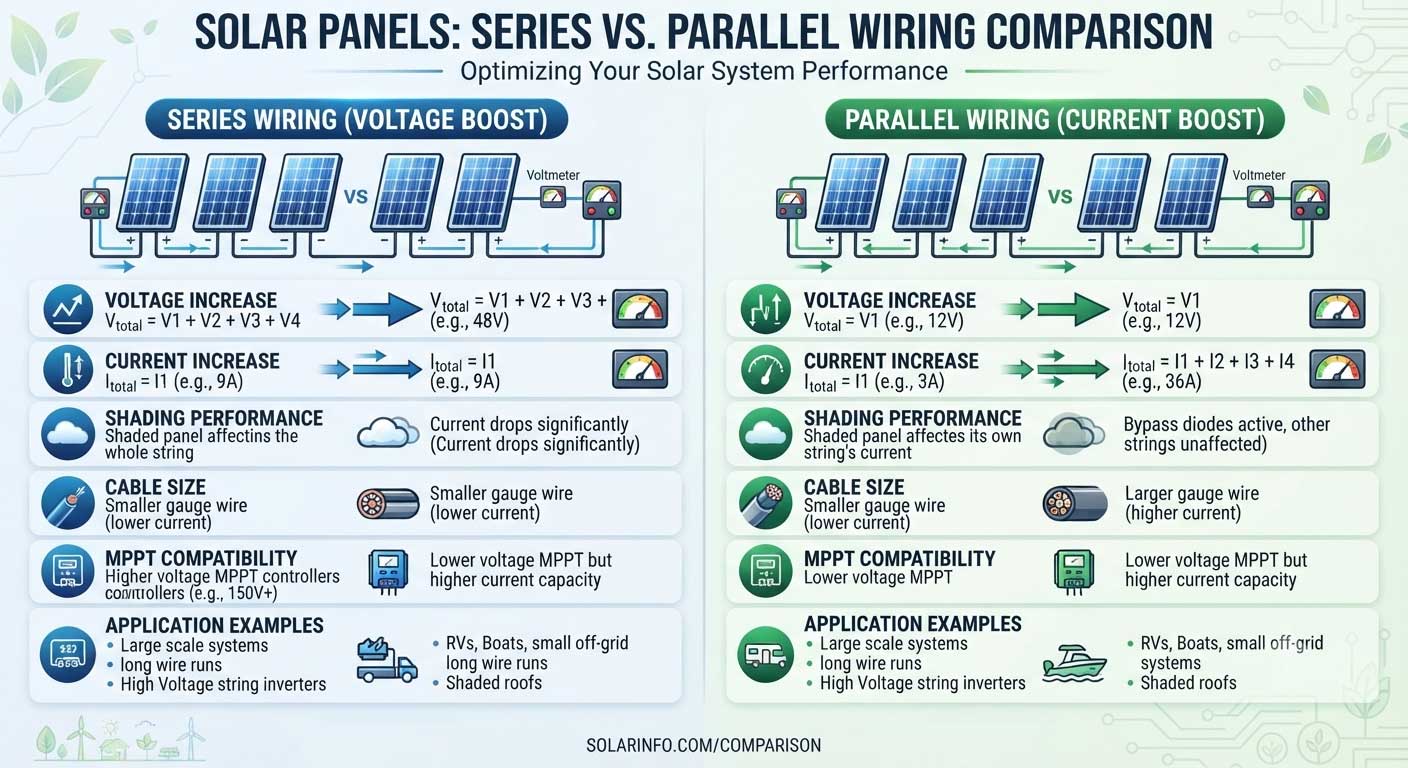

Solar Panels Series vs Parallel: Main Differences

Feature	Series Connection	Parallel Connection
Voltage	Increases	Stays the same
Current	Stays the same	Increases
Cable Size	Smaller	Larger
Shading Performance	Lower	Better
Long Distance Transmission	Better	Less suitable
Battery Compatibility	Higher voltage systems	Low voltage systems
Common Controller	MPPT	PWM / MPPT
Best Applications	Homes, large systems	RVs, boats, small systems

Which Solar Panel Connection Is Better?

There is no universal answer because the best connection depends on your solar system requirements.

Choose series wiring when:

• You need higher voltage
• Panels are far from the controller
• You use an MPPT charge controller
• Cable efficiency is important

Choose parallel wiring when:

• You have partial shading
• You use a 12V battery system
• You need easy expansion
• Panels are installed on an RV or boat

For many modern systems, a combination of both methods provides the best balance.

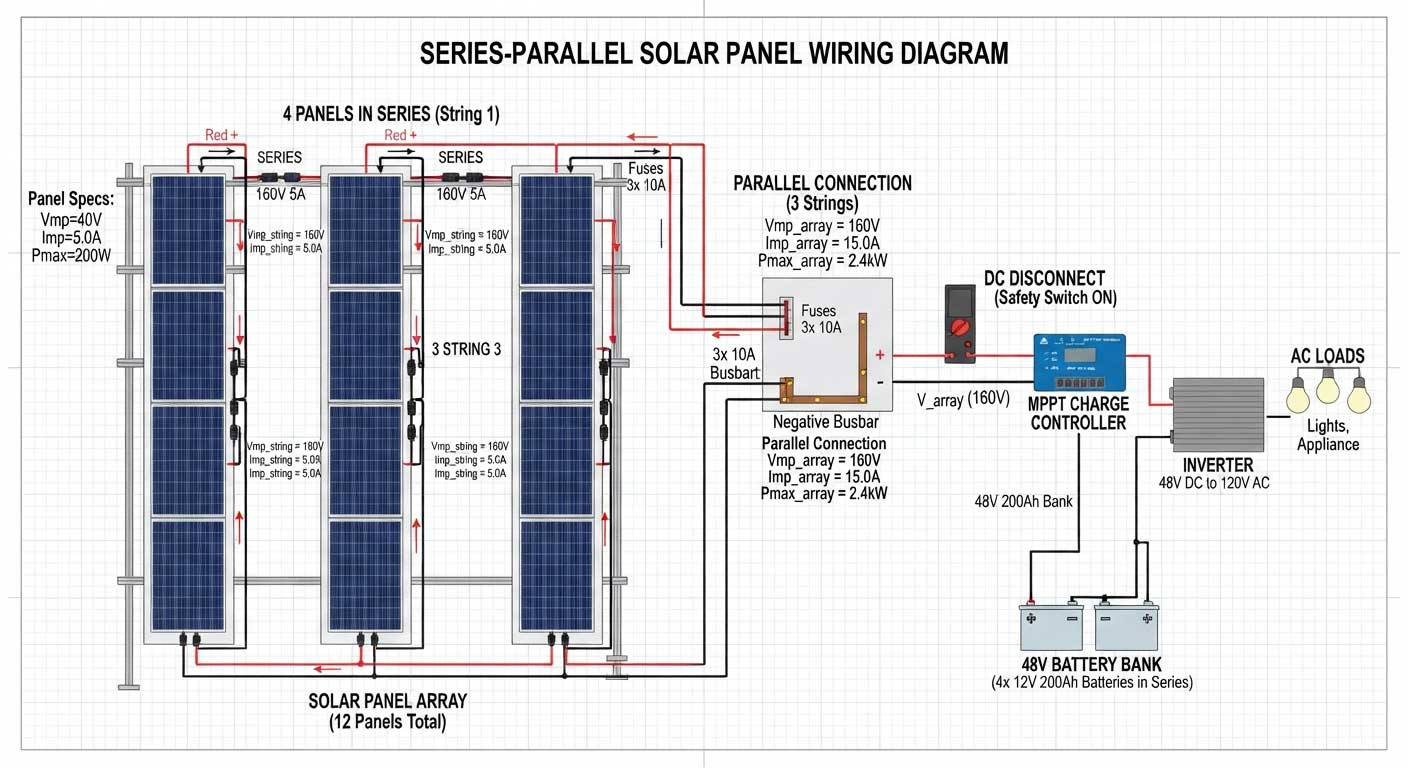

Series-Parallel Solar Panel Connection Explained

A series-parallel solar panel connection combines both wiring methods to increase voltage and current at the same time. This configuration is commonly used in larger solar systems where a balance between voltage requirements, power output, and system efficiency is needed.

Instead of connecting all panels in one series string or one parallel group, series-parallel wiring creates multiple smaller strings that are connected together.

This approach provides more design flexibility for:

• Residential solar systems
• Large off-grid systems
• Commercial installations
• Advanced RV solar setups

How Series-Parallel Solar Wiring Works

A series-parallel system usually follows this structure:

Step 1: Connect several solar panels in series

This increases the voltage.

Step 2: Connect multiple series strings in parallel

This increases the current.

For example:

You have eight 100W solar panels.

Configuration:

• 2 panels connected in series
• 4 series groups connected in parallel

Each series group:

Voltage:

20V + 20V = 40V

Current:

5A

Four parallel groups:

Voltage:

40V

Current:

5A × 4 = 20A

Total power:

40V × 20A = 800W

Advantages of Series-Parallel Solar Panel Wiring

Better System Scalability

Series-parallel wiring allows users to expand solar capacity without creating extremely high voltage or current levels.

This makes it easier to design systems based on:

• Battery voltage
• Inverter requirements
• Available installation space

Improved Efficiency for Larger Systems

Large solar arrays require careful voltage and current management.

Series-parallel configurations help maintain:

• Efficient energy transmission
• Reasonable cable sizes
• Compatible controller input levels

More Flexible System Design

Different applications require different solar configurations.

For example:

A small RV may use:

• 2 panels in series

A larger off-grid cabin may use:

• Multiple series strings connected in parallel

This flexibility makes series-parallel systems common in custom solar installations.

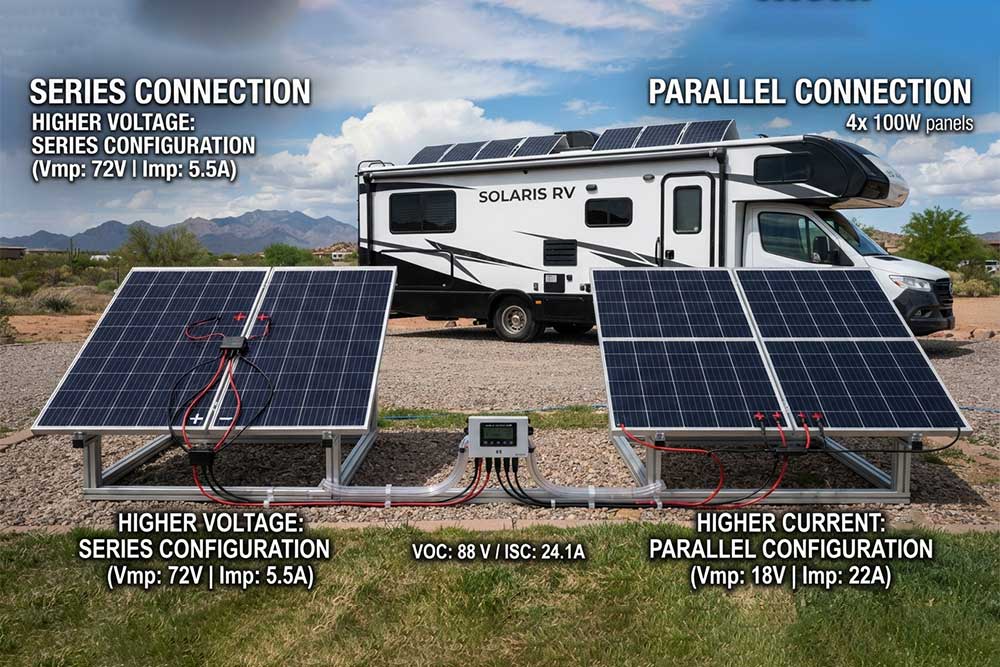

Solar Panels Series or Parallel for RV Applications

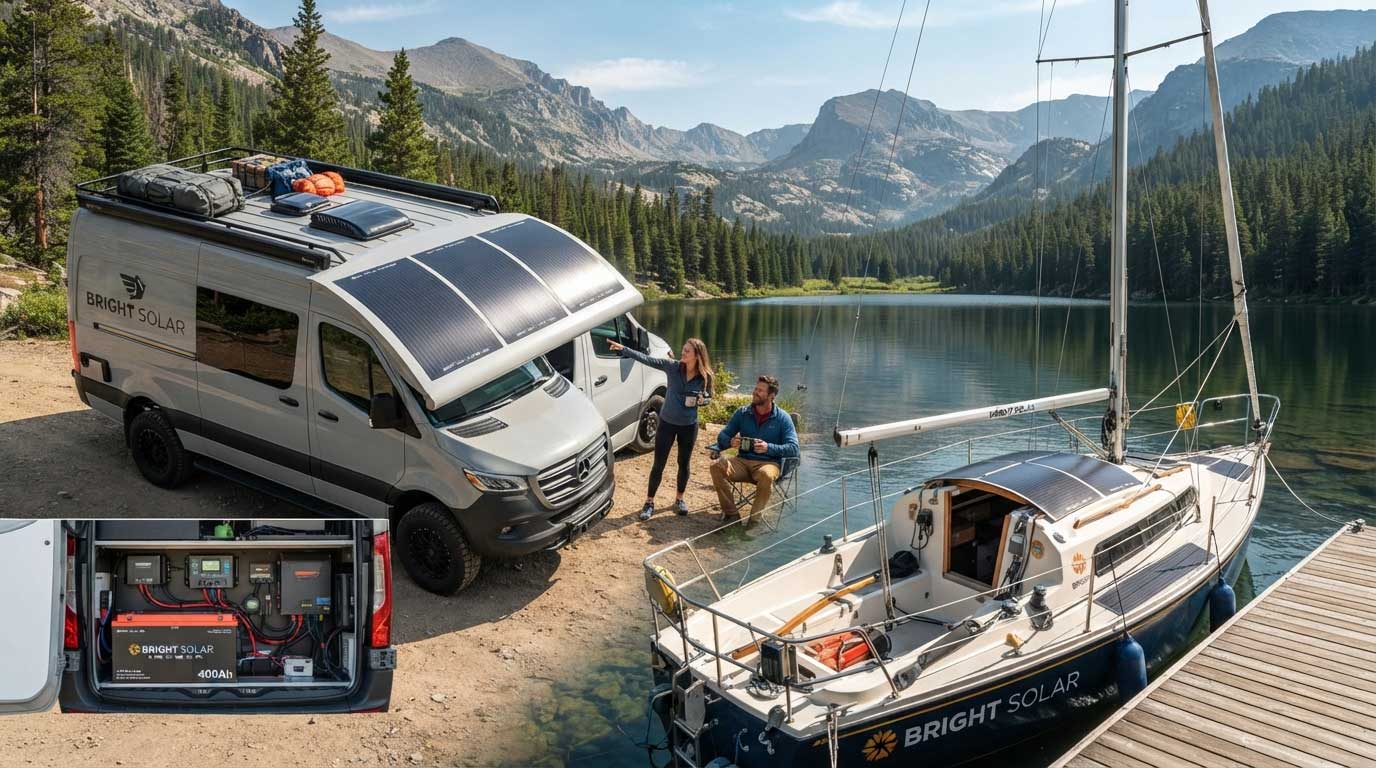

For RV solar systems, solar panels can be connected in series, parallel, or series-parallel depending on roof space, battery voltage, shading conditions, and controller type.

RV solar systems have unique challenges compared with residential installations:

• Limited roof area
• Curved surfaces
• Moving conditions
• Partial shading from vents and air conditioners
• Weight limitations

Because of these factors, choosing the correct wiring method is important.

Series Solar Panels for RVs

Series wiring can be a good option for RV owners who:

• Use MPPT charge controllers
• Have longer cable distances
• Want lower cable losses

Advantages:

• Higher voltage input
• Better transmission efficiency
• Smaller cable requirements

For example:

Two 200W solar panels connected in series:

Panel voltage:

20V + 20V = 40V

Current:

10A

This higher voltage can improve charging efficiency.

Parallel Solar Panels for RVs

Parallel wiring is commonly used in RV applications because it provides better performance under partial shading.

RV roofs often contain:

• Air conditioners
• Roof vents
• Satellite equipment

These objects can create shadows during the day.

With parallel wiring:

• One shaded panel has less impact
• Other panels continue producing energy

This makes parallel connections attractive for mobile applications.

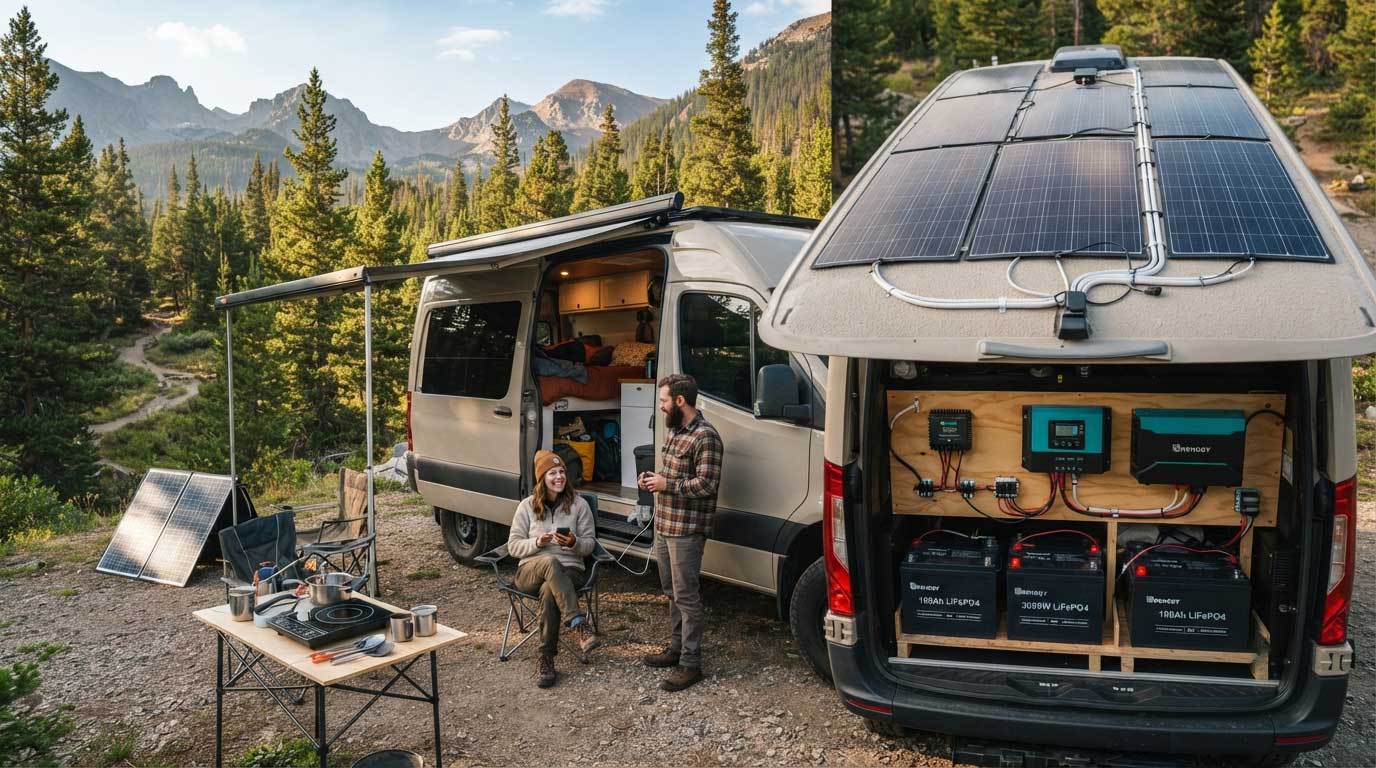

Flexible Solar Panels and RV Wiring

Flexible solar panels are increasingly popular for RV installations because they are:

• Lightweight
• Low profile
• Easy to mount
• Suitable for curved surfaces

Bright Solar flexible solar panels are designed for mobile applications where installation space and weight are important factors.

When installing flexible RV solar panels, users should still consider:

• Maximum voltage limits
• Charge controller compatibility
• Cable sizing
• Panel matching

Flexible solar panels can be connected in series or parallel depending on the overall system design.

Recommended RV Solar Configurations

Small RV System

Example:

1–2 × 100W or 200W panels

Recommended:

Parallel connection

Suitable for:

• Lighting
• Charging devices
• Small electronics

Medium RV System

Example:

400W–800W solar capacity

Recommended:

Series or series-parallel connection

Suitable for:

• Refrigerators
• Fans
• Longer off-grid trips

Large RV System

Example:

800W+ solar capacity

Recommended:

Series-parallel configuration

Benefits:

• Higher efficiency
• Better voltage management
• Expandable design

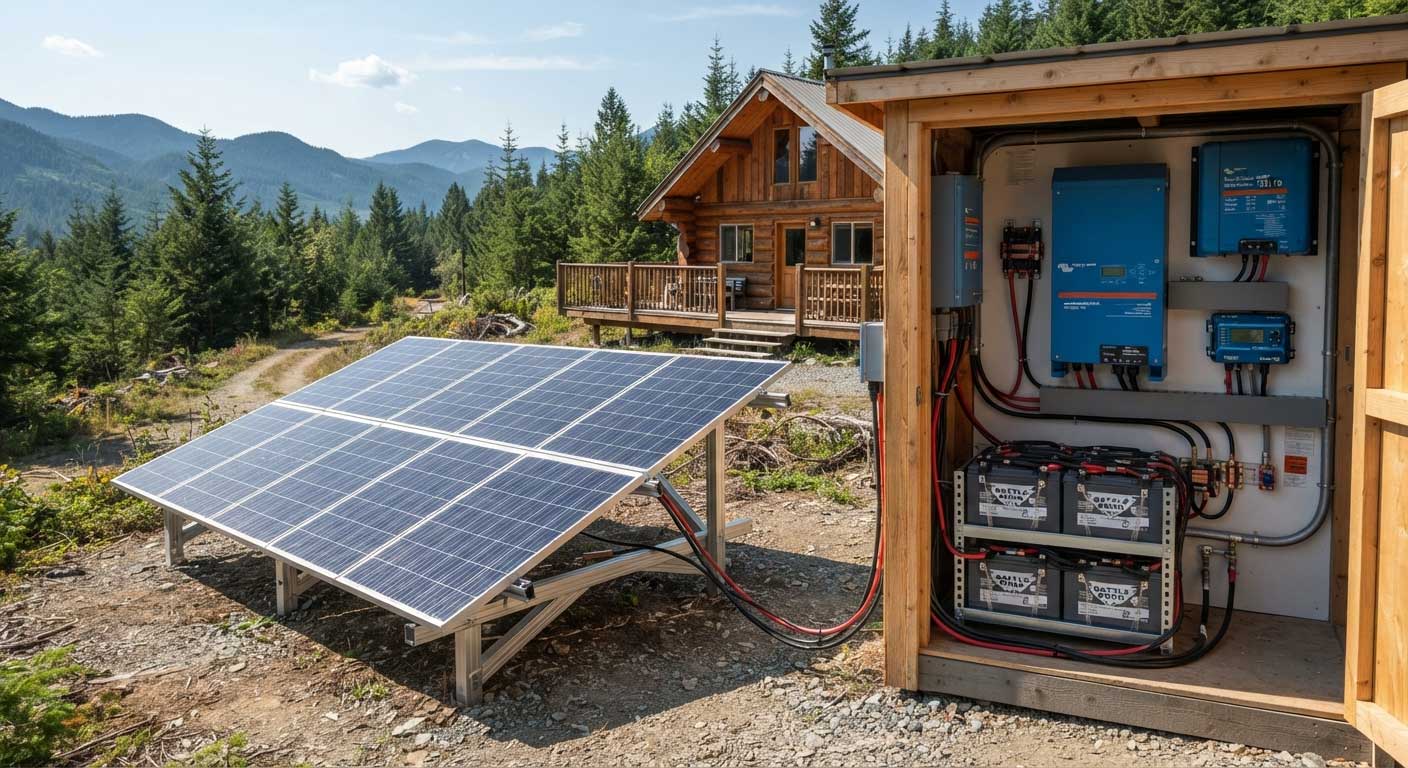

Series vs Parallel Solar Panels for Off-Grid Systems

For off-grid solar systems, series connections are often preferred because they provide higher voltage and work efficiently with MPPT controllers.

Off-grid systems usually have:

• Longer cable distances
• Larger battery banks
• Higher energy requirements

These factors make voltage management especially important.

Series Wiring for Off-Grid Solar

Advantages:

• Higher voltage output
• Lower current transmission
• Reduced cable losses

Suitable for:

• Remote cabins
• Farms
• Workshops
• Large battery systems

Example:

Four 300W solar panels:

Each panel:

35V

Series connection:

35V × 4 = 140V

Current remains unchanged.

Parallel Wiring for Off-Grid Solar

Parallel wiring can be useful for smaller systems.

Suitable for:

• Small cabins
• Portable systems
• Low-voltage battery banks

Advantages:

• Simple design
• Easy expansion
• Better shading tolerance

However, larger systems may require thicker cables because current increases.

How Shading Affects Solar Panel Wiring

Shading has a different impact on solar panels connected in series and parallel.

Understanding this difference helps prevent unexpected power losses.

Shading Effects in Series Connections

In a series system, all panels share the same current path.

If one panel receives less sunlight:

• Current production may decrease
• Total string output can drop

Common shading sources:

• Trees
• Buildings
• Roof equipment
• Dirt accumulation

For example:

Three panels connected in series:

Panel 1: Full sunlight

Panel 2: Full sunlight

Panel 3: Heavy shade

The entire string performance may be limited by the shaded panel.

Shading Effects in Parallel Connections

Parallel systems handle shading better.

Each panel operates more independently.

If one panel is shaded:

• That panel produces less current
• Other panels continue generating power

This makes parallel wiring useful for:

• RV roofs
• Boats
• Urban installations

where perfect sunlight exposure is difficult.

Using Bypass Diodes to Reduce Shading Losses

Modern solar panels include bypass diodes to reduce the impact of shading.

They help:

• Redirect current around shaded cells
• Prevent severe power reduction
• Protect panel performance

However, bypass diodes cannot completely eliminate shading losses.

Proper installation location remains important.

MPPT vs PWM Controller for Series and Parallel Solar Panels

The choice between MPPT and PWM charge controllers affects whether series or parallel solar panel wiring is the better option.

MPPT Charge Controller

MPPT stands for:

Maximum Power Point Tracking

Advantages:

• Higher charging efficiency
• Supports higher solar input voltage
• Better for series connections

Suitable for:

• Large solar systems
• Off-grid installations
• RV systems with multiple panels

Example:

Solar array:

80V input

Battery:

12V or 24V

MPPT controller converts higher voltage into charging current efficiently.

PWM Charge Controller

PWM stands for:

Pulse Width Modulation

Advantages:

• Lower cost
• Simple operation
• Suitable for small systems

Suitable for:

• Small RV setups
• Basic 12V systems
• Low-power applications

However, PWM controllers usually require solar panel voltage closer to battery voltage.

MPPT vs PWM Comparison

Feature	MPPT	PWM
Efficiency	Higher	Lower
Cost	Higher	Lower
Best Wiring	Series	Parallel
System Size	Medium/Large	Small
Voltage Flexibility	Excellent	Limited

How to Choose Between Series and Parallel Solar Panels

Use this simple decision guide:

Choose Series When:

✔ You need higher voltage
✔ Cable distance is long
✔ You use an MPPT controller
✔ Energy efficiency is important

Choose Parallel When:

✔ Your system uses 12V batteries
✔ Shading is a concern
✔ You need simple expansion
✔ Installation is small-scale

Choose Series-Parallel When:

✔ You need high power output
✔ You have many solar panels
✔ Voltage and current both need optimization

How to Connect Solar Panels in Series or Parallel (Step-by-Step)

Connecting solar panels in series or parallel requires correct planning, compatible components, and proper wiring methods to ensure safe and efficient solar power generation.

Before connecting multiple solar panels, always check:

• Solar panel voltage and current ratings
• Charge controller maximum input limits
• Battery system voltage
• Cable size requirements
• Connector compatibility

A correct wiring design improves energy efficiency and prevents potential damage to system components.

Step 1: Check Solar Panel Specifications

Before wiring panels together, review the electrical specifications on each panel label.

Important parameters include:

Maximum Power Voltage (Vmp)

The voltage when the panel produces its rated power.

Open Circuit Voltage (Voc)

The maximum voltage produced when the panel is not connected to a load.

This value is especially important for series connections because voltage adds together.

Short Circuit Current (Isc)

The maximum current produced under short-circuit conditions.

This value is important when designing parallel connections.

Step 2: Decide Series or Parallel Connection Method

Choose the wiring method based on your system requirements.

Series Connection

Use series wiring when you need:

• Higher voltage
• Lower current
• Longer cable distances
• MPPT controller compatibility

Connection method:

Connect the positive terminal of one panel to the negative terminal of the next panel.

Parallel Connection

Use parallel wiring when you need:

• Higher current
• Lower system voltage
• Better shading performance

Connection method:

Connect all positive terminals together and all negative terminals together.

Step 3: Connect Solar Panels in Series

Follow these steps:

Step 1:

Place solar panels in the desired installation position.

Step 2:

Connect the positive (+) terminal of the first panel to the negative (-) terminal of the second panel.

Step 3:

Continue connecting panels in the same pattern.

Step 4:

Connect the remaining positive and negative terminals to the charge controller.

Step 5:

Measure the total voltage before connecting to the controller.

Example:

Three 200W solar panels:

Each panel:

• 20V
• 10A

Series connection:

Voltage:

20V + 20V + 20V = 60V

Current:

10A

Total power:

600W

Step 4: Connect Solar Panels in Parallel

Follow these steps:

Step 1:

Connect all positive (+) terminals together.

Step 2:

Connect all negative (-) terminals together.

Step 3:

Connect the combined output to the charge controller.

Step 4:

Check the total current rating.

Example:

Three 200W solar panels:

Each panel:

• 20V
• 10A

Parallel connection:

Voltage:

20V

Current:

10A + 10A + 10A = 30A

Total power:

600W

Step 5: Install Protection Components

A safe solar system should include proper protection devices.

Recommended components:

Fuses

Protect wiring from excessive current.

Circuit Breakers

Allow safe system isolation during maintenance.

Disconnect Switches

Make troubleshooting easier.

Surge Protection Devices

Help protect equipment from voltage spikes.

Step 6: Test Solar Panel Output

After completing the wiring:

Check:

• Voltage output
• Current flow
• Charge controller operation
• Battery charging status

A multimeter can help confirm whether the solar array is operating correctly.

Common Solar Panel Wiring Mistakes

Many solar system problems are caused by incorrect wiring choices rather than solar panel quality. Avoiding common mistakes helps improve safety and system performance.

Mistake 1: Mixing Different Solar Panels Without Checking Compatibility

Connecting different solar panels together can reduce performance.

Problems may occur when panels have different:

• Wattage ratings
• Voltage levels
• Current ratings
• Cell technologies

For example:

A high-current panel connected with a lower-current panel may force the system to operate at the lower panel’s output level.

Best practice:

Use matching solar panels whenever possible.

Mistake 2: Exceeding Charge Controller Voltage Limits

This is one of the most serious mistakes with series wiring.

Because voltage increases in series connections, always calculate:

Total Voc:

Panel Voc × Number of panels

Example:

One panel:

Voc = 45V

Four panels in series:

45V × 4 = 180V

If the controller maximum input is 150V, this configuration is unsafe.

Always leave a safety margin.

Mistake 3: Using Incorrect Cable Sizes

Cable selection affects system efficiency.

Undersized cables can cause:

• Voltage drop
• Heat generation
• Energy loss

Parallel systems usually require thicker cables because current is higher.

Long cable distances also require careful sizing.

Mistake 4: Ignoring Panel Orientation and Shading

Even correctly wired solar panels will perform poorly if installed incorrectly.

Avoid:

• Permanent shadows
• Incorrect panel angles
• Dirty surfaces
• Poor positioning

Solar panel wiring and installation location work together to determine system performance.

Mistake 5: Connecting Panels With Incorrect Polarity

Solar connectors are designed to prevent mistakes, but polarity should always be checked.

Incorrect connection may:

• Prevent charging
• Damage equipment
• Create safety risks

Always verify positive and negative terminals before final connection.

Mistake 6: Choosing the Wrong Wiring Method for the Application

A common mistake is copying another solar installation without considering system differences.

For example:

A residential rooftop system and an RV solar system have different requirements.

A better approach is to evaluate:

• Battery voltage
• Available space
• Shading conditions
• Controller type
• Energy consumption

How Bright Solar Helps Build Efficient Solar Systems

Bright Solar provides flexible solar panel solutions designed for RV, marine, portable, and off-grid applications where installation flexibility and reliable energy production are important.

Different solar projects require different panel designs and wiring configurations.

For mobile applications such as RVs and boats, users often need:

• Lightweight solar panels
• Space-saving installation
• Durable outdoor performance
• Flexible connection options

Bright Solar flexible solar panels are developed for applications where traditional rigid panels may not be practical.

Advantages of Bright Solar Flexible Solar Panels

Lightweight Design

Flexible solar panels reduce installation weight, making them suitable for:

• RV roofs
• Camper vans
• Marine equipment

Flexible Installation Options

Unlike traditional rigid panels, flexible panels can adapt to certain curved surfaces.

This provides more installation possibilities for mobile applications.

Reliable Outdoor Performance

Solar panels installed outdoors must handle changing conditions.

Important features include:

• Weather resistance
• UV protection
• Durable surface materials
• Long-term performance

Compatible With Different Solar Configurations

Bright Solar flexible solar panels can be integrated into different system designs depending on:

• Battery voltage
• Controller type
• Power requirements

Whether the system uses series, parallel, or series-parallel connections, correct system planning remains the key to achieving reliable performance.

FAQ About Solar Panels Series or Parallel

Are solar panels better connected in series or parallel?

Neither connection method is always better.

Series wiring is better when:

• Higher voltage is needed
• Cable distance is long
• MPPT controllers are used

Parallel wiring is better when:

• Shading is a concern
• Lower voltage systems are used
• Easy expansion is required

The best option depends on the solar system design.

Do solar panels produce more power in series or parallel?

Solar panels produce the same total power when connected correctly.

The difference is how the electrical output changes.

Series:

• Increases voltage

Parallel:

• Increases current

Example:

Three 100W panels produce:

300W total power

in either configuration.

Can solar panels with different wattages be connected together?

Yes, but it is generally not recommended.

Different wattage panels may have different:

• Voltage
• Current
• Efficiency

This can reduce overall system performance.

For the best results, use panels with similar specifications.

Should RV solar panels be connected in series or parallel?

The choice depends on the RV system.

Parallel is often preferred when:

• Roof shading exists
• Using 12V systems
• Simple expansion is needed

Series can be better when:

• Using MPPT controllers
• Cable distance is longer
• Higher efficiency is needed

Many modern RV systems use series or series-parallel configurations.

Bright Solar flexible solar panels are suitable for RV applications where weight, space, and installation flexibility matter.

Can flexible solar panels be connected in series?

Yes, flexible solar panels can be connected in series if the voltage requirements of the charge controller and battery system are suitable.

Before connecting flexible panels, check:

• Maximum controller voltage
• Panel Voc
• Cable ratings
• Connector compatibility

Can I add more solar panels later?

Yes, solar systems can often be expanded.

However, future expansion should be considered during the initial design.

Important factors:

• Controller capacity
• Battery size
• Inverter rating
• Available installation space

Planning ahead makes upgrades easier and more affordable.

Conclusion: Solar Panels Series or Parallel, Which One Should You Choose?

Solar panels series or parallel connections both have advantages, and the right choice depends on your specific solar system requirements.

Series connections are ideal when you need:

• Higher voltage
• Lower current
• Better efficiency over long distances
• MPPT controller compatibility

Parallel connections are useful when you need:

• Better shading tolerance
• Lower voltage operation
• Simple system expansion

For larger solar installations, series-parallel wiring often provides the best balance between voltage and current.

When designing an RV, marine, or off-grid solar system, consider your battery voltage, installation environment, controller type, and future energy needs before choosing a wiring method.

Bright Solar provides flexible solar panel solutions that help users build efficient renewable energy systems for mobile and off-grid applications.

With the right solar panel configuration and proper installation, your solar system can deliver reliable clean energy for years.
