How much do solar panels weigh? Most residential solar panels weigh between 40 and 50 pounds (18–23 kg), while larger commercial modules can exceed 60 pounds. Weight depends on panel size, materials, technology, and design.

Solar panel weight is an important factor when planning a rooftop installation, RV solar project, or off-grid system. Many customers focus on wattage first, but the physical weight and dimensions often determine whether a mounting structure can support the installation.

At Bright Solar, we have worked with different solar applications, including flexible solar panels, portable solar solutions, and traditional rigid modules. In real projects, we often see that installation conditions matter as much as electrical performance. A lightweight panel can sometimes provide better results simply because it can be installed in places where heavier modules cannot.Visit the product page:Flexible Solar Panels

Understanding solar panel weight helps homeowners, engineers, and installers select the correct mounting system and avoid unnecessary structural problems.

Understanding Solar Panel Weight

Average Weight of Solar Panels

The average weight of a solar panel depends mainly on its size and construction.

Typical weights include:

Solar Panel Type	Average Weight
Small portable solar panel	5–15 lbs (2–7 kg)
100W flexible solar panel	5–10 lbs (2–5 kg)
Residential 350W–450W panel	40–50 lbs (18–23 kg)
Large commercial panel	50–70+ lbs (23–32 kg)

Most rooftop solar panels installed on homes today use crystalline silicon technology and fall within the 40–50 pound range.

According to National Renewable Energy Laboratory (NREL Photovoltaic Research), photovoltaic module design varies depending on materials, efficiency requirements, and application conditions.

Why Solar Panel Weight Matters

Roof Load and Installation Safety

Solar panels add additional weight to a building structure.

Before installation, professionals usually evaluate:

• Roof strength
• Mounting system capacity
• Wind loads
• Snow loads
• Panel arrangement

A standard solar installation includes not only the panels but also:

• Mounting rails
• Brackets
• Fasteners
• Wiring equipment

The total system weight is higher than the panel weight alone.

For example:

20 solar panels × 45 lbs each:

= 900 lbs of panel weight

After adding mounting equipment, the total load increases further.

Solar Panel Dimensions and Weight Relationship

How Big Are Solar Panels?

Solar panel dimensions directly affect weight.

A typical residential solar panel size is approximately:

• Length: 65–72 inches
• Width: 39–44 inches
• Thickness: 1.2–2 inches

Larger panels usually contain:

• More solar cells
• Larger glass surfaces
• Stronger frames

This increases both power output and physical weight.

Solar Panel Average Size Explained

Common Residential Solar Panel Dimensions

Most residential solar modules use either 60-cell, 72-cell, or newer half-cut cell designs.

Typical sizes:

Panel Type	Approximate Size
Residential panel	65 × 39 inches
Large residential panel	72 × 44 inches
Commercial panel	80 × 40 inches or larger

Modern high-wattage panels are often physically larger because manufacturers increase the number of cells to achieve higher output.

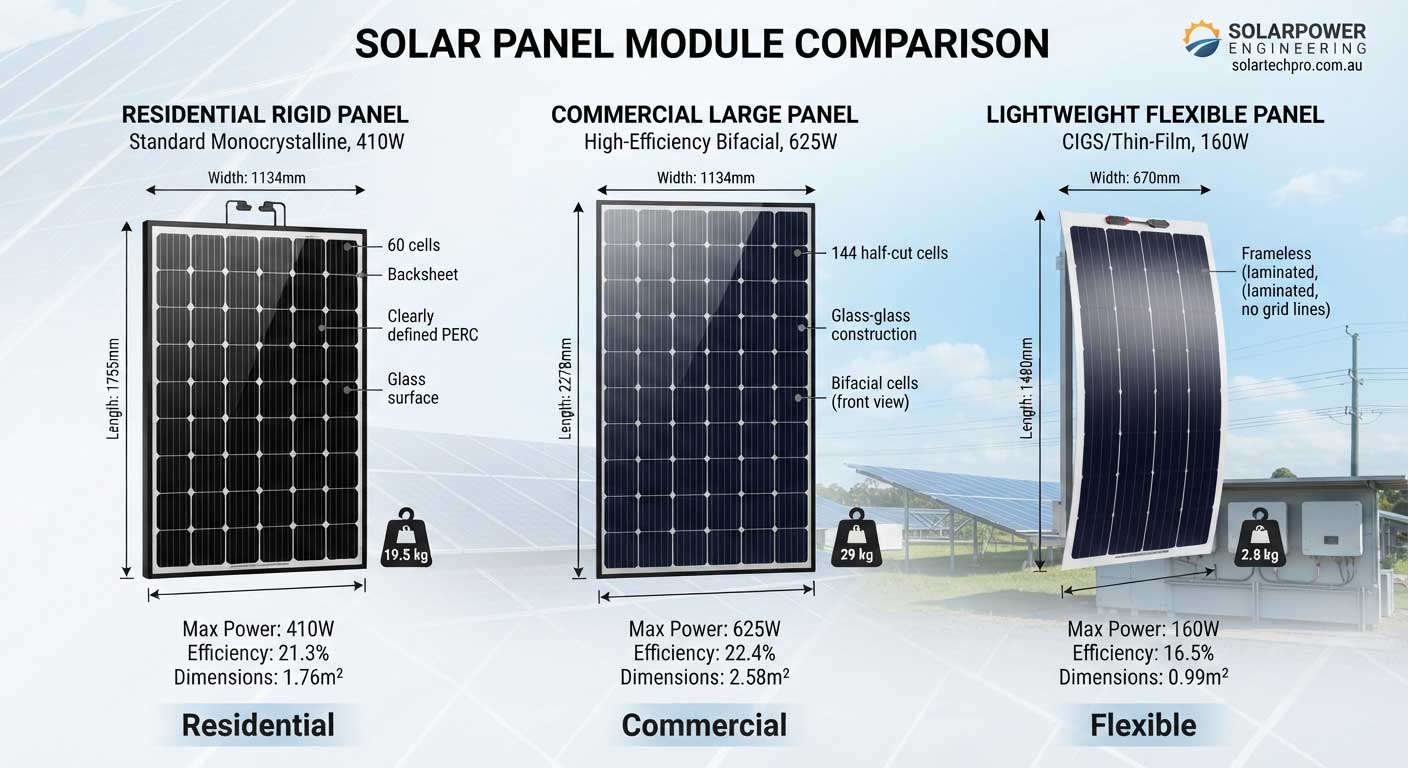

How Much Does a Solar Panel Weight by Wattage?

Weight Comparison by Solar Panel Power

Solar panel weight is not determined only by wattage, but higher-power panels are often larger.

Examples:

Panel Wattage	Approximate Weight
100W flexible panel	5–10 lbs
200W portable panel	10–20 lbs
300W rigid panel	35–45 lbs
400W residential panel	40–50 lbs
500W+ commercial panel	50–70 lbs

Flexible solar panels are significantly lighter because they replace traditional glass layers with lightweight materials.

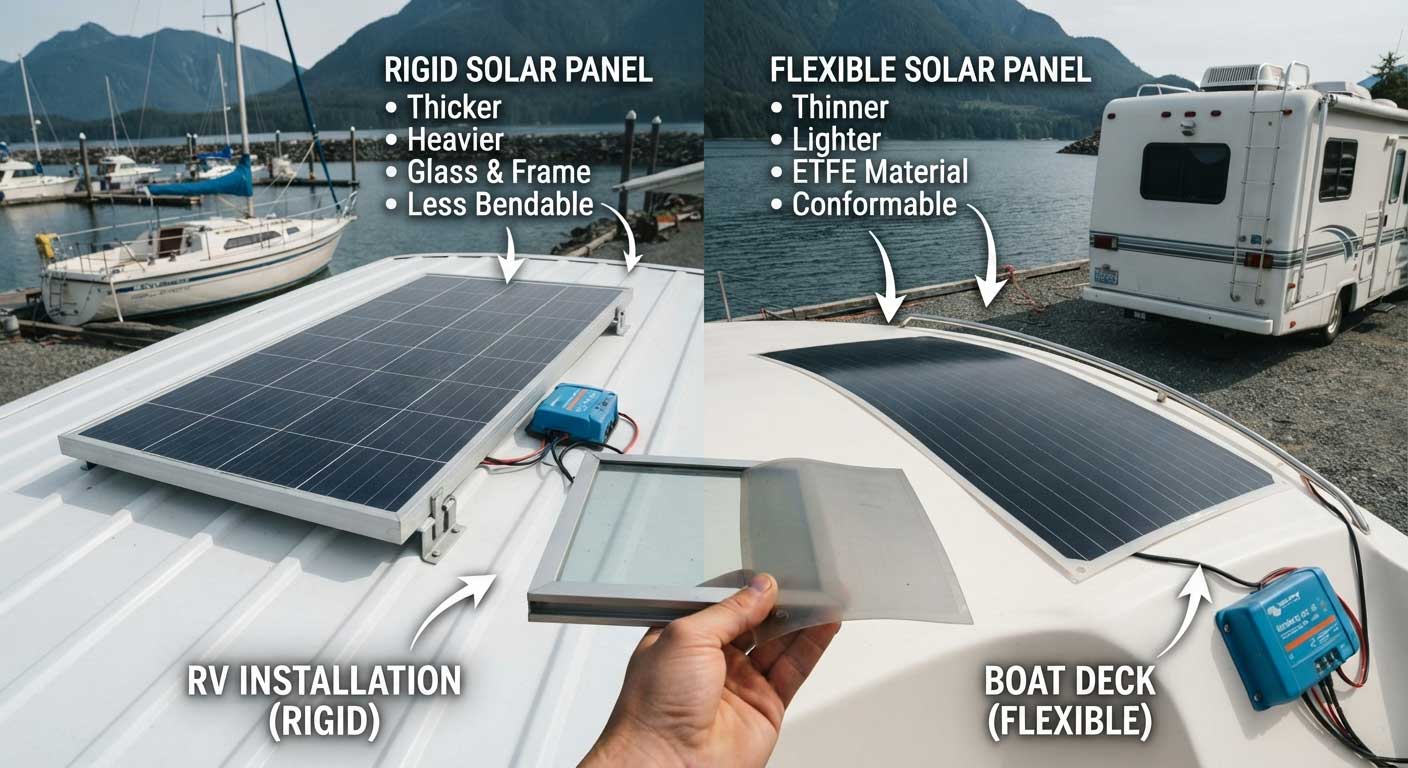

Rigid Solar Panels vs Flexible Solar Panels Weight

Which Solar Panel Type Is Lighter?

The difference between rigid and flexible panels is significant.

Traditional Rigid Solar Panels

Advantages:

• Higher structural strength
• Long outdoor durability
• Common rooftop application

Disadvantages:

• Heavier
• Require stronger mounting structures

Flexible Solar Panels

Advantages:

• Lightweight
• Easier transportation
• Suitable for curved surfaces
• Lower structural load

Disadvantages:

• Different installation requirements
• Application-specific design needed

Bright Solar flexible solar panels are designed for applications where reducing weight is important, such as RV roofs, marine equipment, and portable systems.

How Weight Affects Solar Installation

Choosing Panels for Different Applications

Different projects require different weight considerations.

Residential Roof Solar

Important factors:

• Roof structure
• Panel arrangement
• Local building requirements

RV Solar Systems

Weight becomes critical because:

• Vehicle payload is limited
• Roof space is restricted
• Fuel efficiency can be affected

Lightweight flexible panels are often preferred.

Marine Solar Applications

Marine installations require:

• Corrosion resistance
• Low weight
• Flexible mounting options

Real Installation Experience: Why Weight Is Not Just a Number

At Bright Solar, we have seen many customers compare solar panels only by watts per dollar. However, installation reality often changes the decision.

For example, an RV owner may prefer a lightweight flexible solar panel instead of a heavier glass panel because reducing roof load allows more practical installation space.

The best solar panel is not always the heaviest or highest-powered option. It is the one that matches the structure, environment, and energy requirements.

Average Solar System Size and Weight

How Much Does a Complete Solar System Weigh?

When homeowners ask how much do solar panels weigh, they are usually concerned about the total roof load rather than one individual module.

A complete solar system includes:

• Solar panels
• Mounting brackets
• Rails
• Wiring equipment
• Inverter components

For example:

A 6kW residential solar system may include around 15 panels.

If each panel weighs approximately 45 lbs:

15 × 45 lbs = 675 lbs

After adding mounting hardware, the total installation weight can increase further.

Most residential solar panels measure around 5.5 feet × 3 feet and weigh approximately 40–50 pounds, although exact specifications vary by manufacturer and model.

Average Solar System Size for Homes

How Many Solar Panels Does a House Need?

The average solar system size depends on:

• Home electricity usage
• Roof space
• Local sunlight conditions
• Energy goals

Common residential system sizes:

Home Solar System Size	Number of Panels (400W Example)	Approximate Panel Weight
3kW system	8 panels	320–400 lbs
5kW system	13 panels	520–650 lbs
8kW system	20 panels	800–1,000 lbs
10kW system	25 panels	1,000–1,250 lbs

These numbers only include panel weight and do not include mounting structures.

Can My Roof Support Solar Panels?

Understanding Roof Weight Capacity

Most modern residential roofs are designed to handle additional loads, but every building is different.

Before installation, professionals consider:

• Roof age
• Roof material
• Structural design
• Existing damage
• Local weather conditions

Important factors include:

Dead Load

The permanent weight added to the roof.

Examples:

• Solar modules
• Mounting systems
• Electrical equipment

Live Load

Temporary forces affecting the roof.

Examples:

• Snow accumulation
• Maintenance workers
• Wind pressure

A proper solar assessment checks both conditions.

Solar Panel Weight and Transportation

Why Weight Matters During Installation

Solar panel weight affects more than roof loading.

It also influences:

• Shipping costs
• Installation labor
• Handling safety
• Project efficiency

Large commercial panels may require multiple installers or lifting equipment.

For residential projects, a standard 40–50 pound panel can usually be handled by two people.

For portable applications, lighter solutions provide more flexibility.

Flexible Solar Panels: Lightweight Alternative

How Much Do Flexible Solar Panels Weigh?

Flexible solar panels are designed for situations where traditional glass panels are too heavy.

Typical flexible solar panel weights:

Flexible Panel Size	Approximate Weight
100W flexible panel	4–8 lbs
200W flexible panel	8–15 lbs
300W flexible panel	12–20 lbs
400W flexible panel	18–25 lbs

Flexible solar panels are commonly used for:

• RV roofs
• Boats
• Camping systems
• Portable power applications

At Bright Solar, we develop lightweight flexible solar solutions for applications where installation space and weight limitations are important.

Choosing Solar Panels Based on Weight

Weight Is Only One Part of Solar Panel Selection

A lighter solar panel is not always the best choice.

Buyers should consider:

Factor	Why It Matters
Weight	Determines installation requirements
Wattage	Determines electricity output
Dimensions	Determines available installation area
Durability	Affects long-term performance
Flexibility	Important for special surfaces

The ideal solar panel balances:

• Energy production
• Installation conditions
• Structural limitations
• Long-term reliability

FAQ About How much do solar panels weigh?

How much do solar panels weigh on average?

Most residential solar panels weigh between 40 and 50 pounds (18–23 kg). Larger commercial modules may weigh more depending on size and construction.

How big are solar panels?

A typical residential solar panel is approximately 65–72 inches long and around 39–44 inches wide. Dimensions vary depending on manufacturer and wattage.

How much does a solar panel weight in kilograms?

Most residential solar panels weigh around 18–23 kilograms. Commercial panels can exceed 30 kilograms.

Does solar panel size affect weight?

Yes. Larger panels usually contain more glass, solar cells, and framing materials, which increases weight.

Are flexible solar panels lighter than regular panels?

Yes. Flexible solar panels are significantly lighter because they use lightweight materials instead of traditional glass construction.

What is the average solar system size for a home?

Many residential systems range from 3kW to 10kW depending on electricity consumption and available roof space.

Do heavier solar panels produce more electricity?

Not always. Panel output depends on solar cell efficiency, design, and wattage rather than weight alone.

Expert Insight: Selecting the Right Solar Panel Weight

In real solar projects, weight is often overlooked until installation begins.

At Bright Solar, we have worked with customers who originally selected panels based only on power output. Later, they discovered that roof structure, transportation limits, or installation locations required a different solution.

For example:

A homeowner may choose a high-power rigid panel for a large roof, while an RV owner may benefit more from a lightweight flexible panel.

The correct solar panel is not simply the lightest or the most powerful. It is the one that fits the application.

Conclusion: How Much Do Solar Panels Weigh?

How much do solar panels weigh? Most residential solar panels weigh about 40–50 pounds, while flexible and portable solar panels can weigh significantly less.

Solar panel weight depends on size, materials, wattage, and technology. Understanding these factors helps homeowners and installers select suitable panels, design safer systems, and improve installation efficiency.

Whether planning a home solar system, RV setup, or off-grid project, choosing the right balance between weight and performance is essential.

Bright Solar continues to provide flexible solar solutions designed for real-world applications where efficiency, durability, and lightweight design matter.
