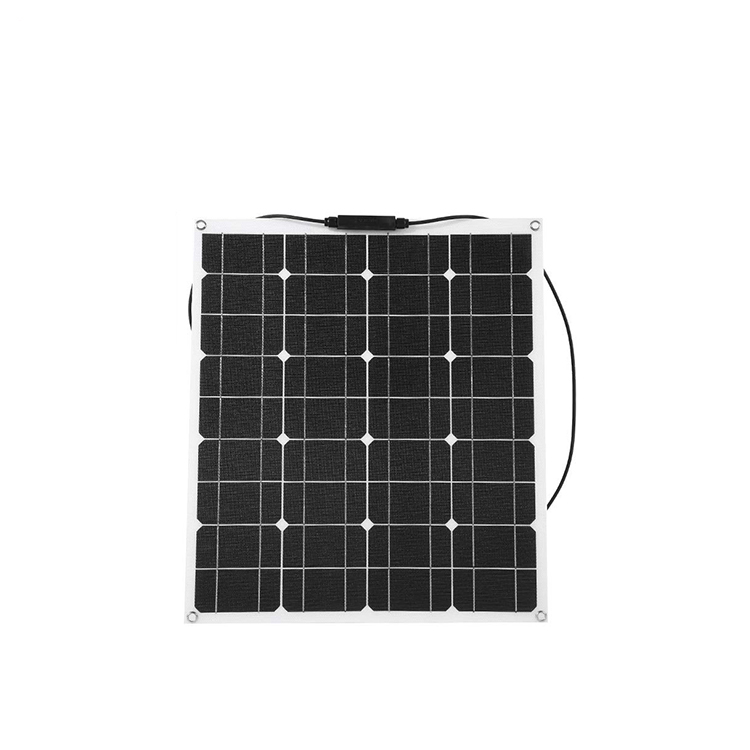

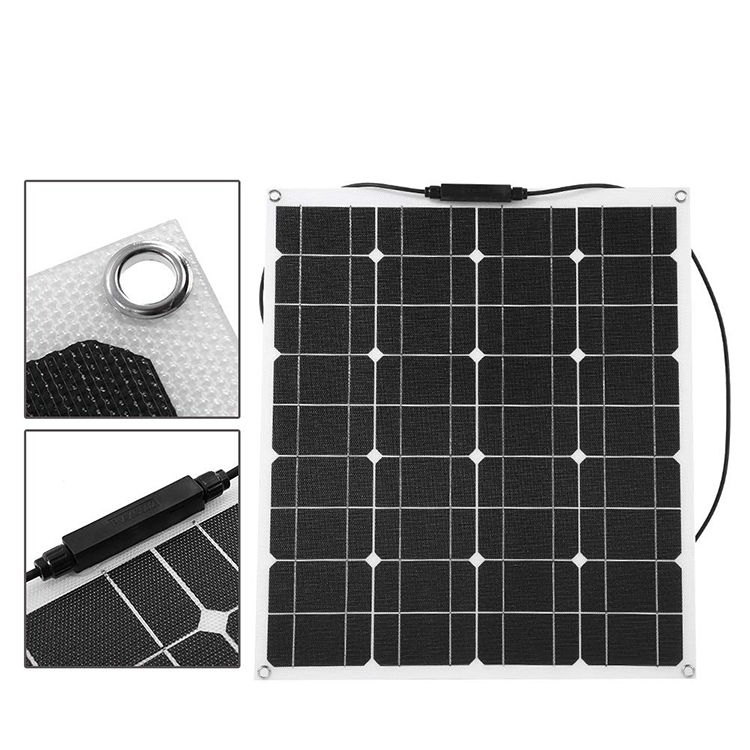

50W 18V Semi Flexible Solar Panel M-series

Power: 50W Voltage: 18V Color: White Size: 610*510*4mm Packing size: 620*520*40mm (1pcs in a box )

Share to:

Model Number:
Brand: Bright Solar
Max Power Pm(Wp):
Max Working Voltage (Vmp):
Solar Cell:
Product Dimension:
Cells Efficiency:
Warranty:

Specification Product Description Downloads

Max 35% Flexibility .

Aluminum /Stainless Steel Substrade .

Dupon ETFE Coating .

UV Resistance .

Lightweight and Durable .

Dispel high temperature quickly .

Stepped on in soft soled shoes .

Tamper-free screws or bonded directly to surface

Model	BS50-FA-M(E)	BS60-FA-M(E)	BS80-FA-M(E)	BS100-FA-M(E)	BS120-FA-M(E)	BS160-FA-M(E)	BS200-FA-M(E)
Power (Wp)	50W	60W	80W	100W	120W	160W	200w
Vpm(V)	18V/36V
Ipm(A)	2.78	3.33	4.44	5.56	6.67	8.89	11.11
Voc(V)	21.6V43.2V
Isc(A)	3	3.6	4.8	6	7.2	9.6	11.99
Size (mm)	6105104	7005104	7206654	11505104	10306654	13306654	15006654
Weight	1.5kg	1.8kg	2.1kg	2.6kg	3 kg	5.8kg	7.2kg
Cell	Mono crystalline
Efficiency	21%
Tolerance	0~+3%

Product information

Flexible solar panel M series.pdf Download
