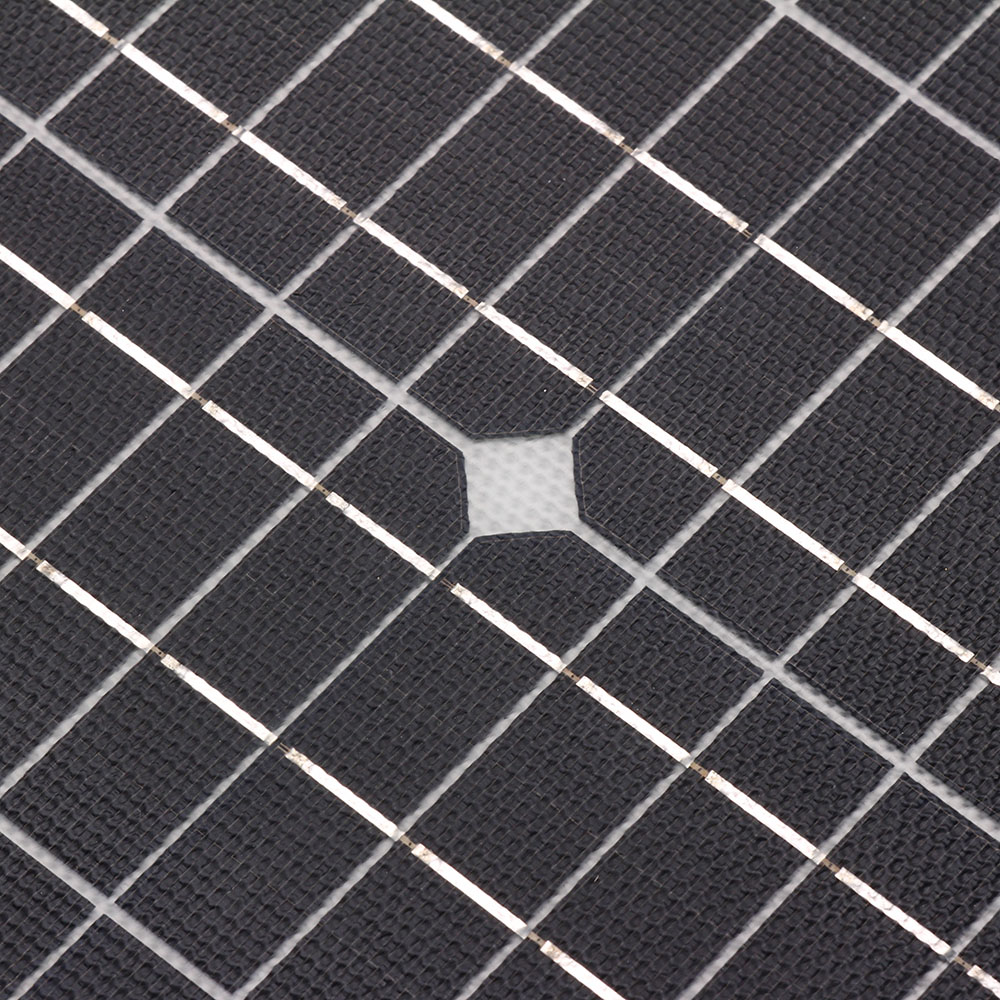

130W Semi Flexible Solar Panel-M Series

Applications For motor boats and sailing yachts For Lightweight roof, balcony For outdoor activities For industry, agriculture, shipping and building sectors.

Share to:

Model Number: BS130-FA-M(E)
Brand: Bright Solar
Max Power Pm(Wp): 130W
Max Working Voltage (Vmp): 20V
Solar Cell: 182*182mm/Mono
Product Dimension: 1167*582*4mm
Cells Efficiency: 22.5%
Warranty: 3 Year

Specification Product Description Downloads

Model Number	BS130-FA-M(E)
Max Power Pm(Wp)	130W
Max Working Voltage (Vmp)	20V
Max Operating Current(Ipm)	6.5A
Open Circuit Voltage (Voc)	25 V
Short Circuit Current (Isc)	7.9A
Product Size	11675824mm
Solar Cell	182*182mm/Mono
Efficiency	22.5%
Tolerance	0~+3%
Warranty	3 Year
Weight	3.87 KG

Features

10-15% Flexibility
Highly resistant and heat dissipation touch substrate back sheet
Medium Lighter weight
100% sea & salt water resistant
DuPont ETFE surface UV Resistance & reduce slip risks,100% maintenance-free, easy to install
0~3% tolerance output power
PERC solar cells or SunPower solar cell with highest performance,lP67 junction box cable output, sealed and fully waterproof.
Cable : 3m length cables or 2*1m with MC4 connectors.304 stainless steel eyelets for easy fixing and installation.Gule solution for installation.
Rounded corners +plastic cover for protection*Optional:blocking diode and bypass diode , avoid shadow.Anti-Hotpot design
3 years warranty power output

Product information

Flexible solar panel M series.pdf Download
