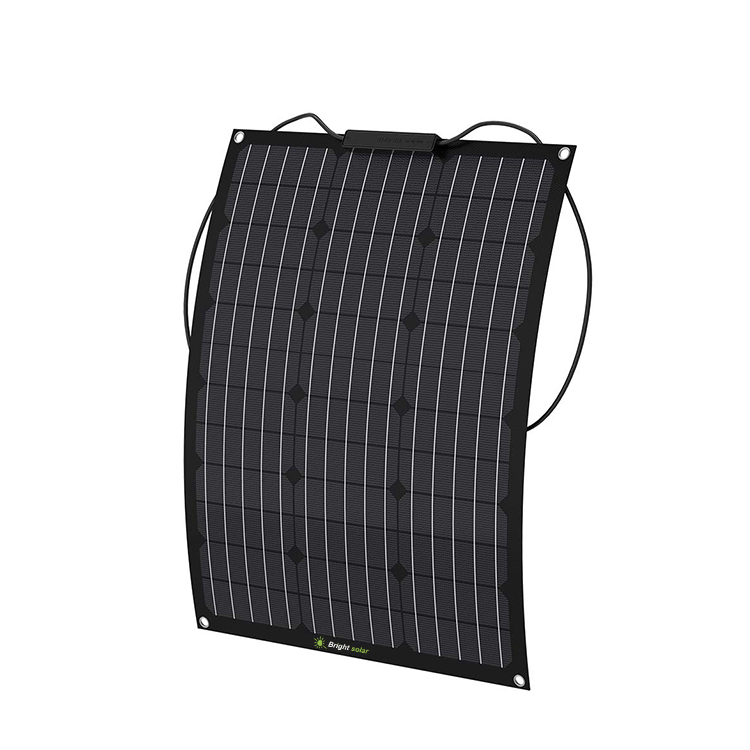

50W Flexible Solar Panel M-Series

Applications For motor boats and sailing yachts For Lightweight roof, balcony For outdoor activities For industry, agriculture, shipping and building sectors.

Share to:

Model Number: BS50-FA-M(E)
Brand: Bright Solar
Max Power Pm(Wp): 50W
Max Working Voltage (Vmp): 20V
Solar Cell: 166*166mm/Mono
Product Dimension: 572*532*4mm
Cells Efficiency: 22.5%
Warranty: 3 Year

Specification Product Description Downloads

Model Number	BS50-FA-M(E)
Max Power Pm(Wp)	50W
Max Working Voltage (Vmp)	20V
Max Operating Current(Ipm)	2.50A
Open Circuit Voltage (Voc)	25V
Short Circuit Current (Isc)	2.66A
Product Size	5725324mm
Solar Cell	166*166mm/Mono
Efficiency	22.5%
Tolerance	0~+3%
Warranty	3 Year
Weight	1.73 KG

Features

10-15% Flexibility
Highly resistant and heat dissipation touch substrate back sheet
Medium Lighter weight
100% sea & salt water resistant
DuPont ETFE surface UV Resistance & reduce slip risks,100% maintenance-free, easy to install
0~3% tolerance output power

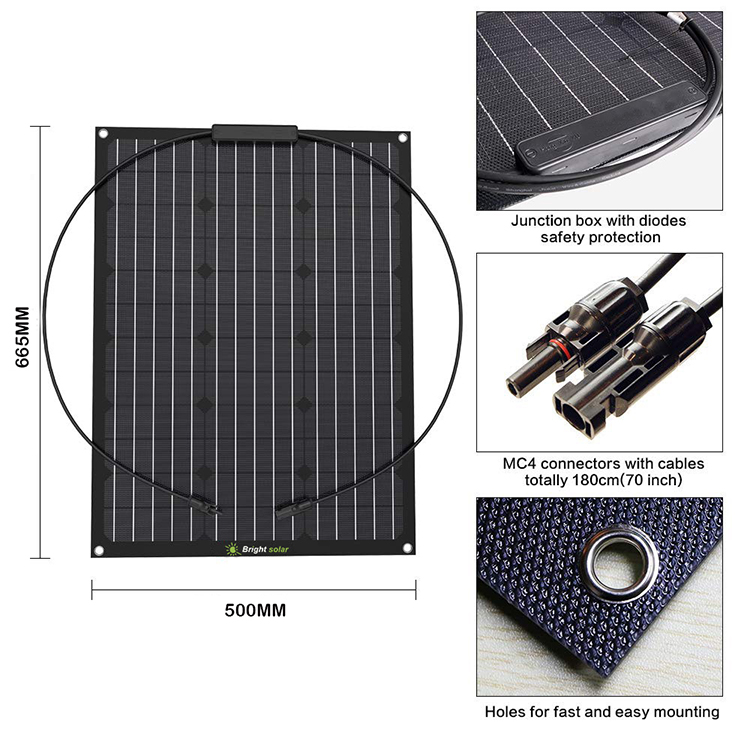

PERC solar cells or SunPower solar cell with highest performance,lP67 junction box cable output, sealed and fully waterproof.
Cable : 3m length cables or 2*1m with MC4 connectors.304 stainless steel eyelets for easy fixing and installation.Gule solution for installation.
Rounded corners +plastic cover for protection*Optional:blocking diode and bypass diode , avoid shadow.Anti-Hotpot design
3 years warranty power output

Product information

Flexible solar panel M series.pdf Download
