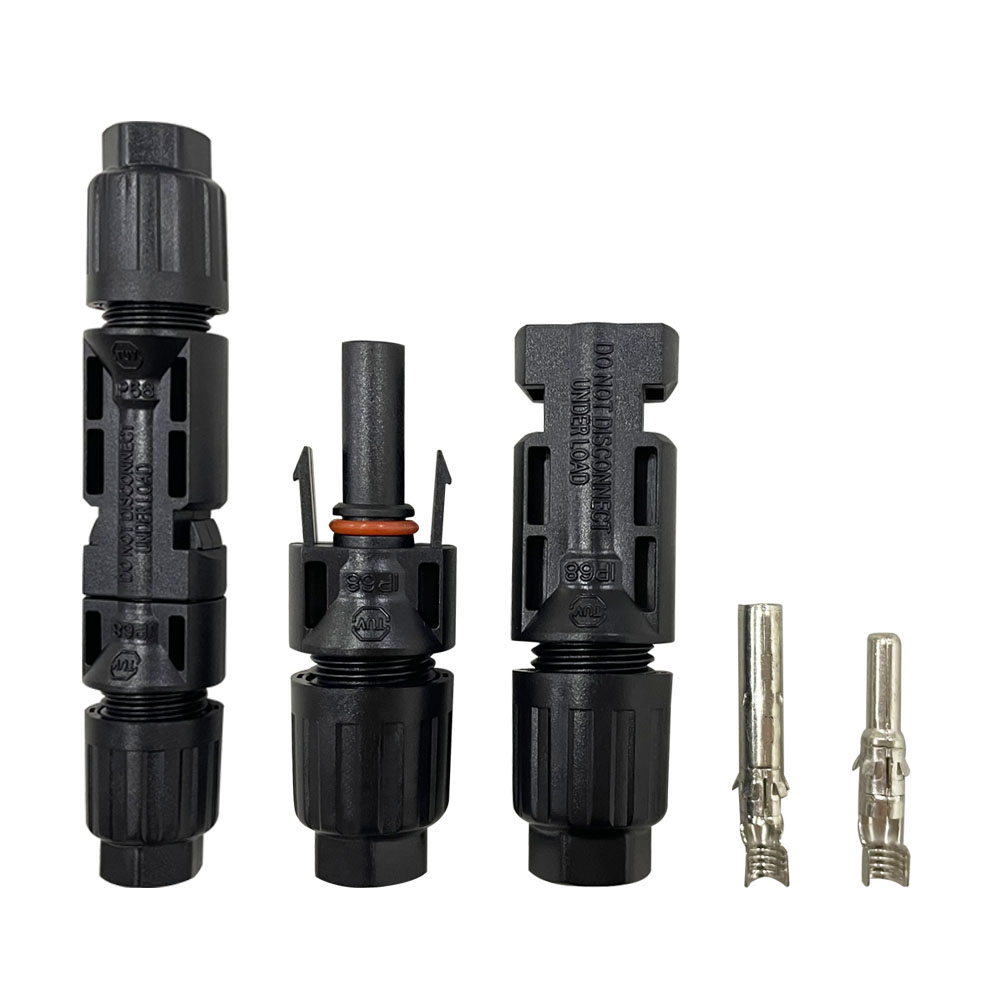

PV-MC(NEW) 1000V

Solar Panel Connector

Suitable for solar systems, featuring high conductivity, low energy loss, waterproofing, and weather resistance. It ensures quick and secure installation, effectively safeguarding the safe connection between solar panels and system components, thereby enhancing overall power generation efficiency and operational stability.

• Model NumberPV-MC(NEW)
• BrandBright Solar
• Rated voltage1000V
• Rated current1.5mm²:17A /2.5mm²:22.5A /4mm²~6mm²:30A
• Insulation materialPPO
• Conductor materialCopper tin-plated
• WaterproofIP68
• Security classDCII
• Connection systemMulti-point connection
• Ambient temperature-40℃~+95℃
• Product temperature-40℃~+135℃
• Wiring methodCrimping
• Flame retardant ratingUL94-VO
