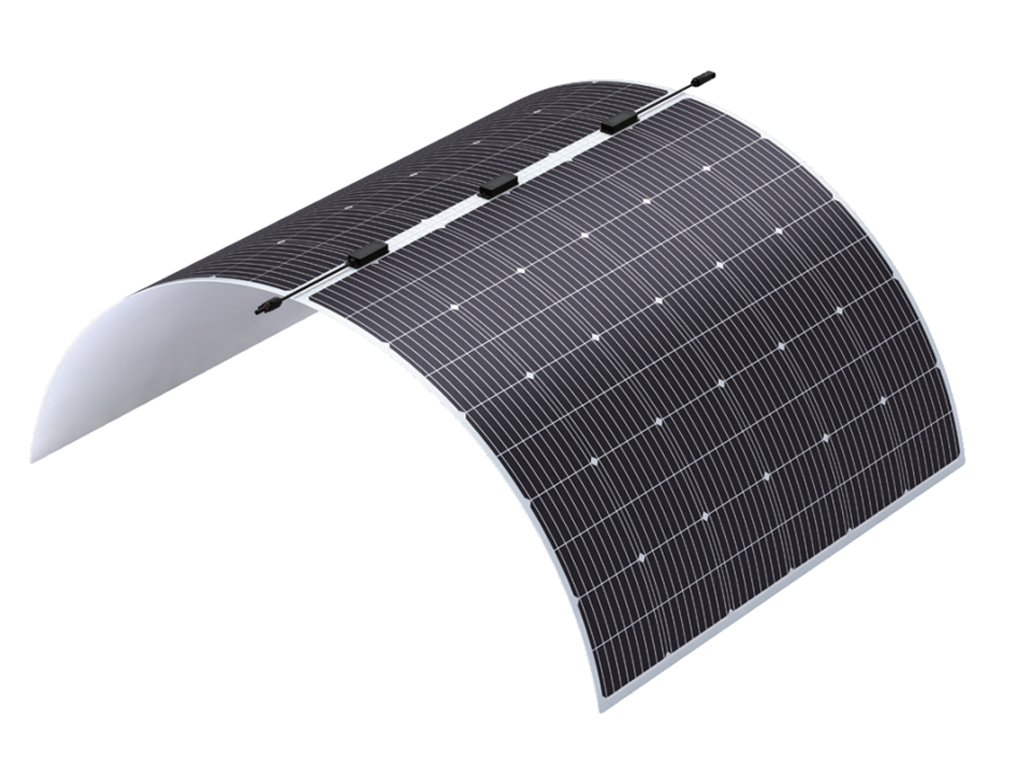

430W Super Lightweight Flexible Solar Panel

L series

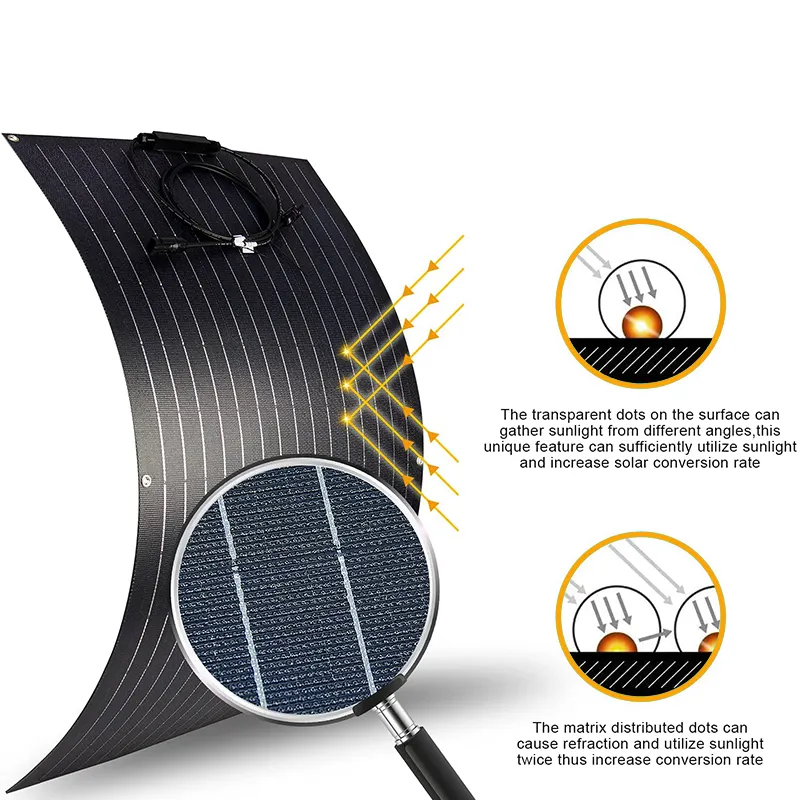

The 430W Lightweight Flexible Solar Panel is designed for users who need high power output without the weight and bulk of traditional glass modules. Using high-efficiency monocrystalline solar cells, this panel delivers stable 430W performance while remaining thin, lightweight, and easier to handle during installation and daily use.

Applications For Motor Boats and Sailing Yachts For Yachts, Electric Boats, Cruise Ships For Buoy, Lighthouse, Deck, Boat Roof, Boat Railing For Marine transportation industry, Marine application products

  • Model NumberBS430-FT-M(E)
  • BrandBright Solar
  • Max Working Voltage (Vmp)40V
  • Max Power Pm(Wp)430W
  • Solar Cell166*166mm/mono
  • Product Dimension2122*1037*2.9mm
  • Cells Efficiency22.5%

Online Procurement
Name*
Email Address*
TEL*
Company/Unit Name*
Quantity*
Content*
Submitting…
Submission Successful! We will arrange the connection shortly.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!
Email Our Team

BS430-FT-M(E) Solar Panel Specification

Electrical Specifications

  • Max Power Pm(Wp)430W
  • Max Working Voltage (Vmp)40V
  • Max Operating Current (Ipm)10.70A
  • Open Circuit Voltage (Voc)50V
  • Short Circuit Current (Isc)11.40A

Dimensions

  • Product Size2122*1037*2.9mm
  • Weight7.1 KG

Model & Warranty

  • Model NumberBS430-FT-M(E)
  • Product Name430W Flexible Solar Panel
  • Warranty3 Years

Solar Cell Performance

  • Cell Type166*166mm/MONO
  • Efficiency22.5%
