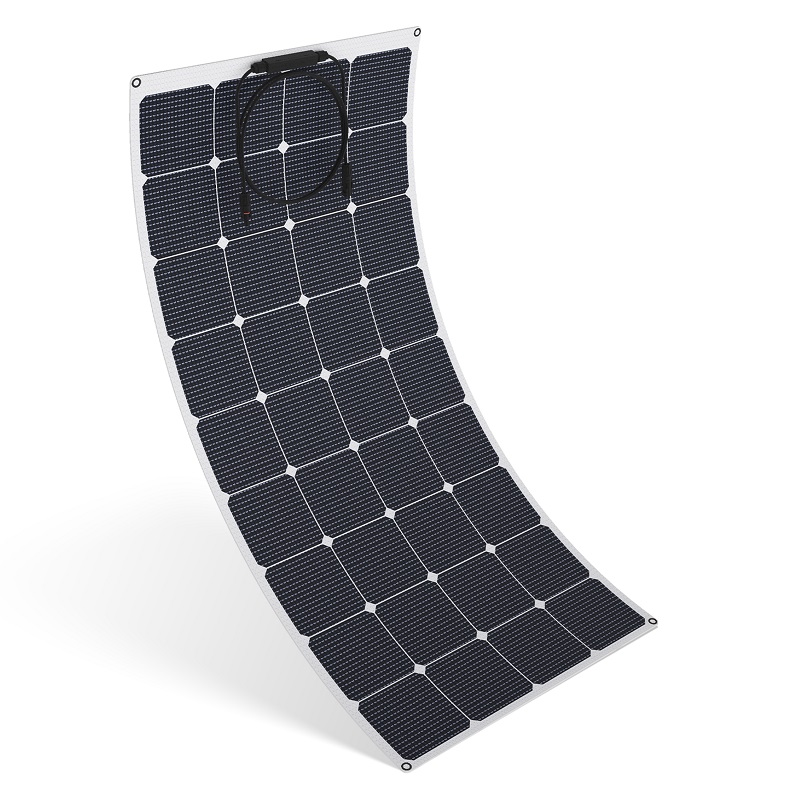

100W Super Lightweight Flexible Solar Panel

The 100W Lightweight Flexible Solar Panel is designed for users who need high power output without the weight and bulk of traditional glass modules. Using high-efficiency Sunpower solar cells, this panel delivers stable 100W performance while remaining thin, lightweight, and easier to handle during installation and daily use.

Applications For Motor Boats and Sailing Yachts For Yachts, Electric Boats, Cruise Ships For Buoy, Lighthouse, Deck, Boat Roof, Boat Railing For Marine transportation industry, Marine application products

  • Model NumberBS100-FT-S(E)
  • BrandeBright Solar
  • Max Power Pm(Wp)100W
  • Max Working Voltage (Vmp)20.00V
  • Solar Cell161*161mm/Sunpower
  • Product Dimension1055*520*3.1mm
  • Cells Efficiency24%

Online Procurement
Name*
Email Address*
TEL*
Company/Unit Name*
Quantity*
Content*
Submitting…
Submission Successful! We will arrange the connection shortly.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

BS100-FT-S(E) Solar Panel Specification

Electrical Specifications

  • Max Power Pm(Wp)100W
  • Max Working Voltage (Vmp)20.00V
  • Max Operating Current (Ipm)5.00A
  • Open Circuit Voltage (Voc)24.00V
  • Short Circuit Current (Isc)5.90A

Dimensions

  • Product Size1055*520*3.1mm
  • Weight1.8 KG

Model & Warranty

  • Model NumberBS100-FT-S(E)
  • BrandBright solar
  • Product Name100W Flexible Solar Panel
  • Warranty3 Years

Solar Cell Performance

  • Cell Type161*161mm/Sunpower
  • Efficiency24%

100W Flexible Solar Panel FQA

Flexible Solar Panel Frequently Asked Questions
What is a flexible solar panel?

A flexible solar panel is a lightweight, bendable solar module made with thin-film or ultra-thin crystalline solar cells. Unlike traditional glass panels, flexible panels can be mounted on curved or uneven surfaces such as RV roofs, boats, tents, and curved metal roofs.

How much can a flexible solar panel bend?

Most flexible solar panels can safely bend up to a certain radius (for example, around 10–30 degrees), depending on the design and material. They are flexible, not foldable. Over-bending or repeatedly bending the panel may damage the solar cells and reduce its lifespan.

What are the main advantages of flexible solar panels?

Flexible solar panels are lightweight, thin, easy to install, and suitable for curved or limited-space surfaces. They are ideal for RVs, yachts, campervans, tents, and off-grid mobile applications where weight and aerodynamics are important.

Are flexible solar panels as efficient as traditional rigid panels?

In general, flexible solar panels have slightly lower efficiency than high-quality rigid glass panels. However, for mobile and curved-surface applications, the flexibility and easy installation of flexible panels often outweigh the small efficiency difference.

How do I install a flexible solar panel?

Flexible solar panels can be installed using adhesive, mounting tapes, or mechanical fasteners depending on the surface. The surface should be clean, dry, and smooth. Good ventilation and correct wiring with a compatible solar charge controller are important for safety and long-term performance.

Are flexible solar panels durable and waterproof?

Most flexible solar panels are designed to be waterproof and weather-resistant, with protective layers such as ETFE or similar materials. However, they should not be walked on, sharply folded, or installed on extremely rough surfaces that may scratch or damage the laminate.

What is the typical lifespan of a flexible solar panel?

The lifespan of a flexible solar panel depends on the material, production quality, and installation environment. High-quality flexible panels can work for many years under normal use, but in harsh environments (high temperature, strong UV, salt spray), proper installation and regular inspection are important to extend service life.
