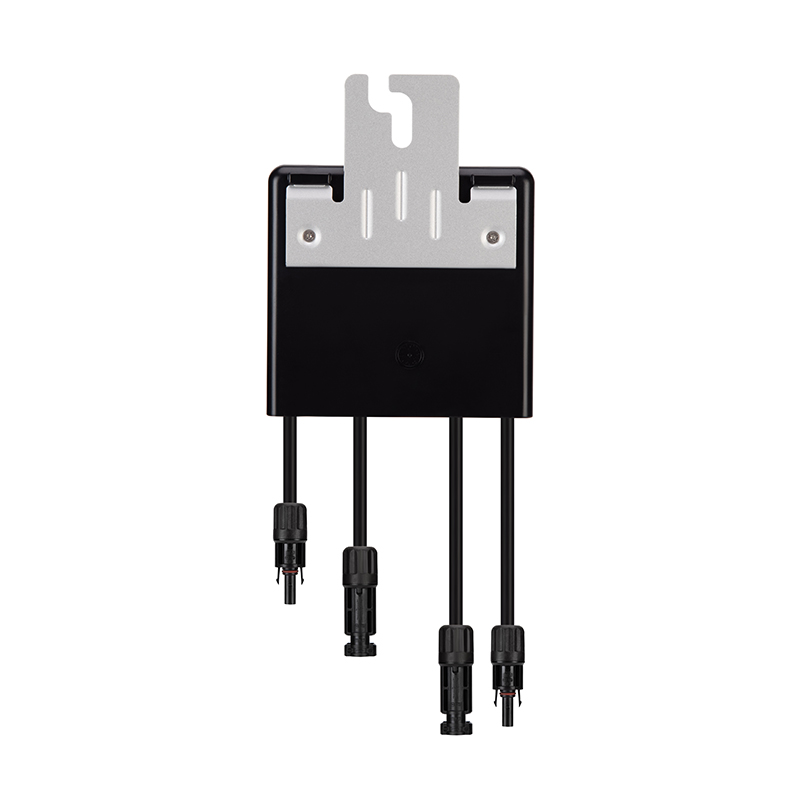

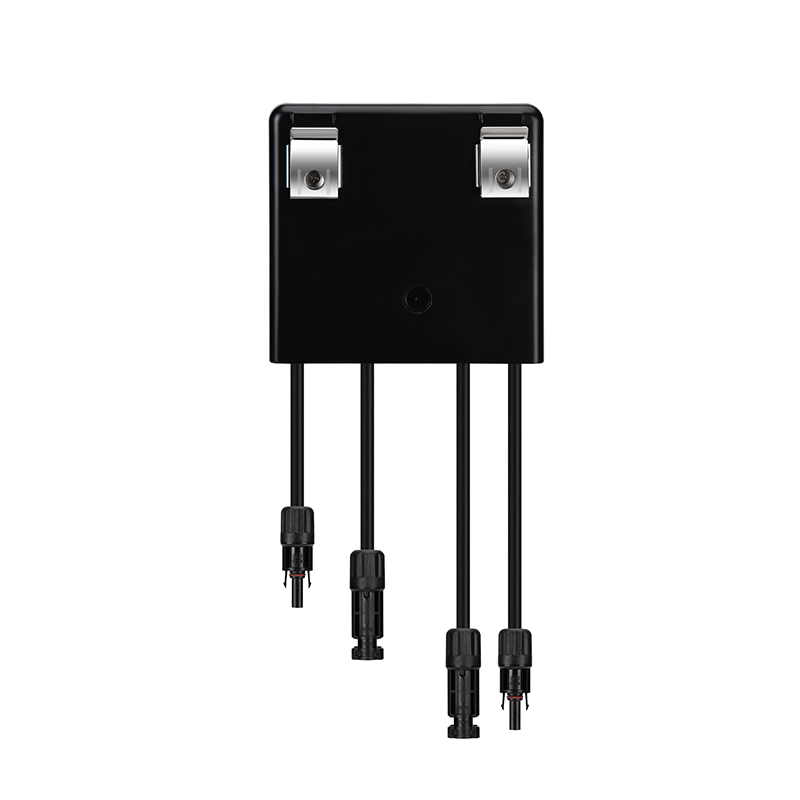

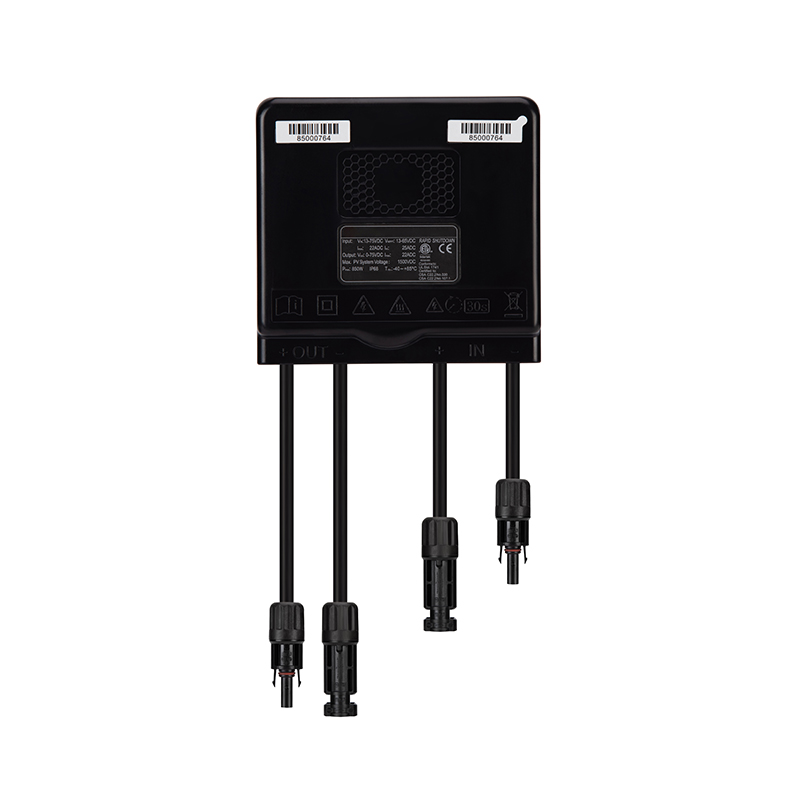

850W Solar panel optimizer

Solar panel optimizer

A small, powerful device installed at each solar panel, the optimizer acts as a dedicated manager for every module in your array. It continuously tracks and maximizes the power output of each individual panel, ensuring no energy is left behind..

• Model NumberBS-O850
• BrandBright Solar
• Maximum input power850W
• Maximum input voltage75VDC
• Operating voltage range12-75VDC
• MPPT voltage range12-65VDC
• Short-circuit current (lsc)25A
• Maximum input current22A
• Maximum output power650W
• Voltage range0-75VDC
• Maximum output current22A
• Maximum conversion efficiency99.5%
• Size118*111*25mm
• Weight740g
