Home » Product » Flexible Solar Panel » H Series » 120W Semi Flexible Solar Panel for boats marine-H series

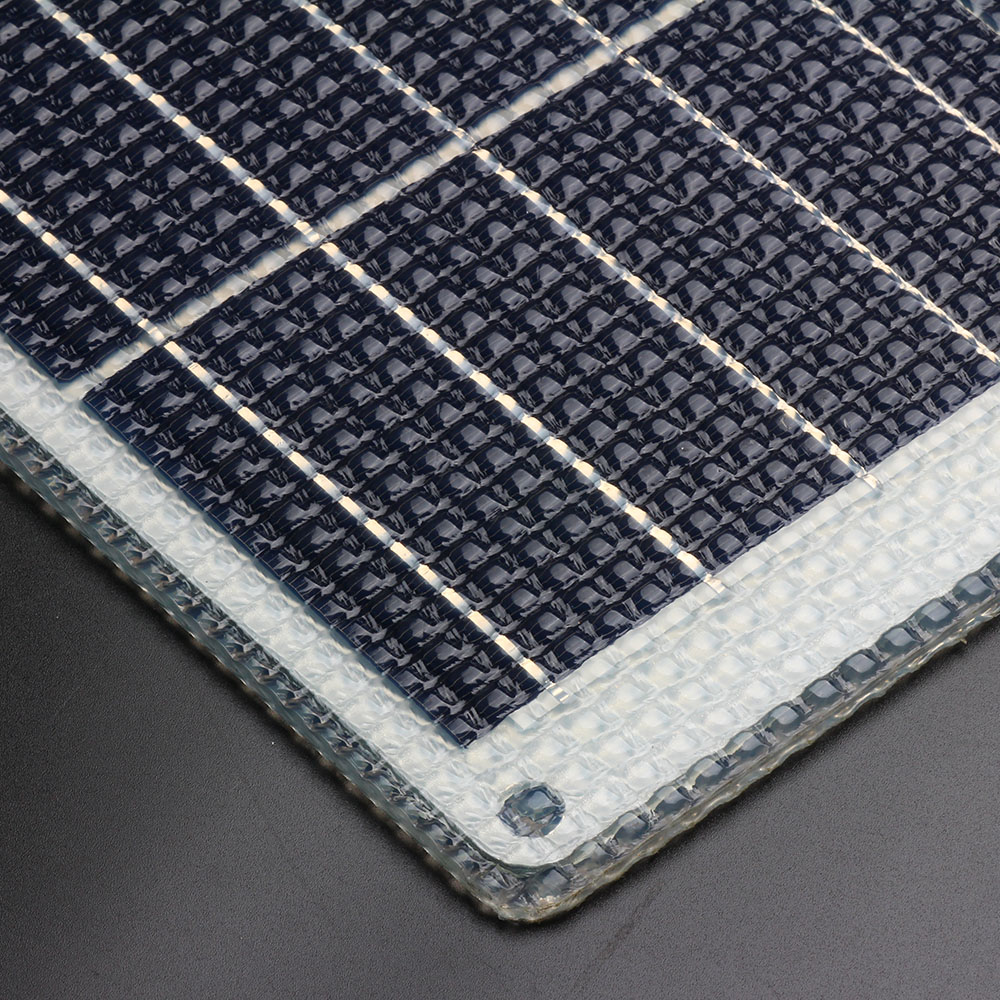

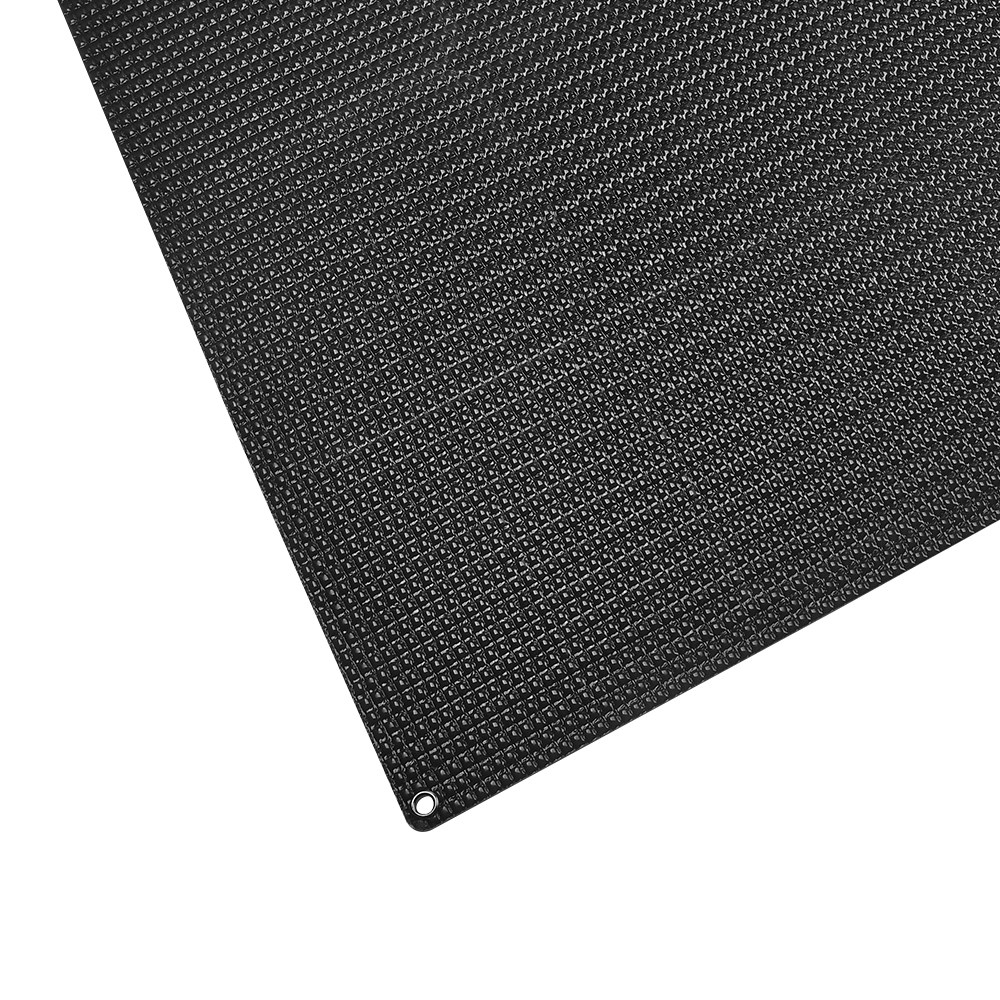

120W Semi Flexible Solar Panel for boats marine-H series

Applications For Motor Boats and Sailing Yachts For Yachts, Electric Boats, Cruise Ships For Buoy, Lighthouse, Deck, Boat Roof, Boat Railing For Marine transportation industry, Marine application products

Share to:

Model Number: BS120-FS-M(E)
Brand: Bright Solar
Max Power Pm(Wp): 120W
Max Working Voltage (Vmp): 21V
Solar Cell: 166*166mm/Mono
Product Dimension: 1550*770*4.3mm
Cells Efficiency: 22.5%
Warranty: 3Year

Specification Product Description Downloads

Model	BS120-FS-M(E)
Power	120W
Max Working Voltage (Vmp)	21V
Max Operating Current(Ipm)	5.71A
Open Circuit Voltage (Voc)	25.2V
Short Circuit Current (Isc)	6.17A
Product Size	15507704.3mm
Solar Cell	166*166mm/Mono
Efficiency	22.5%
Warranty	3Year

Features:

0-3% Flexibility
Mostly Robust construction, Rugged & Tough design
Can walk easily, Durable, Versatile
100% salt water resistant & maintenance-free, easy to install。Double encapsulated inside with DuPont ETFE surface
UV Resistance & reduce sslip risks
0~3% tolerance output power
PERC Mono solar cells or SunPower with highest performance*lP67 junction box cable output, sealed and fully waterproof*Cable
3m length cables or 2*1m with MC4 connectors304 stainless steel eyelets for easy fixing and installation Gule solution for installation
Rounded corners +plastic cover for protection
Optional:blocking diode and bypass diode , avoid shadow
Anti-Hotpot design
3 years warranty power output

Product information

Flexible solar panel H series.pdf Download
