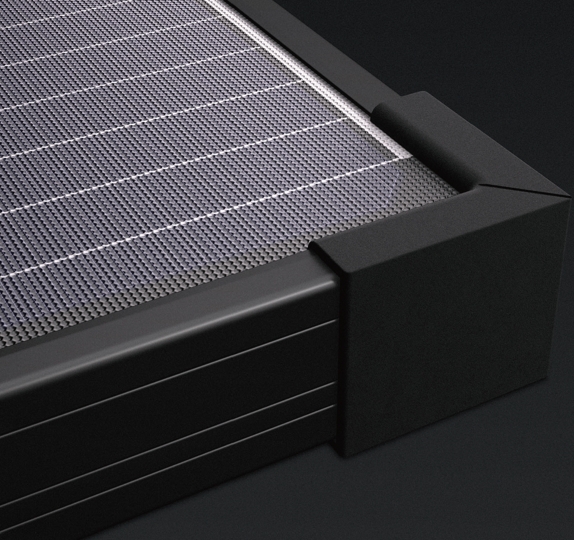

200W Non Glass Lightweight Solar Panel -Thick Frame Series

Applications:• For industry, agriculture, shipping and building sectors

Share to:

Model Number: BS200-FR-M(E)
Brand: Bright Solar
Max Power Pm(Wp): 200W
Max Working Voltage (Vmp): 20.00V
Solar Cell: 166*166mm/Mono
Product Dimension: 1062*1040*35mm
Cells Efficiency: 22.5%
Warranty: 3 year

Specification Product Description Downloads

Model Number	BS200-FR-M(E)
Power	200W
Max Working Voltage (Vmp)	20.00V
Max Operating Current(Ipm)	10.00A
Open Circuit Voltage (Voc)	25.00V
Short Circuit Current (Isc)	10.60A
Product Size	1062104035mm
Solar Cell	166*166mm/Mono
Efficiency	22.5%
Tolerance	+3%
Warranty	3 year
Weight	6.5 KG
