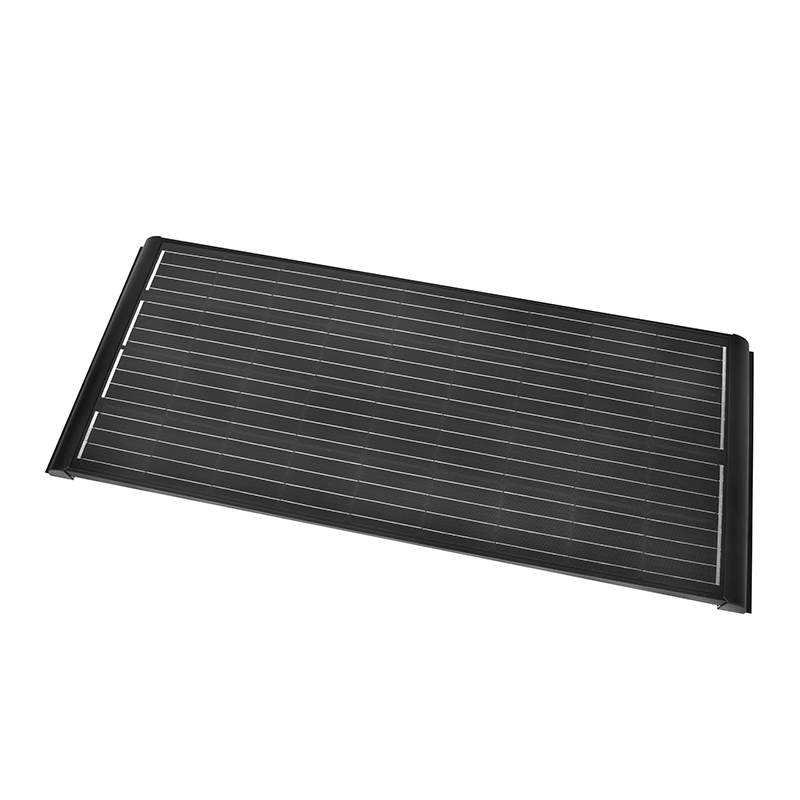

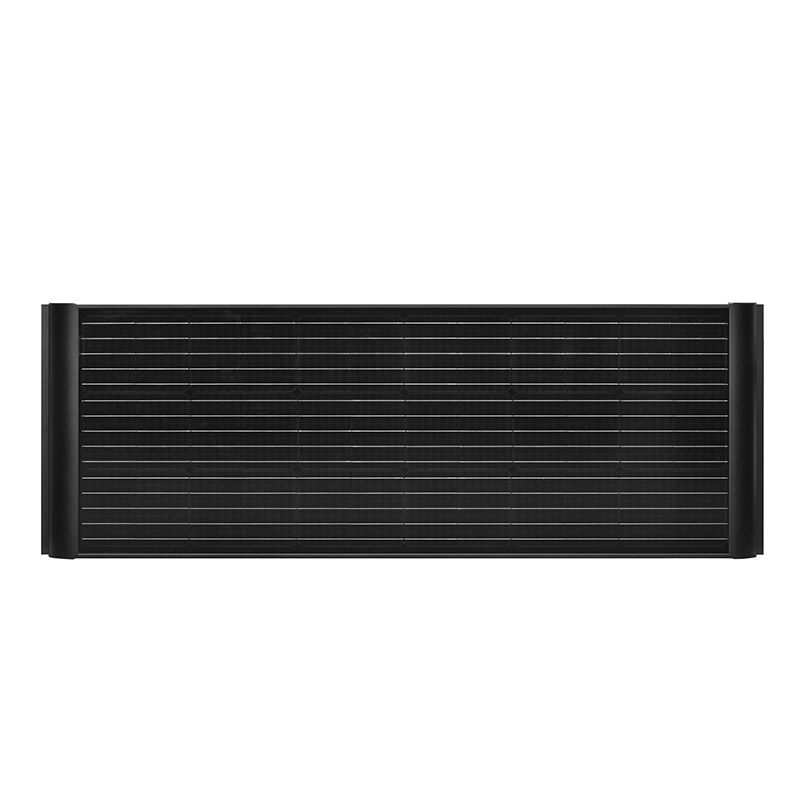

120w RV Glass Solar Panel with Aluminum spoilers bracket

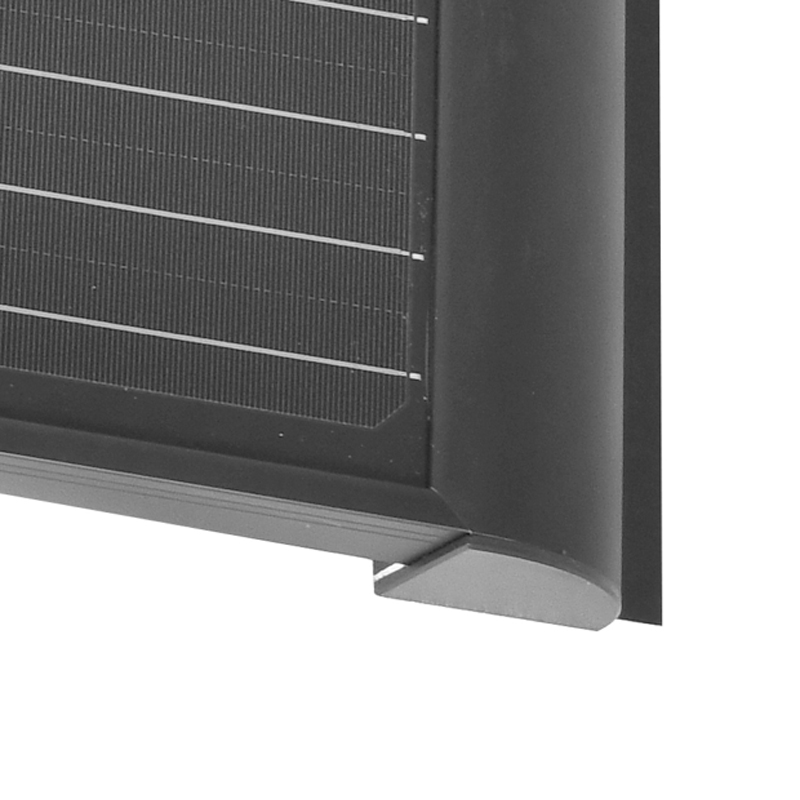

Features: ·Streamline aluminum design reducing wind resistance and safety hazards ·Special design tread with stronger grip ·Special aluminum-plastic Profile can be carved with unique logo ·10 Years workmanship and materials warranty ·OEM & ODM is supported
Share to:
  • Model Number: BS120M-RV
  • Brand: Bright Solar
  • Max Power Pm(Wp): 120W
  • Max Working Voltage (Vmp): 18V
  • Solar Cell: Mono
  • Product Dimension: 1290*570*60mm
  • Cells Efficiency: 22.5%
  • Warranty:
contact us
Specification Product Description Downloads
Model BS120M-RV
Power 120W
Max Working Voltage (Vmp) 18V
Max Operating Current(Ipm) 6.66A
Open Circuit Voltage (Voc) 21.6V
Short Circuit Current (Isc) 7.20A
Product Size 1290*570*60mm
Weight 10.31Kg
Solar Cell Mono
Efficiency 22.5%
Tolerance 0~+3%

Bright Solar offers solar modules customized for recreational vehicles(RV),designed
to meet your electric power demands when you are on the read.Features space and
energy-efficient RV Modules that are designed with full consideration of the load-bearing,
electrical energy and installation requirements of recreational vehicles.
Our RV modules provide safe electric power at minimal wind resistance and marginal
damage to the RV roof structure damage to the RV roof
